- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution
- 2218.207F-ACOT-36
- 14W
- 1019 lm
-
FARFALLA

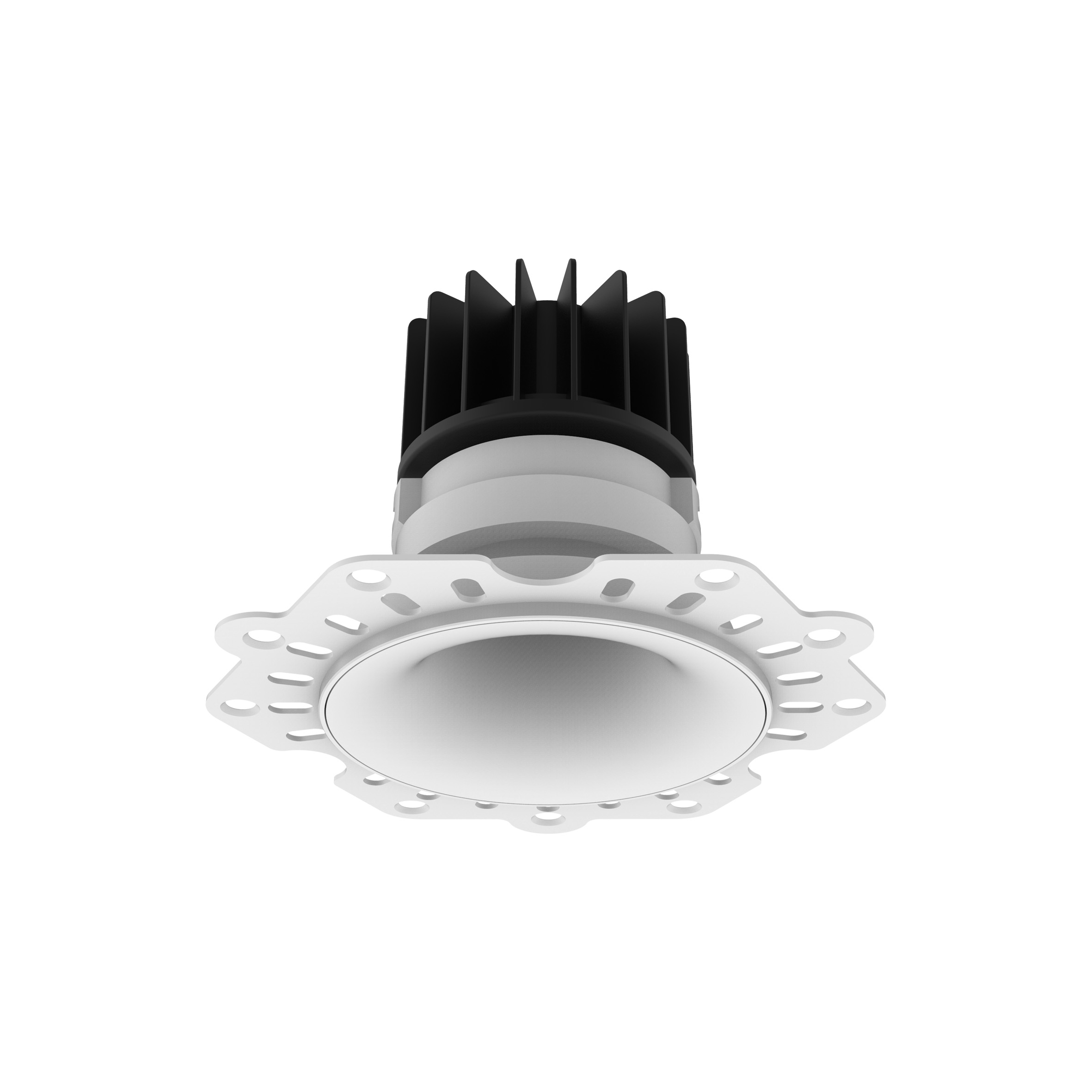

ITEM NO. 2218.207F-ACOT-36
Consumption14W
Current / Voltage350mA
LED Lumen1019 lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

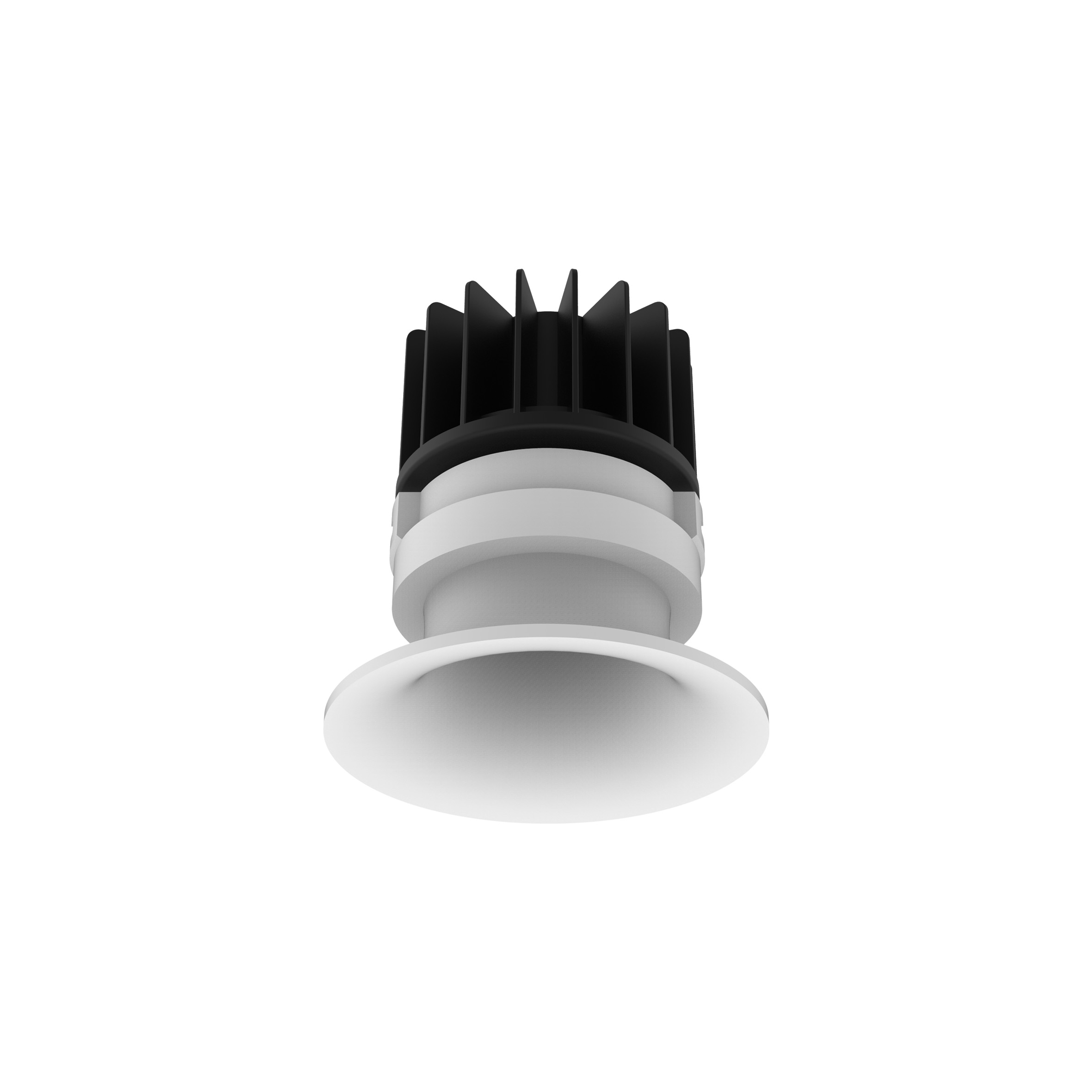

- 2218.207-ACOT-36
- 14W
- 1019 lm
-
FARFALLA
ITEM NO. 2218.207-ACOT-36
Consumption14W
Current / Voltage350mA
LED Lumen1019 lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
E-catalogue

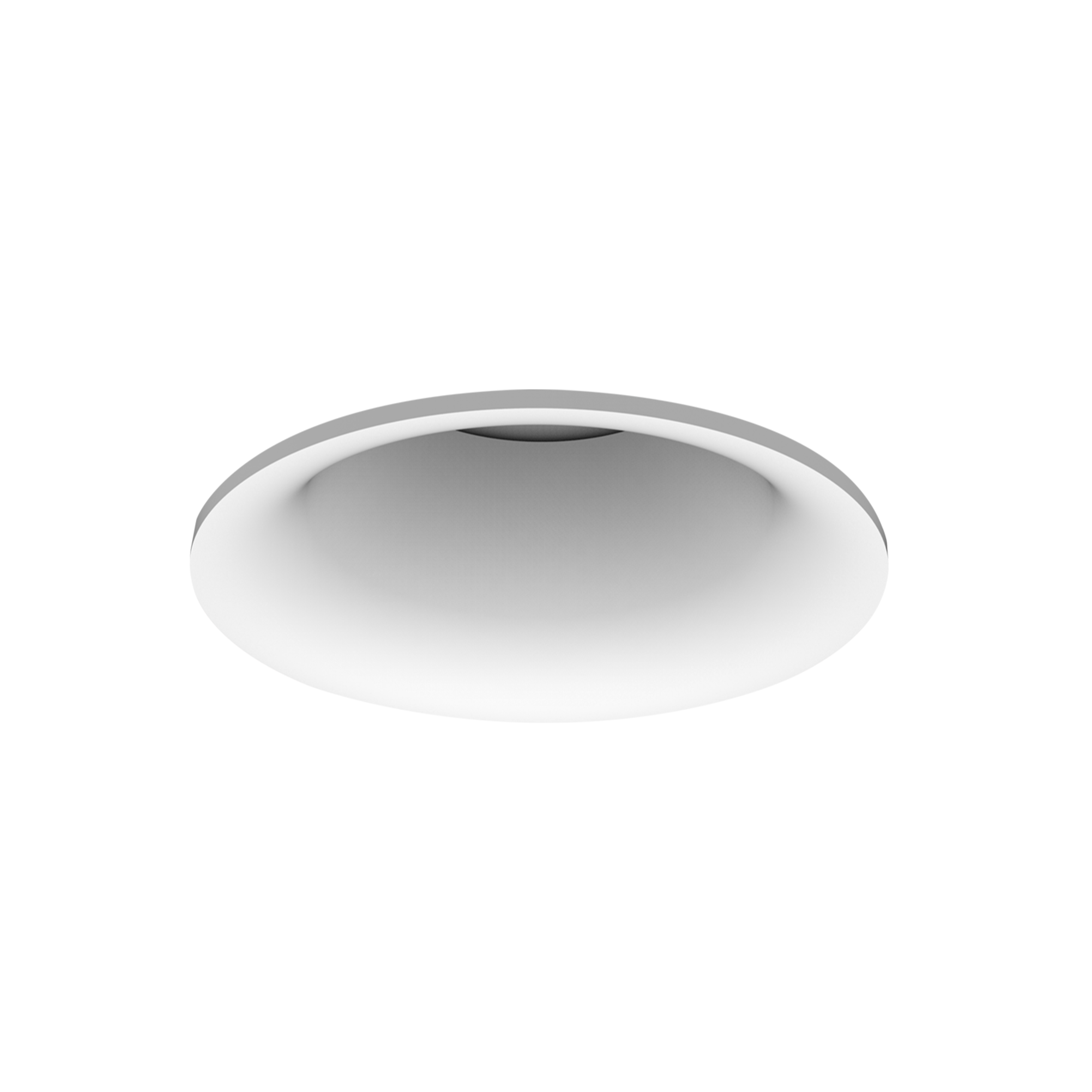

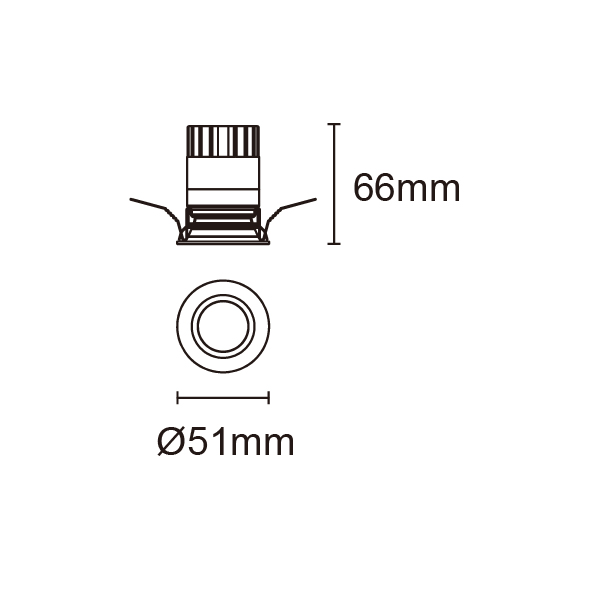

- 2318.203-ACOT-96
- 17W
- 656lm
-

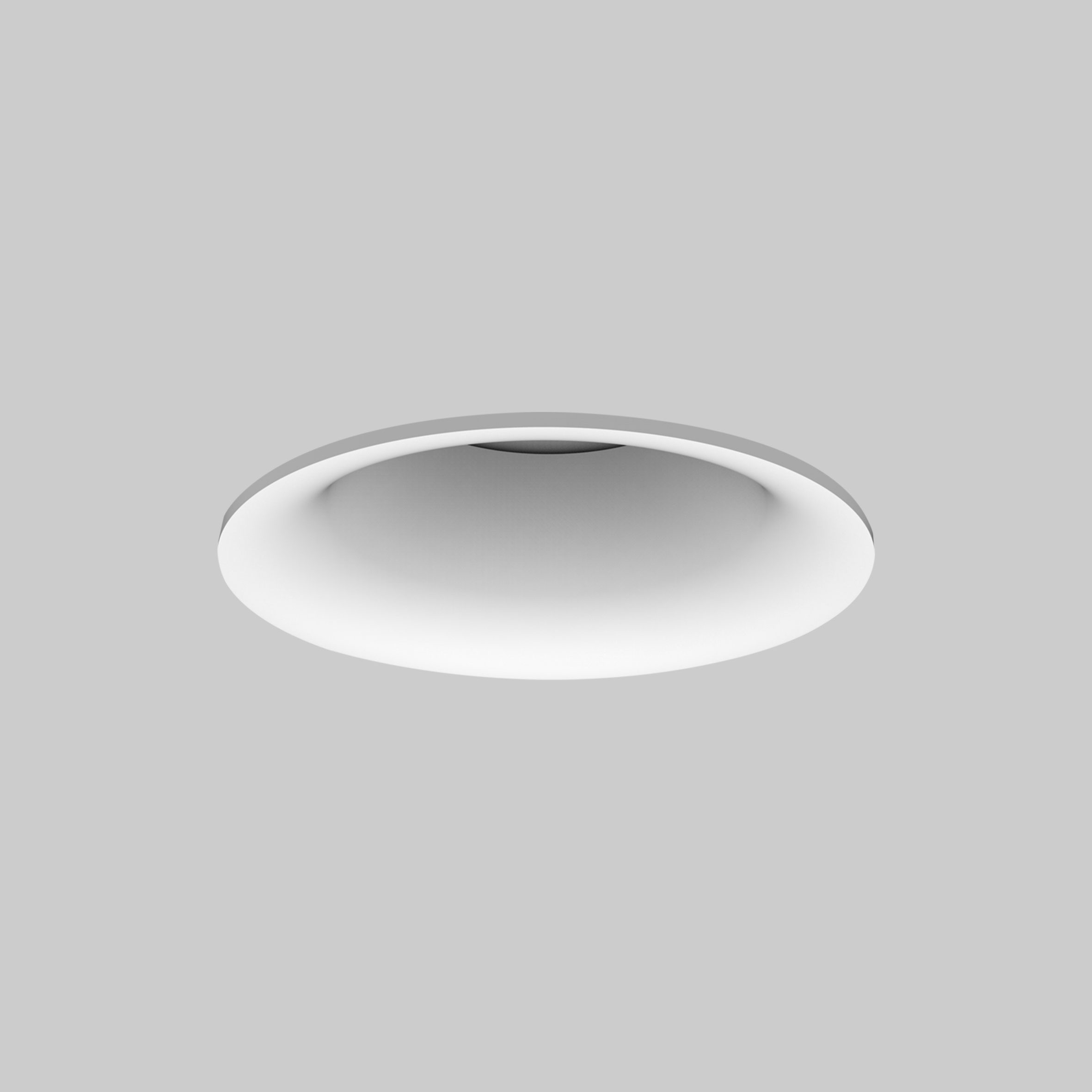

FARFALLA-50

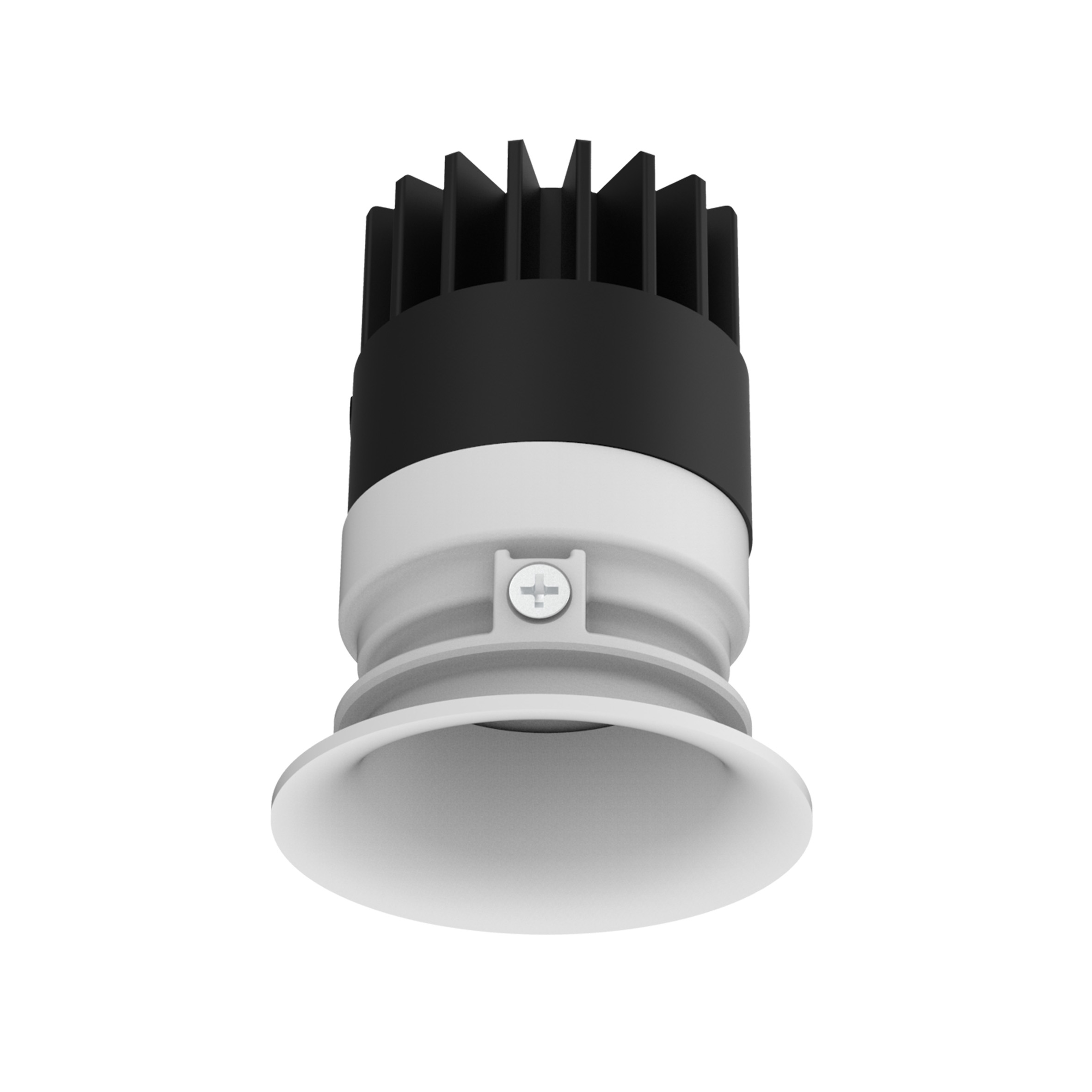

ITEM NO. 2318.203-ACOT-96
Consumption17W
Current / Voltage350mA
LED Lumen656lm
Beam Angle 20°/25°/40°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

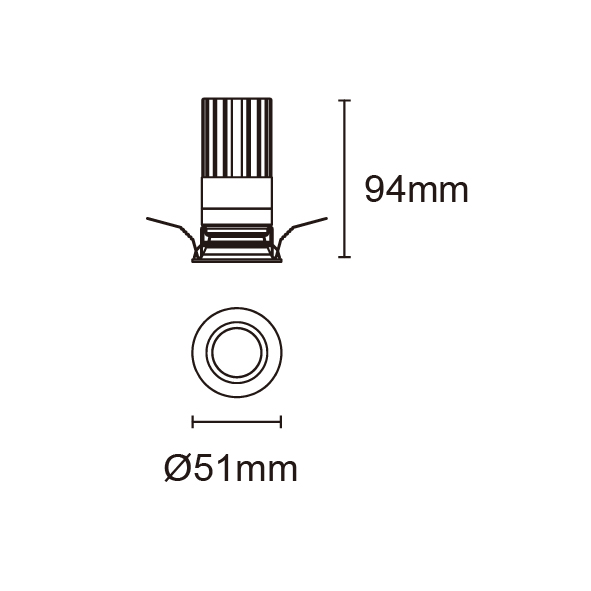

- 2318.203-LEE-18
- 16W
- 774lm
-
FARFALLA-50
ITEM NO. 2318.203-LEE-18
Consumption16W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 12°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.203-ACOT-97
- 25W
- 913lm
-
FRAFALLA-50

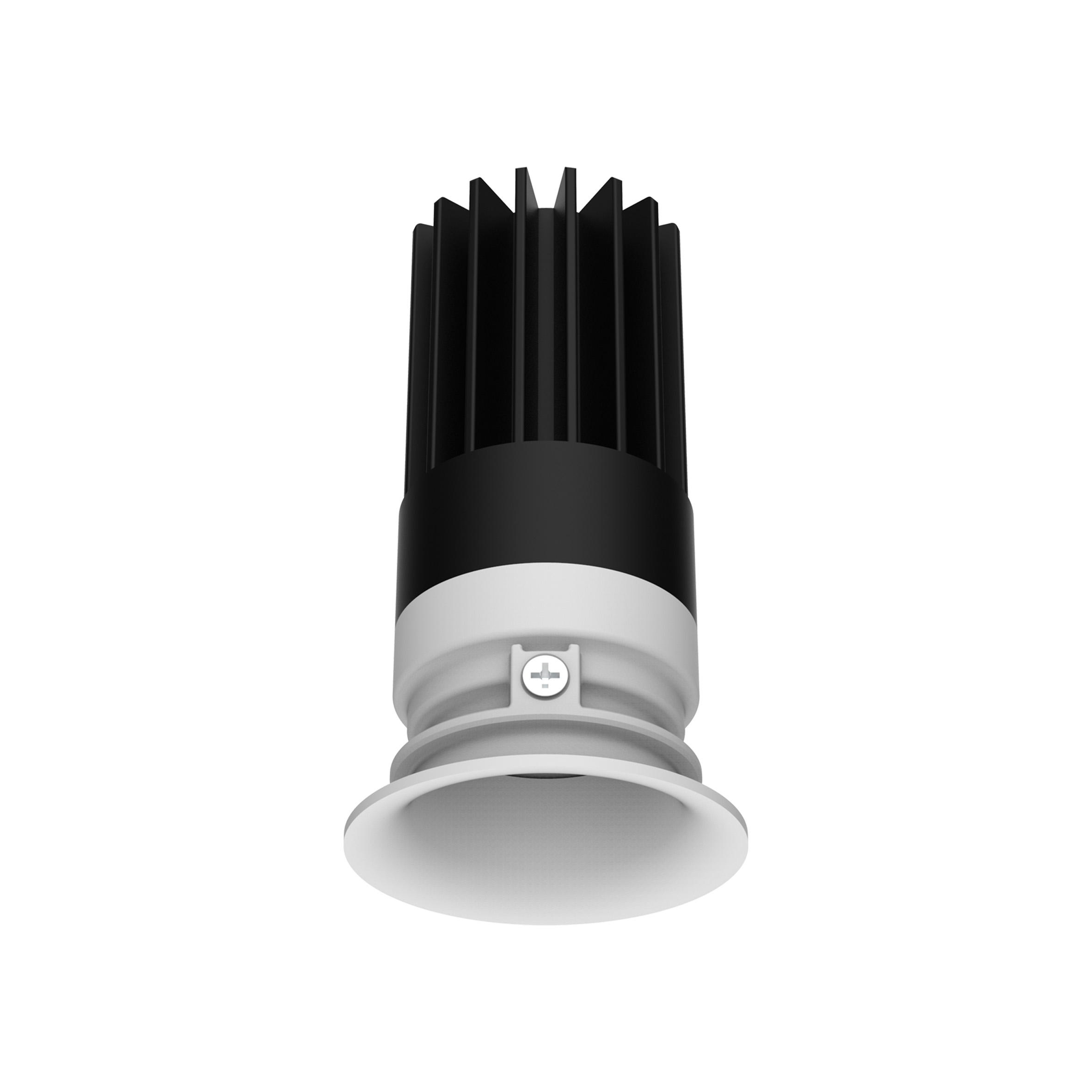

ITEM NO. 2318.203-ACOT-97
Consumption25W
Current / Voltage250mA
LED Lumen913lm
Beam Angle 20°/25°/40°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.203-ACOT-97-DW
- 22W
- 14-611lm
-
FARFALLA-50
ITEM NO. 2318.203-ACOT-97-DW
Consumption22W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/40°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.203-ACOT-97-WCW
- 22W
- 740-951lm
-
FARFALLA-50
ITEM NO. 2318.203-ACOT-97-WCW
Consumption22W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/40°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

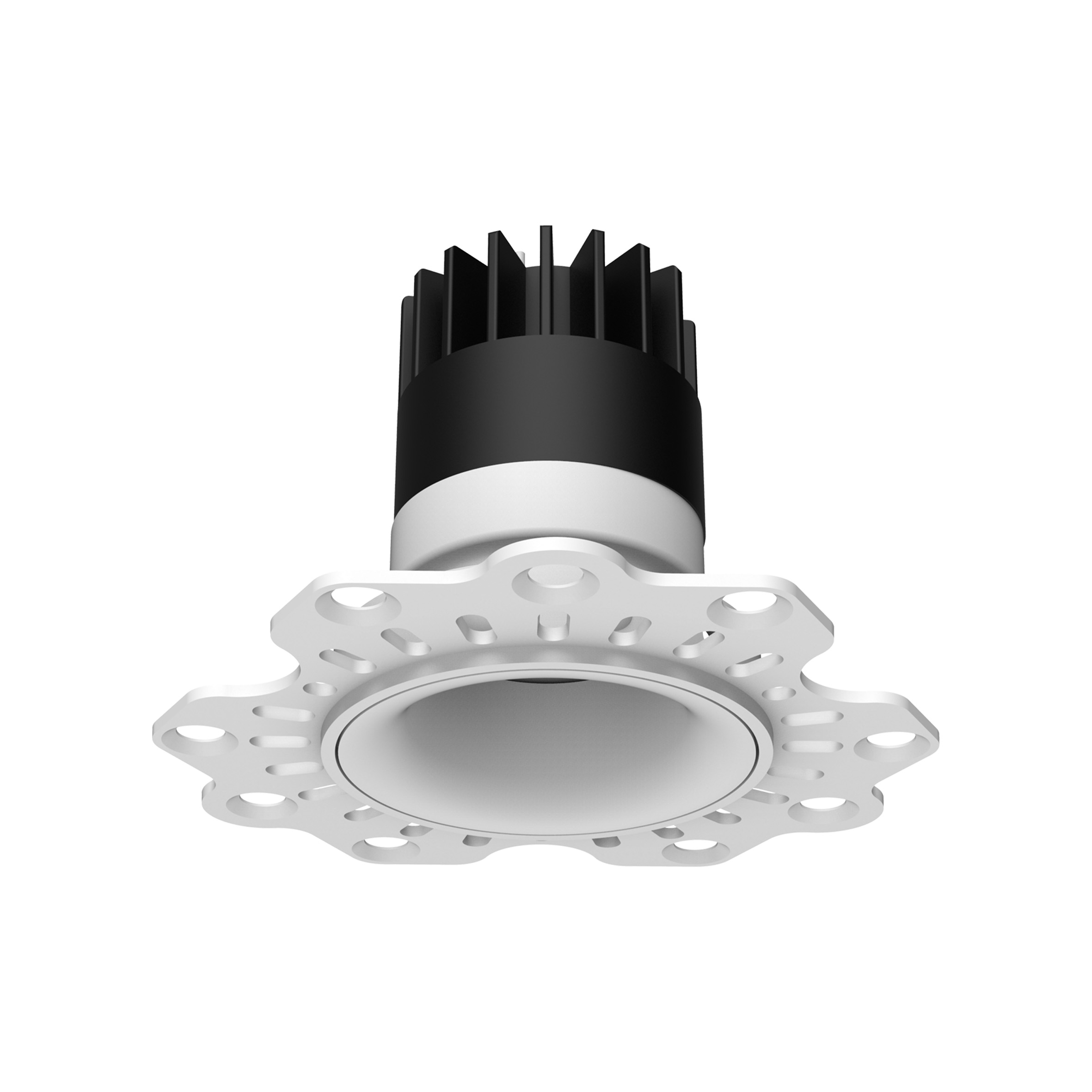

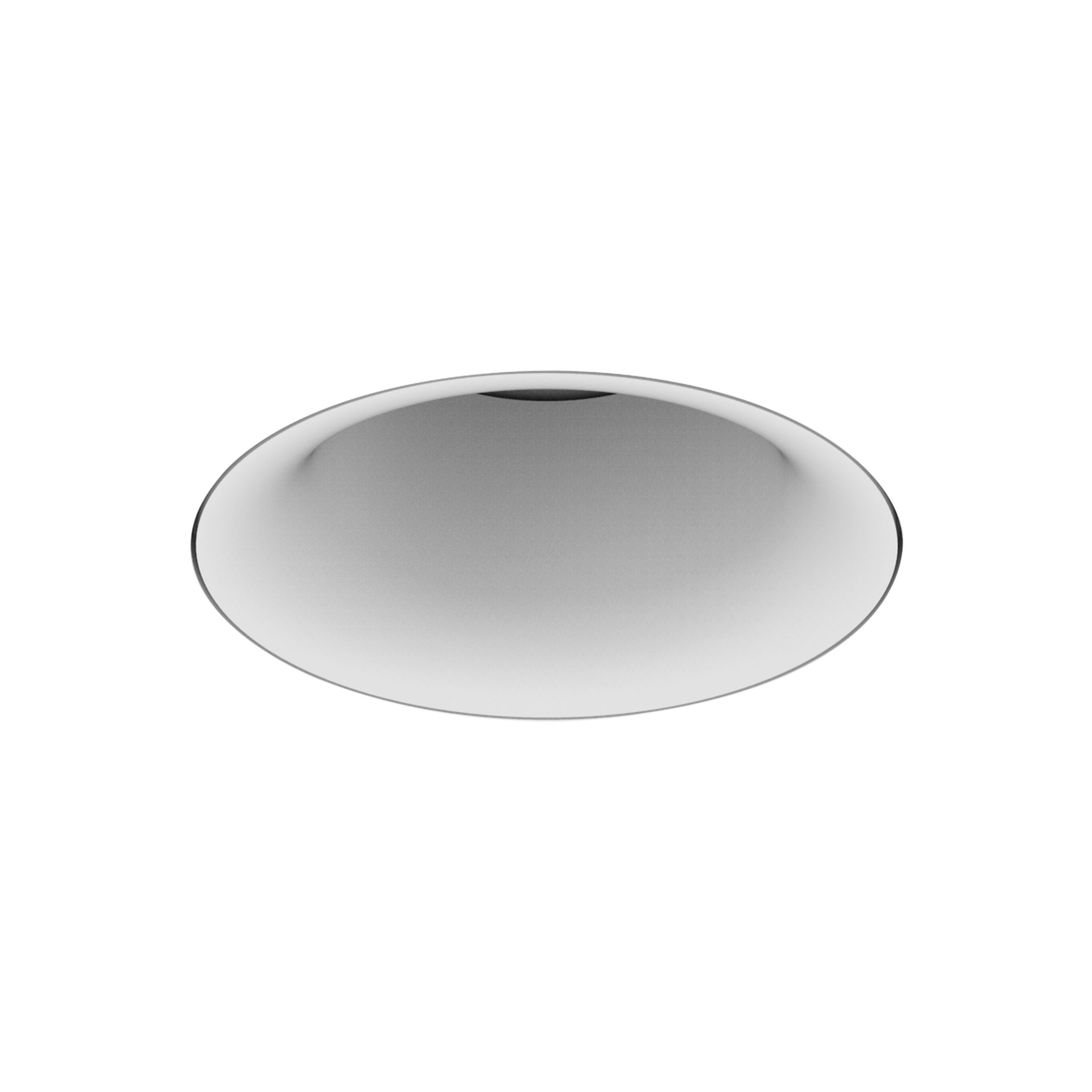

- 2318.203F-ACOT-96
- 7W
- 656lm
-

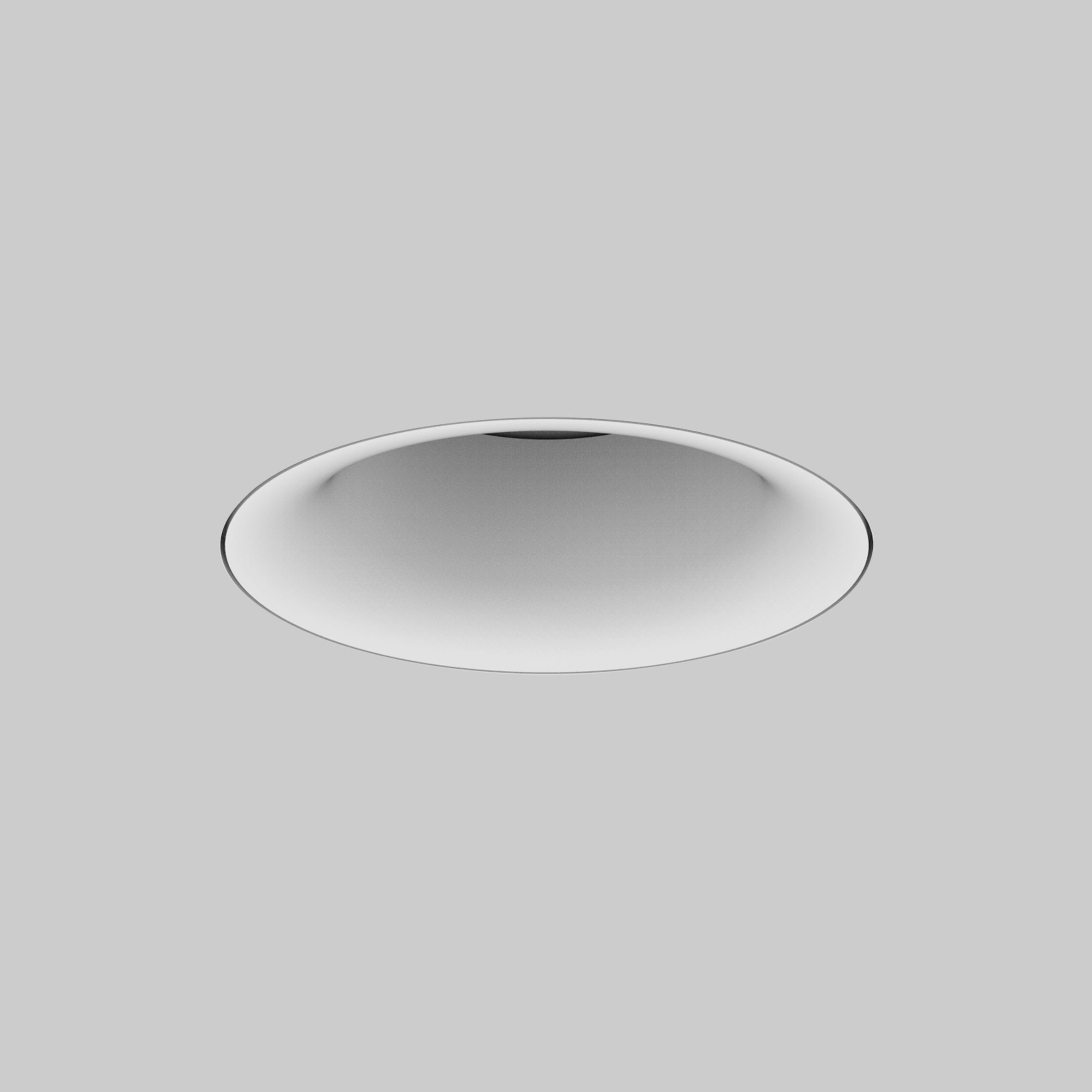

FARFALLA-50

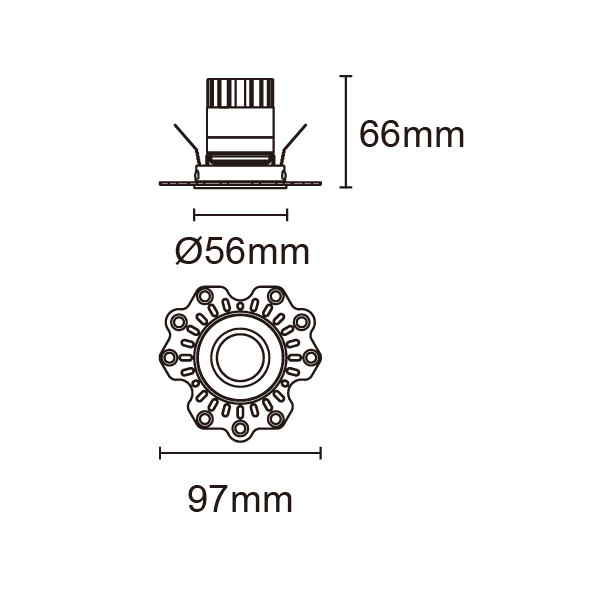

ITEM NO. 2318.203F-ACOT-96
Consumption7W
Current / Voltage350mA
LED Lumen656lm
Beam Angle 20°/25°/40°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

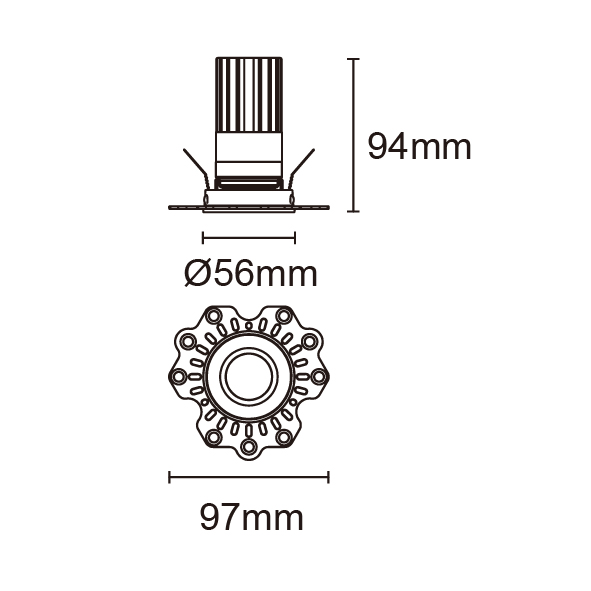

- 2318.203F-LEE-18
- 10W
- 774lm
-
FARFALLA-50
ITEM NO. 2318.203F-LEE-18
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 12°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

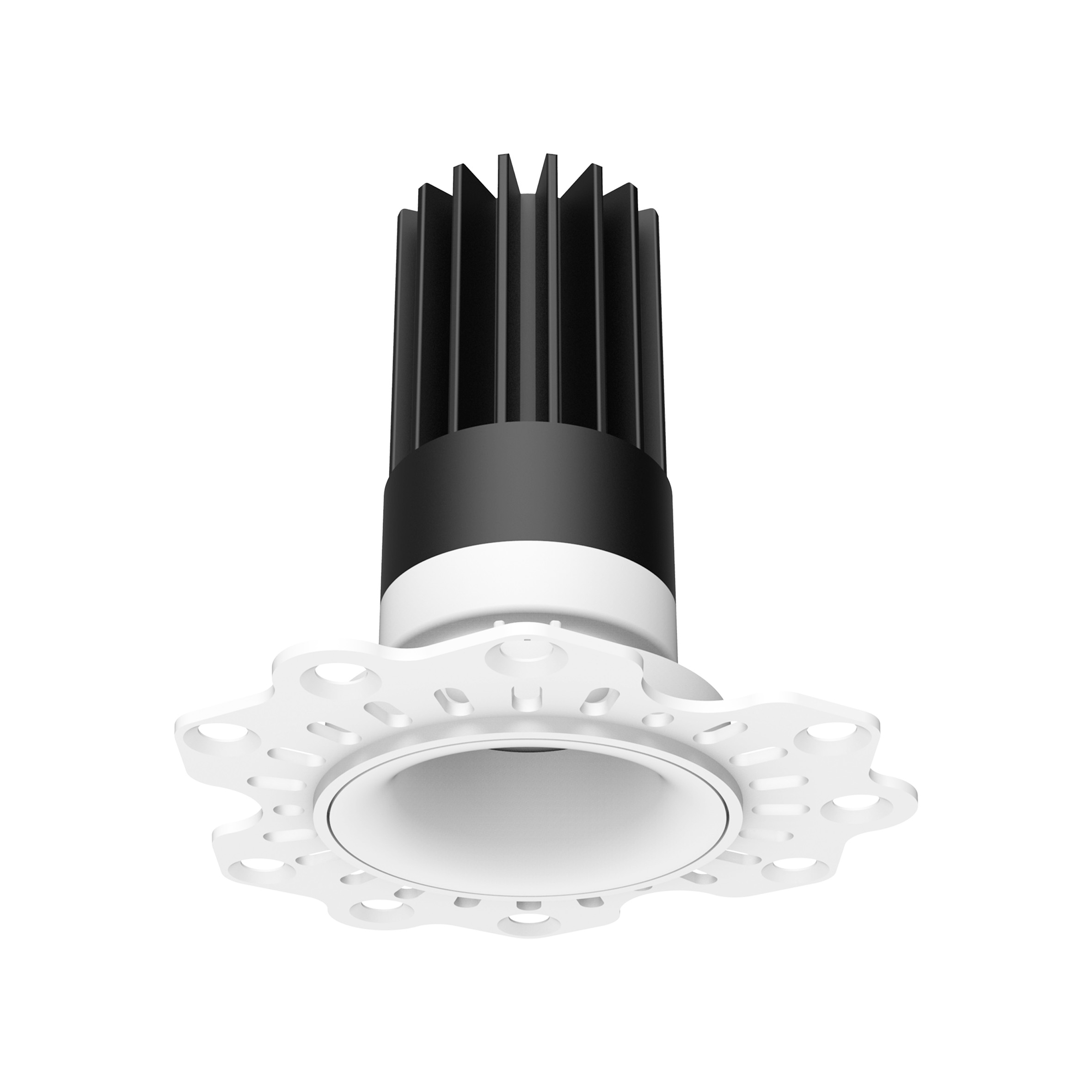

- 2318.203F-ACOT-97
- 10W
- 913lm
-
FARFALLA-50
ITEM NO. 2318.203F-ACOT-97
Consumption10W
Current / Voltage250mA
LED Lumen913lm
Beam Angle 20°/25°/40°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.203F-ACOT-97-DW
- 10W
- 14-611lm
-
FARFALLA-50
ITEM NO. 2318.203F-ACOT-97-DW
Consumption10W
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 20°/25°/40°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.203F-ACOT-97-WCW
- 10W
- 740-951lm
-
FARFALLA-50
ITEM NO. 2318.203F-ACOT-97-WCW
Consumption10W
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 20°/25°/40°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

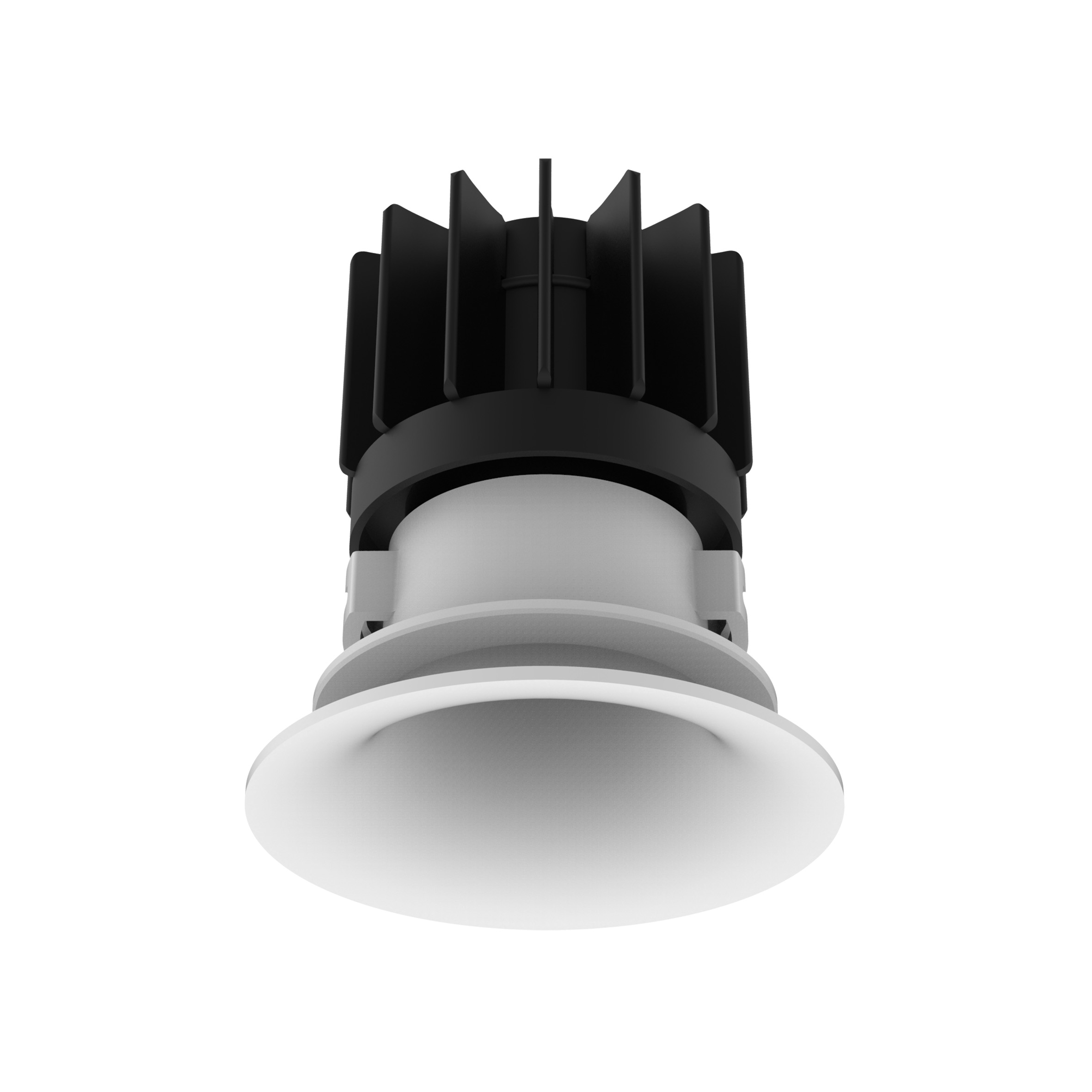

- 2418.209-ACOT-70A
- 10W
- 774lm
-
FARFALLA-85
ITEM NO. 2418.209-ACOT-70A
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.209-ACOT-70
- 12W
- 1446lm
-

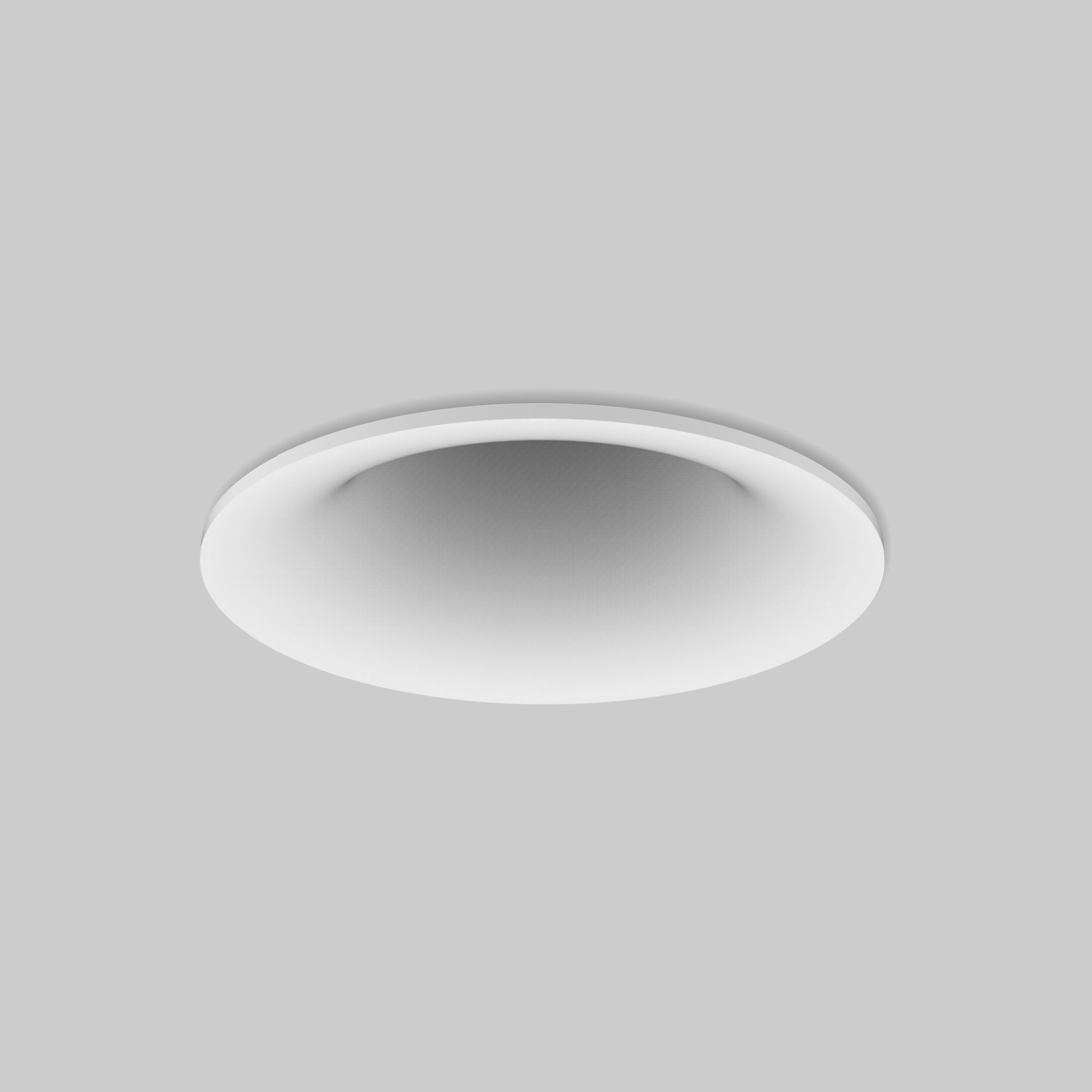

FARFALLA

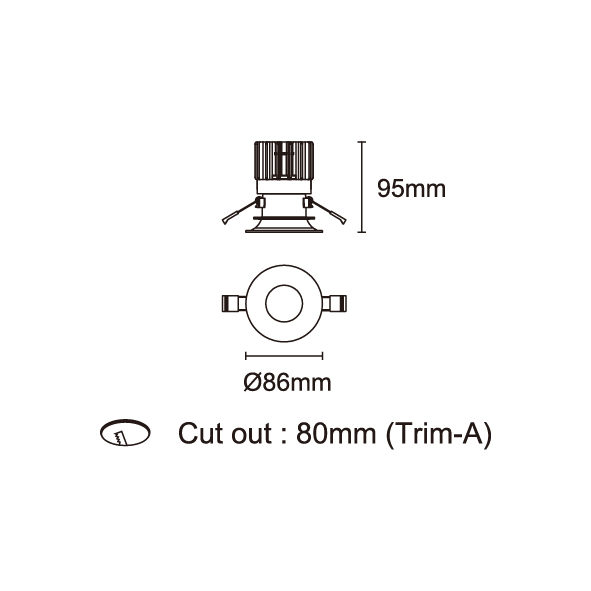

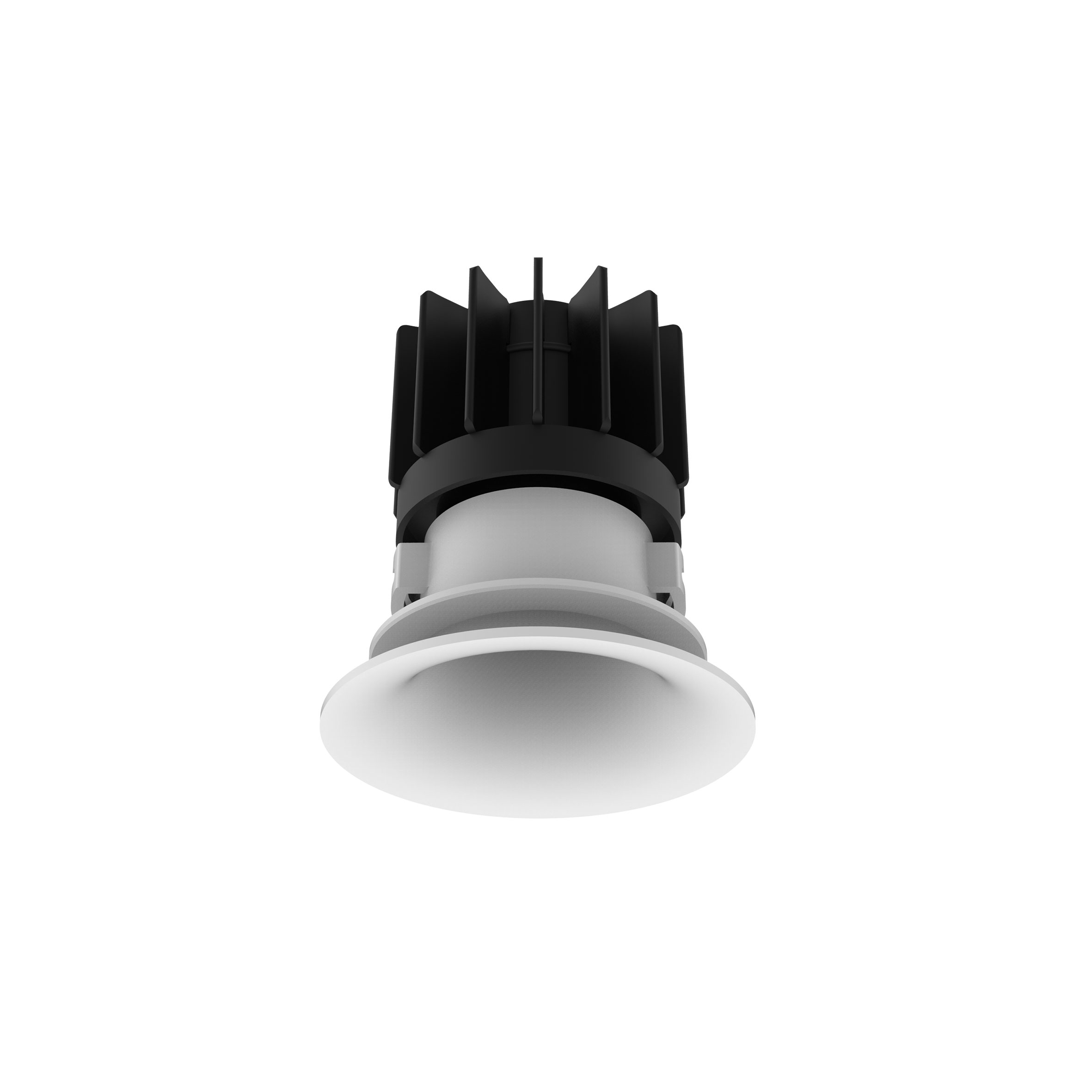

ITEM NO. 2418.209-ACOT-70
Consumption12W
Current / Voltage350mA
LED Lumen1446lm
Beam Angle 25°/35°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.209-ACOT-70-WCW
- 13W
- 1143-1356lm
-
FARFALLA-85
ITEM NO. 2418.209-ACOT-70-WCW
Consumption13W
Current / Voltage350mA
LED Lumen1143-1356lm
Beam Angle 25°/35°/45°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

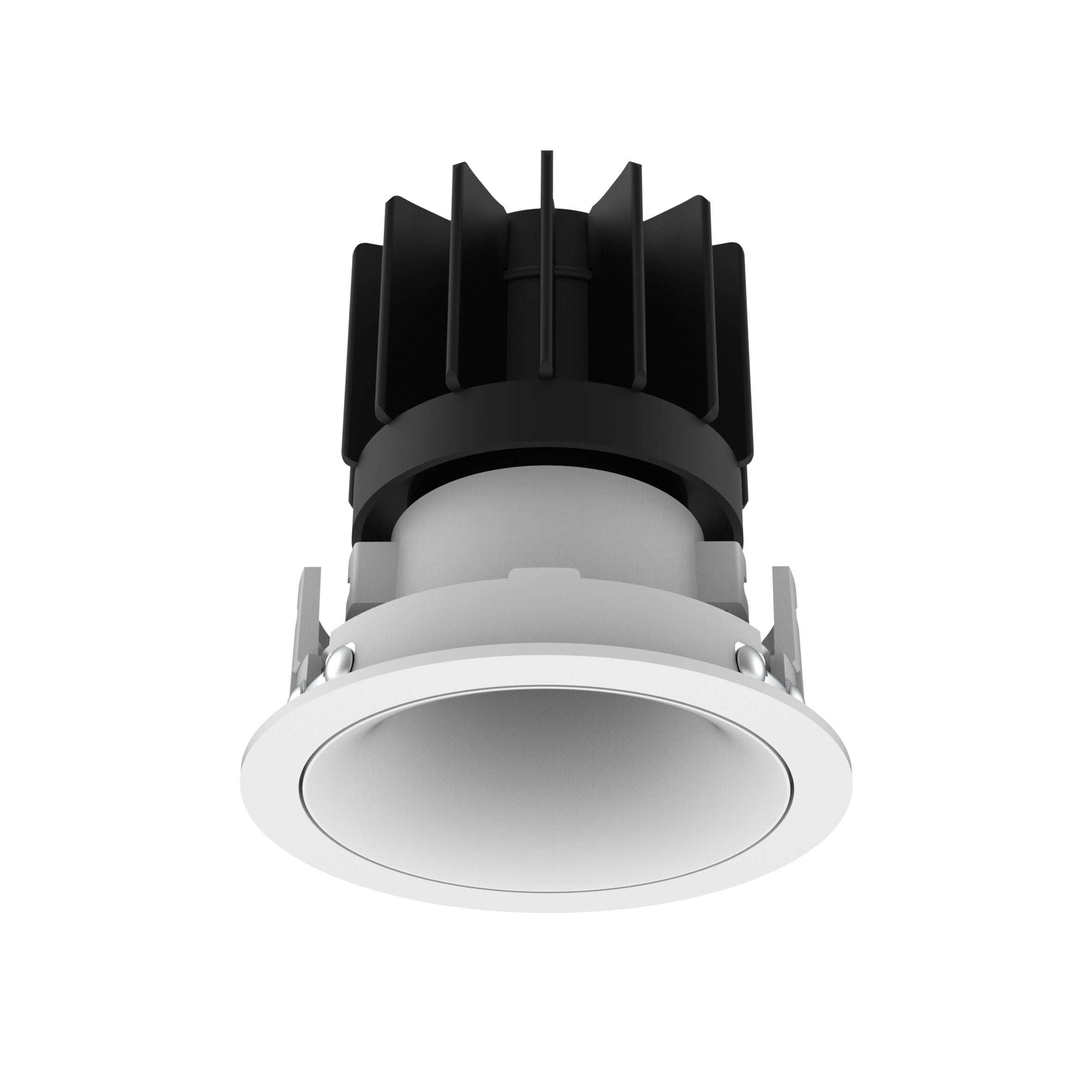

- 2418.130-ACOT-70A
- 10W
- 774lm
-
FARFALLA-85

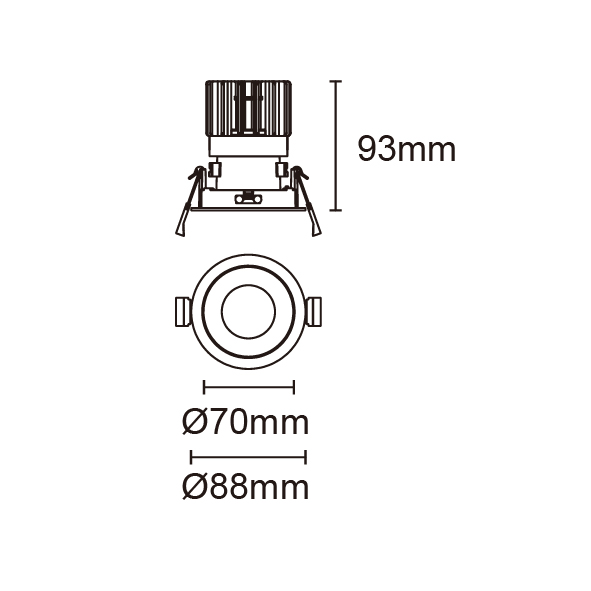

ITEM NO. 2418.130-ACOT-70A
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.130-ACOT-70
- 12W
- 1446lm
-
FARFALLA-85

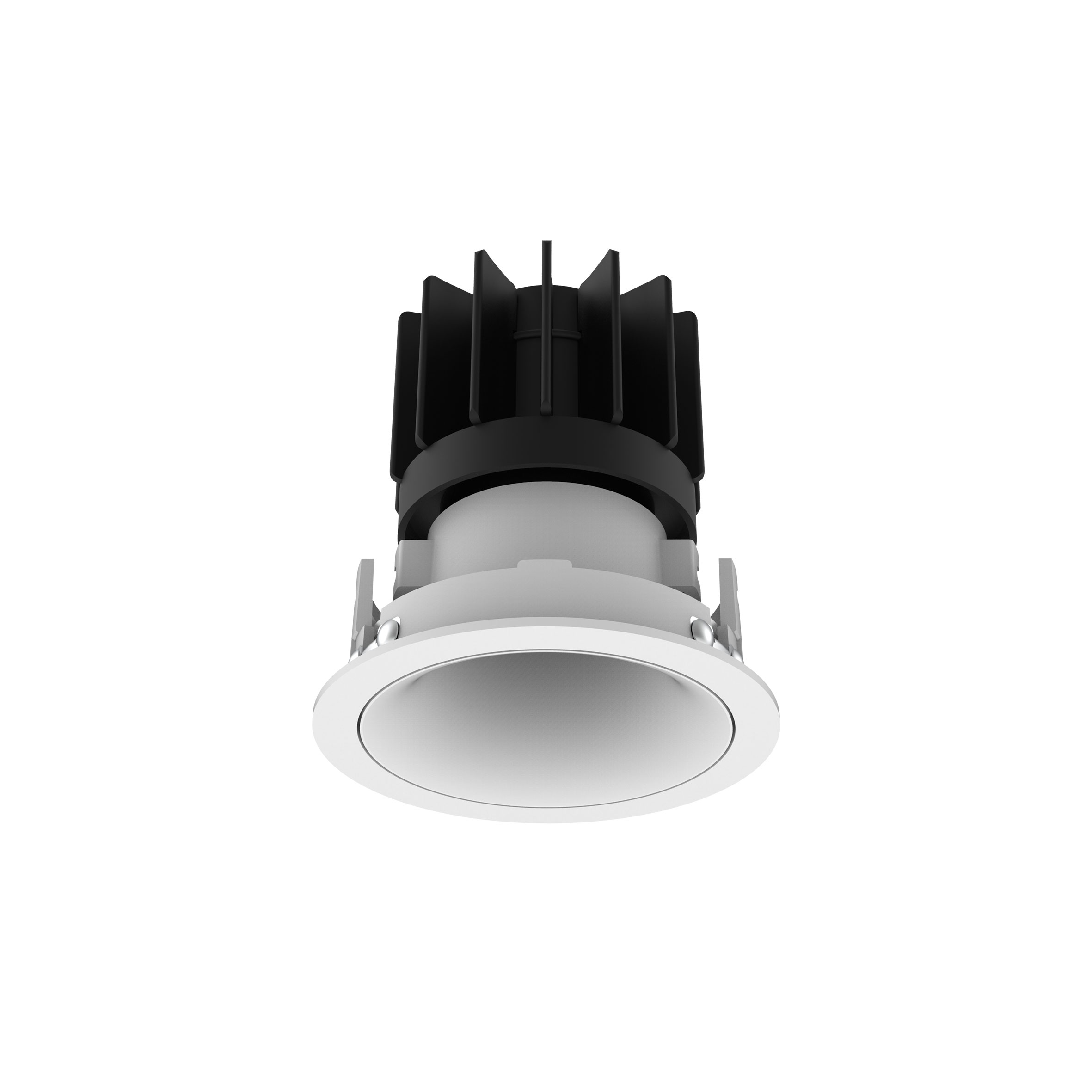

ITEM NO. 2418.130-ACOT-70
Consumption12W
Current / Voltage350mA
LED Lumen1446lm
Beam Angle 25°/35°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.130-ACOT-70-WCW
- 13W
- 1143-1356lm
-
FARFALLA-85
ITEM NO. 2418.130-ACOT-70-WCW
Consumption13W
Current / Voltage350mA
LED Lumen1143-1356lm
Beam Angle 25°/35°/45°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

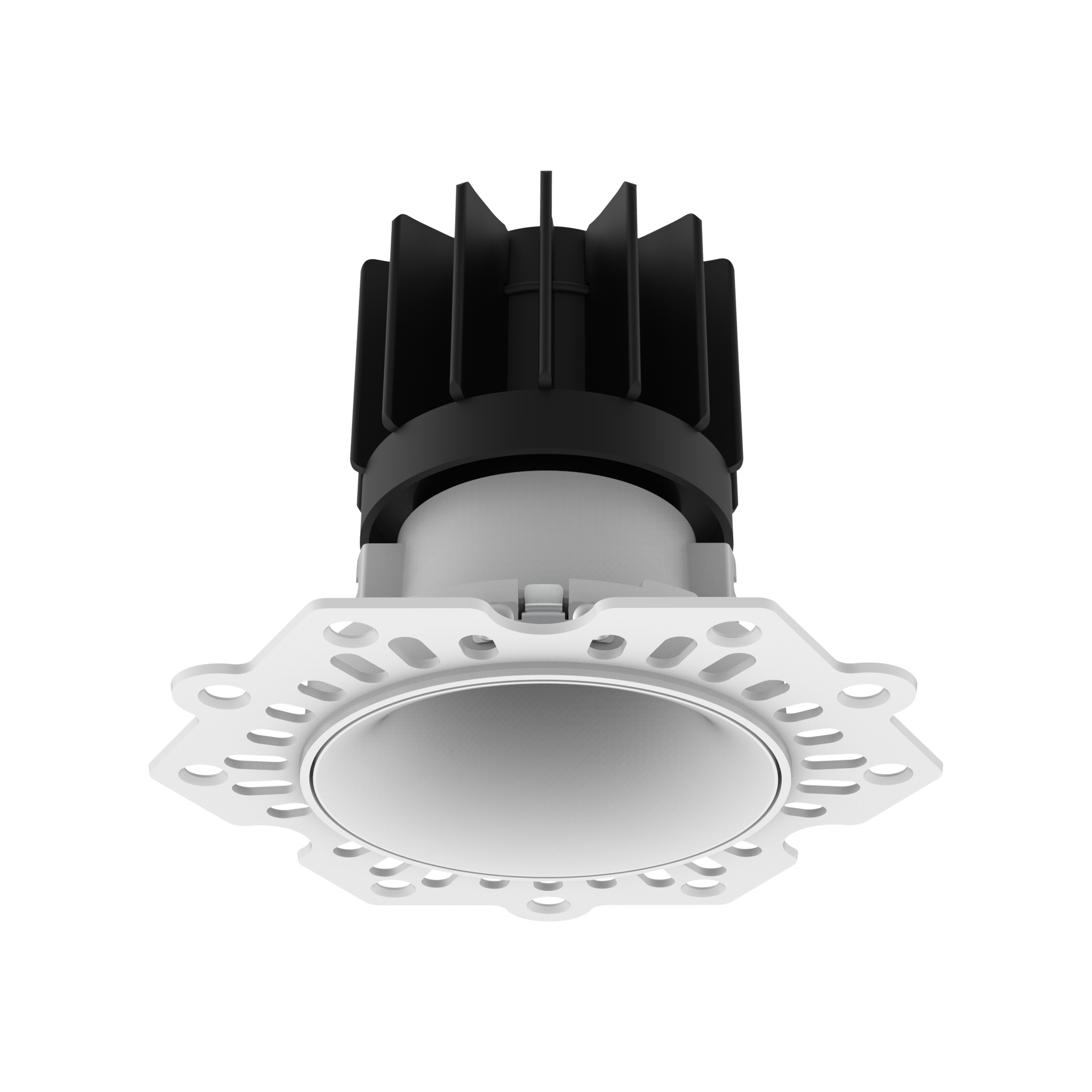

- 2418.210F-ACOT-70A
- 10W
- 774lm
-
FARFALLA-85

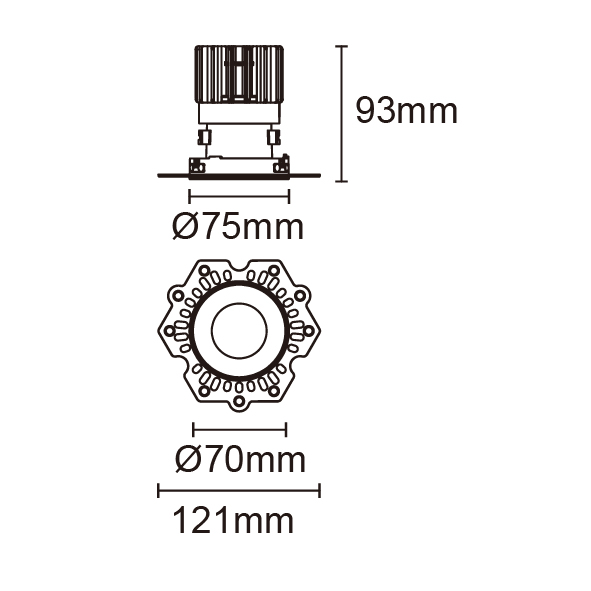

ITEM NO. 2418.210F-ACOT-70A
Consumption10W
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.210F-ACOT-70
- 12W
- 1446lm
-
FARFALLA-85

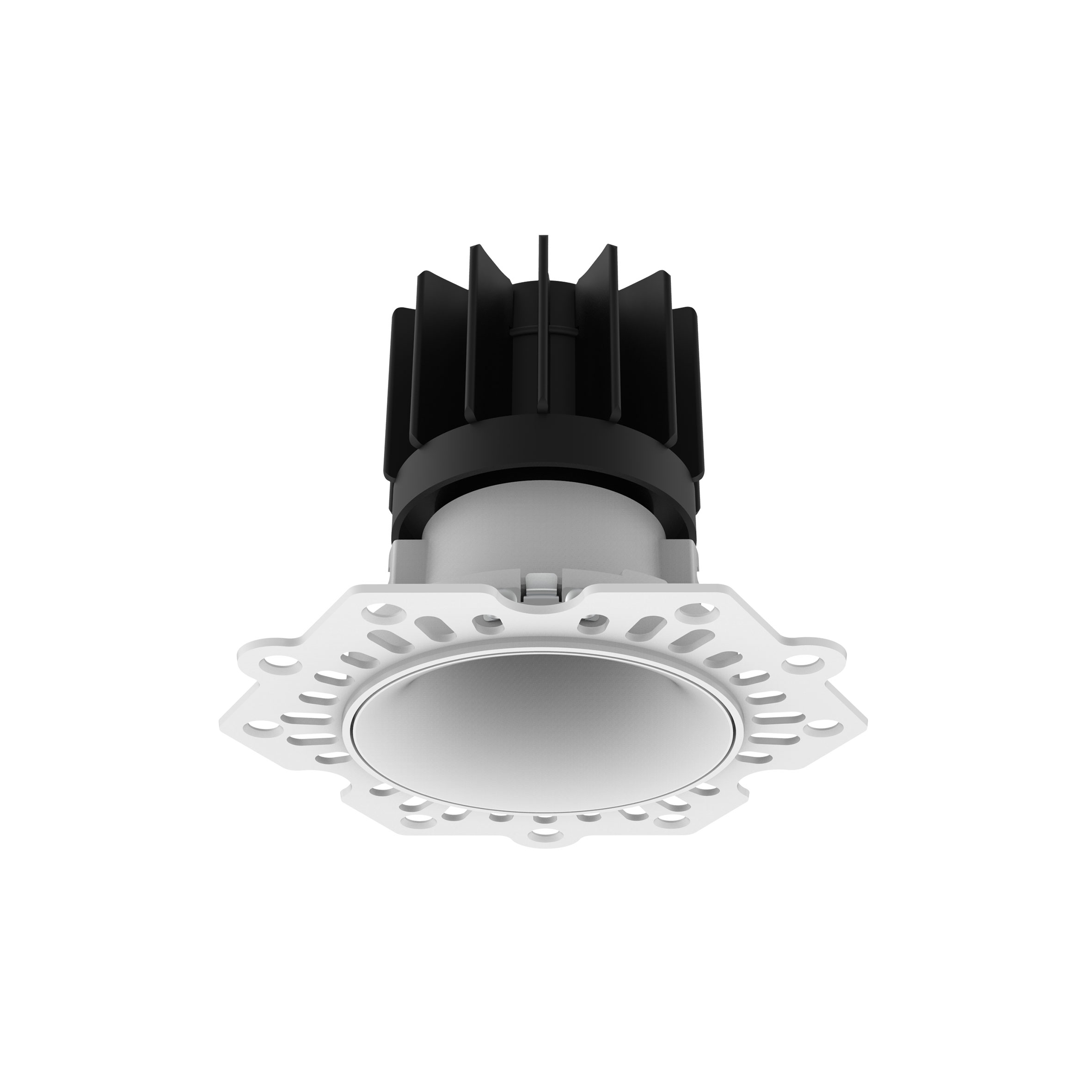

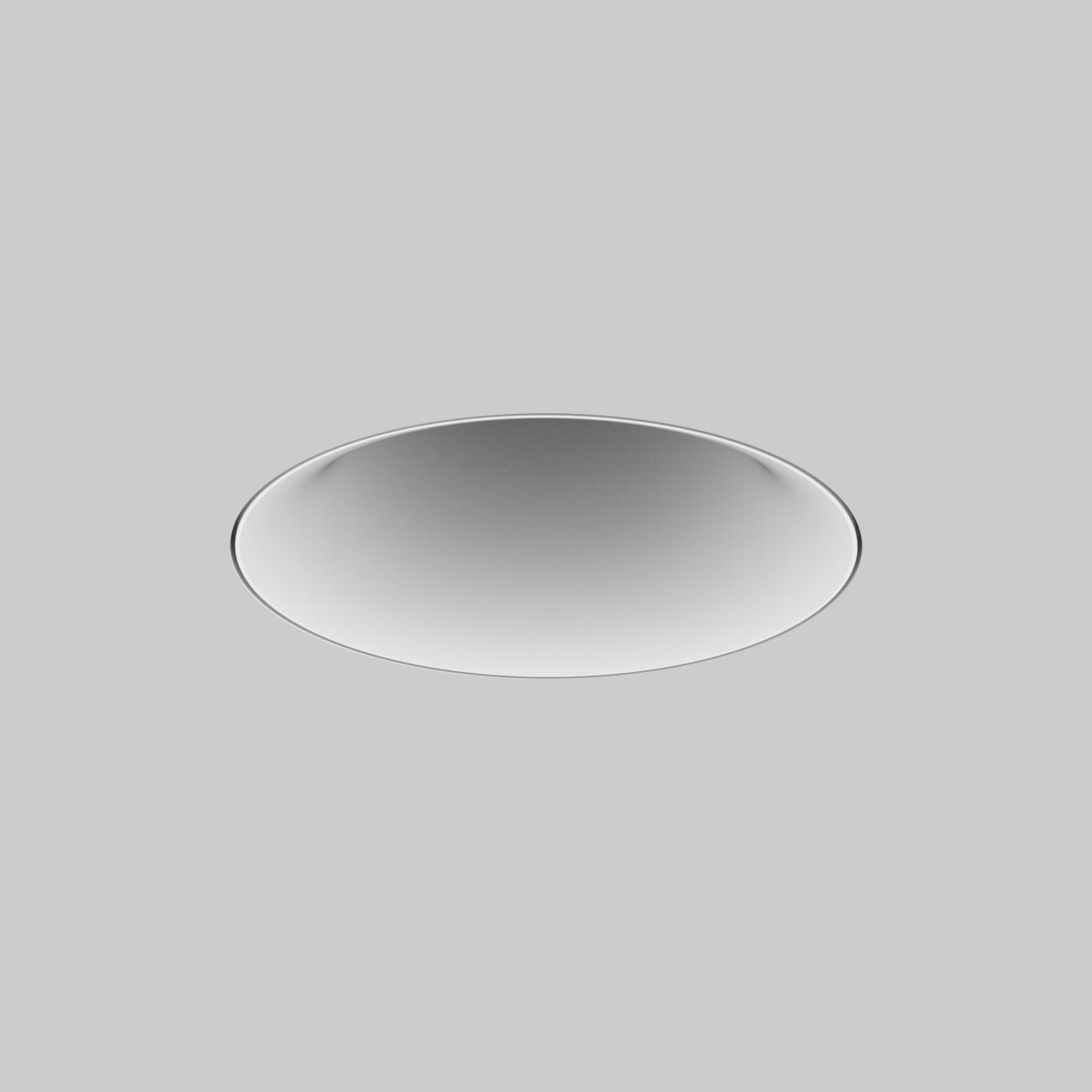

ITEM NO. 2418.210F-ACOT-70
Consumption12W
Current / Voltage350mA
LED Lumen1446lm
Beam Angle 25°/35°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2418.210F-ACOT-70-WCW
- 13W
- 1143-1356lm
-
FARFALLA-85
ITEM NO. 2418.210F-ACOT-70-WCW
Consumption13W
Current / Voltage350mA
LED Lumen1143-1356lm
Beam Angle 25°/35°/45°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

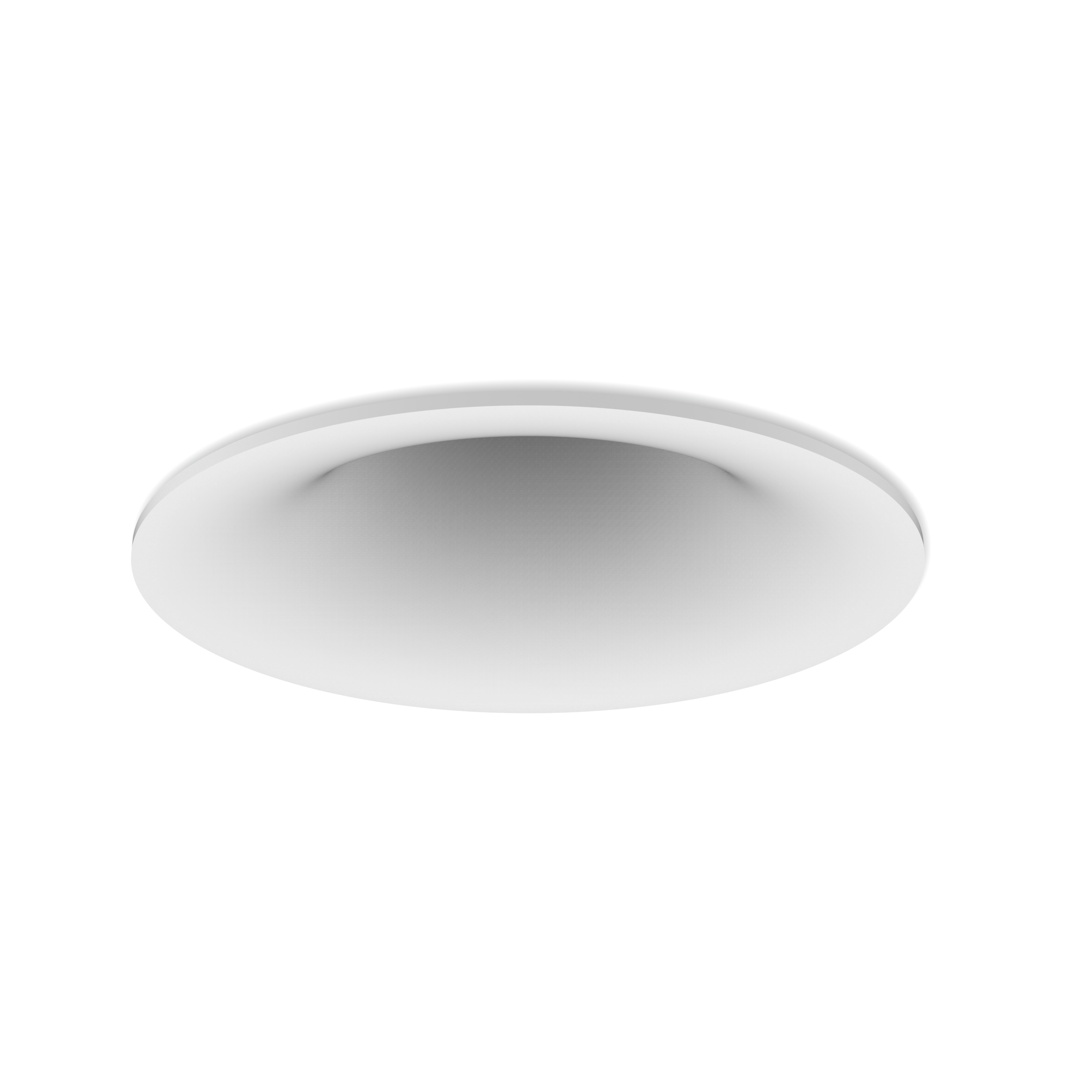

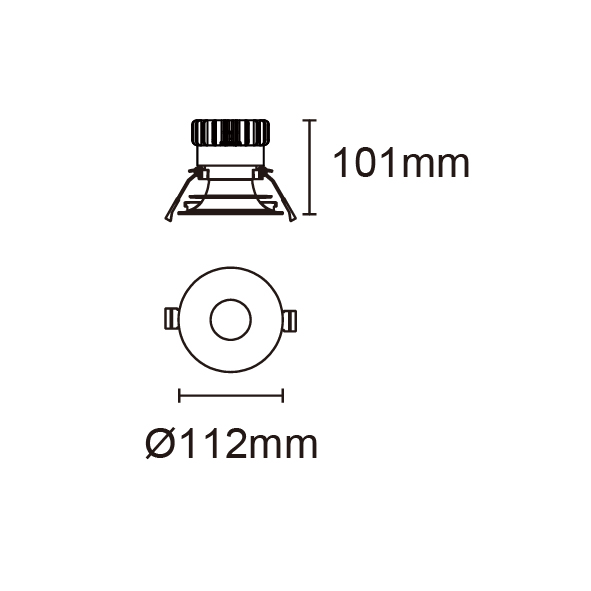

- 2318.223-LEE-15
- 17W
- 2004lm
-

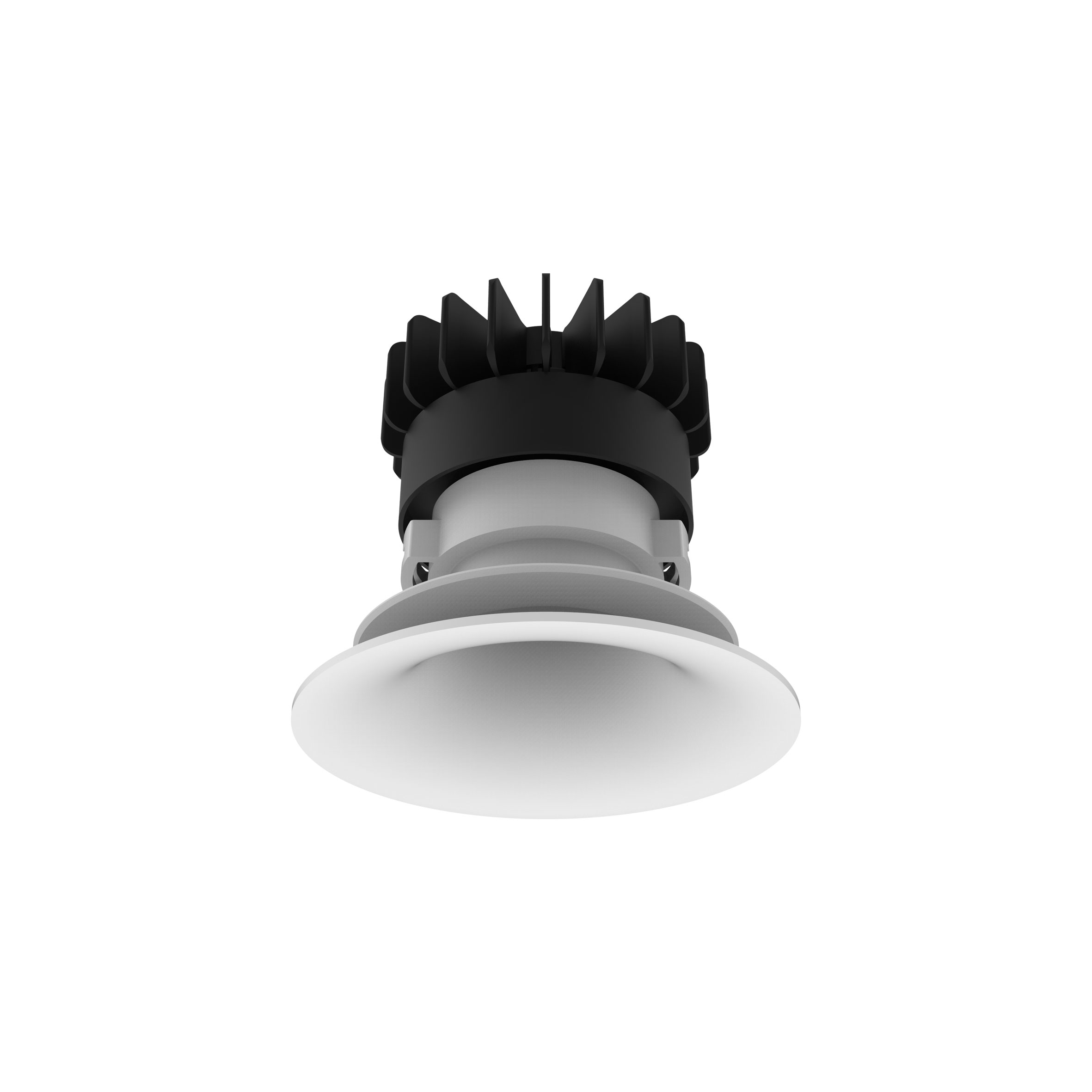

FARFALLA-110
ITEM NO. 2318.223-LEE-15
Consumption17W
Current / Voltage500mA
LED Lumen2004lm
Beam Angle 20°/30°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

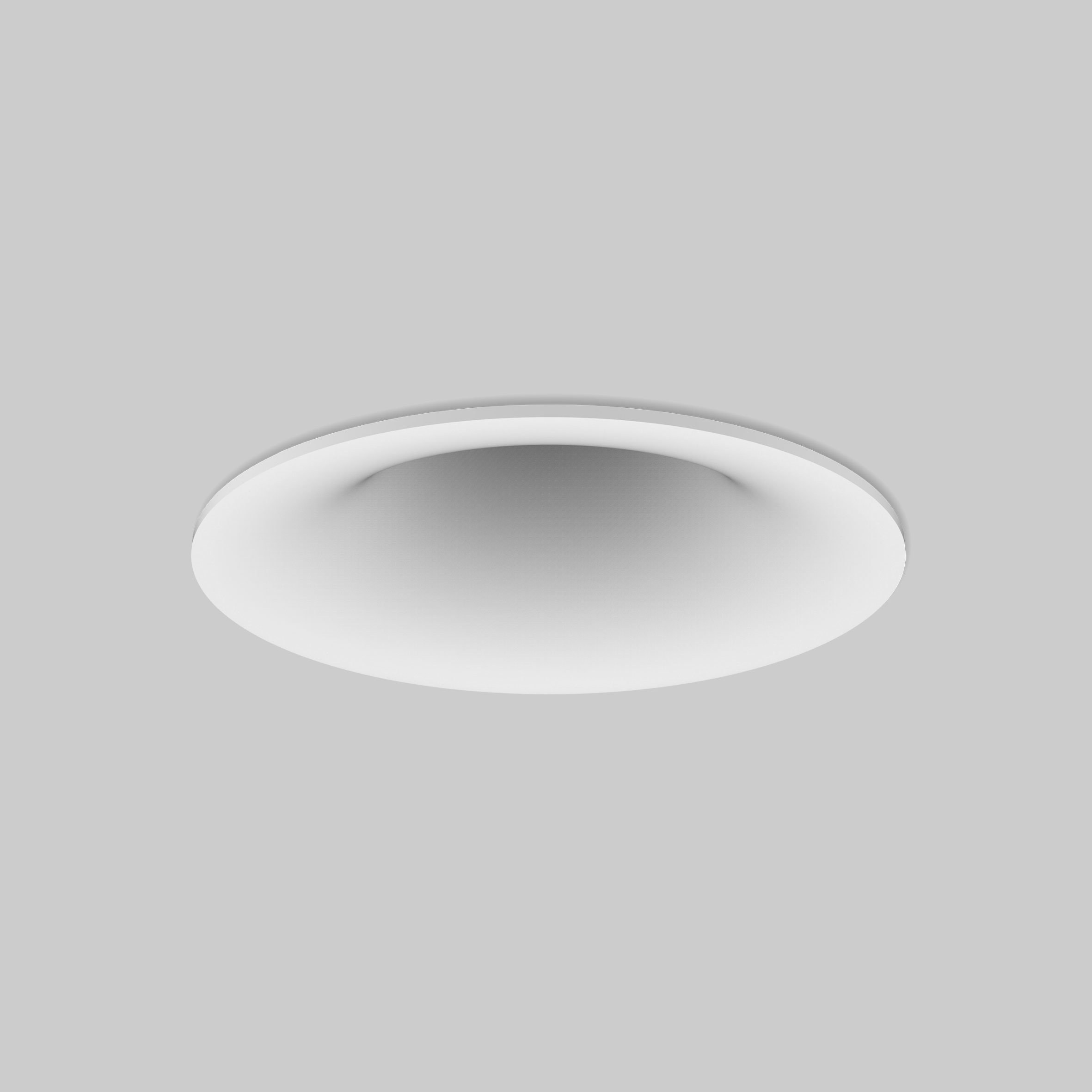

- 2318.223-LEE-15-DW
- 16W
- 34-1507lm
-
FARFALLA-110
ITEM NO. 2318.223-LEE-15-DW
Consumption16W
Current / Voltage450mA
LED Lumen34-1507lm
Beam Angle 20°/25°/40°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

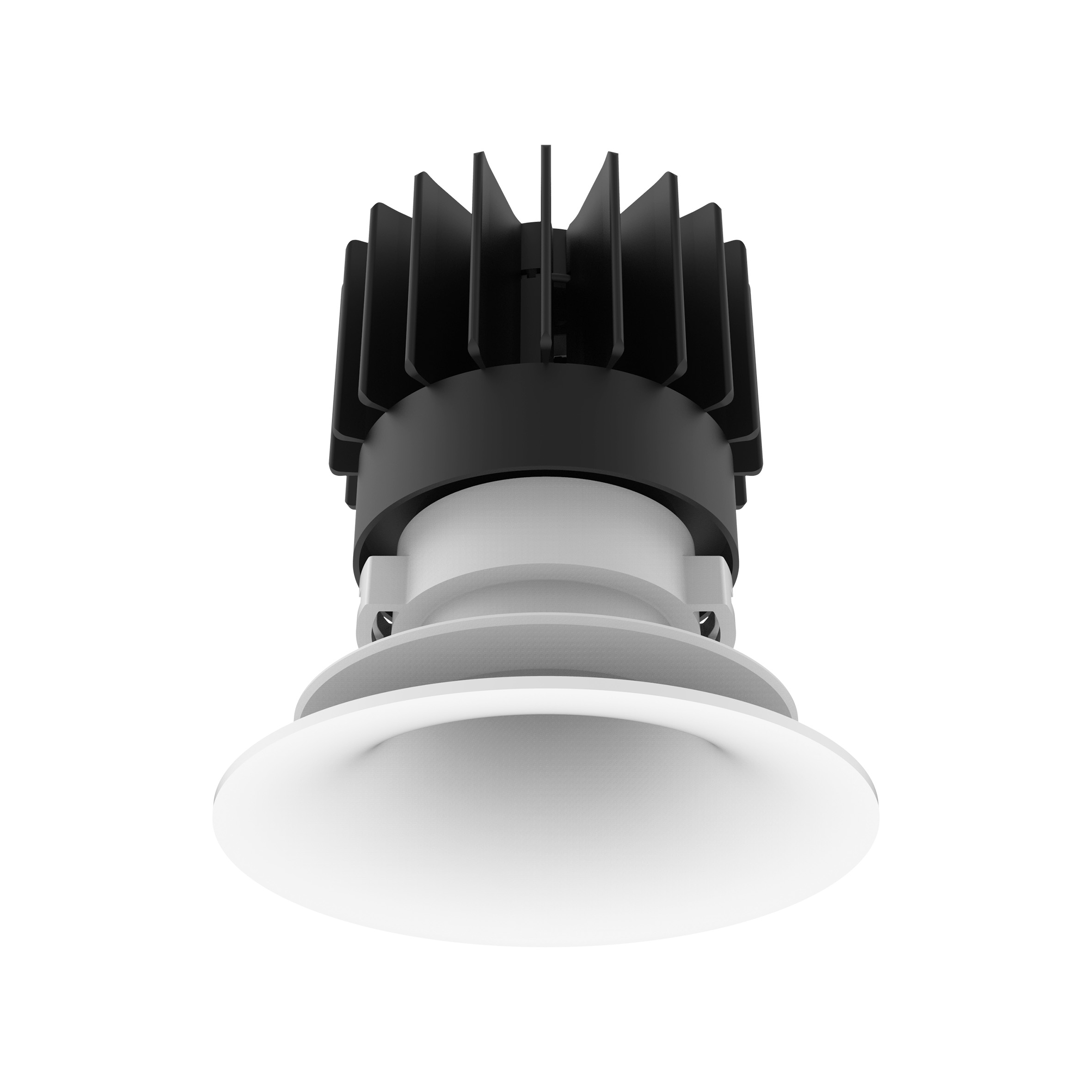

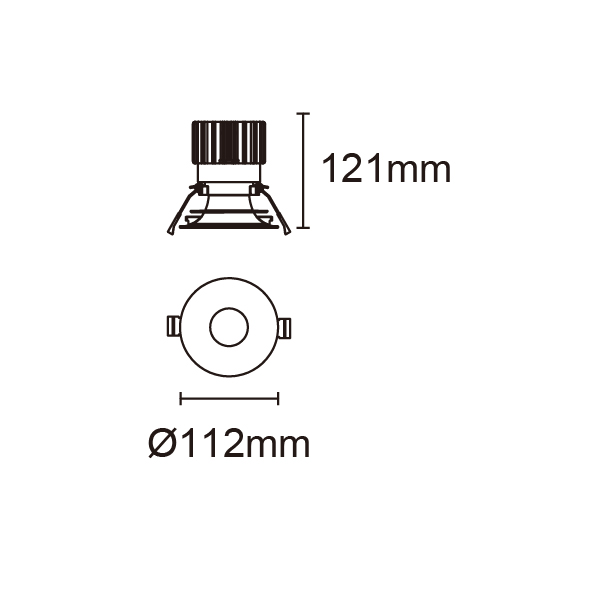

- 2318.223-ACOT-72
- 25W
- 2873lm
-
FARFALLA-110
ITEM NO. 2318.223-ACOT-72
Consumption25W
Current / Voltage700mA
LED Lumen2873lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.223-ACOT-72-WCW
- 22W
- 2086-2304lm
-
FARFALLA-110
ITEM NO. 2318.223-ACOT-72-WCW
Consumption22W
Current / Voltage600mA
LED Lumen2086-2304lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

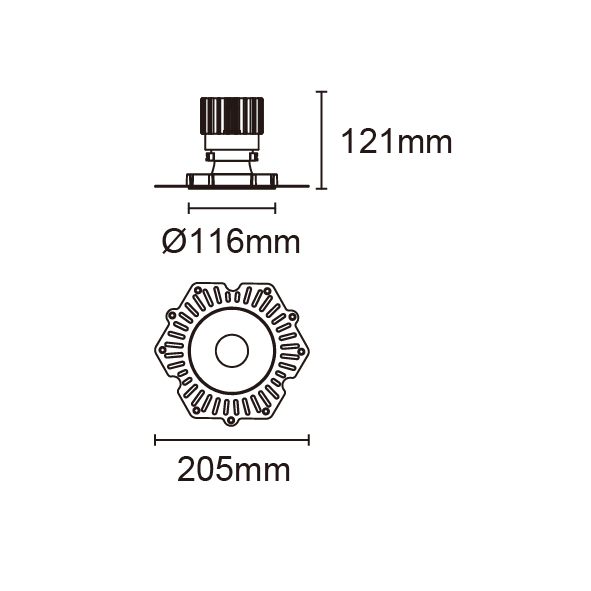

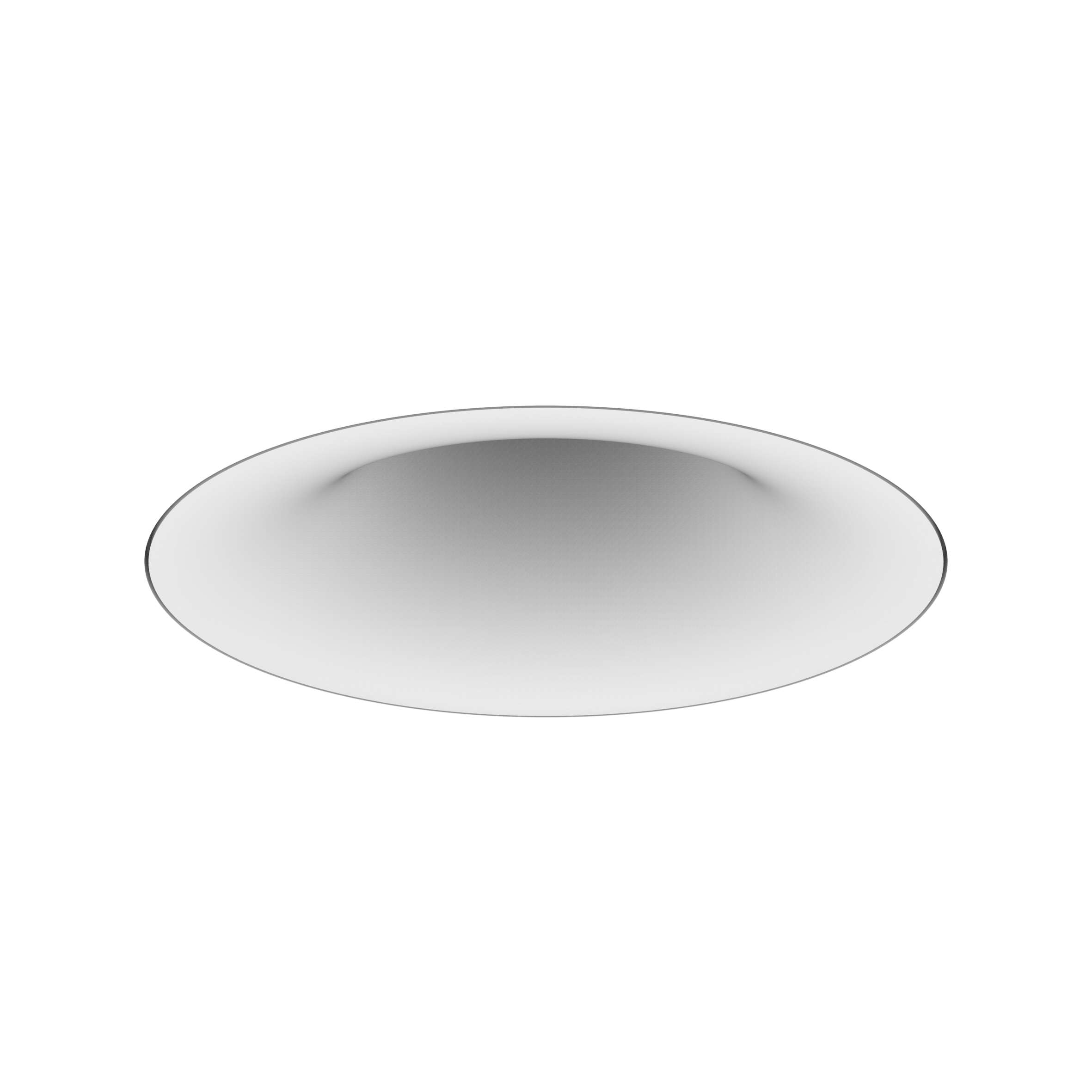

- 2318.223F-LEE-15
- 17W
- 2004lm
-
FARFALLA-110

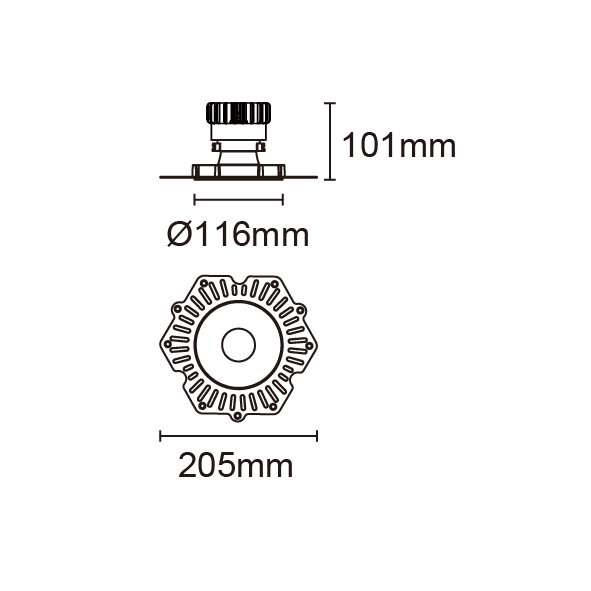

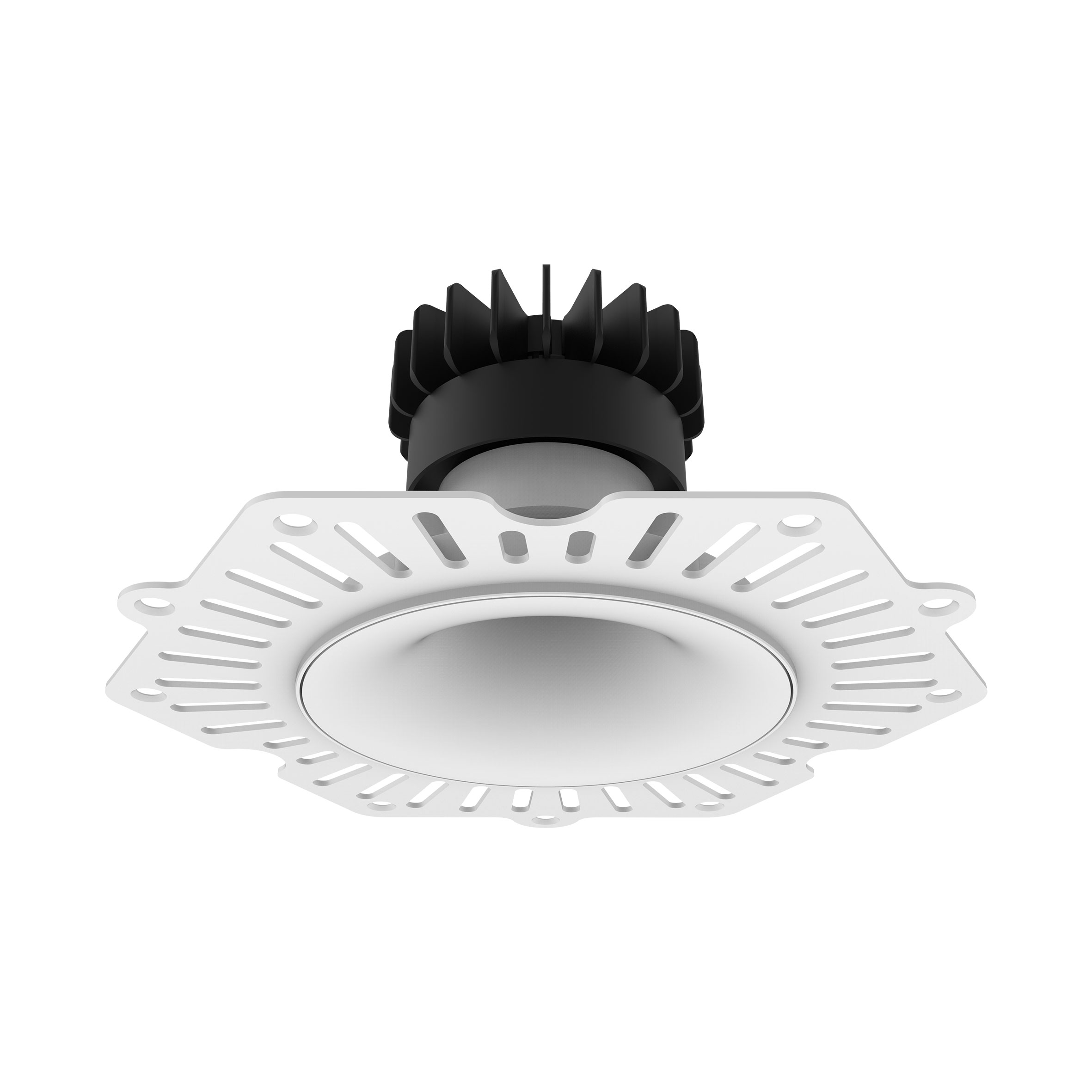

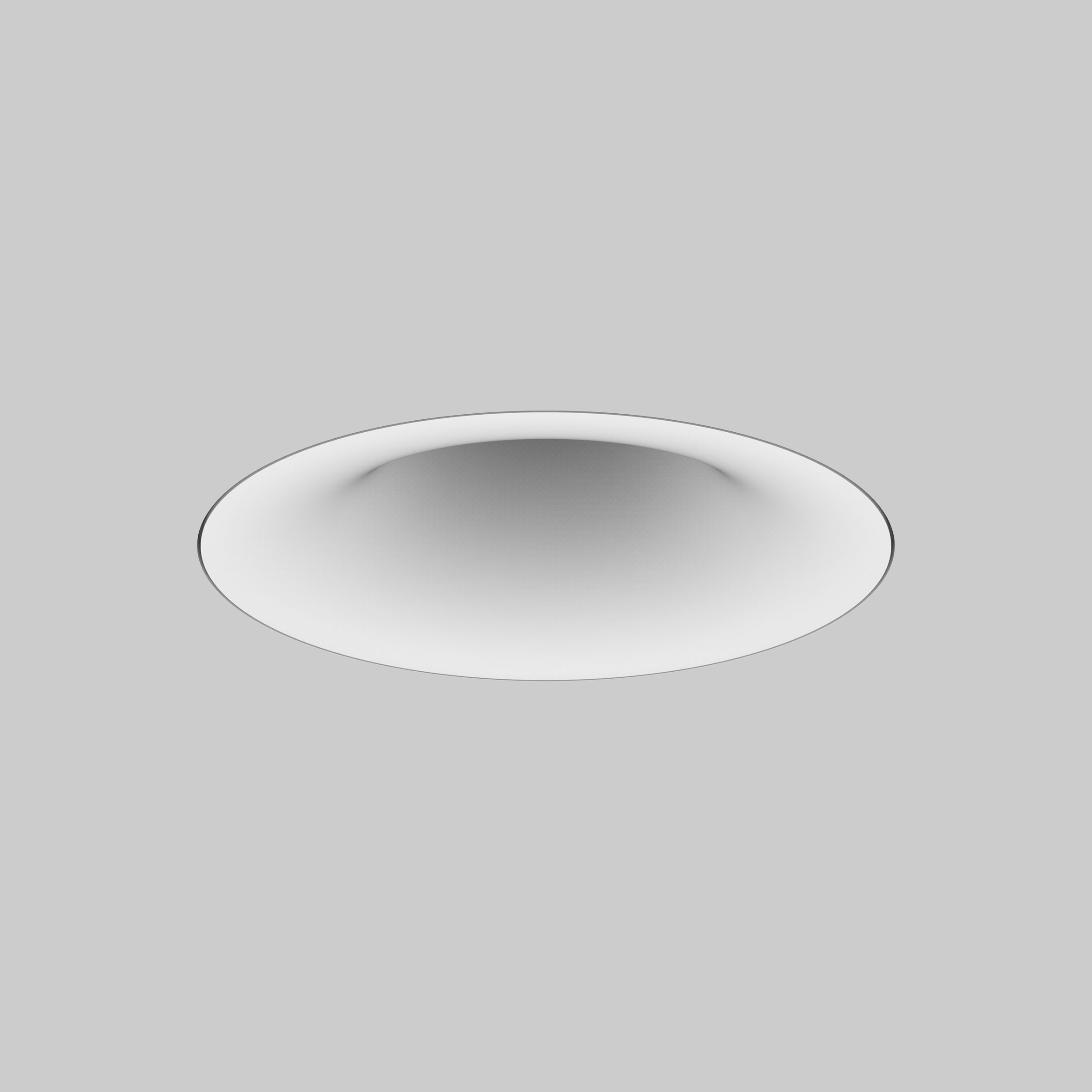

ITEM NO. 2318.223F-LEE-15
Consumption17W
Current / Voltage500mA
LED Lumen2004lm
Beam Angle 20°/30°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.223F-LEE-15-DW
- 16W
- 34-1507lm
-
FARFALLA-110
ITEM NO. 2318.223F-LEE-15-DW
Consumption16W
Current / Voltage450mA
LED Lumen34-1507lm
Beam Angle 20°/25°/40°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

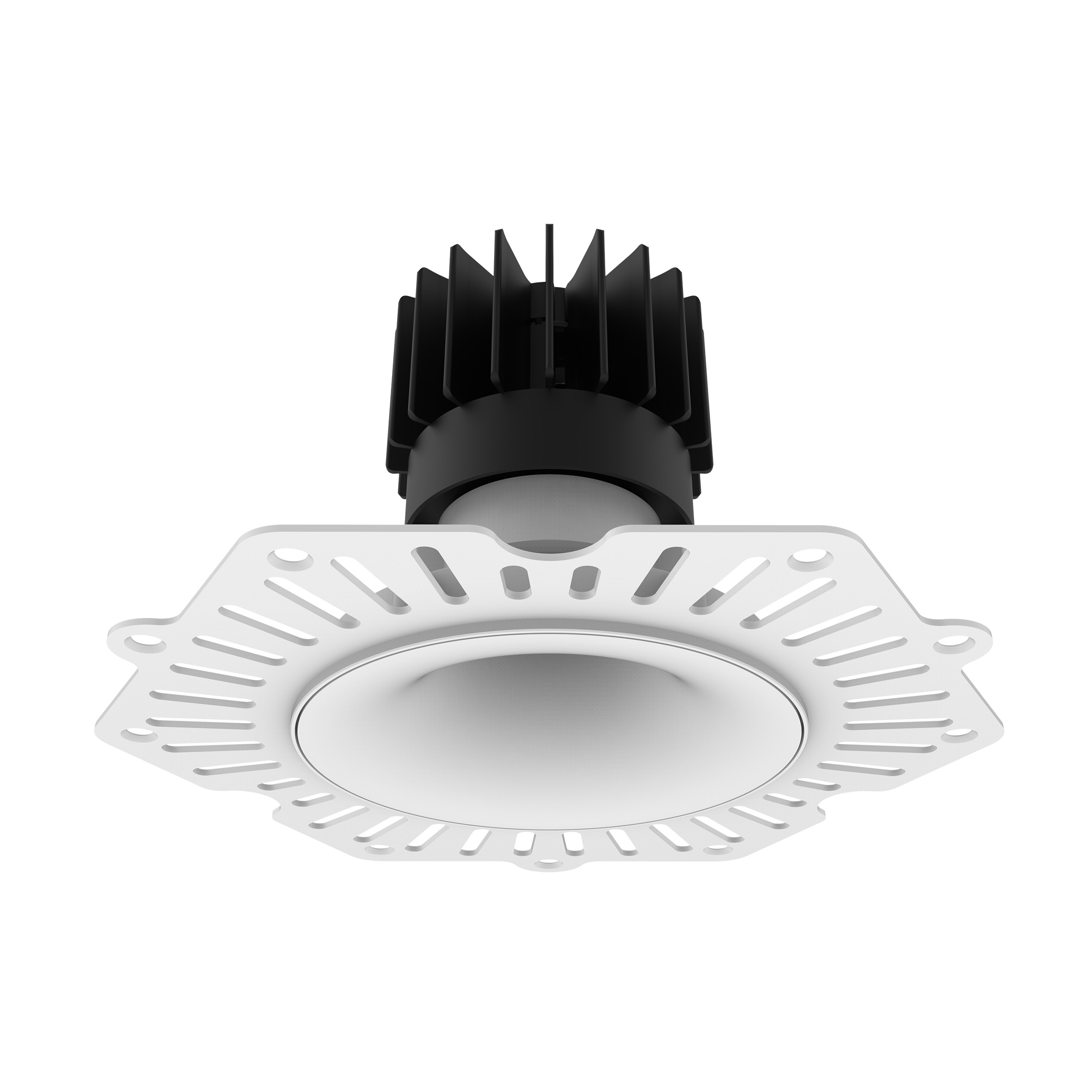

- 2318.223F-ACOT-72
- 25W
- 2873lm
-
FARFALLA-110
ITEM NO. 2318.223F-ACOT-72
Consumption25W
Current / Voltage700mA
LED Lumen2873lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.223F-ACOT-72-WCW
- 22W
- 2086-2304lm
-
FARFALLA-110
ITEM NO. 2318.223F-ACOT-72-WCW
Consumption22W
Current / Voltage600mA
LED Lumen2086-2304lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

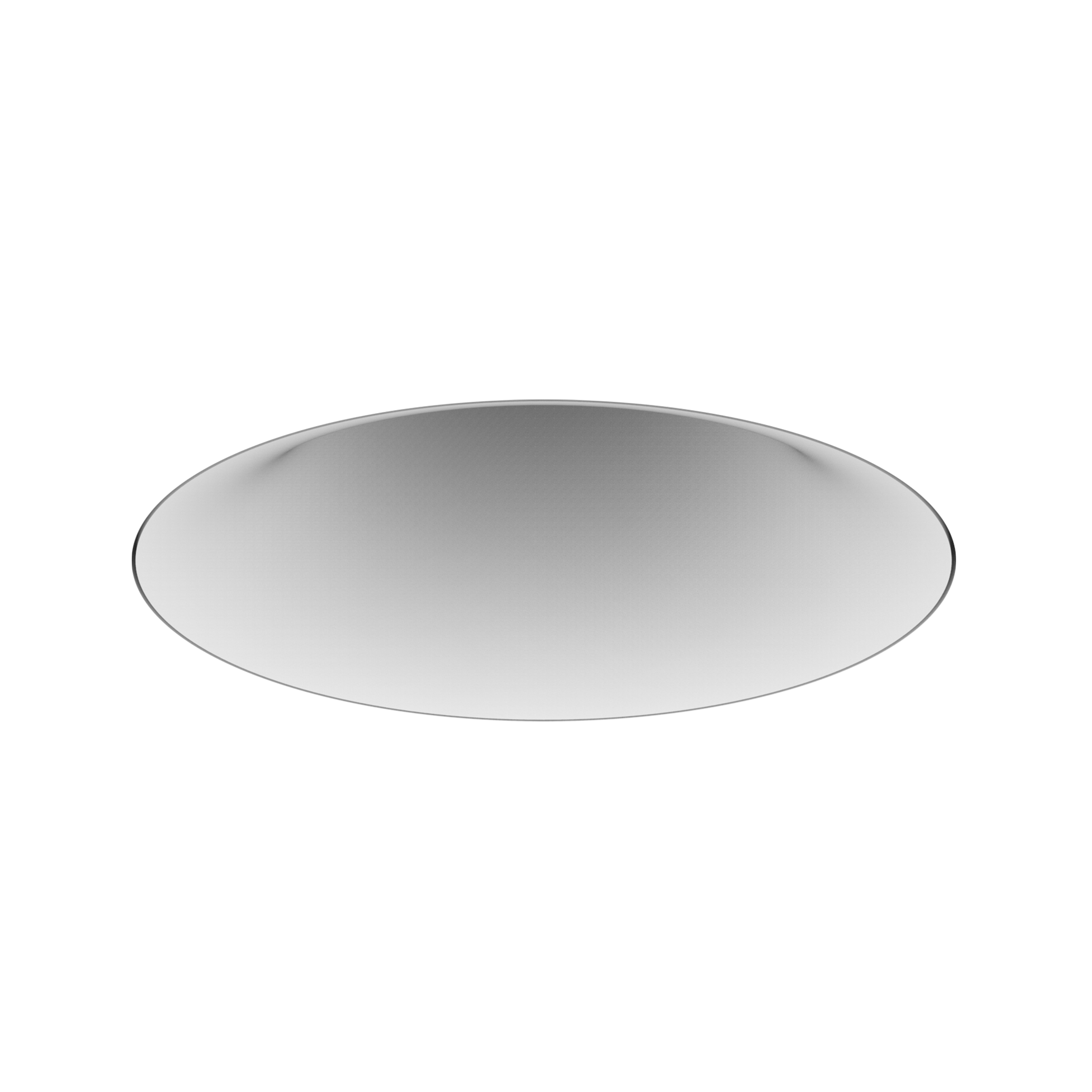

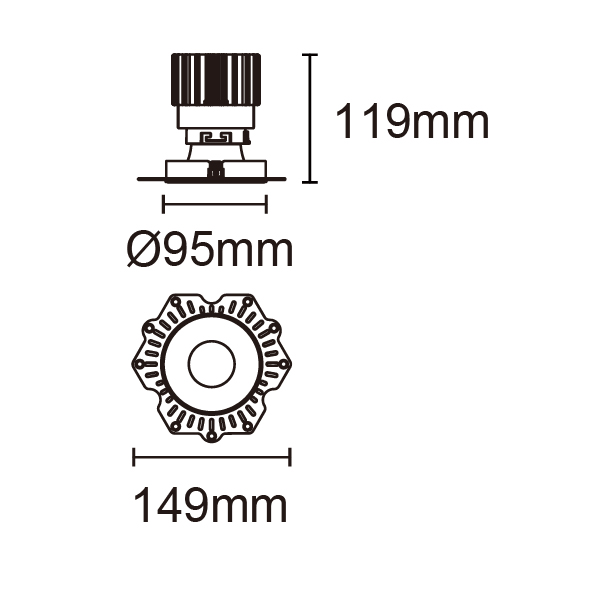

- 2318.224F-LEE-15
- 17W
- 2004lm
-

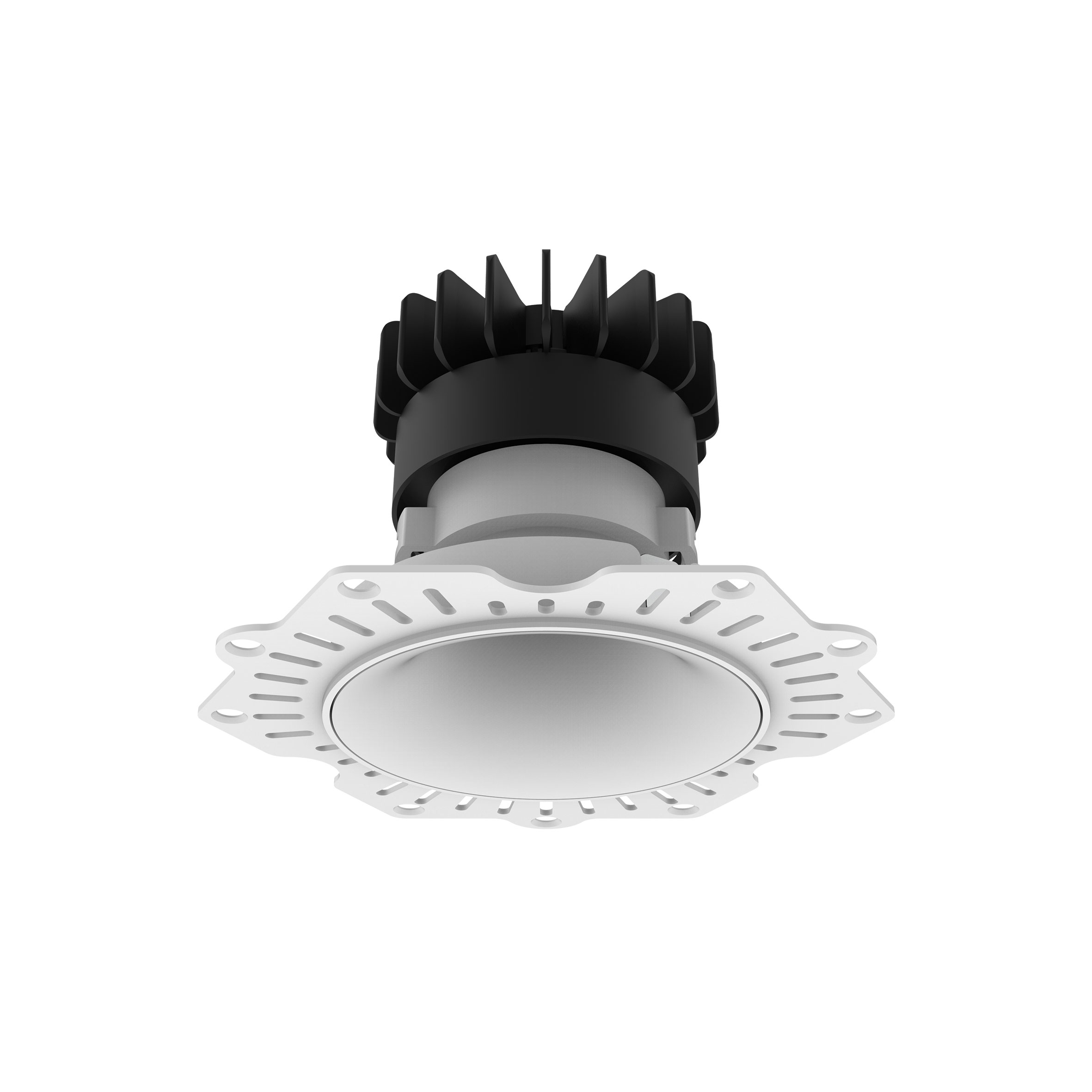

FARFALLA-110

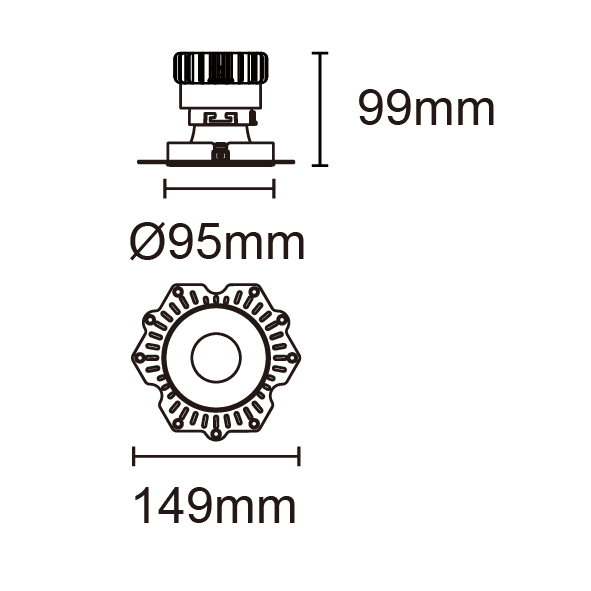

ITEM NO. 2318.224F-LEE-15
Consumption17W
Current / Voltage500mA
LED Lumen2004lm
Beam Angle 20°/30°/45°/55°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

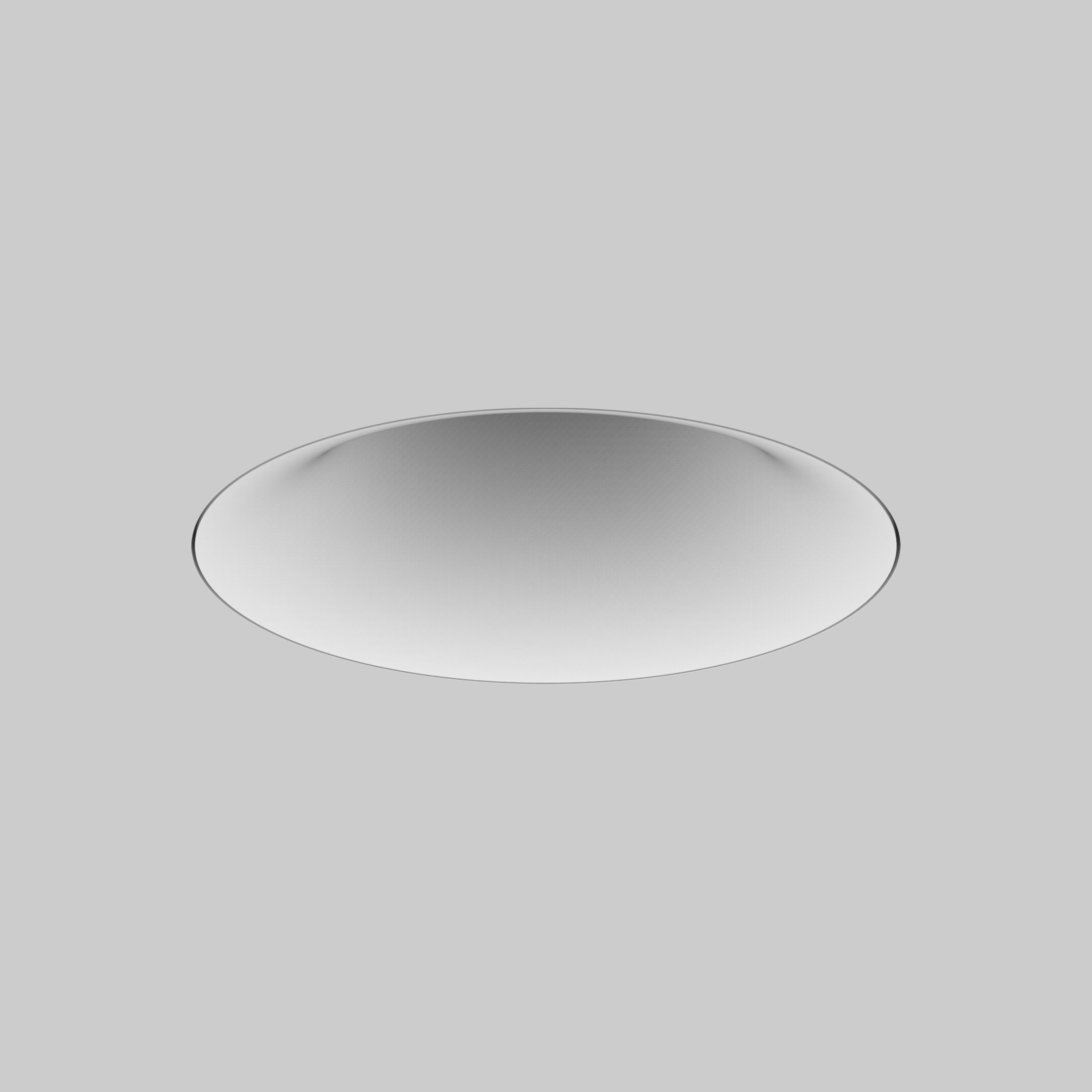

- 2318.224F-LEE-15-DW
- 16W
- 1109
-
FARFALLA-110
ITEM NO. 2318.224F-LEE-15-DW
Consumption16W
Current / Voltage450mA
LED Lumen1109
Beam Angle 20°/25°/40°/50°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

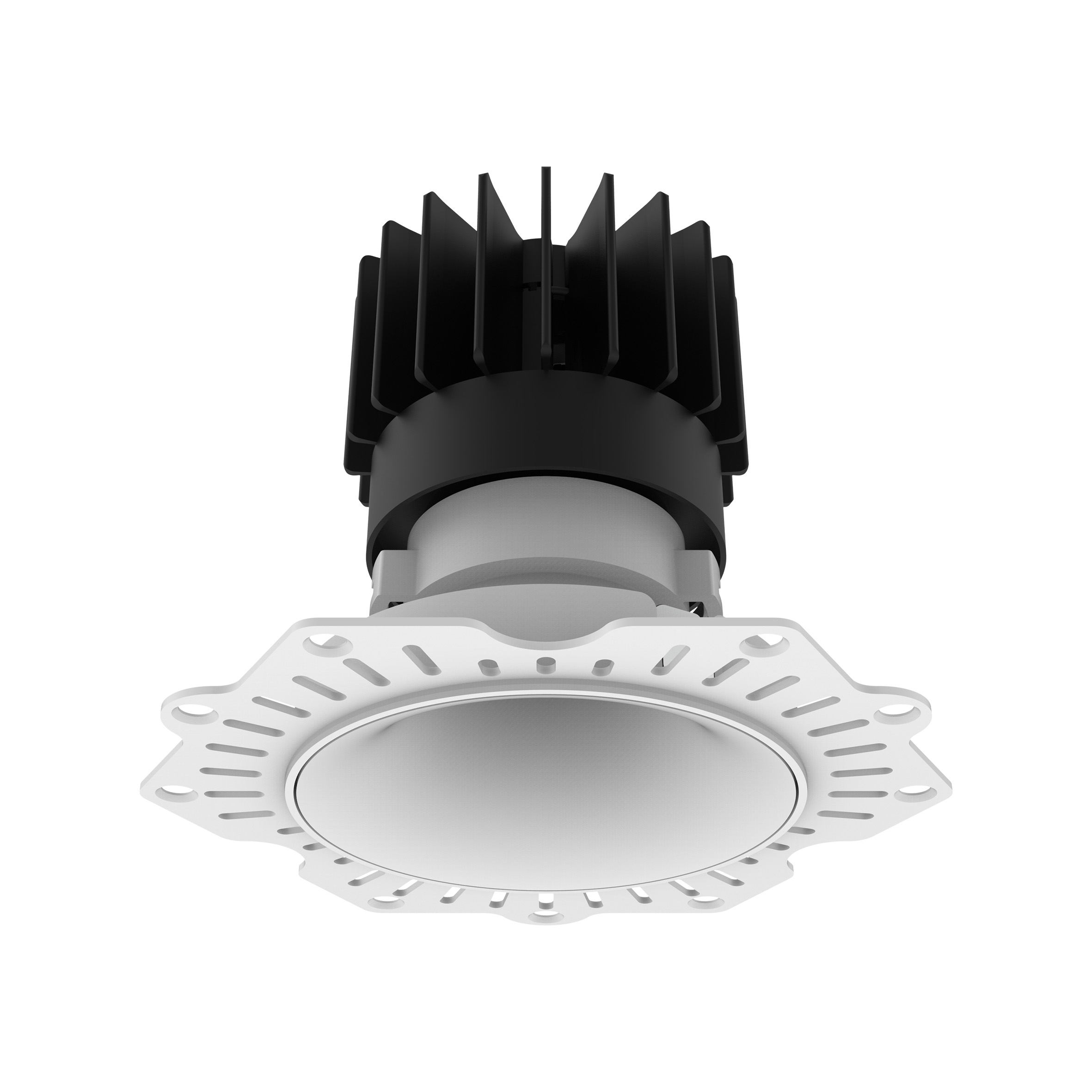

- 2318.224F-ACOT-72
- 25W
- 2873lm
-
FARFALLA-110
ITEM NO. 2318.224F-ACOT-72
Consumption25W
Current / Voltage700mA
LED Lumen2873lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

- 2318.224F-ACOT-72-WCW
- 22W
- 2086-2304lm
-
FARFALLA-110
ITEM NO. 2318.224F-ACOT-72-WCW
Consumption22W
Current / Voltage600mA
LED Lumen2086-2304lm
Beam Angle 15°/24°/36°/50°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
