- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution

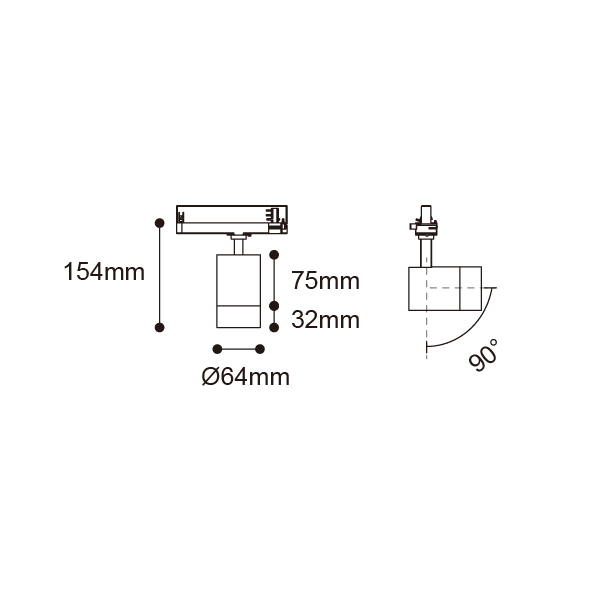

- 2319.210-UA-350
- 12W
- 1317 lm
-
ASTER-B
ITEM NO. 2319.210-UA-350
Consumption12W
Current / Voltage350 mA / AC 220-240V
LED Lumen1317 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

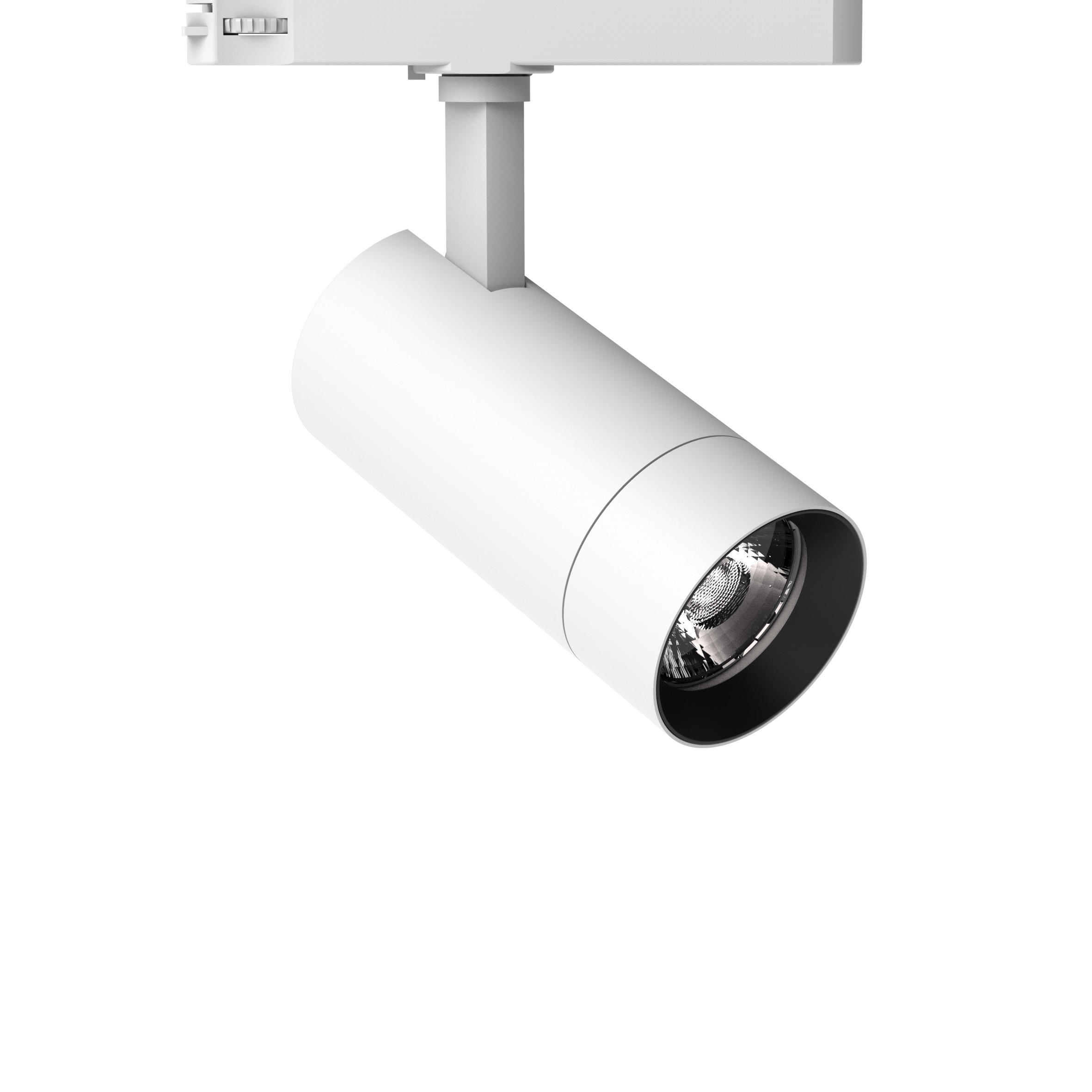

- 2319.201-UA-700
- 25W
- 2429 lm
-
ASTER-B
ITEM NO. 2319.201-UA-700
Consumption25W
Current / Voltage700 mA / AC 220-240V
LED Lumen2429 lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture

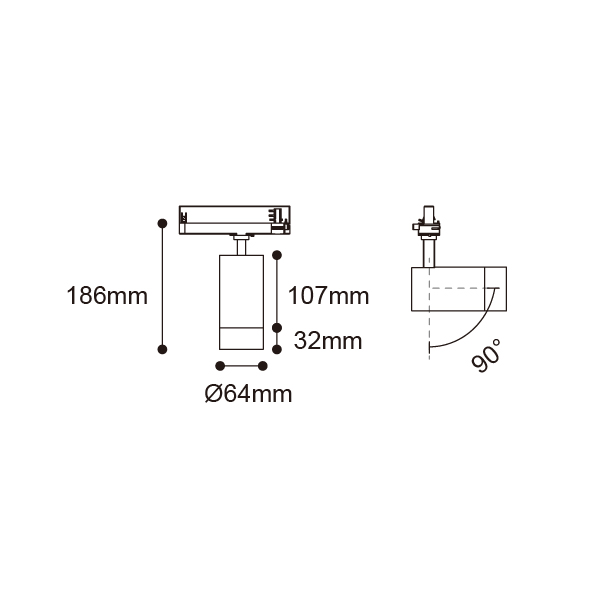

- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

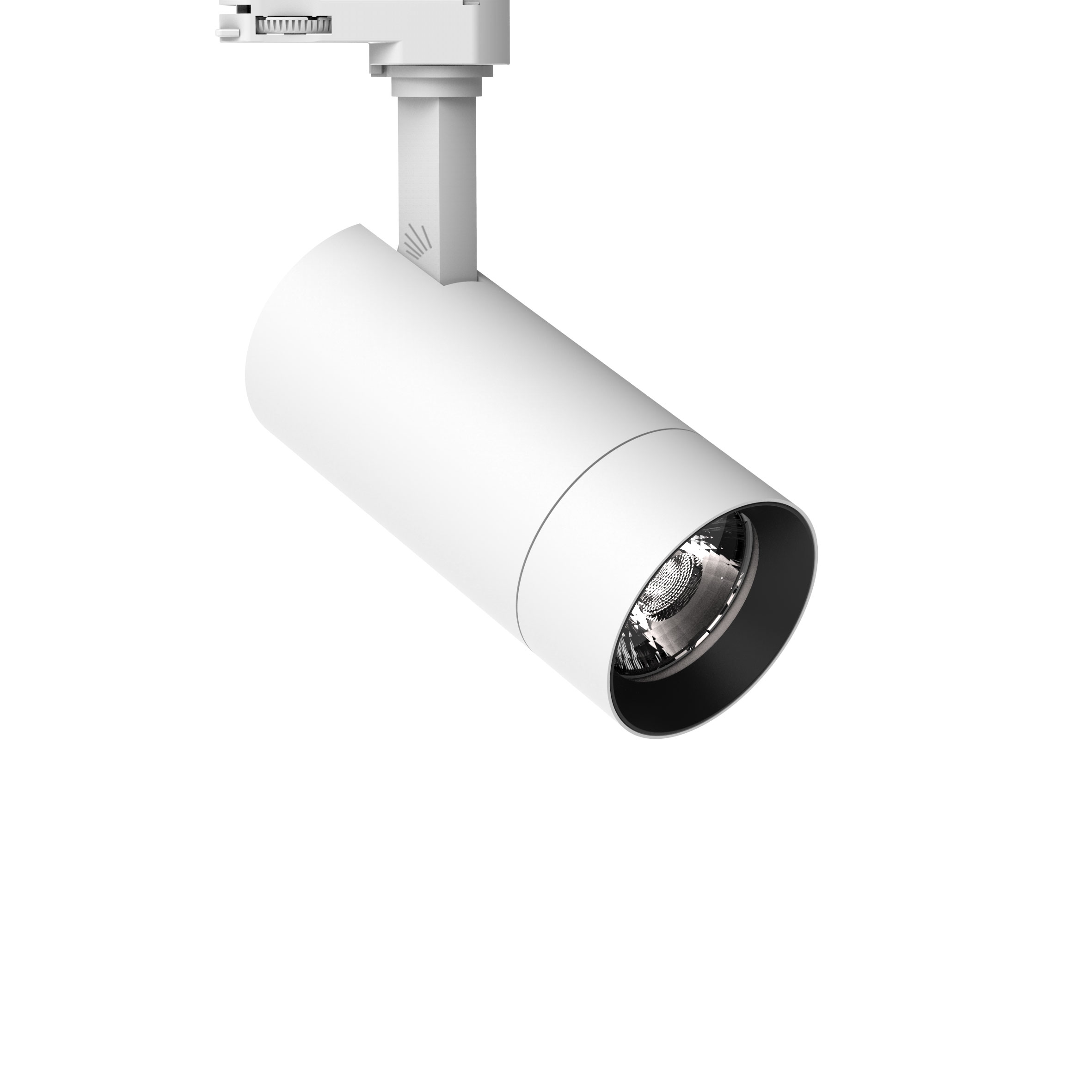

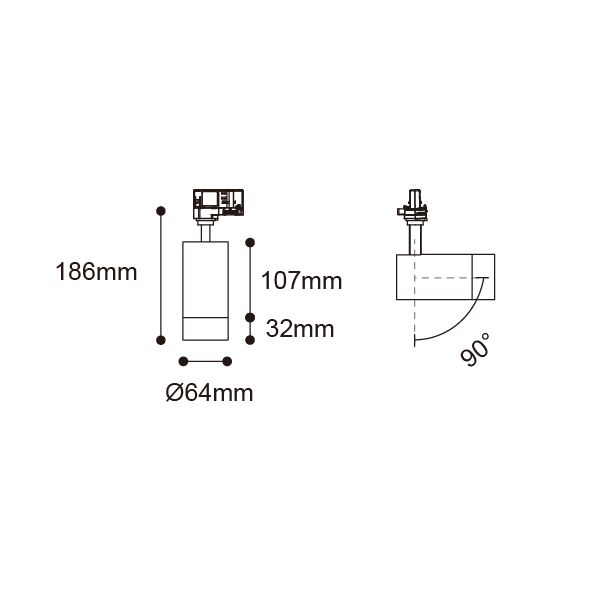

- 2319.201-AD3-350
- 12W
- 1185 lm
-
ASTER-B
ITEM NO. 2319.201-AD3-350
Consumption12W
Current / Voltage350 mA / 100-277VAC
LED Lumen1185 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue
- 2319.201-AD3-500
- 17W
- 1660 lm
-
ASTER-B
ITEM NO. 2319.201-AD3-500
Consumption17W
Current / Voltage500 mA / 100-277VAC
LED Lumen1660 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue

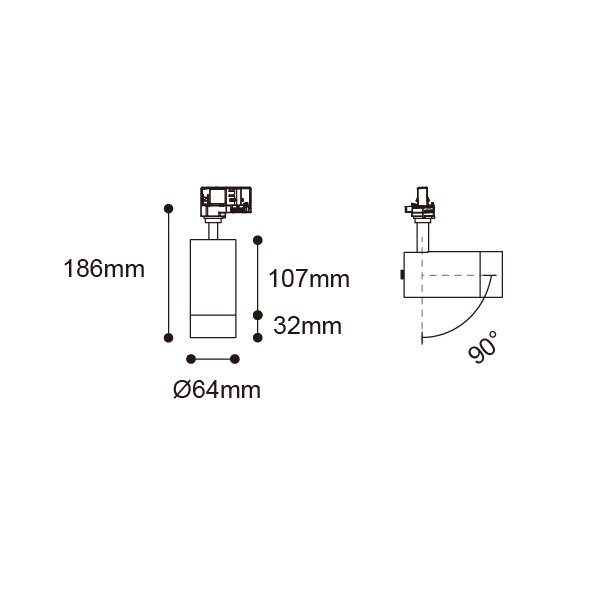

- 2319.201-AD3-D-350
- 12W
- 1185 lm
-
ASTER-B
ITEM NO. 2319.201-AD3-D-350
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1185 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201-AD3-D-500
- 17W
- 1660 lm
-
ASTER-B
ITEM NO. 2319.201-AD3-D-500
Consumption17W
Current / Voltage500mA / AC 100-277V
LED Lumen1660 lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

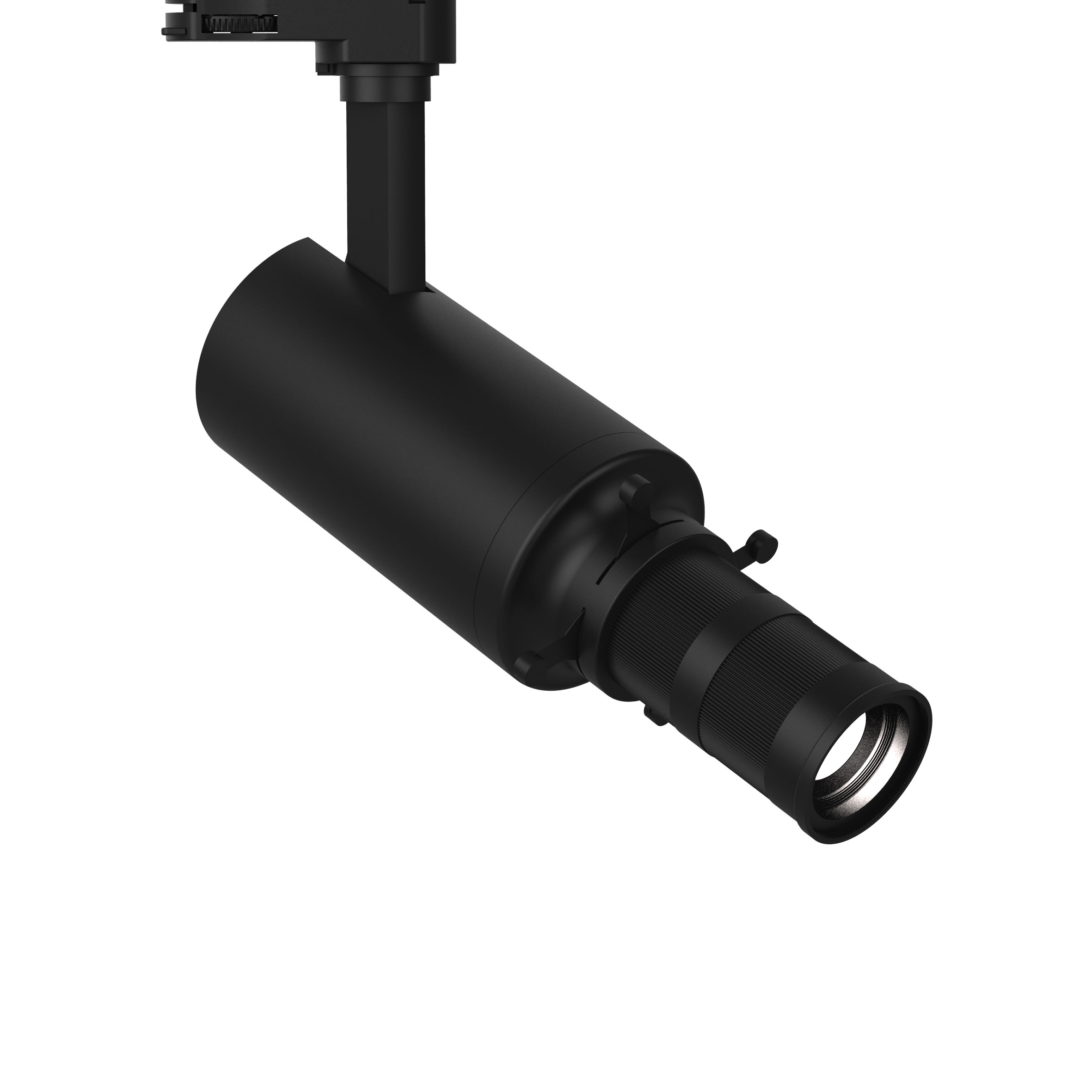

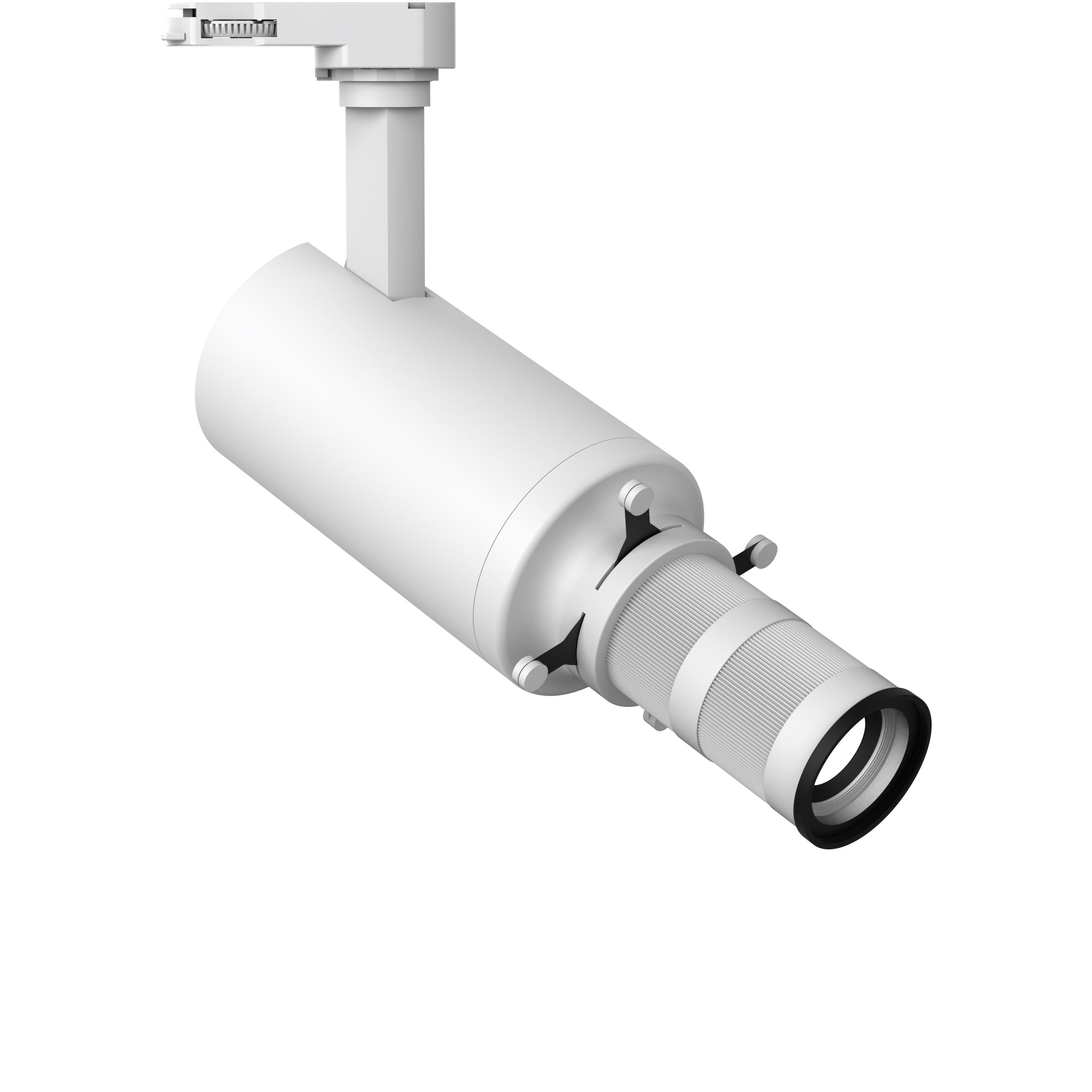

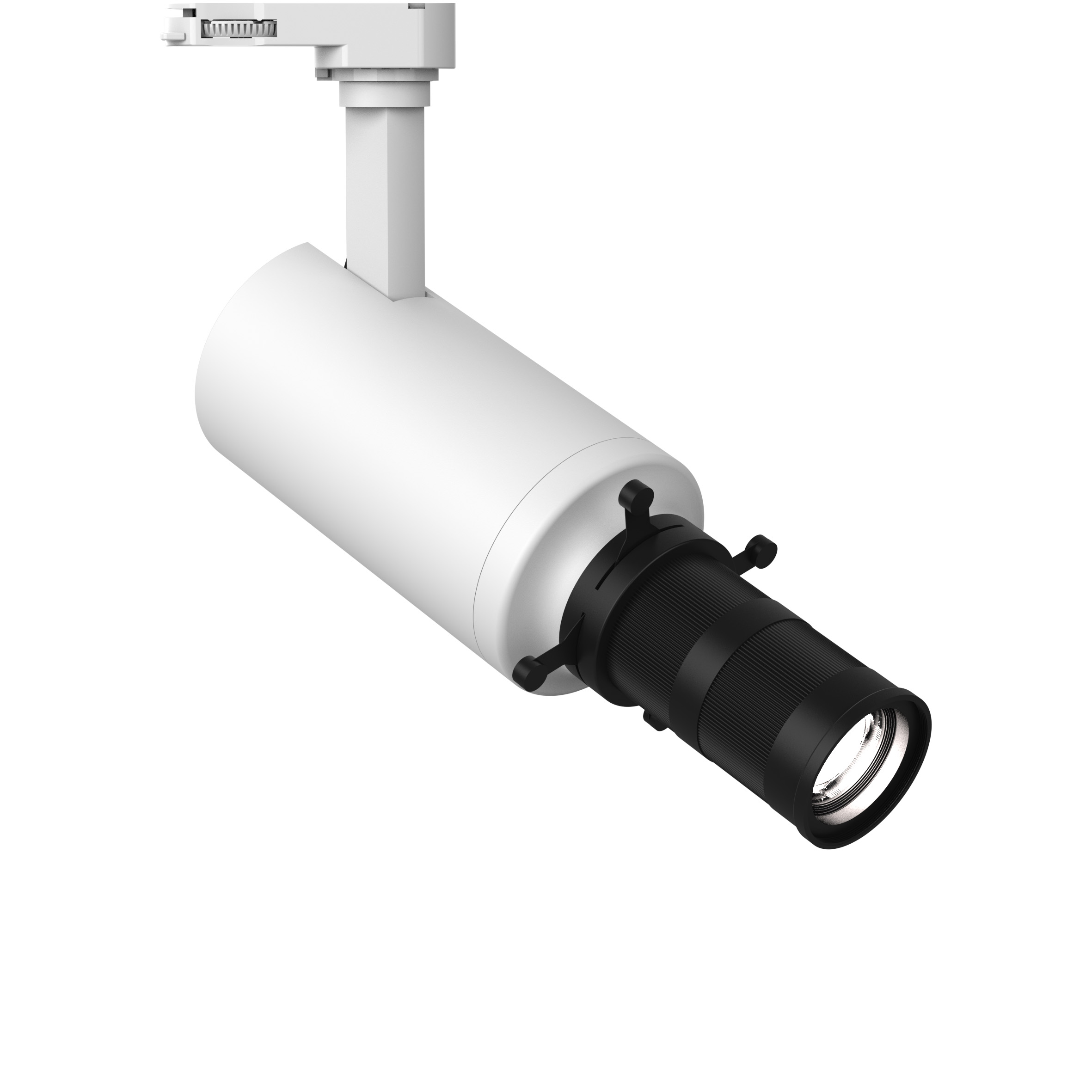

- 2319.201F-AD3-350
- 12W
- 418 lm
-
ASTER-B
ITEM NO. 2319.201F-AD3-350
Consumption12W
Current / Voltage350 mA / 100-277VAC
LED Lumen418 lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue

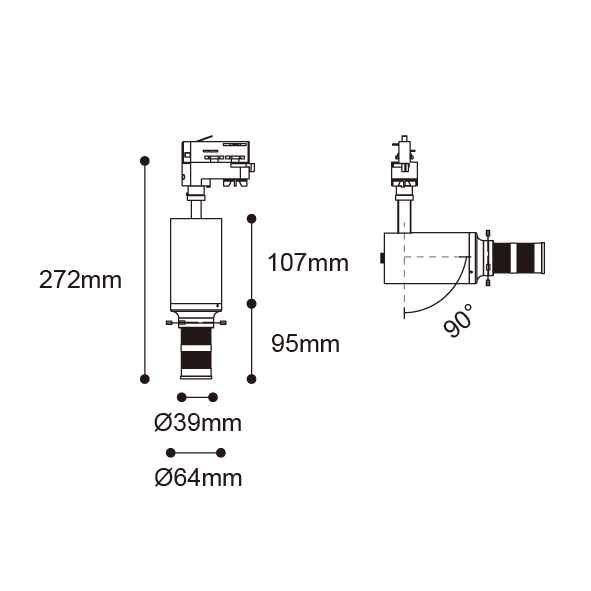

- 2319.201F-AD3-D-350
- 12W
- 418 lm
-
ASTER-B
ITEM NO. 2319.201F-AD3-D-350
Consumption12W
Current / Voltage350 mA / 100-277VAC
LED Lumen418 lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

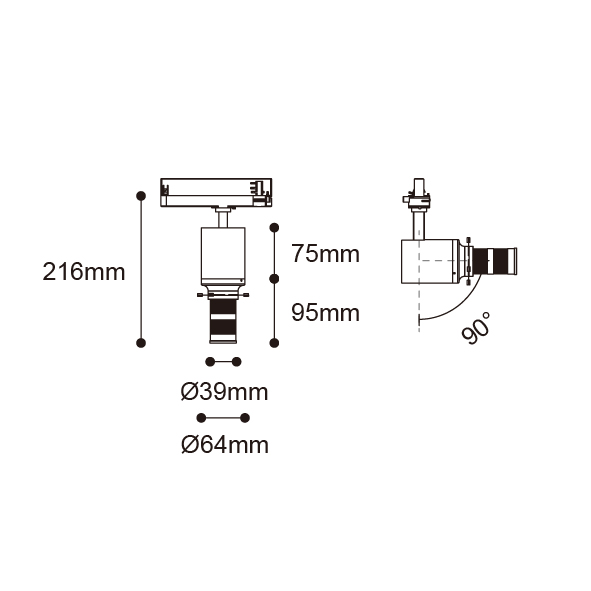

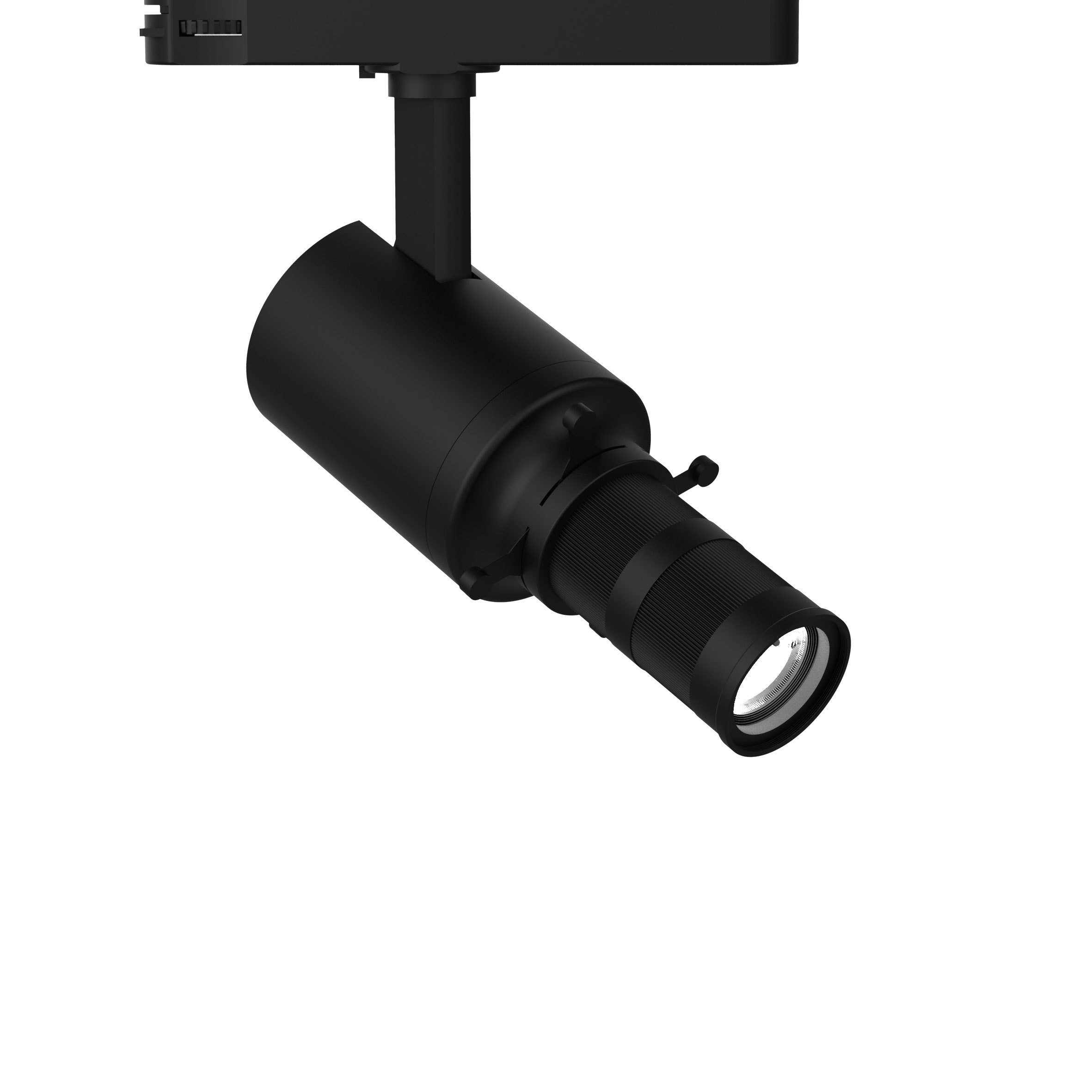

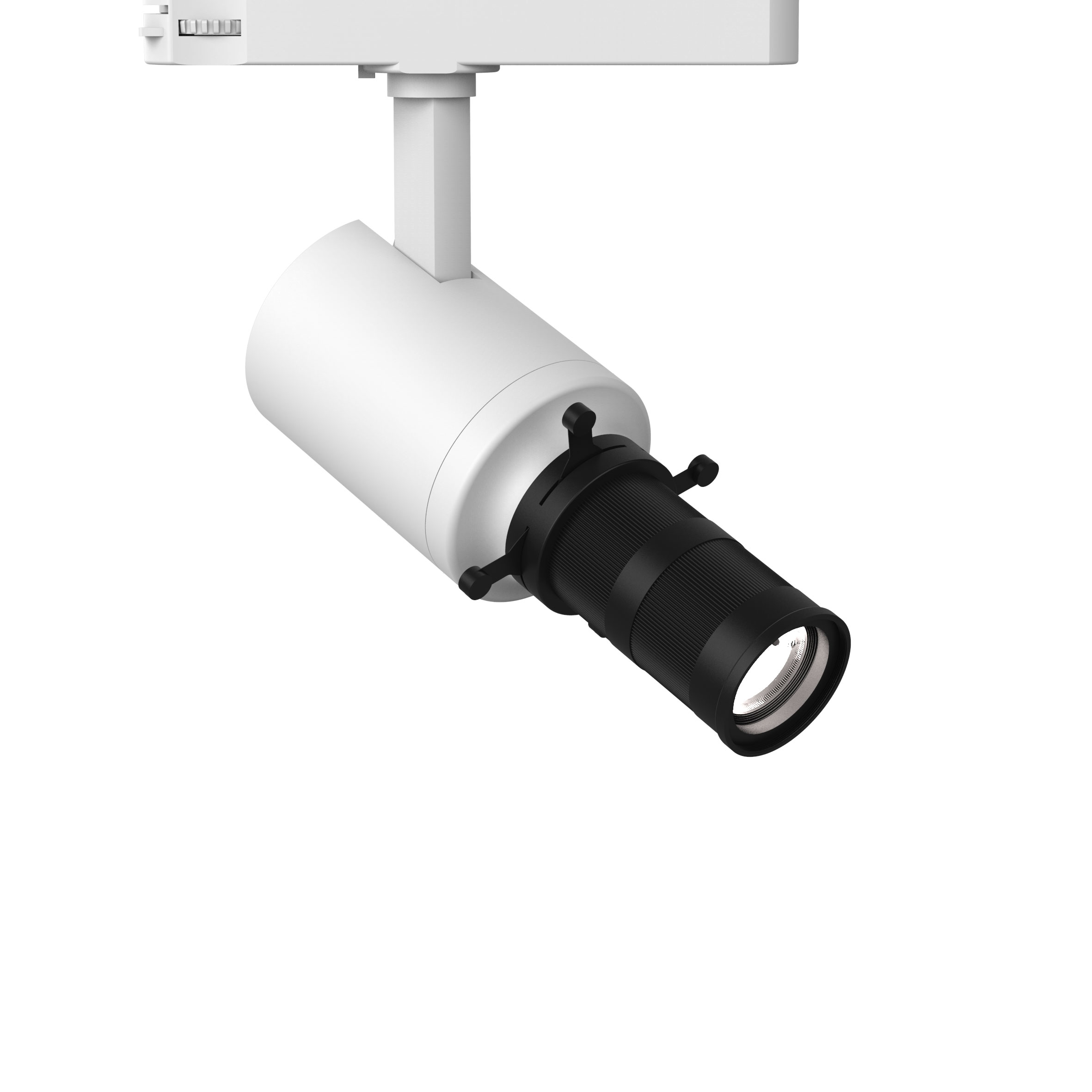

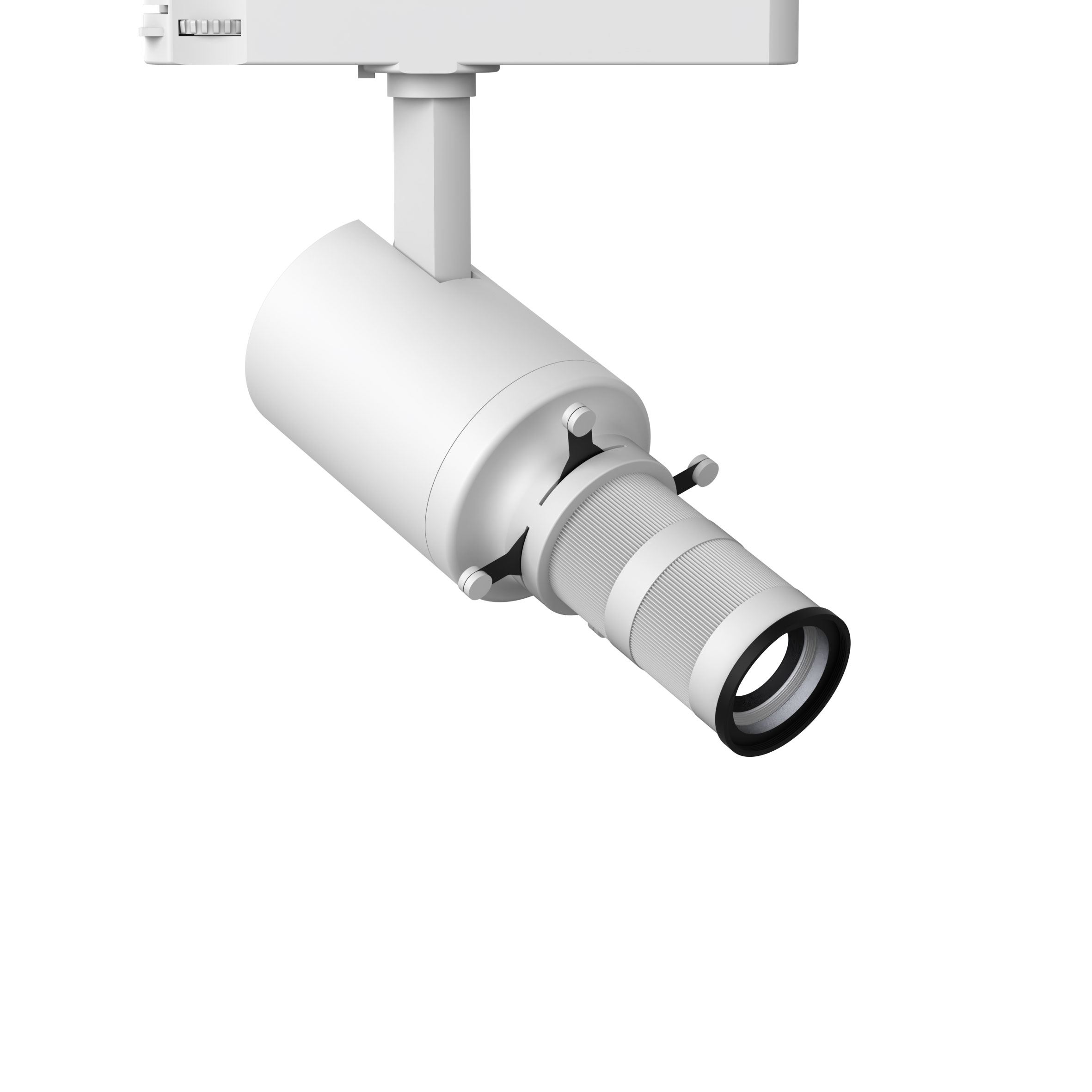

- 2319.210F-UA-350
- 12W
- 418 lm
-
ASTER-B
ITEM NO. 2319.210F-UA-350
Consumption12W
Current / Voltage350 mA / AC 220-240V
LED Lumen418 lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

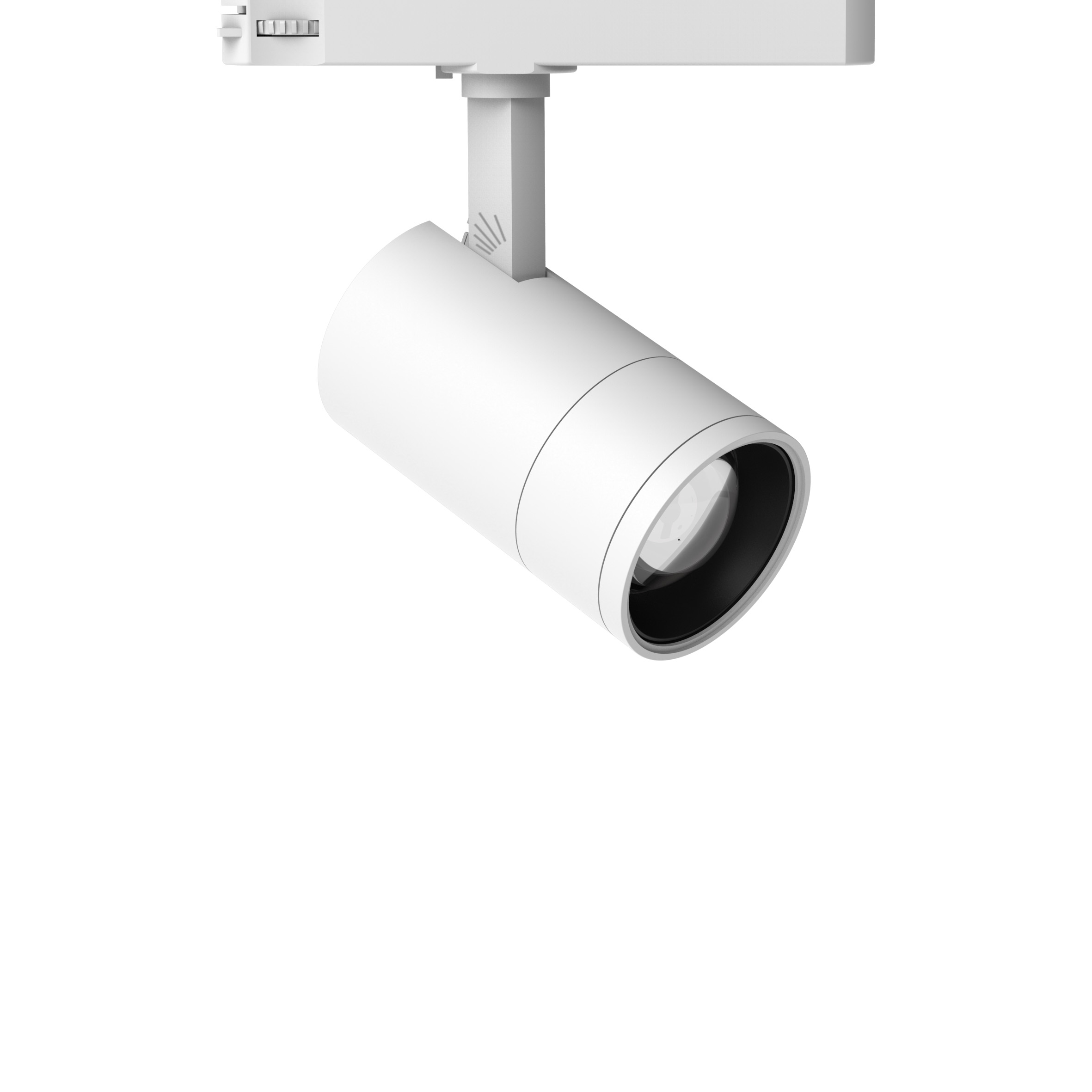

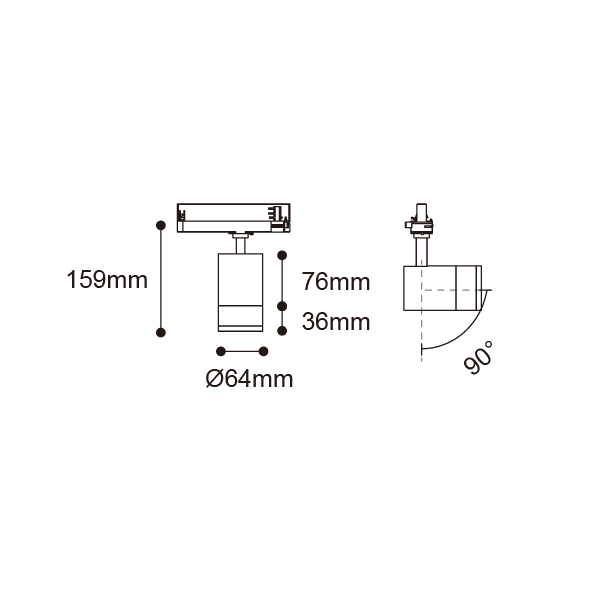

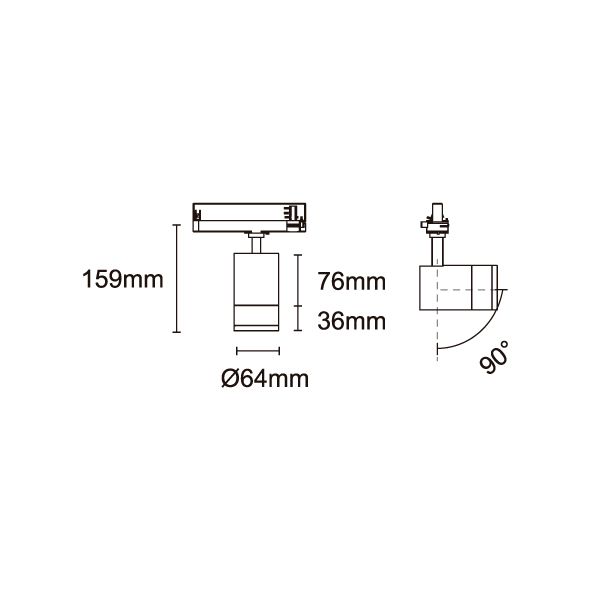

- 2319.210Z-UA
- 12W
- 815 lm
-
ASTER-B
ITEM NO. 2319.210Z-UA
Consumption12W
Current / Voltage350 mA / AC 220-240V
LED Lumen815 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

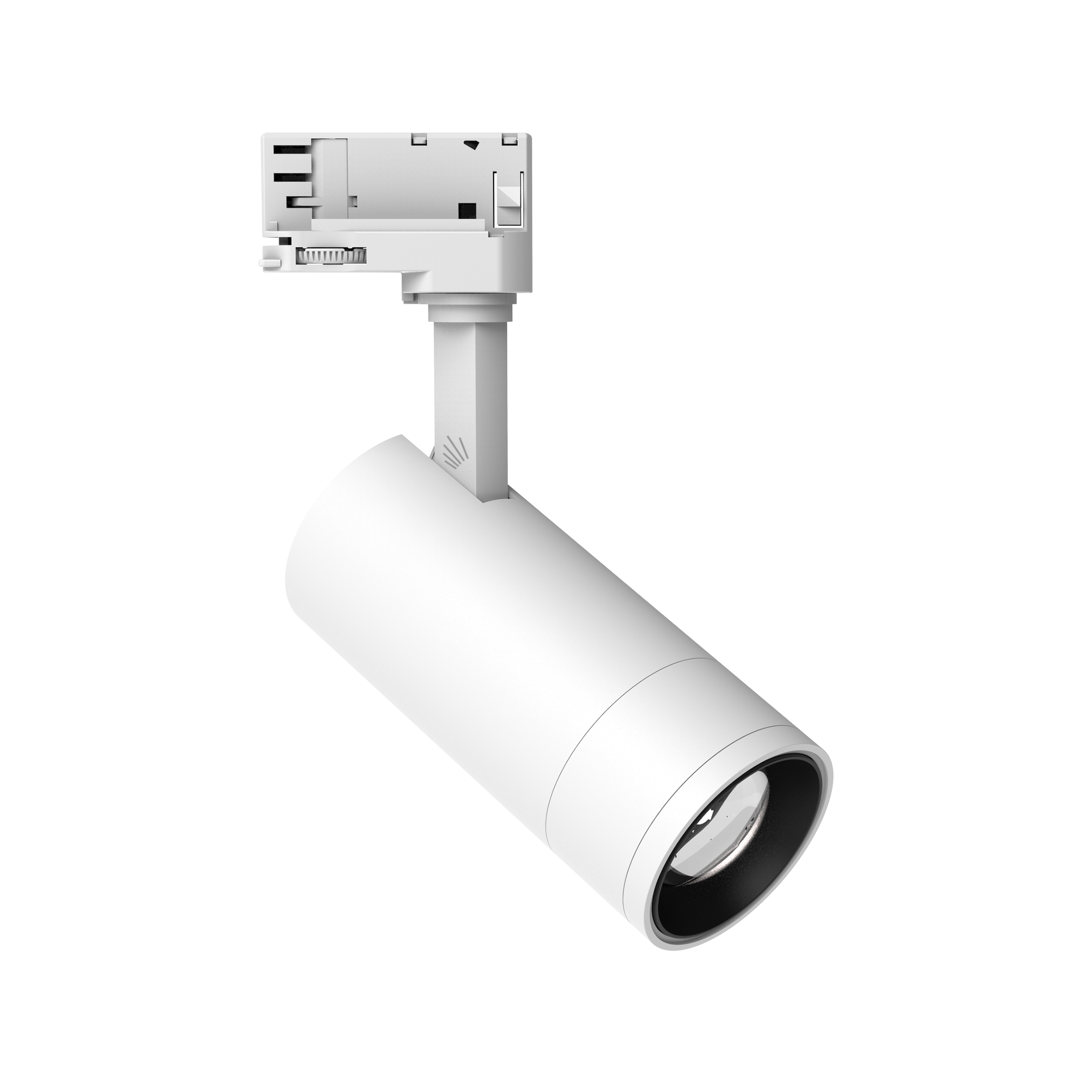

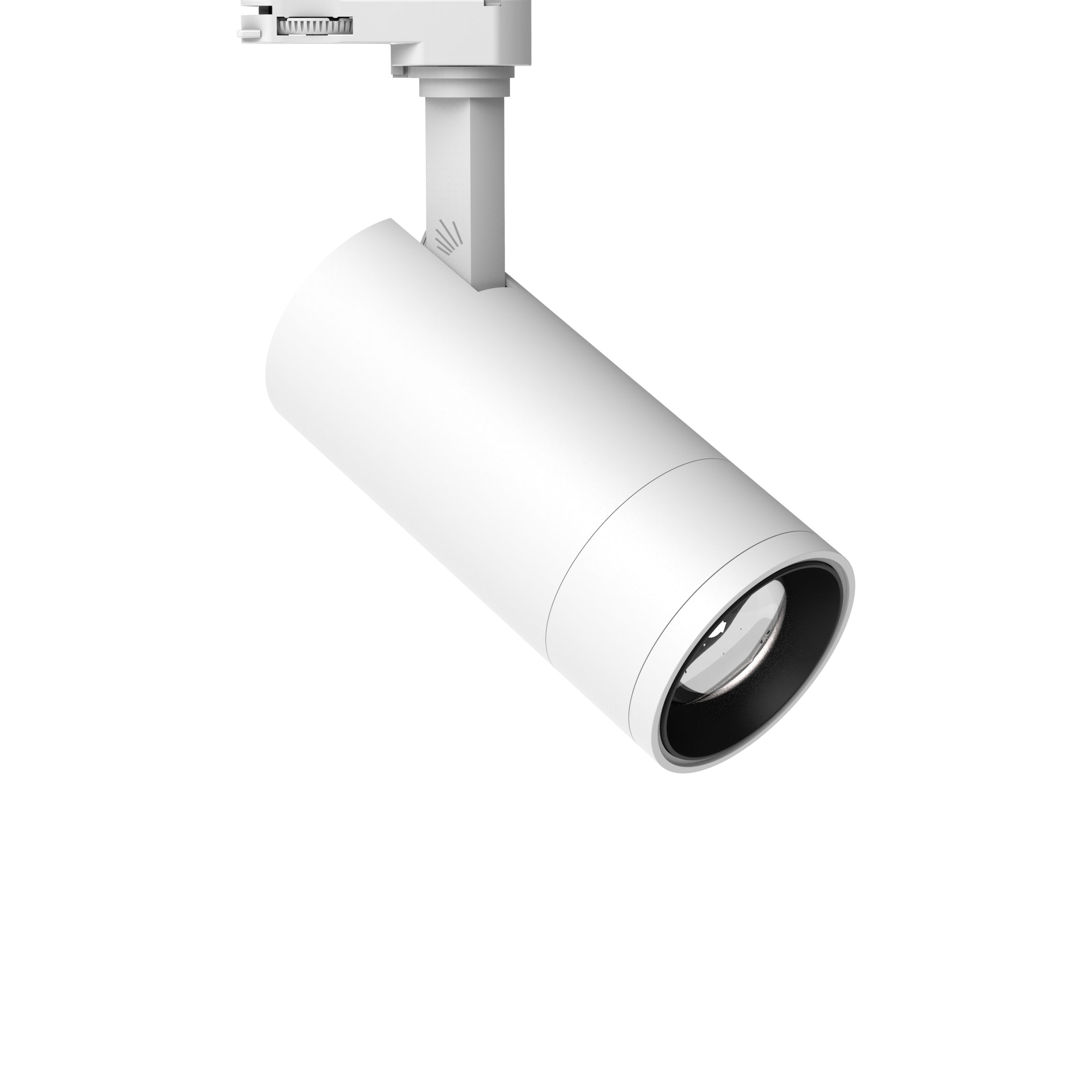

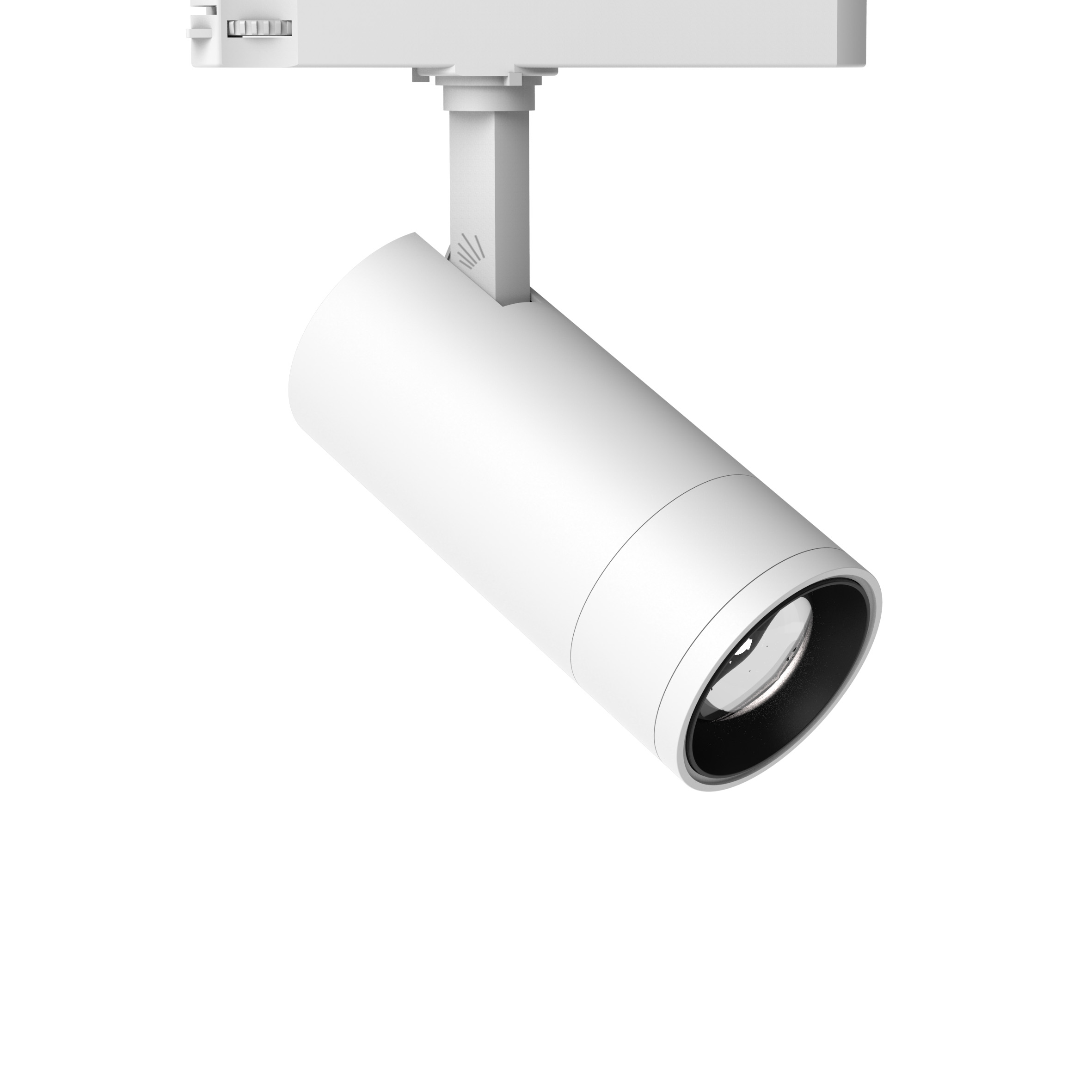

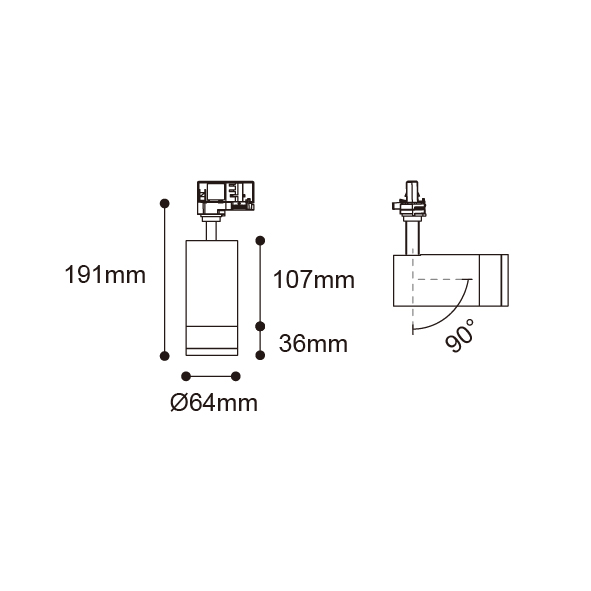

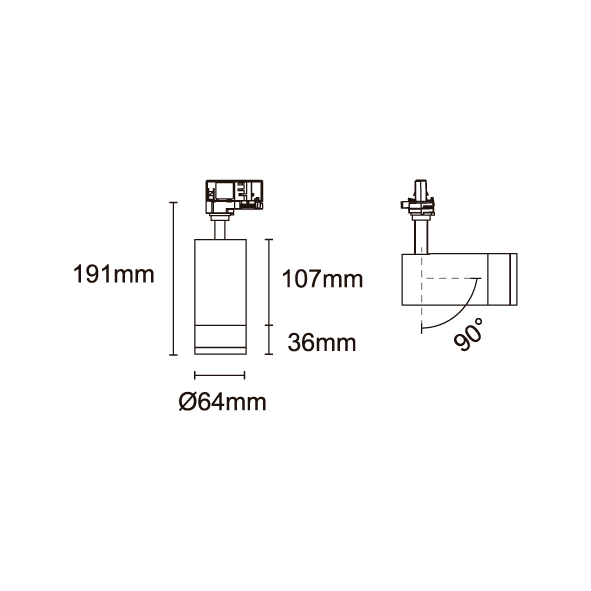

- 2319.201Z-AD3-350
- 12W
- 815 lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-350
Consumption12W
Current / Voltage350 mA / 100-277V
LED Lumen815 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue
- 2319.201Z-AD3-500
- 17W
- 1141 lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-500
Consumption17W
Current / Voltage500 mA / AC 100-277V
LED Lumen1141 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue

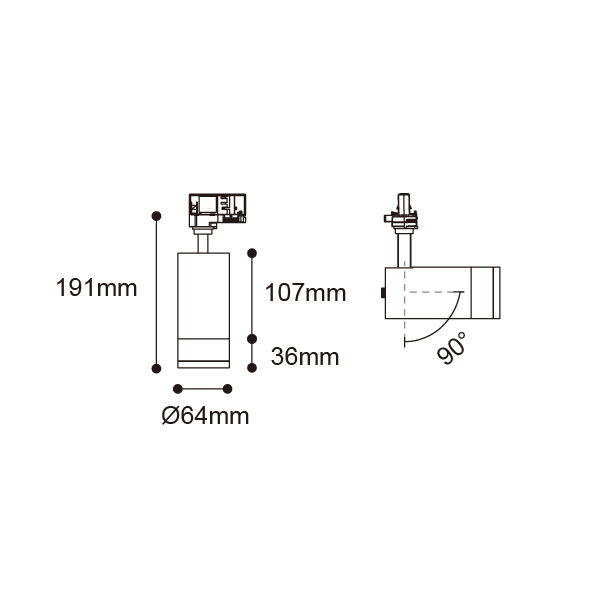

- 2319.201Z-AD3-D-350
- 12W
- 815 lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-D-350
Consumption12W
Current / Voltage350 mA / AC 100-277V
LED Lumen815 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201Z-AD3-D-500
- 17W
- 1141 lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-D-500
Consumption17W
Current / Voltage500 mA / AC 100-277V
LED Lumen1141 lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

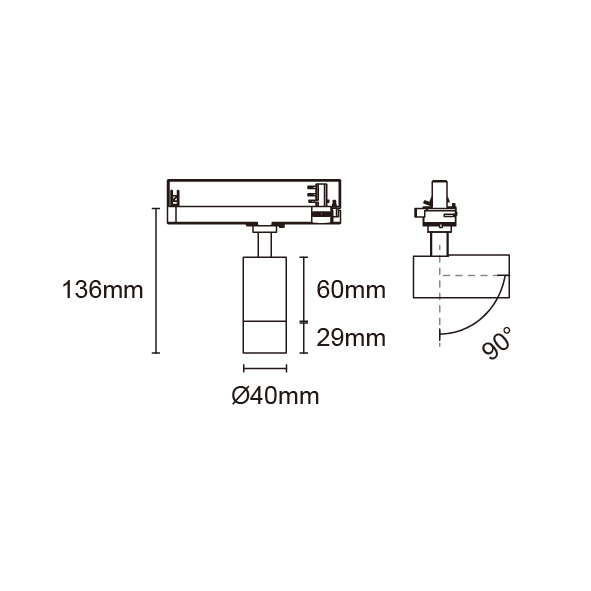

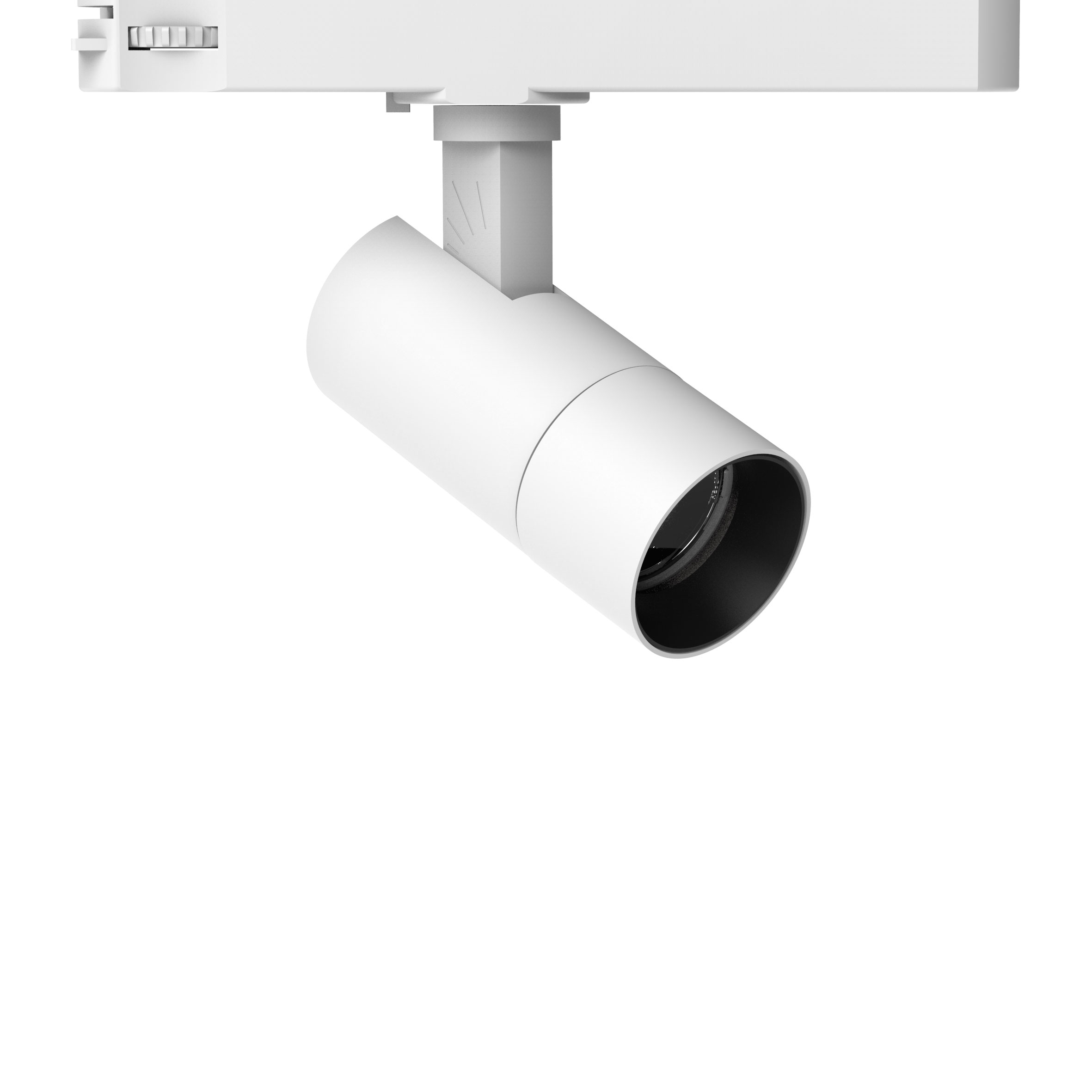

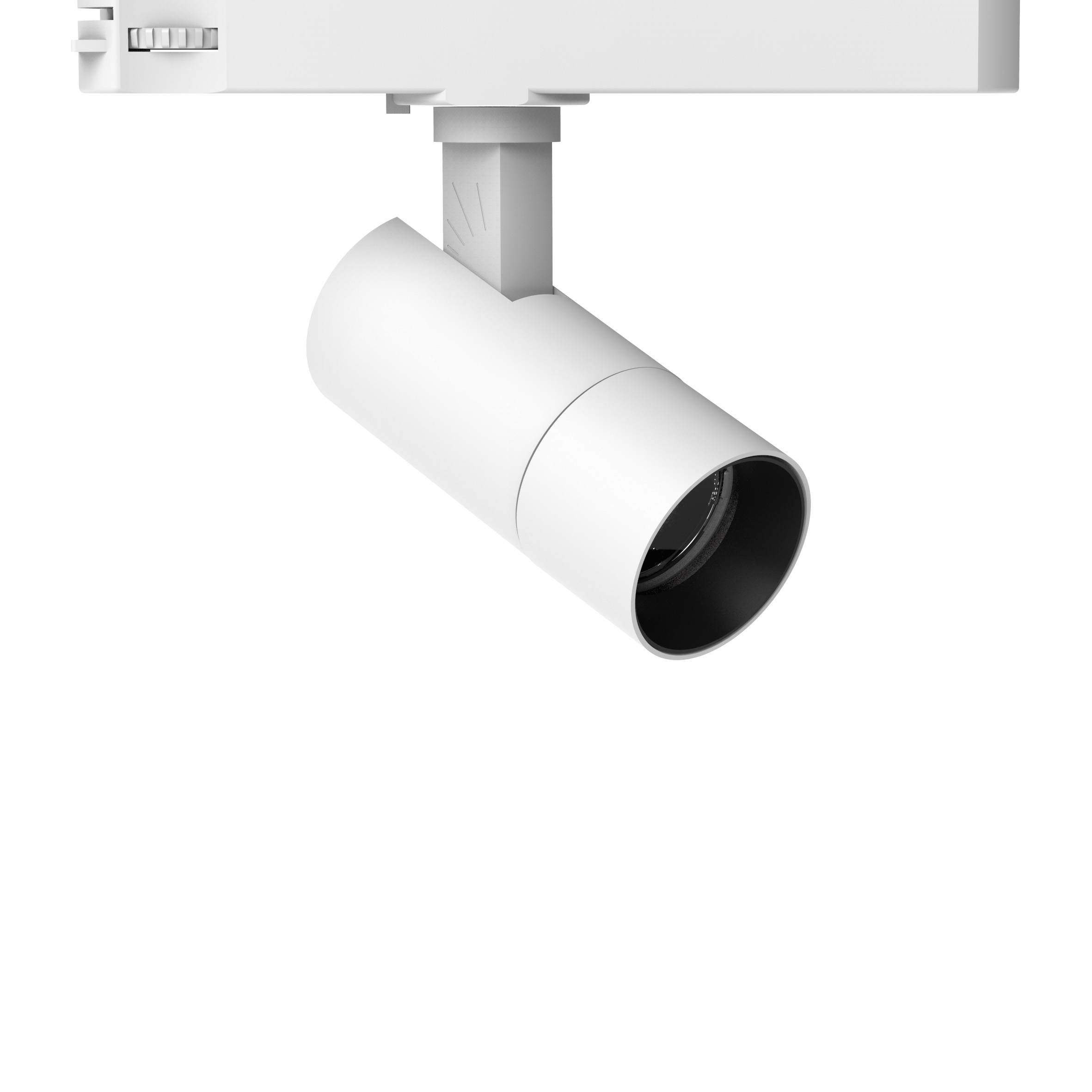

- 2319.226-UA-200-HE
- 7W
- 709lm
-
ASTER-B
ITEM NO. 2319.226-UA-200-HE
Consumption7W
Current / Voltage200mA / AC 220-240V
LED Lumen709lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture

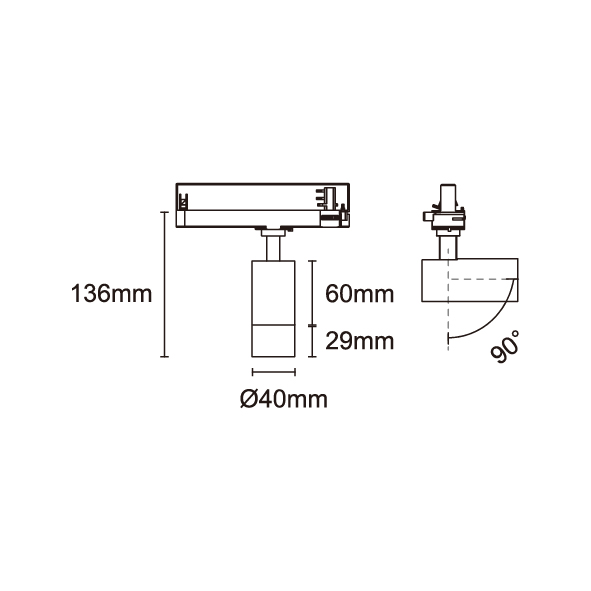

- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

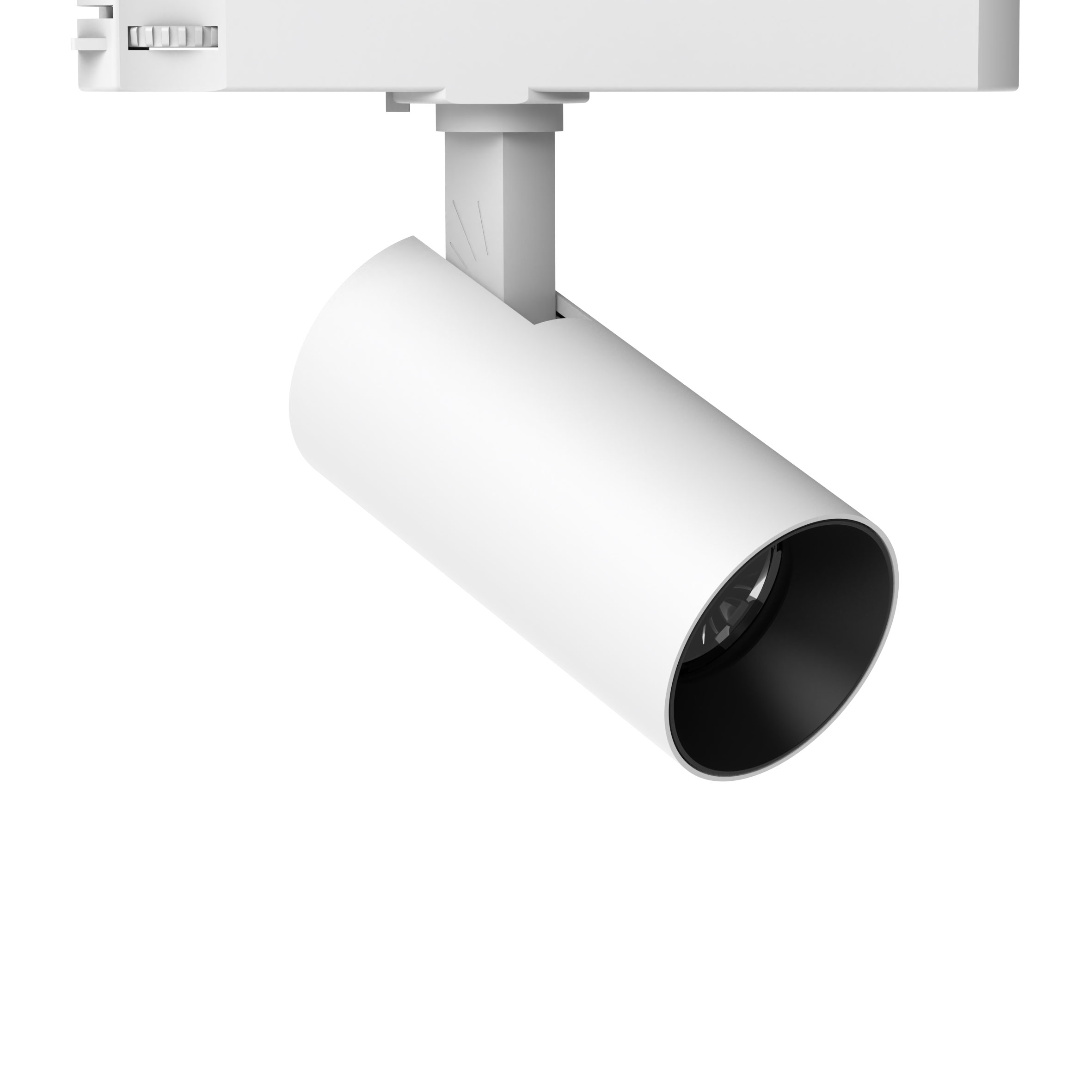

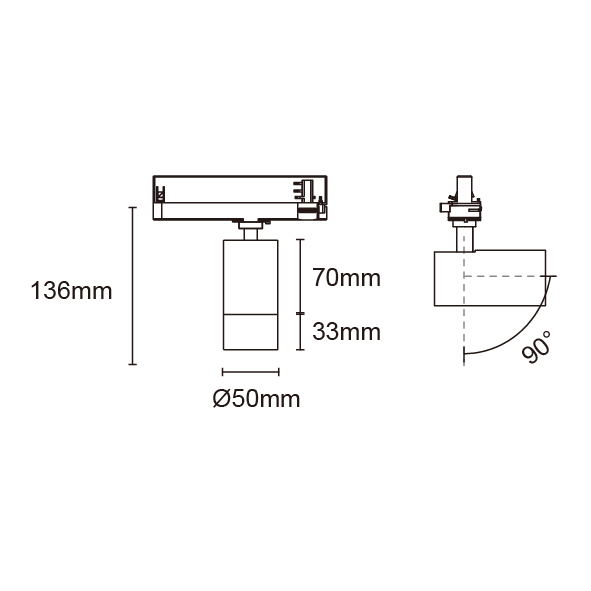

- 2419.205-UA-300-HE
- 10W
- 1121lm
-
ASTER-B
ITEM NO. 2419.205-UA-300-HE
Consumption10W
Current / Voltage300mA / AC 220-240V
LED Lumen1121lm
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture

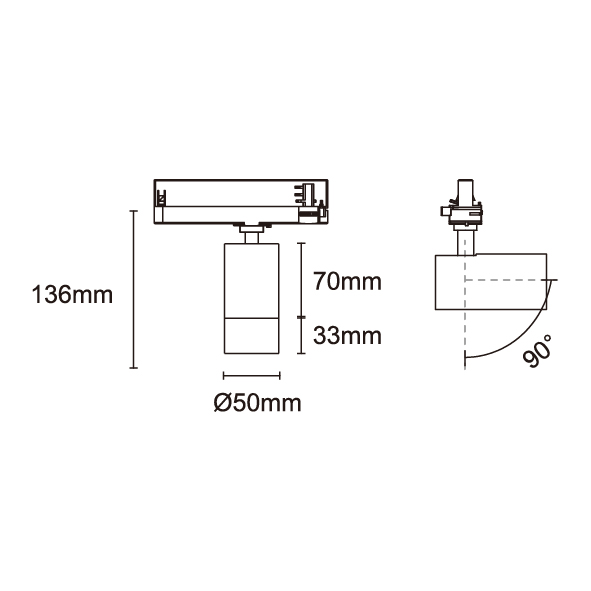

- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.210-UA-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.210-UA-350-DA
Consumption12W
Current / Voltage350mA / AC220-240V
LED Lumen1317lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201-AD3-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.201-AD3-350-DA
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1317lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201-AD3-500-DA
- 17W
- 1815lm
-
ASTER-B
ITEM NO. 2319.201-AD3-500-DA
Consumption17W
Current / Voltage500mA / AC100-277V
LED Lumen1815lm
Beam Angle 20°/25°/38°/50°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

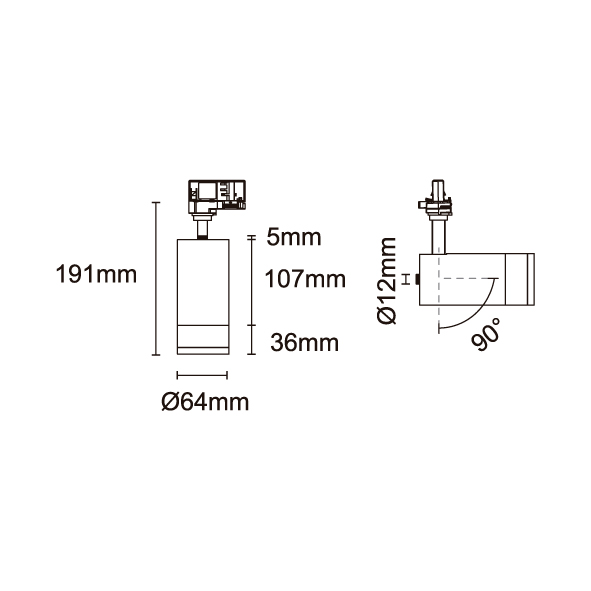

- 2319.201-AD3-CT-250
- 8W
- 1064lm
-
ASTER-B
ITEM NO. 2319.201-AD3-CT-250
Consumption8W
Current / Voltage250mA / AC 100-277V
LED Lumen1064lm
Beam Angle 20°/25°/38°/50°
CCT5CCT
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

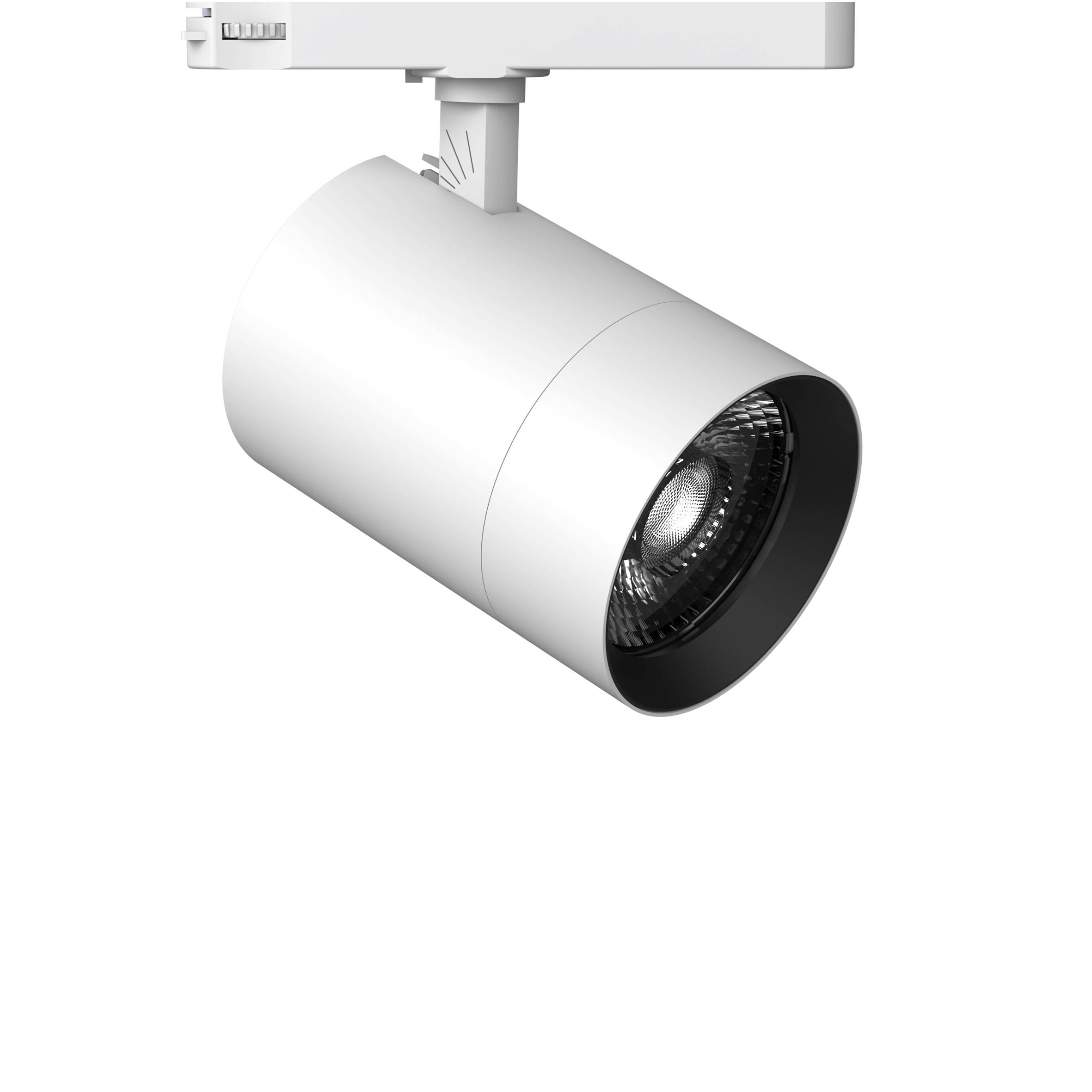

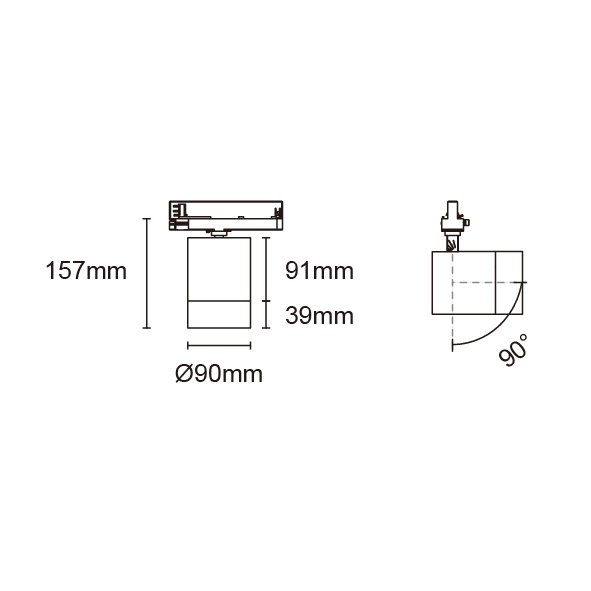

- 2319.224-UA-700
- 24W
- 2705lm
-
ASTER-B
ITEM NO. 2319.224-UA-700
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen2705lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

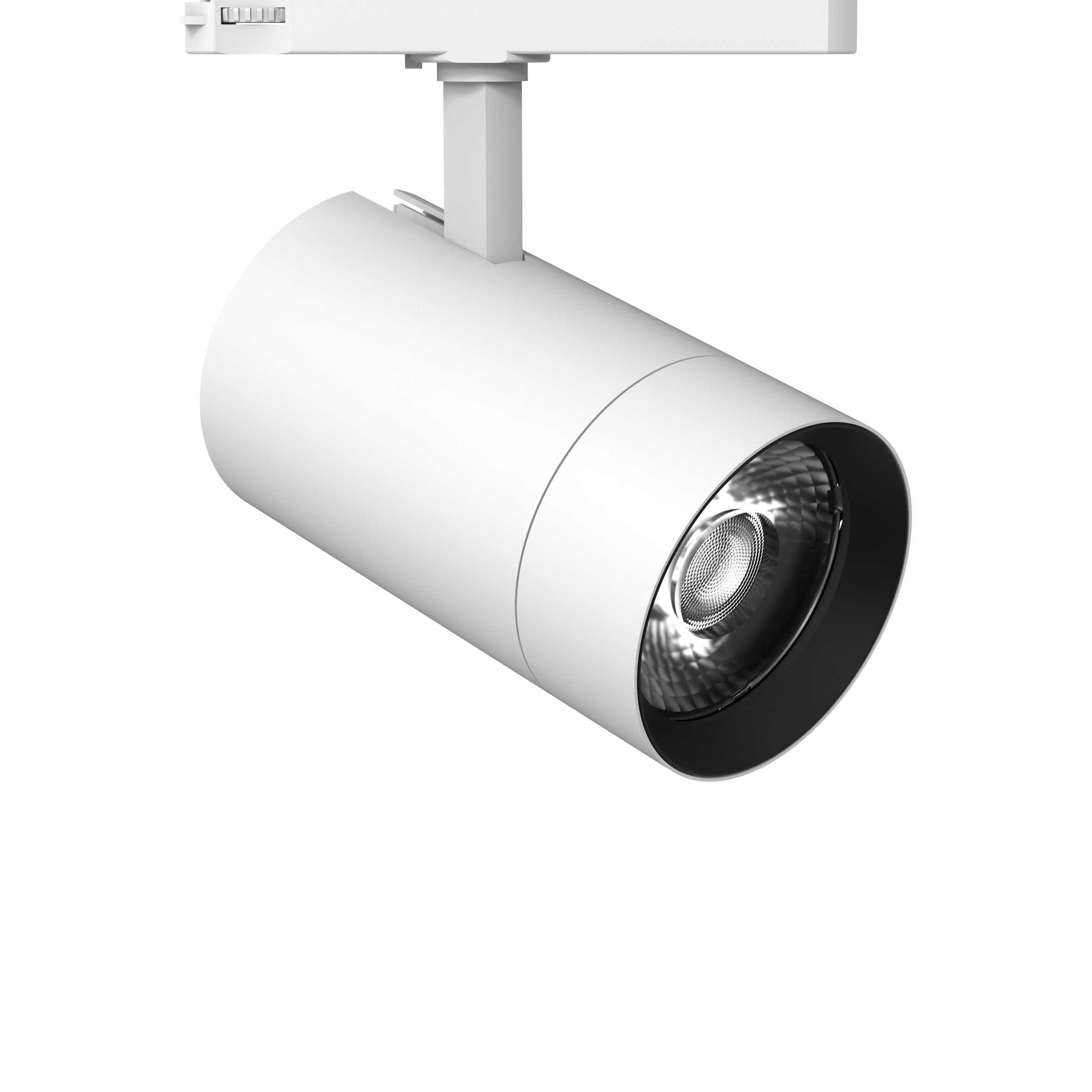

- 2319.222-UA-1050
- 37W
- 3935lm
-
ASTER-B
ITEM NO. 2319.222-UA-1050
Consumption37W
Current / Voltage1050mA / AC 220-240V
LED Lumen3935lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.224-UA-700-DA
- 24W
- 2705lm
-
ASTER-B
ITEM NO. 2319.224-UA-700-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen2705lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222-UA-1050-DA
- 37W
- 3935lm
-
ASTER-B
ITEM NO. 2319.222-UA-1050-DA
Consumption37W
Current / Voltage1050mA / AC 220-240V
LED Lumen3935lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

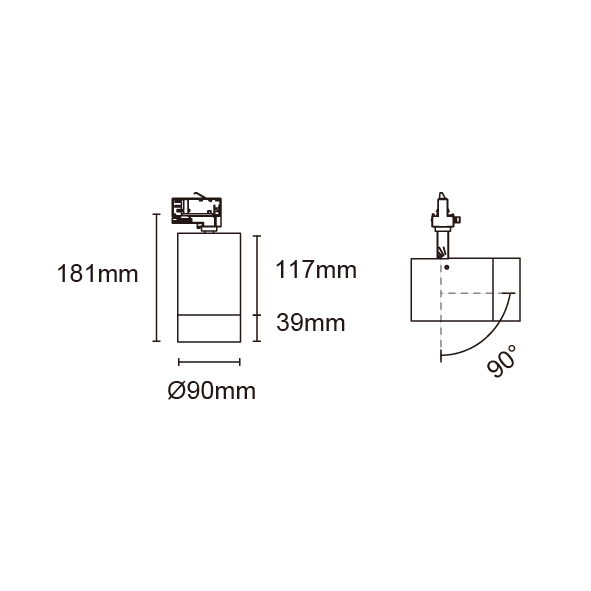

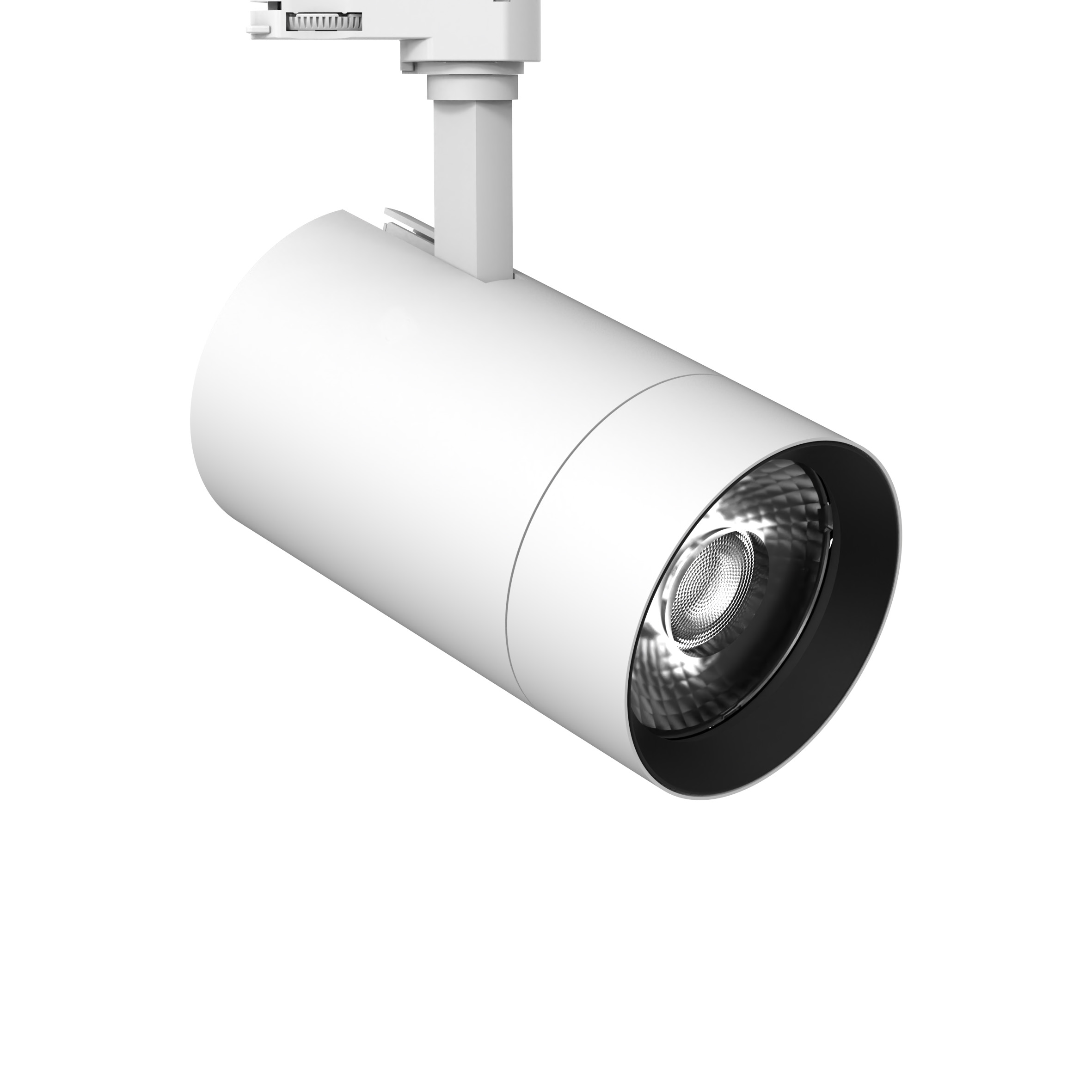

- 2319.222-AD3-500
- 17W
- 1972lm
-
ASTER-B
ITEM NO. 2319.222-AD3-500
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen1972lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222-AD3-900
- 31W
- 3415lm
-
ASTER-B
ITEM NO. 2319.222-AD3-900
Consumption31W
Current / Voltage900mA / AC 220-240V
LED Lumen3415lm
Beam Angle 16°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222-AD3-500-DA
- 17W
- 1972lm
-
ASTER-B
ITEM NO. 2319.222-AD3-500-DA
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen1972lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222-AD3-800-DA
- 27W
- 3063lm
-
ASTER-B
ITEM NO. 2319.222-AD3-800-DA
Consumption27W
Current / Voltage800mA / AC 220-240V
LED Lumen3063lm
Beam Angle 18°/24°/36°/60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

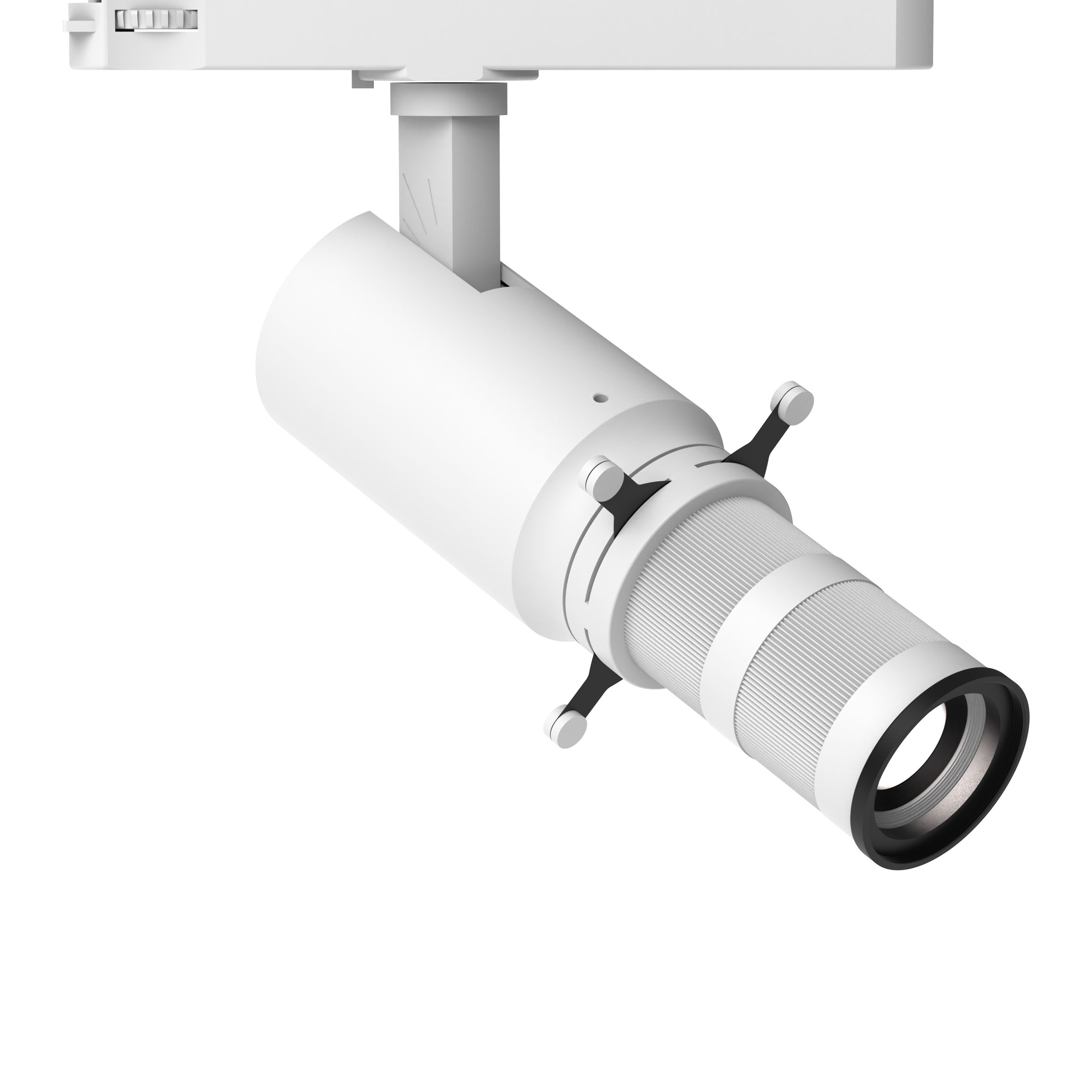

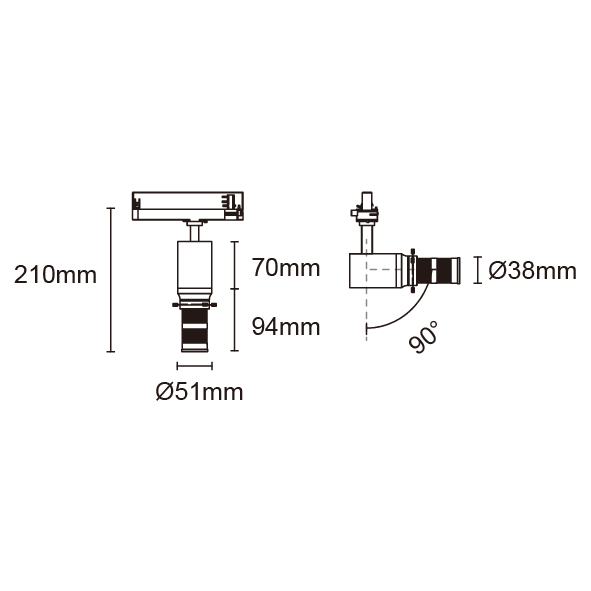

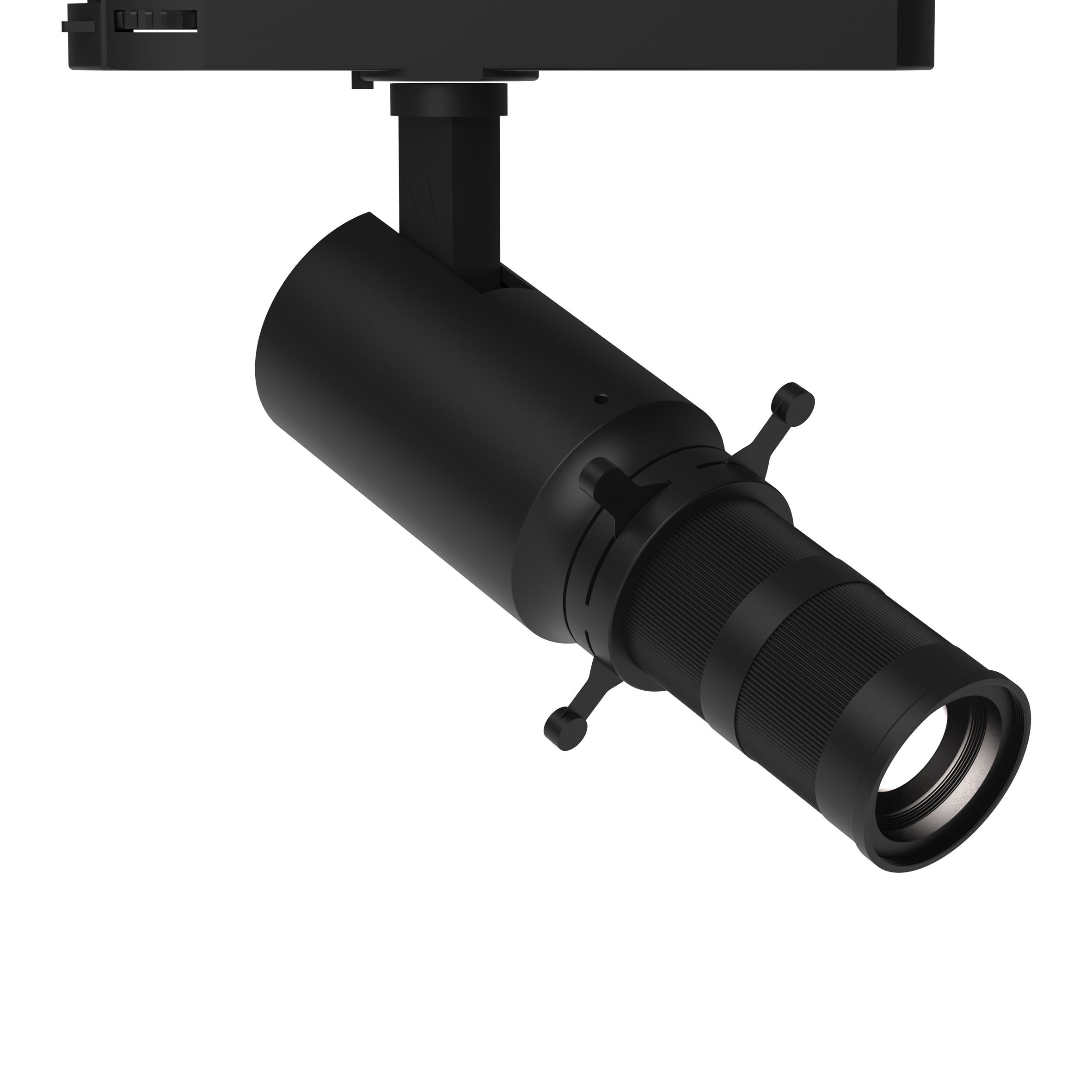

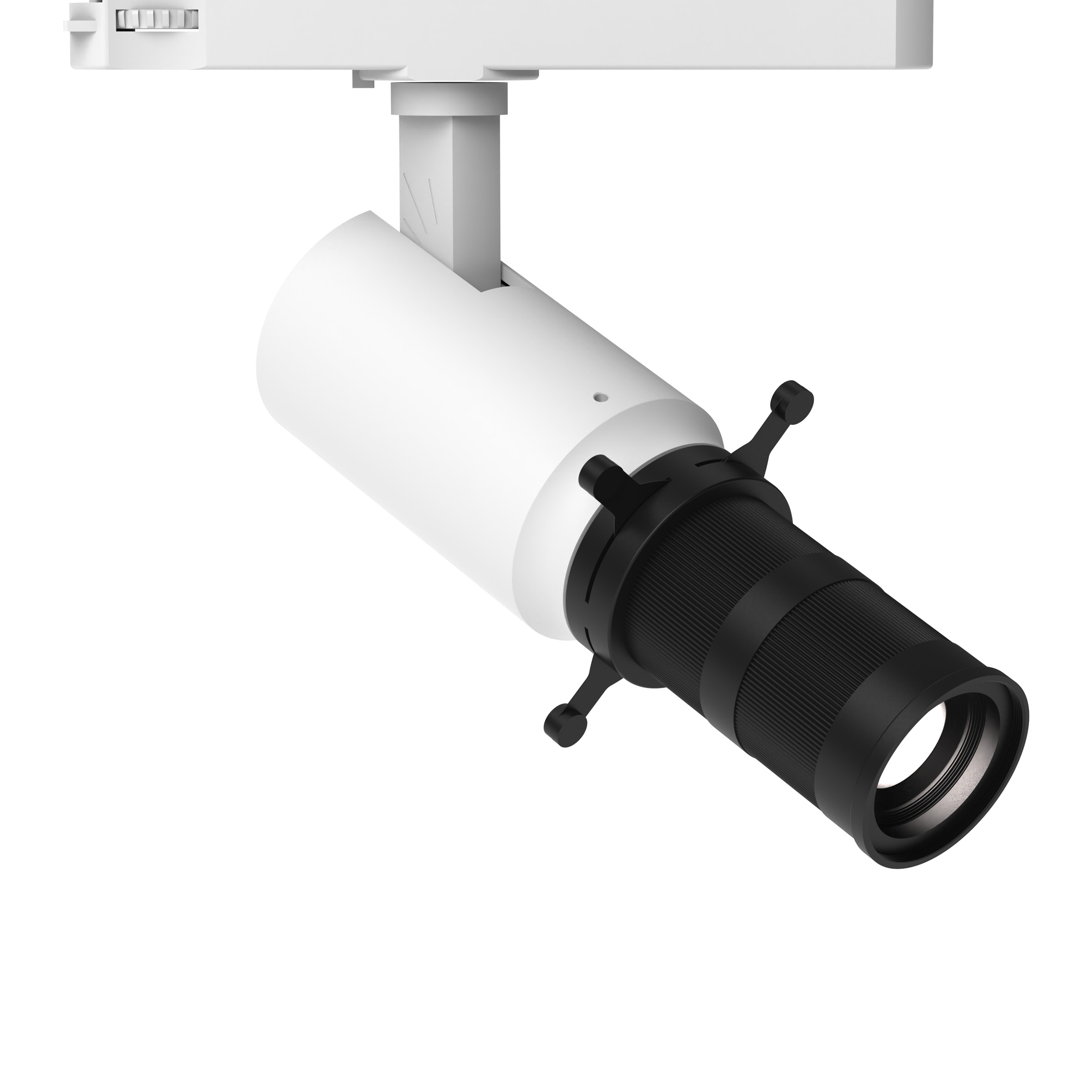

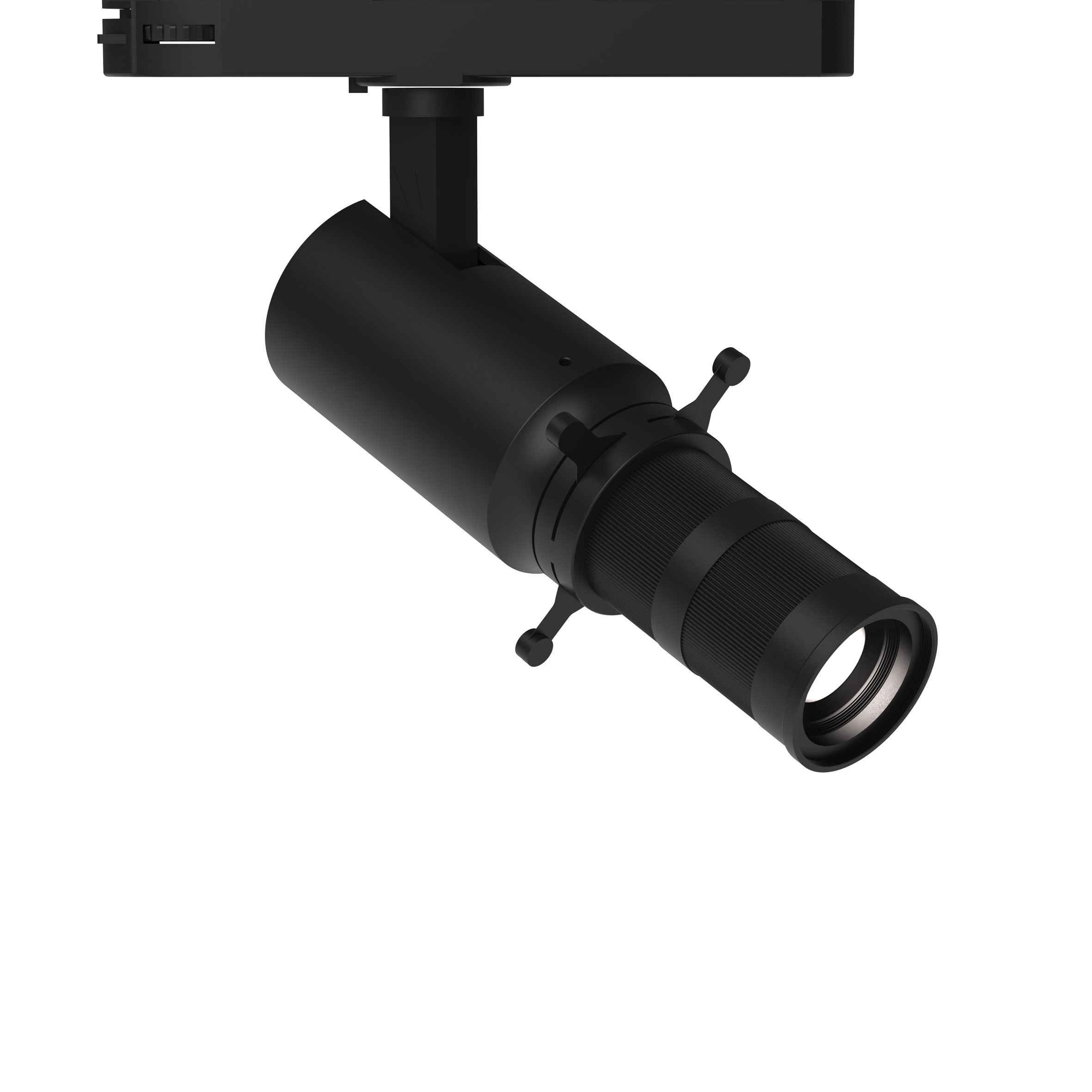

- 2419.205F-UA-300-HE
- 10W
- 1121lm
-
ASTER-B
ITEM NO. 2419.205F-UA-300-HE
Consumption10W
Current / Voltage300mA / AC 220-240V
LED Lumen1121lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

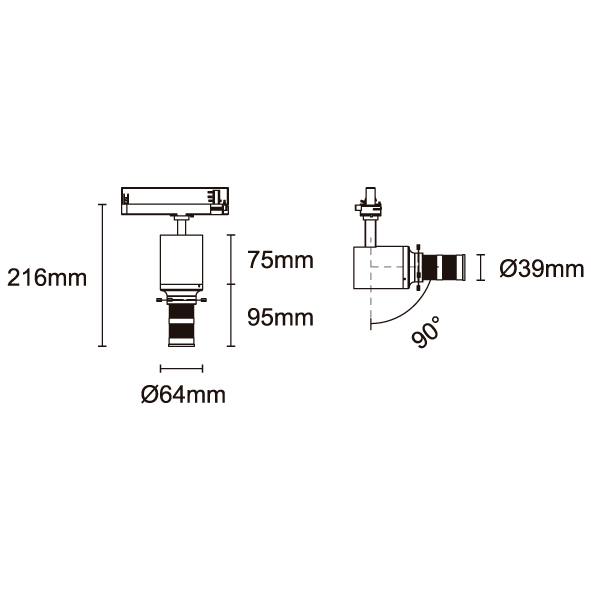

- 2319.210F-UA-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.210F-UA-350-DA
Consumption12W
Current / Voltage350mA /AC 220-240V
LED Lumen1317lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

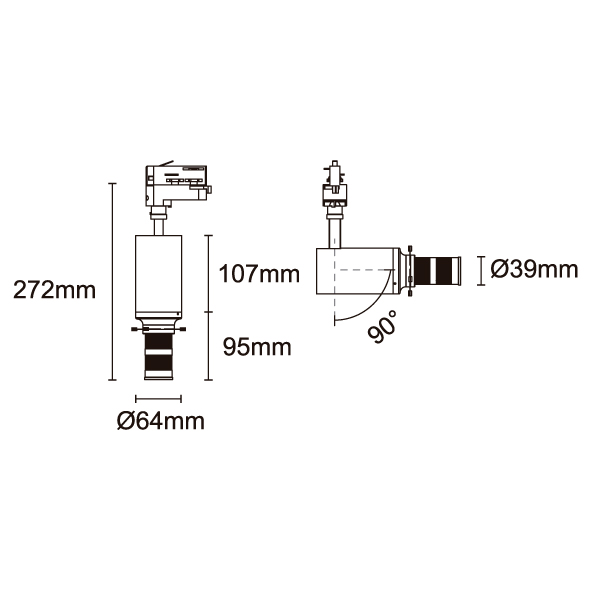

- 2319.201F-AD3-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.201F-AD3-350-DA
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1317lm
Beam Angle 20°~30°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201F-AD3-CT-250
- 8W
- 1064lm
-
ASTER-B
ITEM NO. 2319.201F-AD3-CT-250
Consumption8W
Current / Voltage250mA / AC 100-277V
LED Lumen1064lm
Beam Angle 20°~30°
CCT5CCT
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

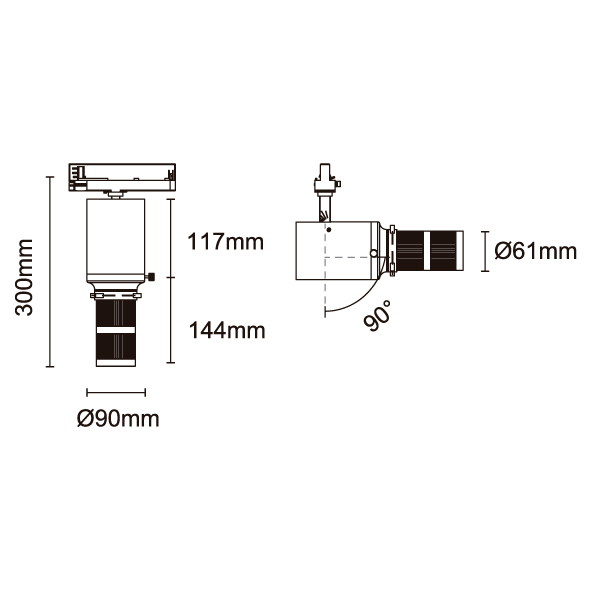

- 2319.222F-UA-900
- 31W
- 3415lm
-
ASTER-B

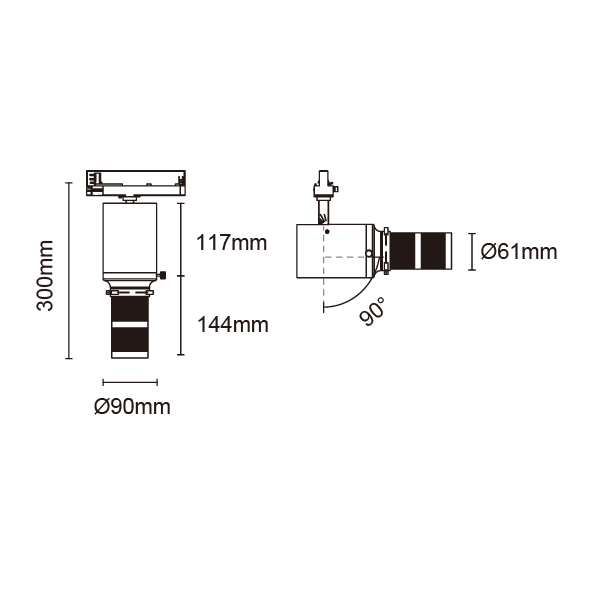

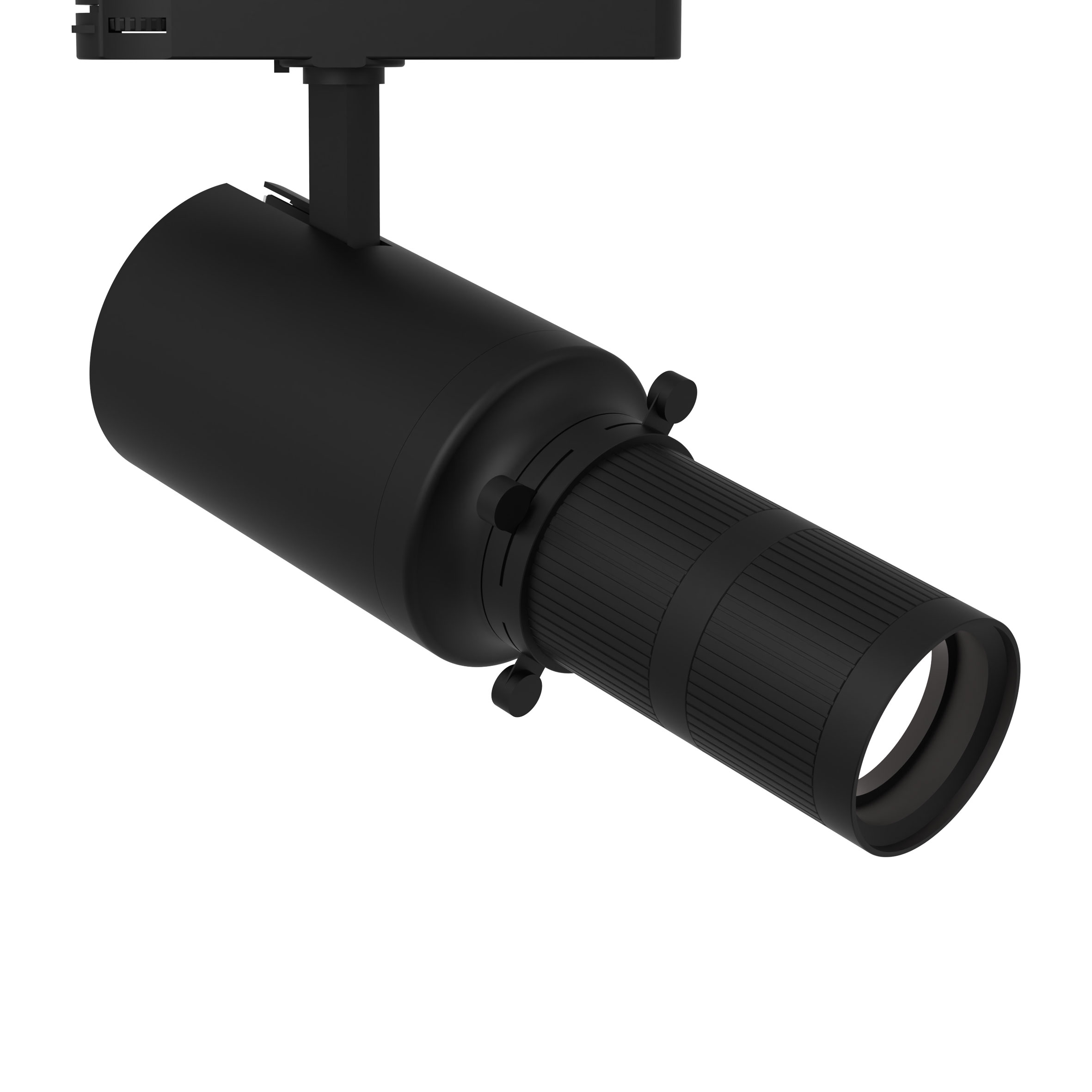

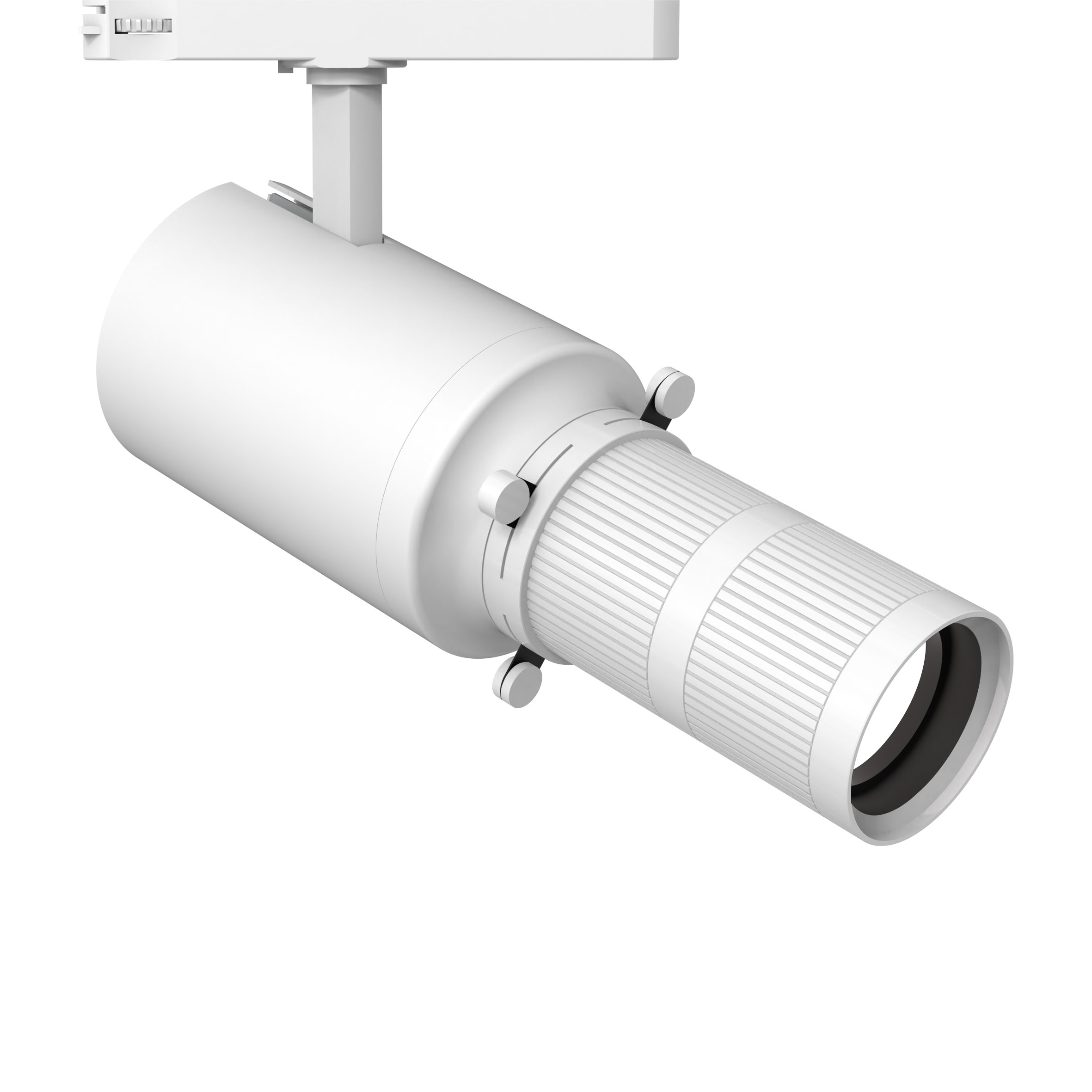

ITEM NO. 2319.222F-UA-900
Consumption31W
Current / Voltage900mA / AC 220-240V
LED Lumen3415lm
Beam Angle 25°~35°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222F-UA-700-DA
- 24W
- 1133lm
-
ASTER-B
ITEM NO. 2319.222F-UA-700-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen1133lm
Beam Angle 25°~35°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

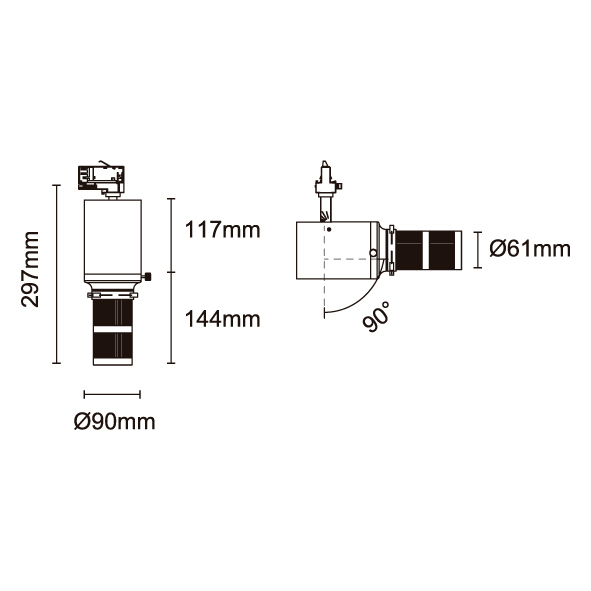

- 2319.222F-AD3-900
- 31W
- 3415lm
-
ASTER-B

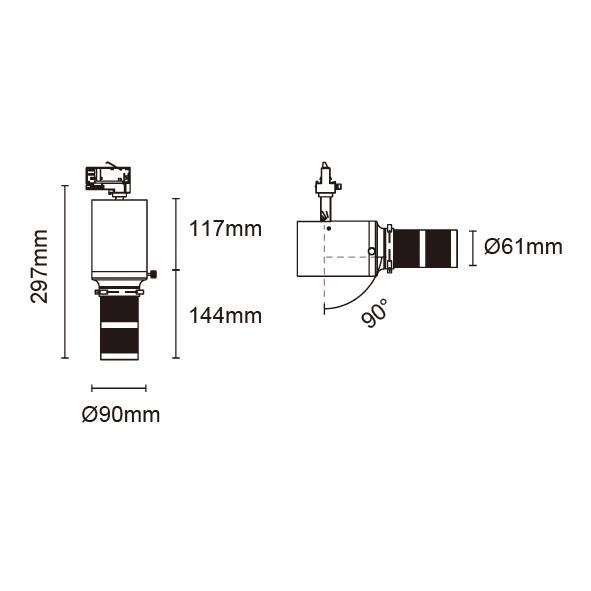

ITEM NO. 2319.222F-AD3-900
Consumption31W
Current / Voltage900mA / AC 220-240V
LED Lumen3415lm
Beam Angle 25°~35°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

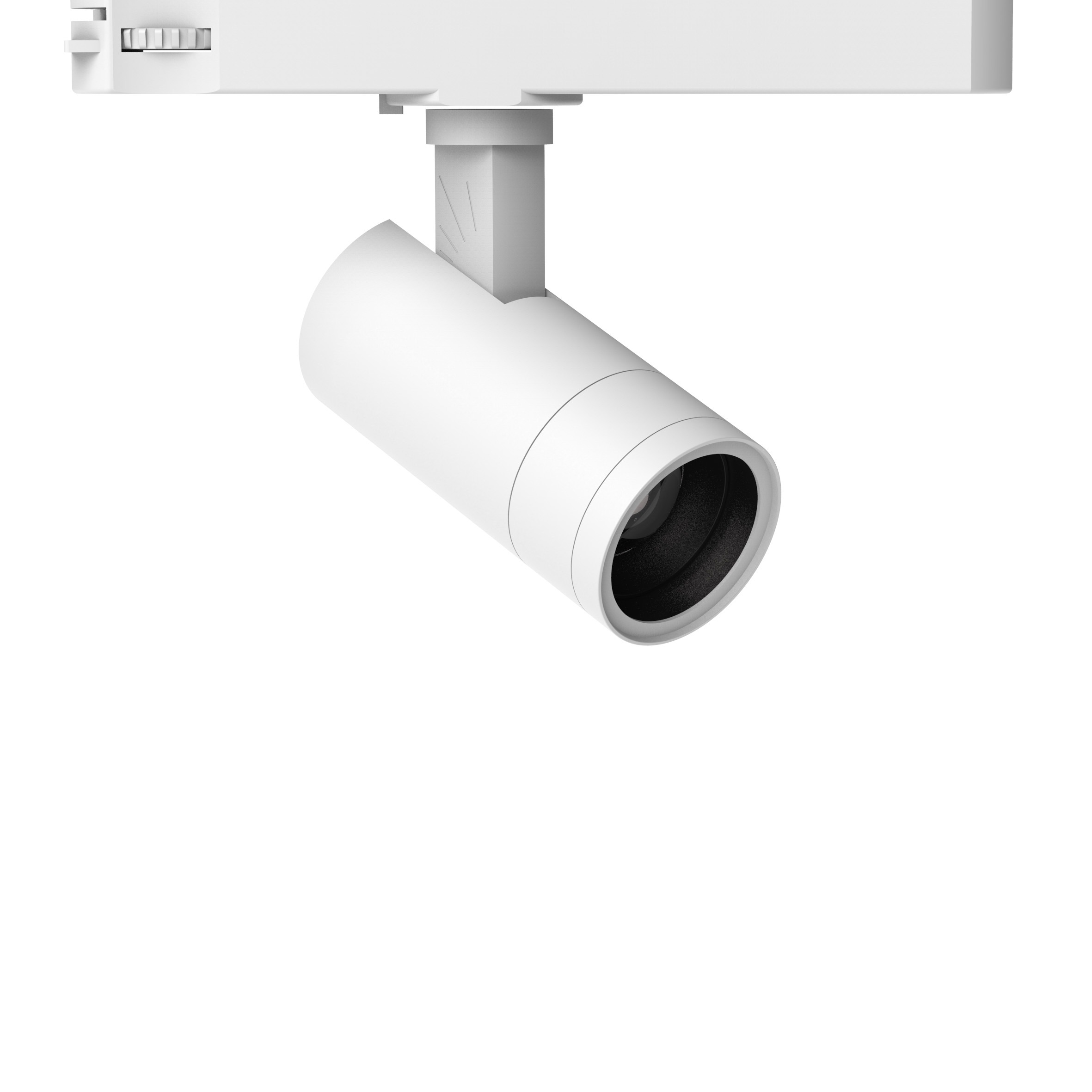

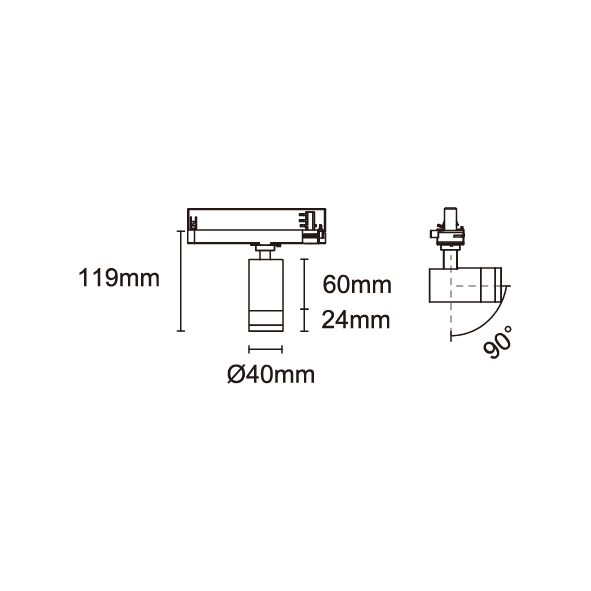

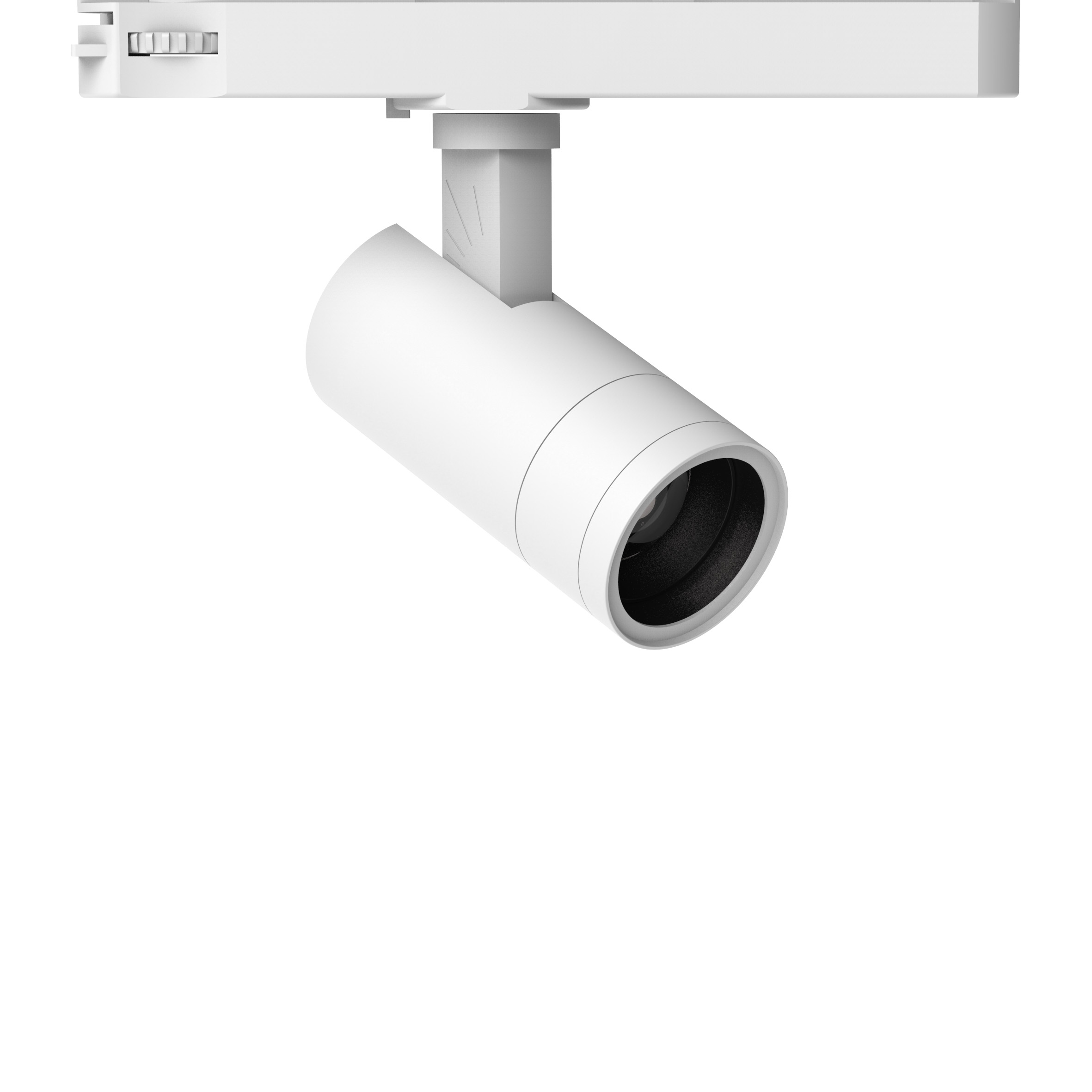

- 2319.226Z-UA-200-HE
- 7W
- 1121lm
-
ASTER-B

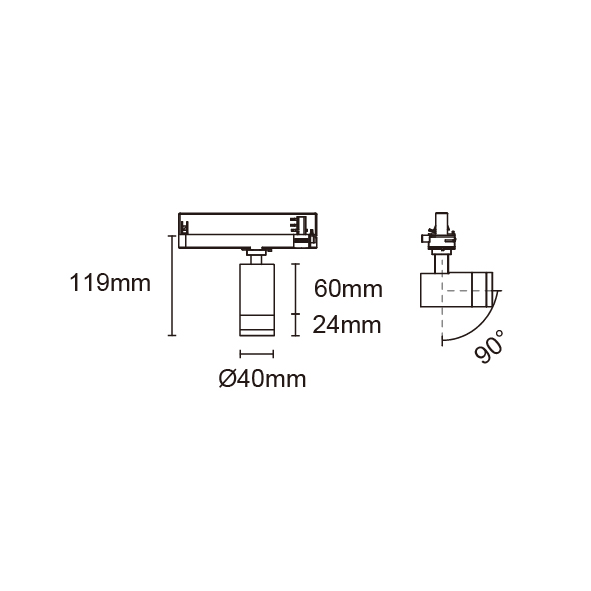

ITEM NO. 2319.226Z-UA-200-HE
Consumption7W
Current / Voltage200mA / AC 220-240V
LED Lumen1121lm
Beam Angle 20°~60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

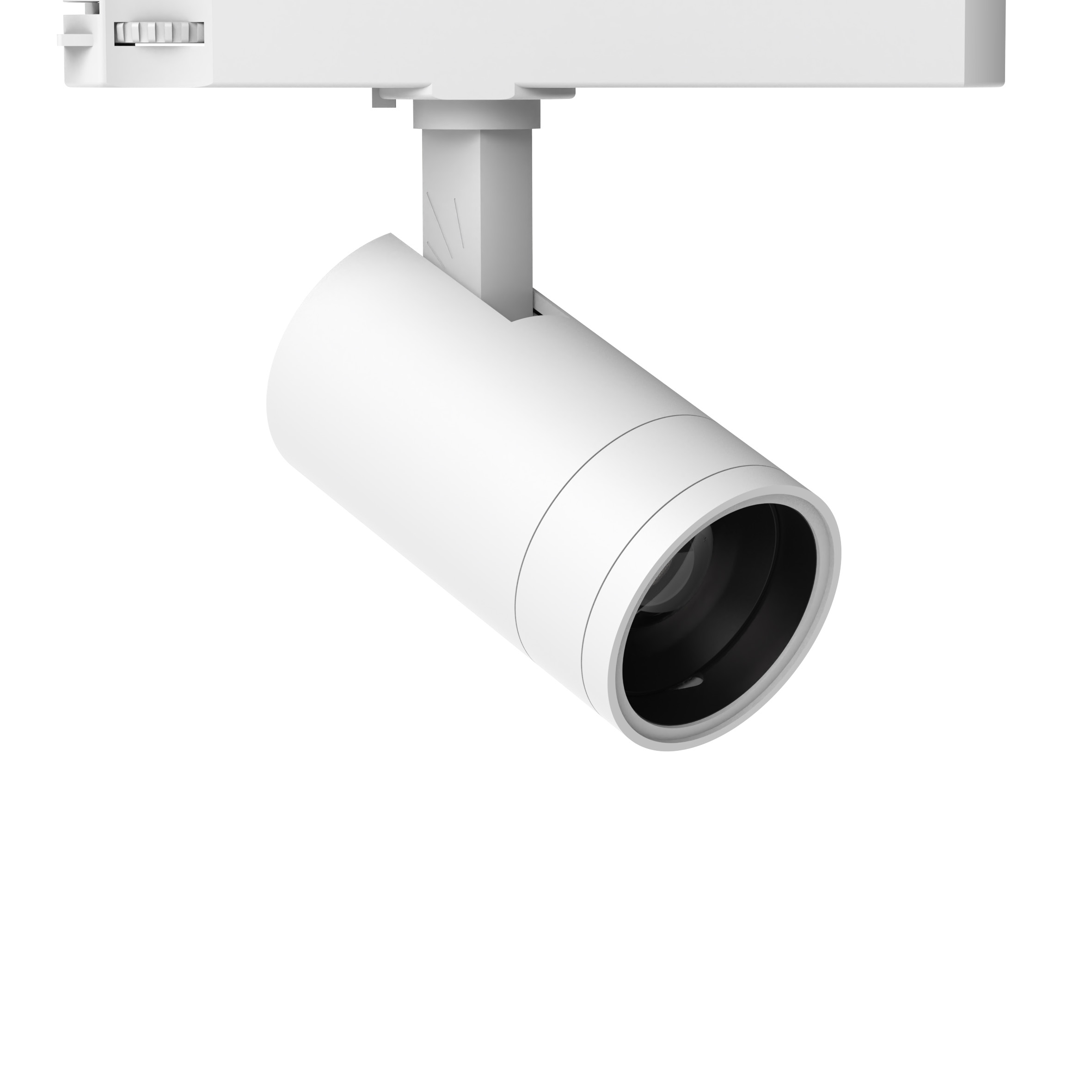

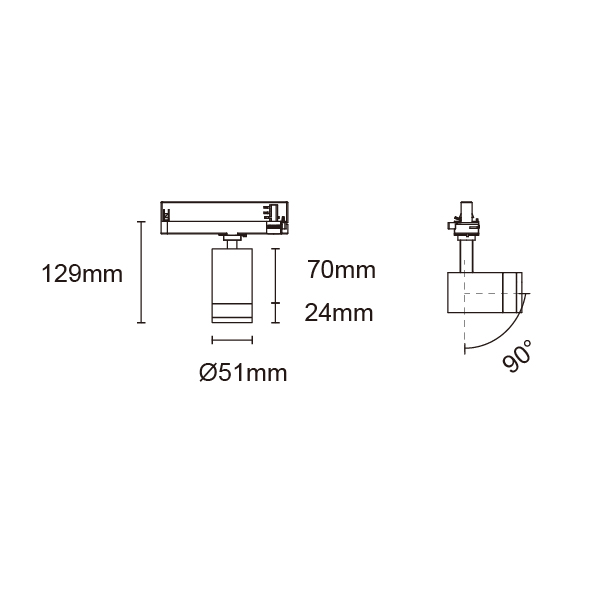

- 2419.205Z-UA-300-HE
- 10W
- 1121lm
-
ASTER-B

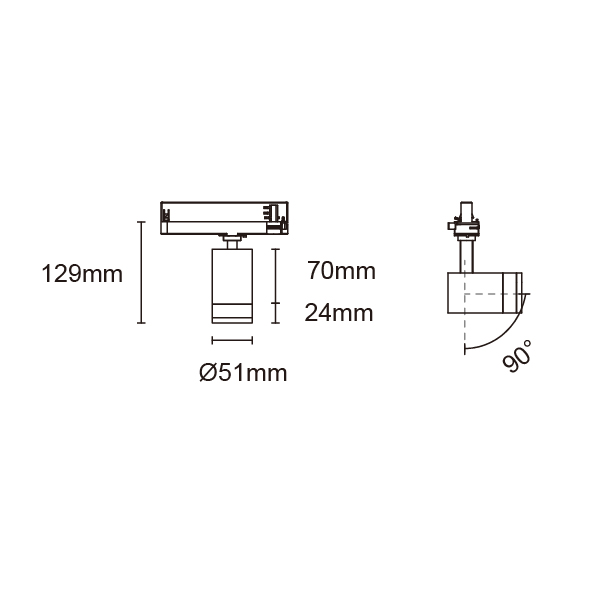

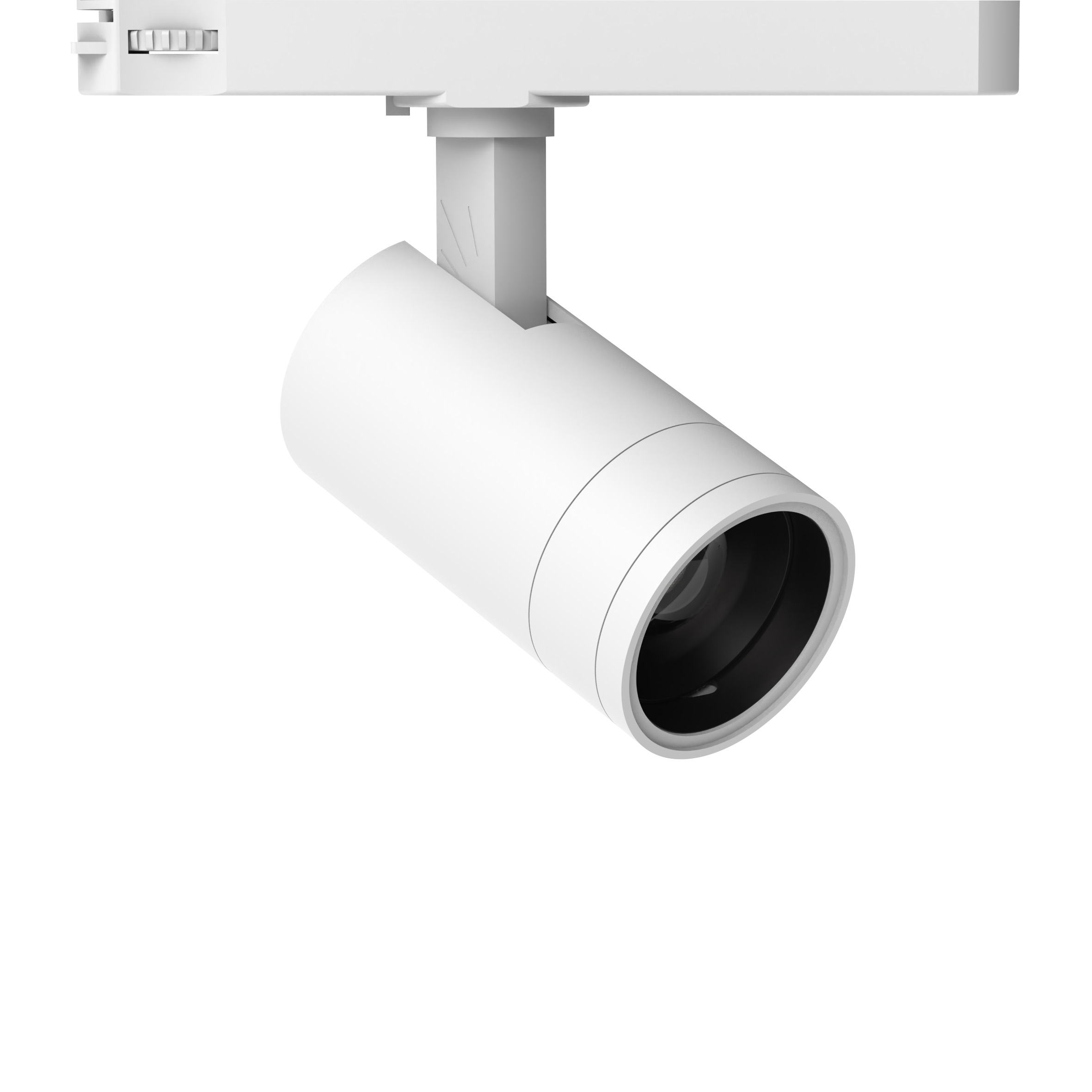

ITEM NO. 2419.205Z-UA-300-HE
Consumption10W
Current / Voltage300mA / AC 220-240V
LED Lumen1121lm
Beam Angle 20°~60°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.210Z-UA-350
- 12W
- 1317lm
-
ASTER-B

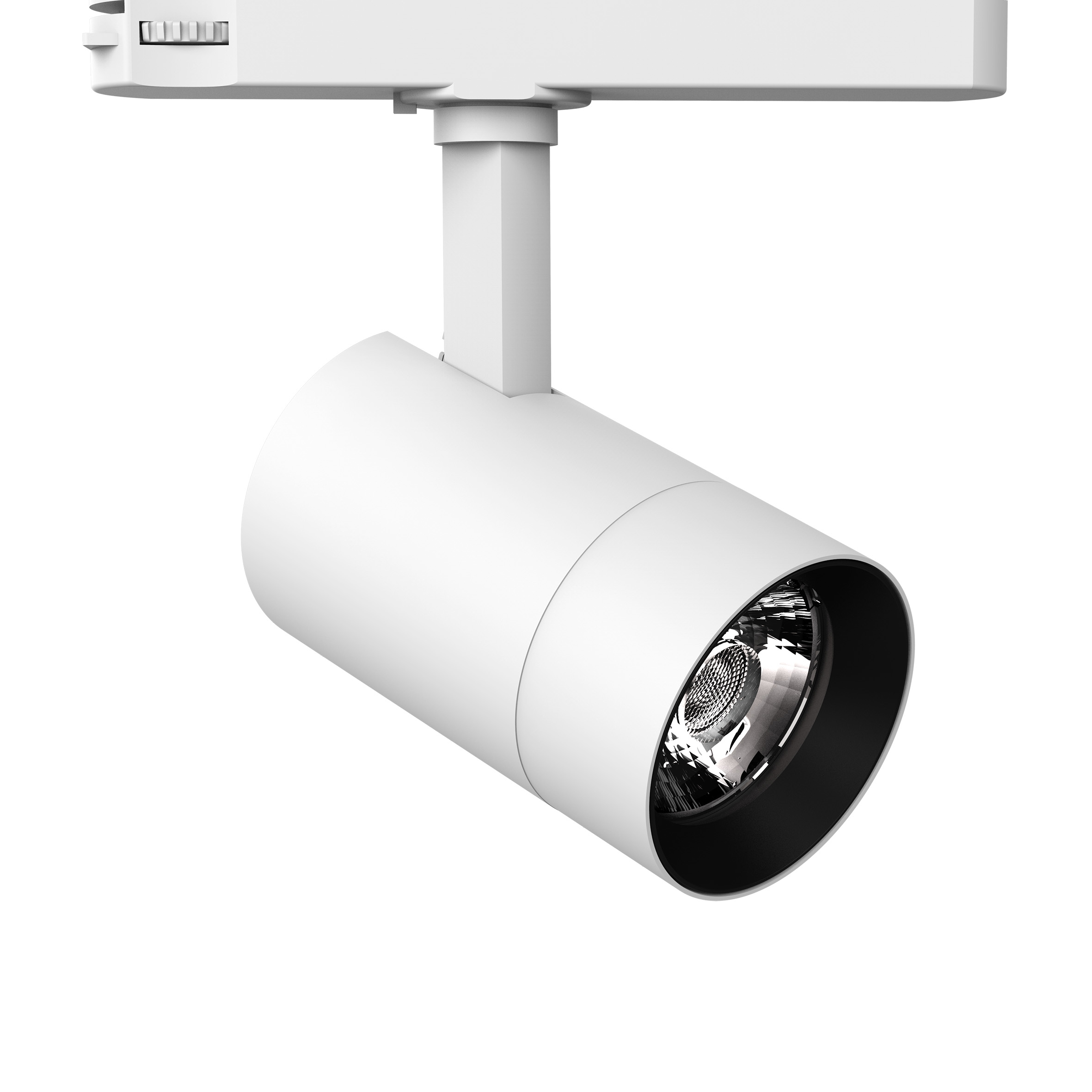

ITEM NO. 2319.210Z-UA-350
Consumption12W
Current / Voltage350mA / AC220-240V
LED Lumen1317lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
E-catalogue

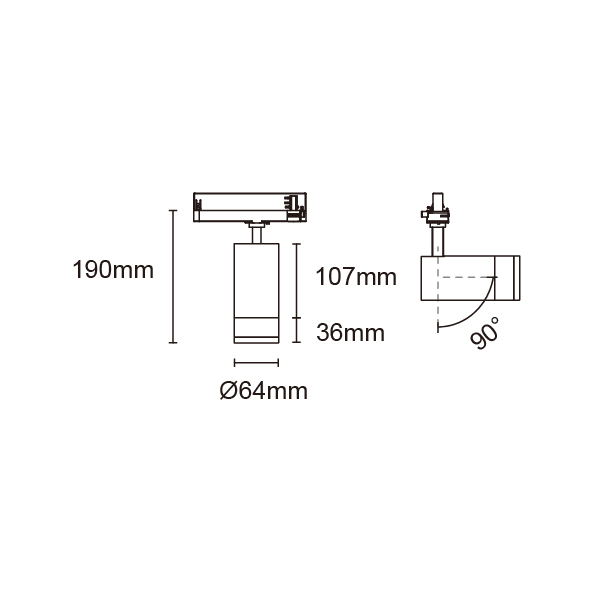

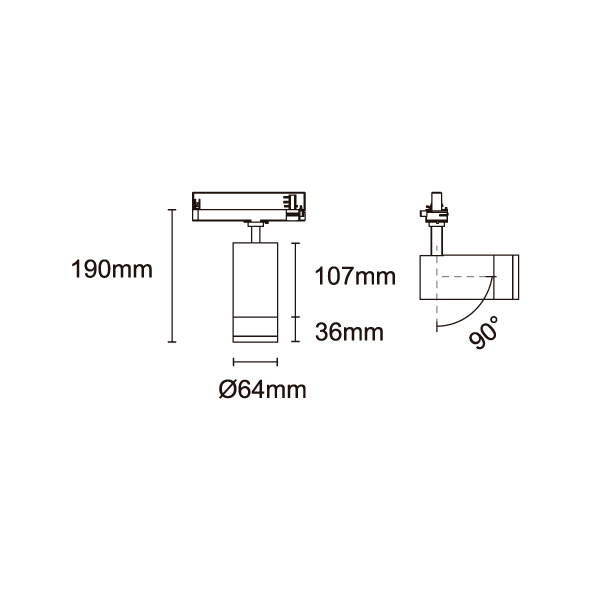

- 2319.201Z-UA-700
- 25W
- 2429lm
-
ASTER-B
ITEM NO. 2319.201Z-UA-700
Consumption25W
Current / Voltage700mA / AC 220-240V
LED Lumen2429lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.210Z-UA-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.210Z-UA-350-DA
Consumption12W
Current / Voltage350mA / AC 220-240V
LED Lumen1317lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201Z-AD3-350-DA
- 12W
- 1317lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-350-DA
Consumption12W
Current / Voltage350mA / AC 100-277V
LED Lumen1317lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201Z-AD3-500-DA
- 17W
- 1815lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-500-DA
Consumption17W
Current / Voltage500mA / AC 100-277V
LED Lumen1815lm
Beam Angle 15°~55°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.201Z-AD3-CT-250
- 8W
- 1064lm
-
ASTER-B
ITEM NO. 2319.201Z-AD3-CT-250
Consumption8W
Current / Voltage250mA / AC 100-277V
LED Lumen1064lm
Beam Angle 15°~55°
CCT5CCT
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

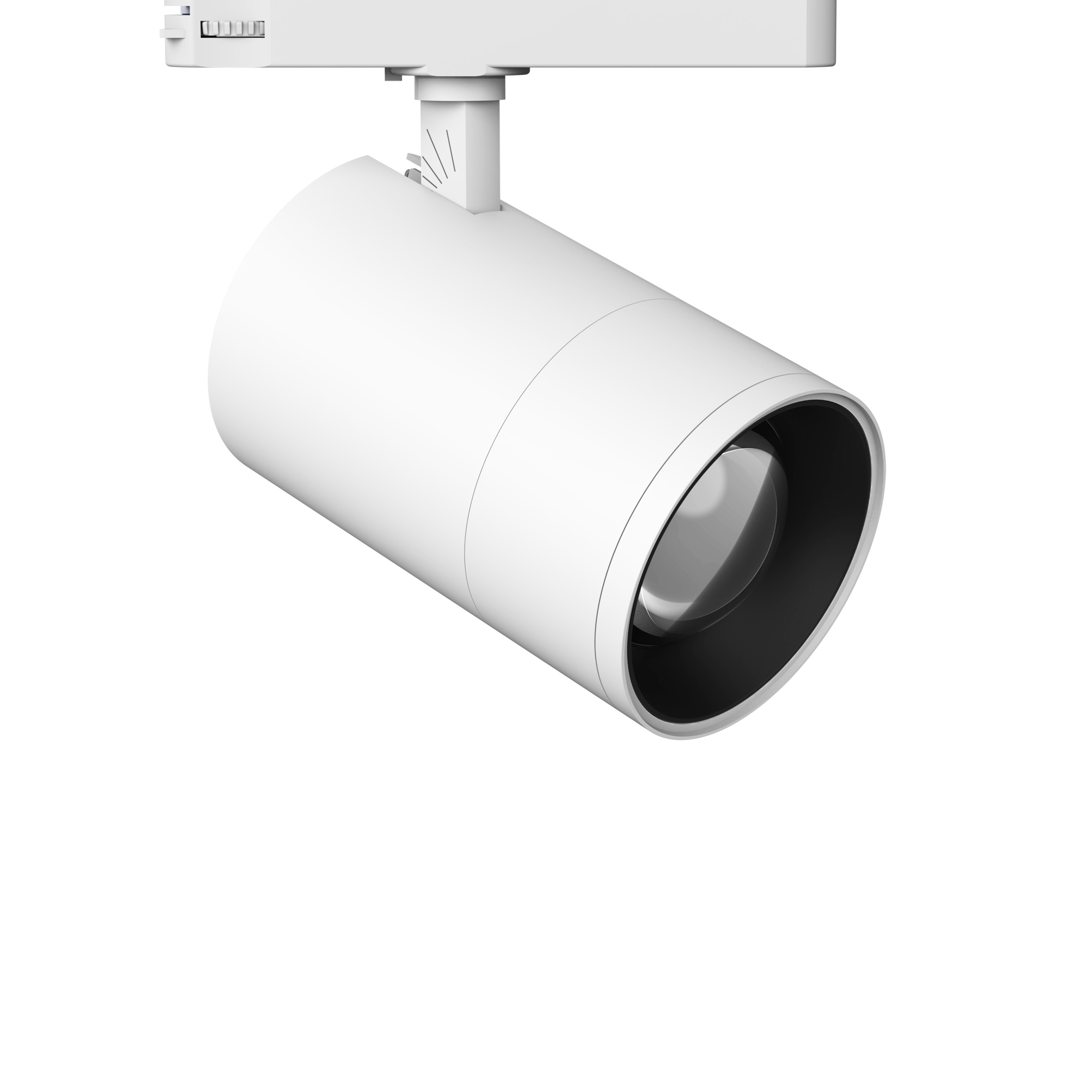

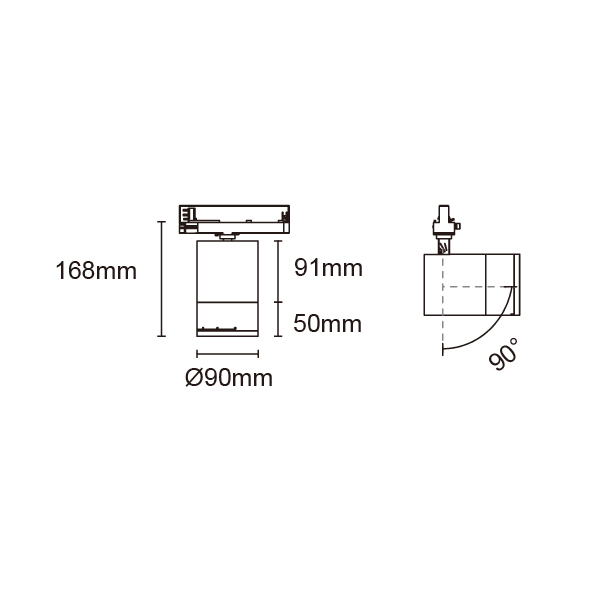

- 2319.224Z-UA-700
- 24W
- 2705lm
-
ASTER-B
ITEM NO. 2319.224Z-UA-700
Consumption24W
Current / Voltage700mA / AC220-240V
LED Lumen2705lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

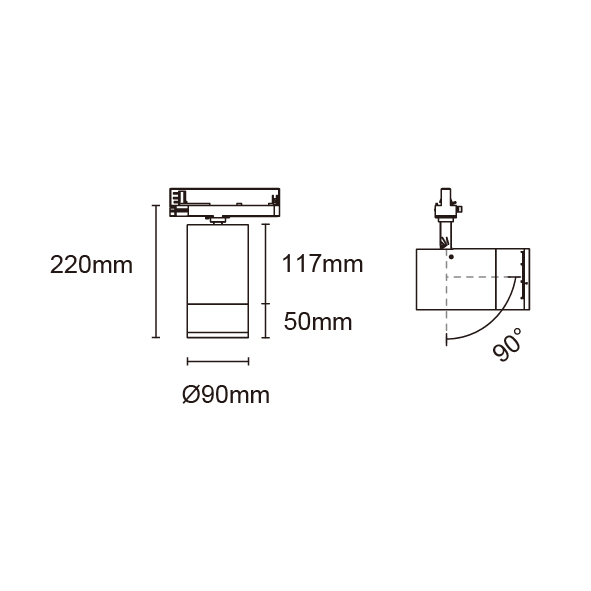

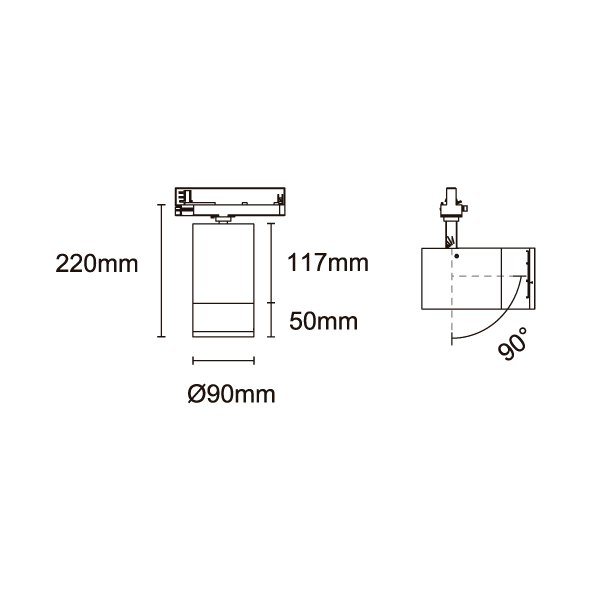

- 2319.222Z-UA-1050
- 37W
- 3935lm
-
ASTER-B
ITEM NO. 2319.222Z-UA-1050
Consumption37W
Current / Voltage1050mA / AC220-240V
LED Lumen3935lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

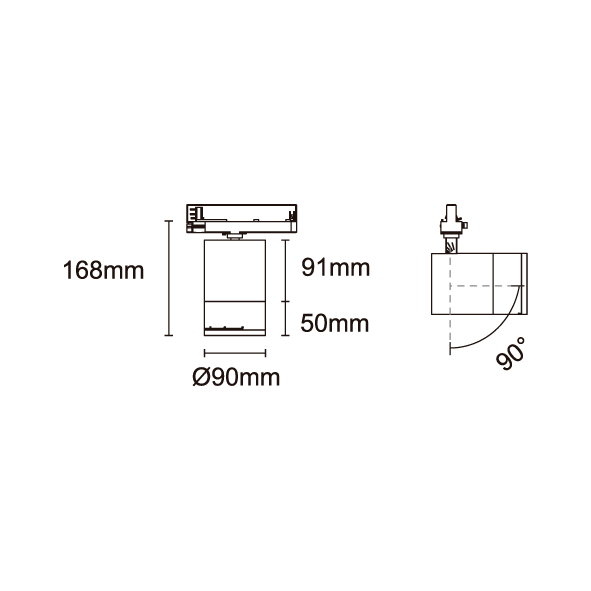

- 2319.224Z-UA-700-DA
- 24W
- 2705lm
-
ASTER-B
ITEM NO. 2319.224Z-UA-700-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen2705lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

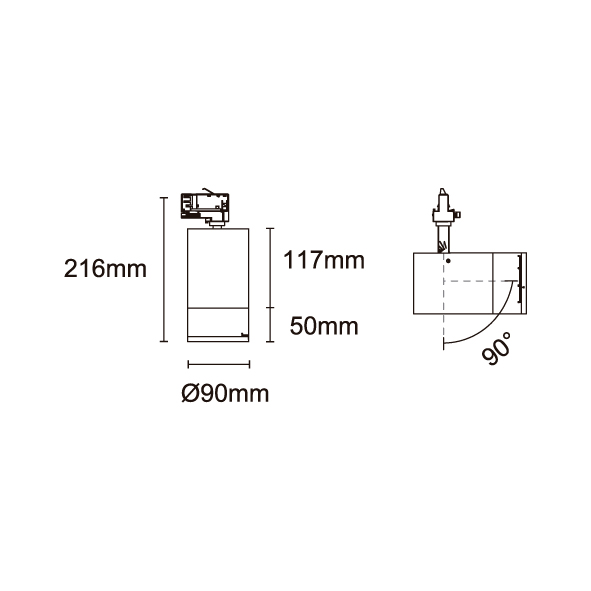

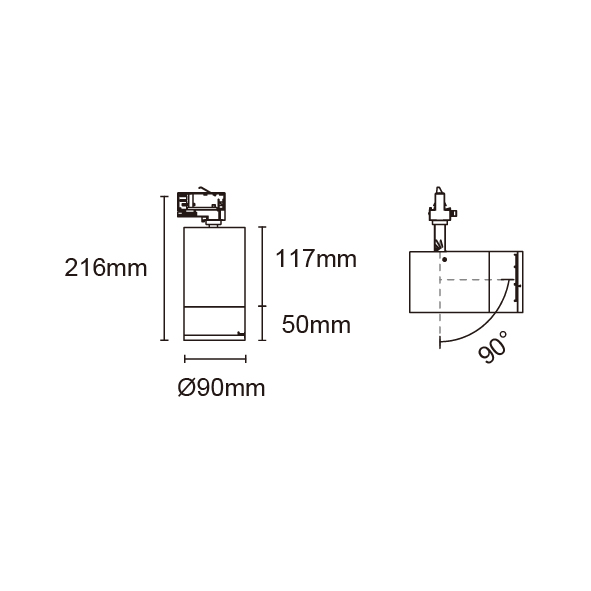

- 2319.222Z-AD3-500
- 17W
- 1972lm
-
ASTER-B
ITEM NO. 2319.222Z-AD3-500
Consumption17W
Current / Voltage500mA / AC 220-240V
LED Lumen1972lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222Z-AD3-900
- 31W
- 3415lm
-
ASTER-B
ITEM NO. 2319.222Z-AD3-900
Consumption31W
Current / Voltage900mA / AC 220-240V
LED Lumen3415lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222Z-AD3-500-DA
- 27W
- 1972lm
-
ASTER-B
ITEM NO. 2319.222Z-AD3-500-DA
Consumption27W
Current / Voltage500mA / AC 220-240V
LED Lumen1972lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222Z-AD3-800-DA
- 27W
- 3063lm
-
ASTER-B
ITEM NO. 2319.222Z-AD3-800-DA
Consumption27W
Current / Voltage800mA / AC 220-240V
LED Lumen3063lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222F-AD3-700-DA
- 24W
- 2705lm
-
ASTER-B
ITEM NO. 2319.222F-AD3-700-DA
Consumption24W
Current / Voltage700mA / AC 220-240V
LED Lumen2705lm
Beam Angle 25°~35°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319-224Z-UA-105-DA
- 37W
- 3935lm
-
ASTER-B
ITEM NO. 2319-224Z-UA-105-DA
Consumption37W
Current / Voltage1050mA
LED Lumen3935lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2319.222Z-UA-105-DA
- 37W
- 3935lm
-
ASTER-B
ITEM NO. 2319.222Z-UA-105-DA
Consumption37W
Current / Voltage1050mA / AC 220-240V
LED Lumen3935lm
Beam Angle 16°~60°
CCT3000K
*Other CCT Also Available
CRI95+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
