- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution

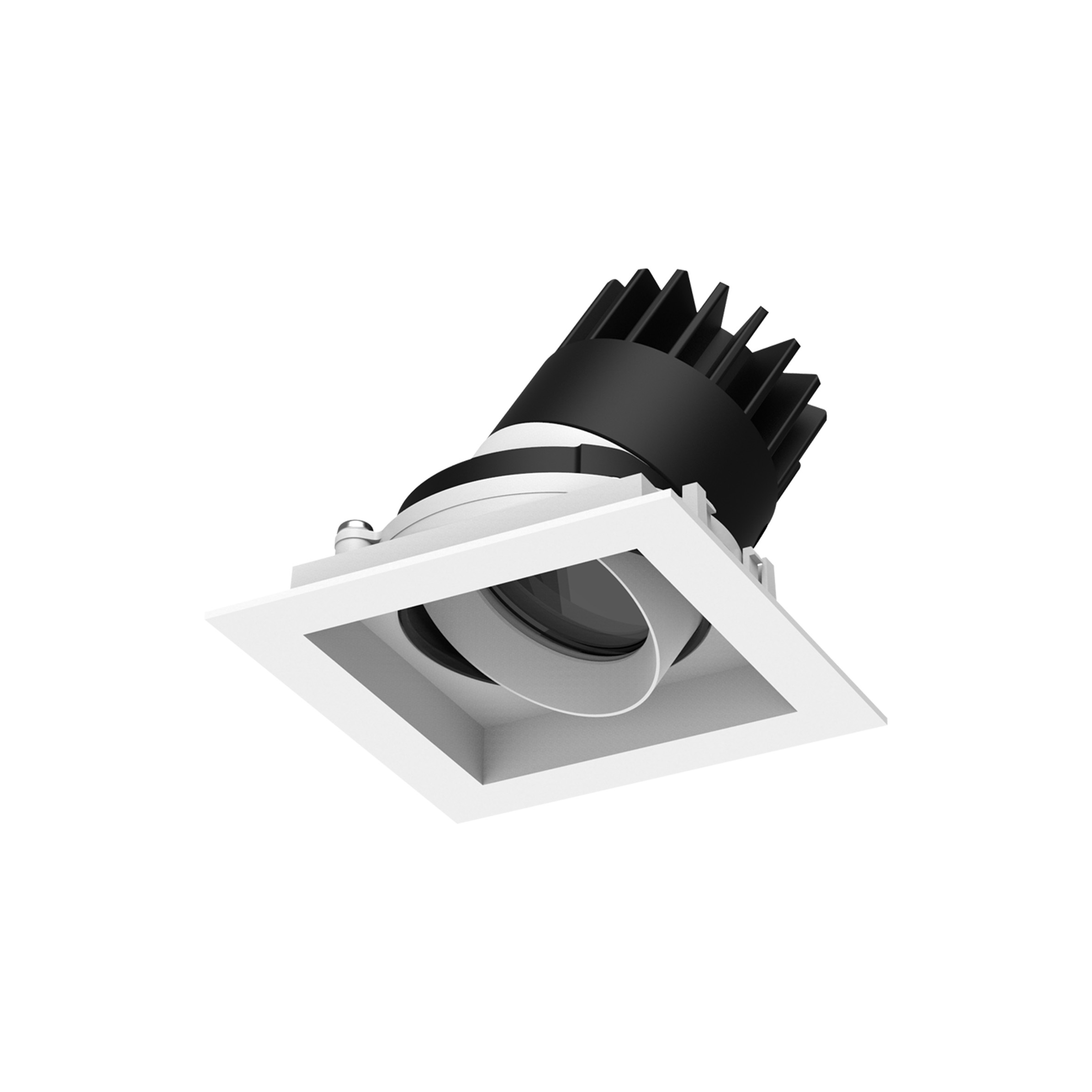

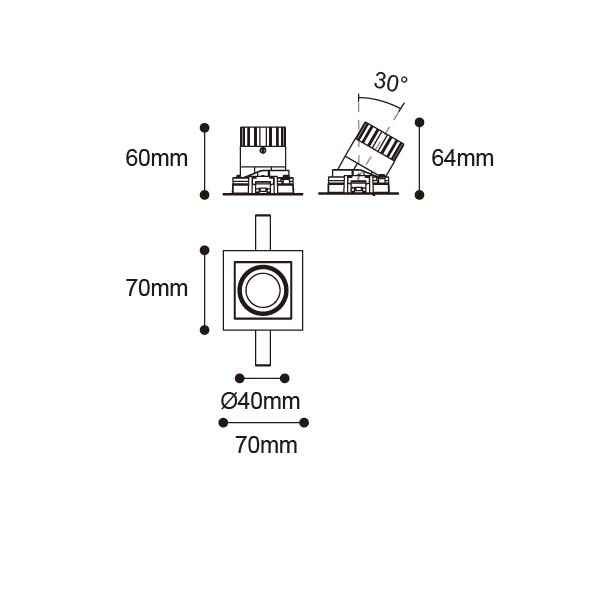

- 2214.411-1-ACOT-96
- 7W x1
- 656lm x1
-
-
STARLUX-50
ITEM NO. 2214.411-1-ACOT-96
Consumption7W x1
Current / Voltage350mA
LED Lumen656lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

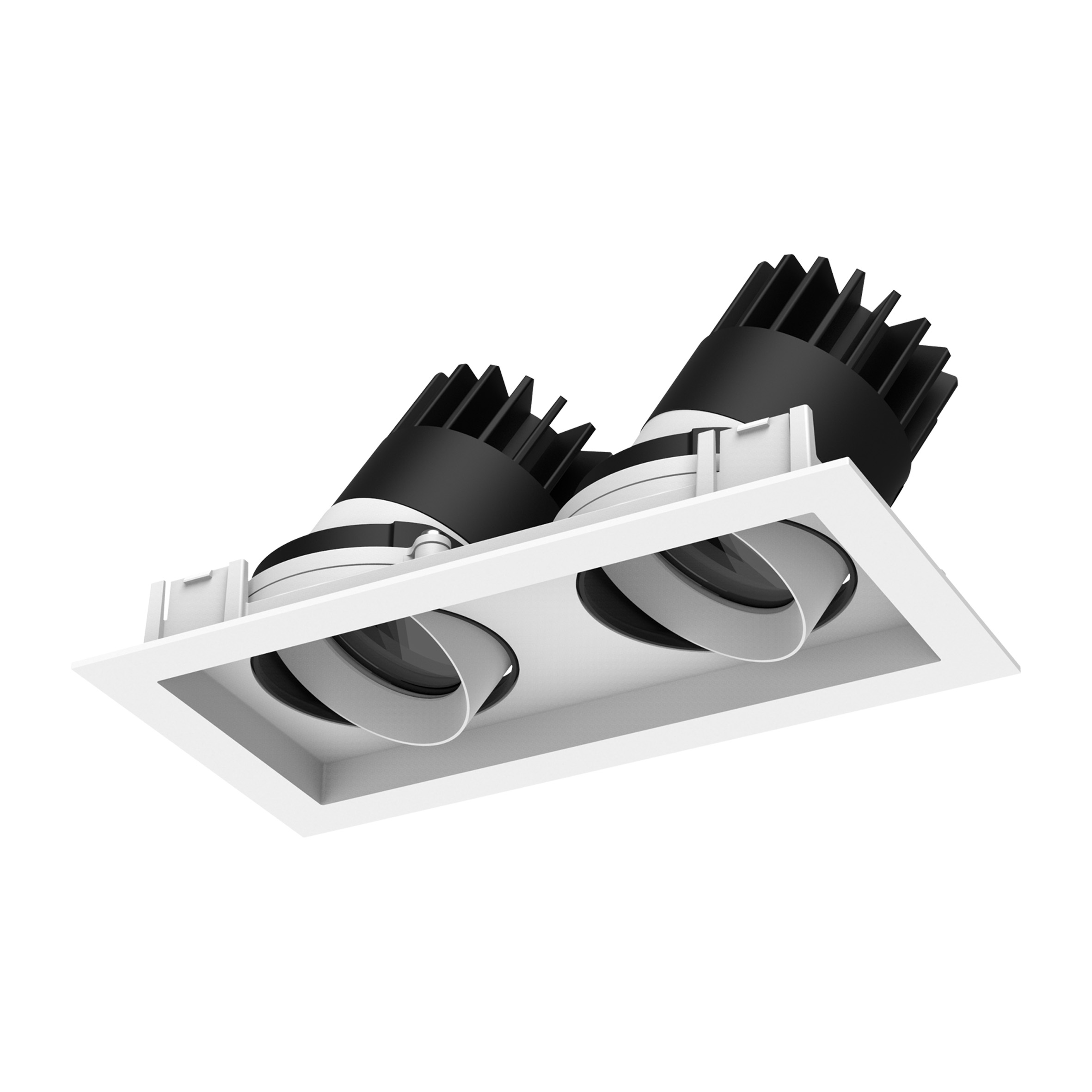

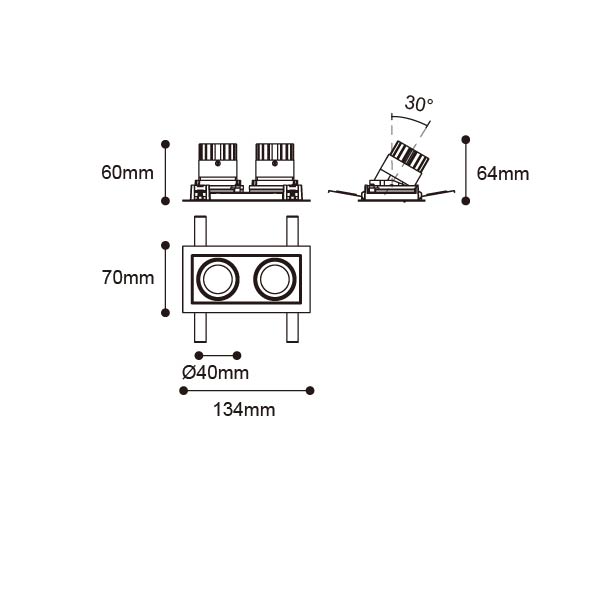

- 2214.411-2-ACOT-96
- 7W x2
- 656lm x2
-
-
STARLUX-50

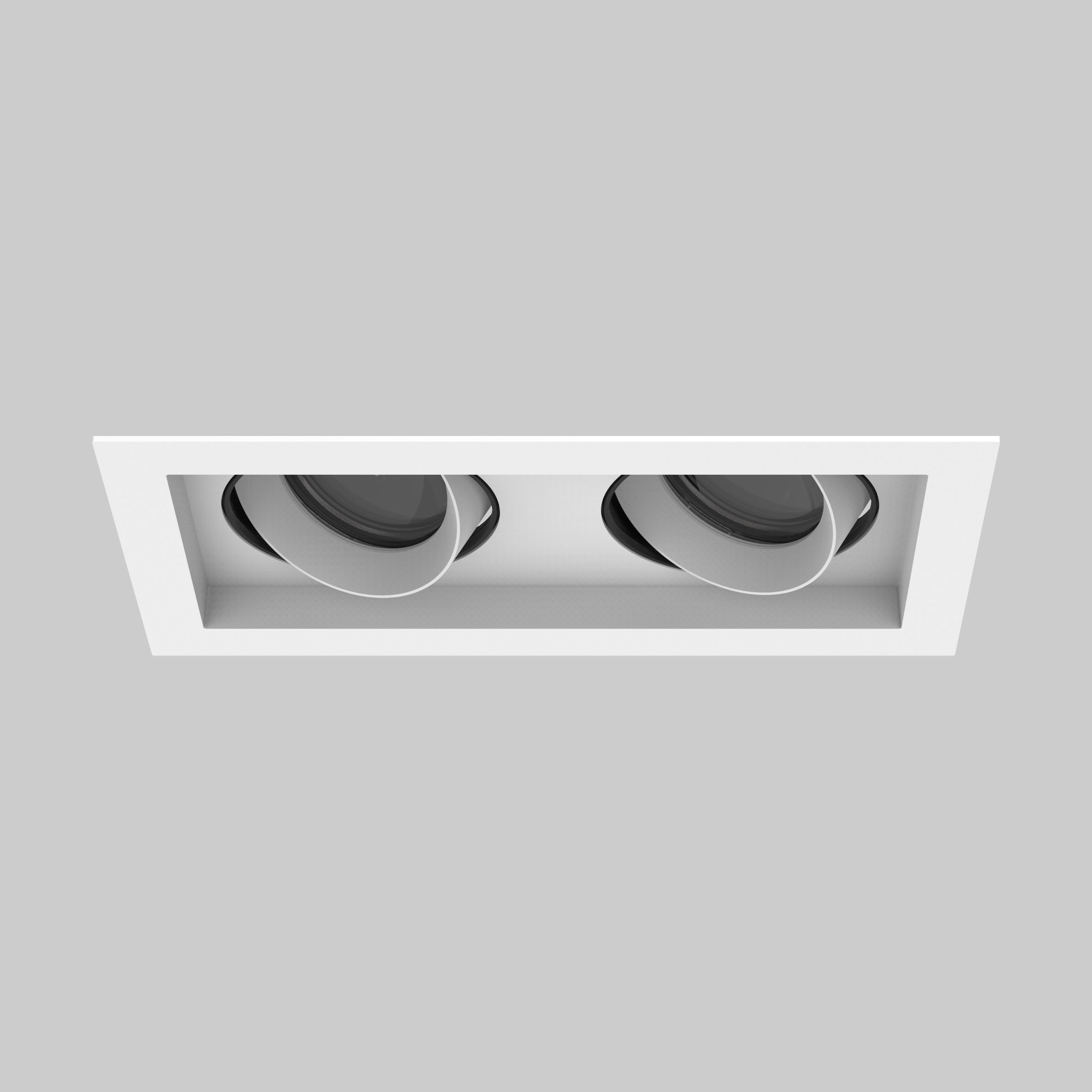

ITEM NO. 2214.411-2-ACOT-96
Consumption7W x2
Current / Voltage350mA
LED Lumen656lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

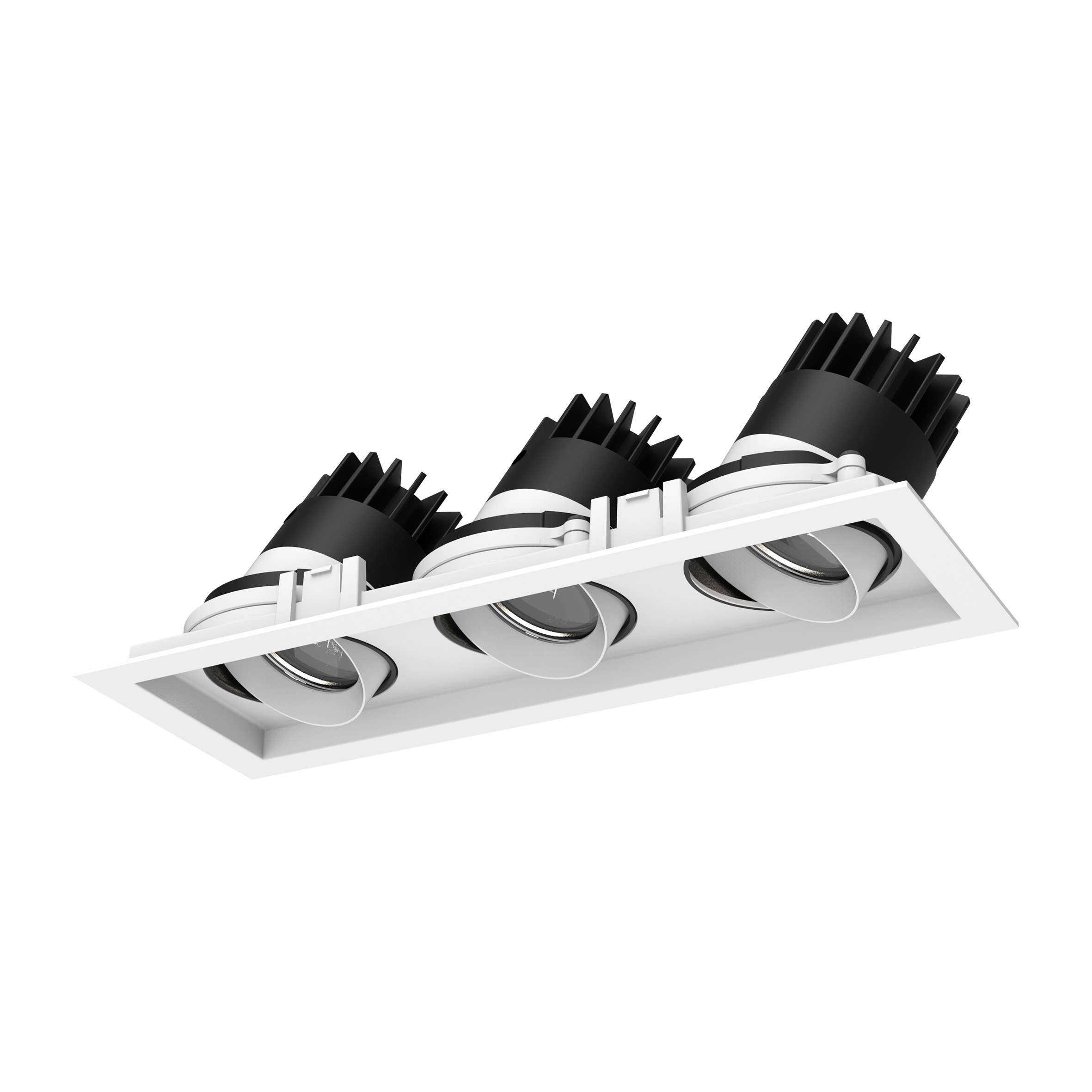

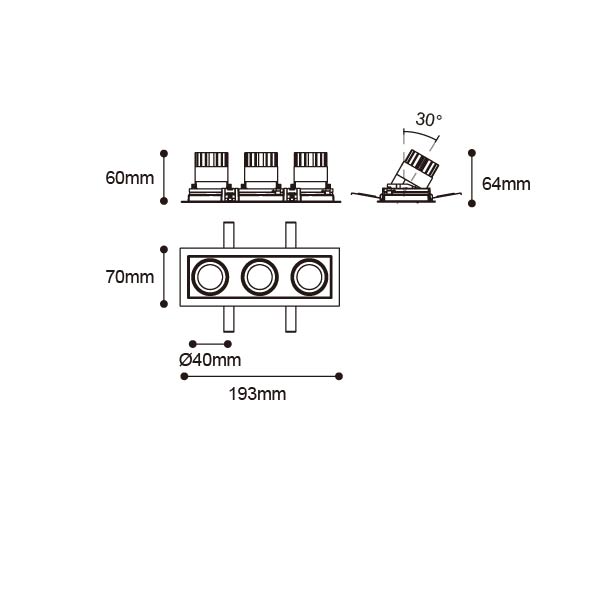

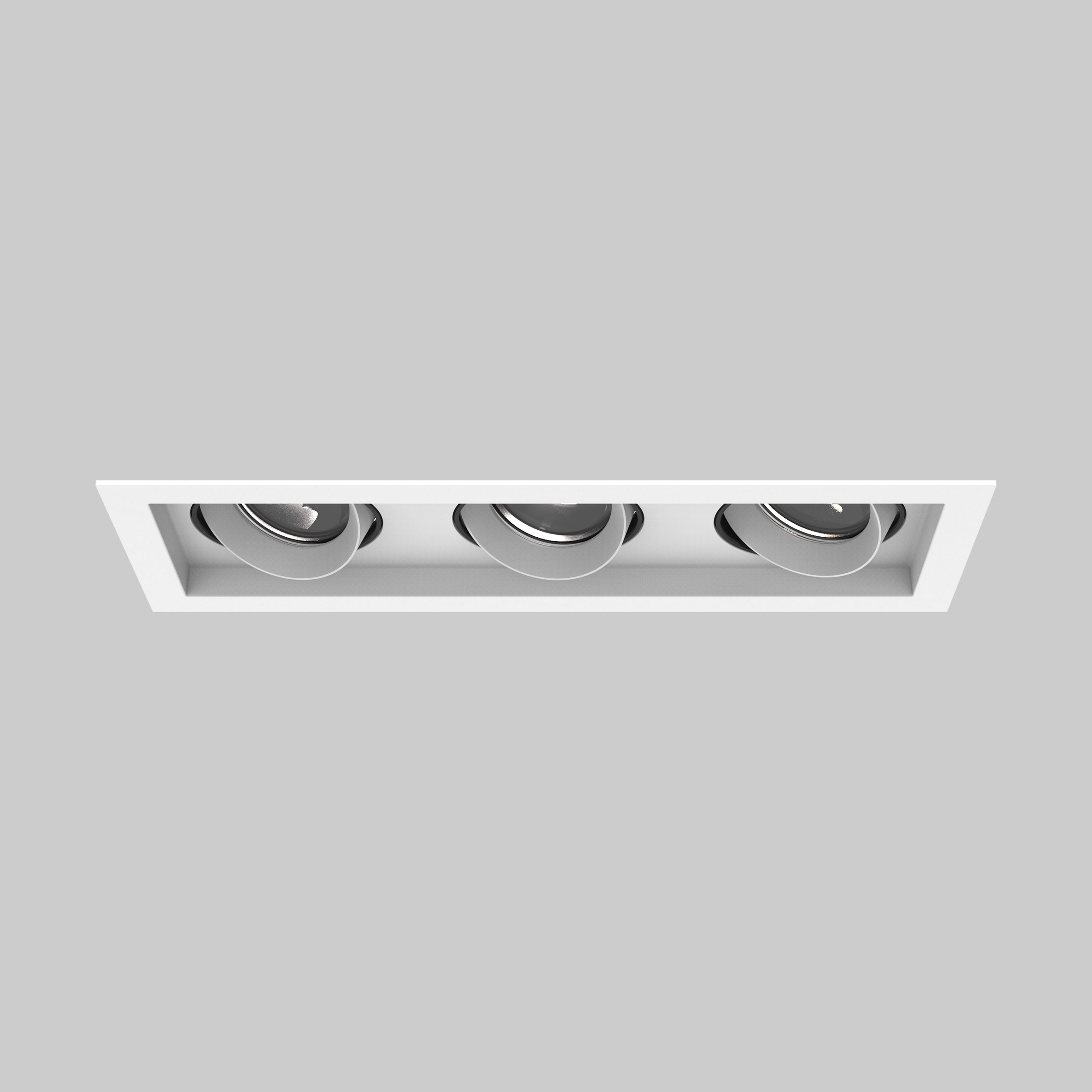

- 2214.411-3-ACOT-96
- 7W x3
- 656lm x3
-
-
STARLUX-50
ITEM NO. 2214.411-3-ACOT-96
Consumption7W x3
Current / Voltage350mA
LED Lumen656lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

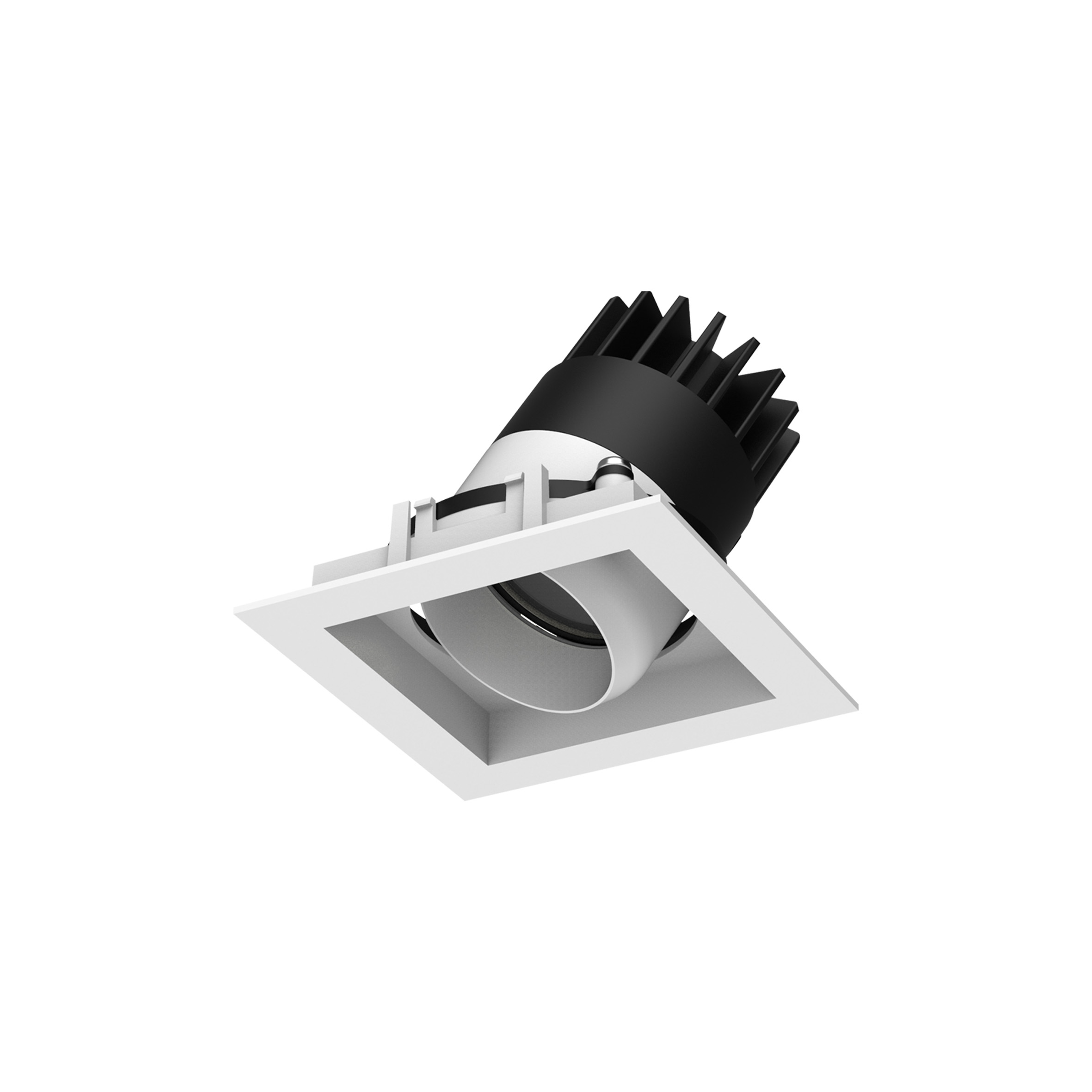

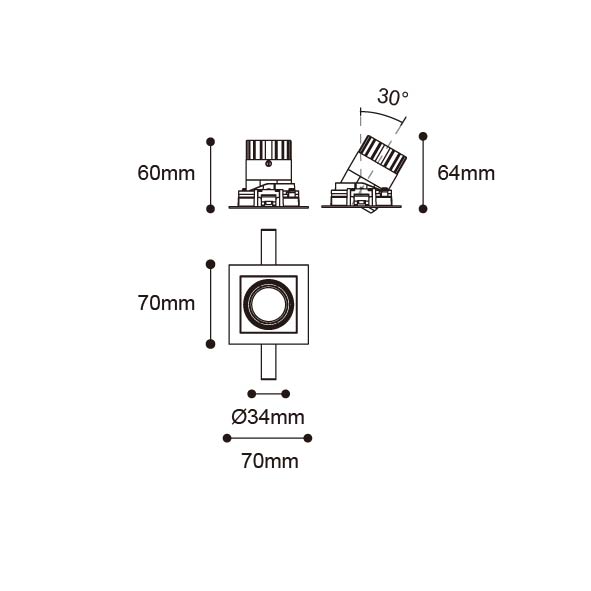

- 2214.412-1-ACOT-96
- 7W x1
- 656lm x1
-
-
STARLUX-50
ITEM NO. 2214.412-1-ACOT-96
Consumption7W x1
Current / Voltage350mA
LED Lumen656lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

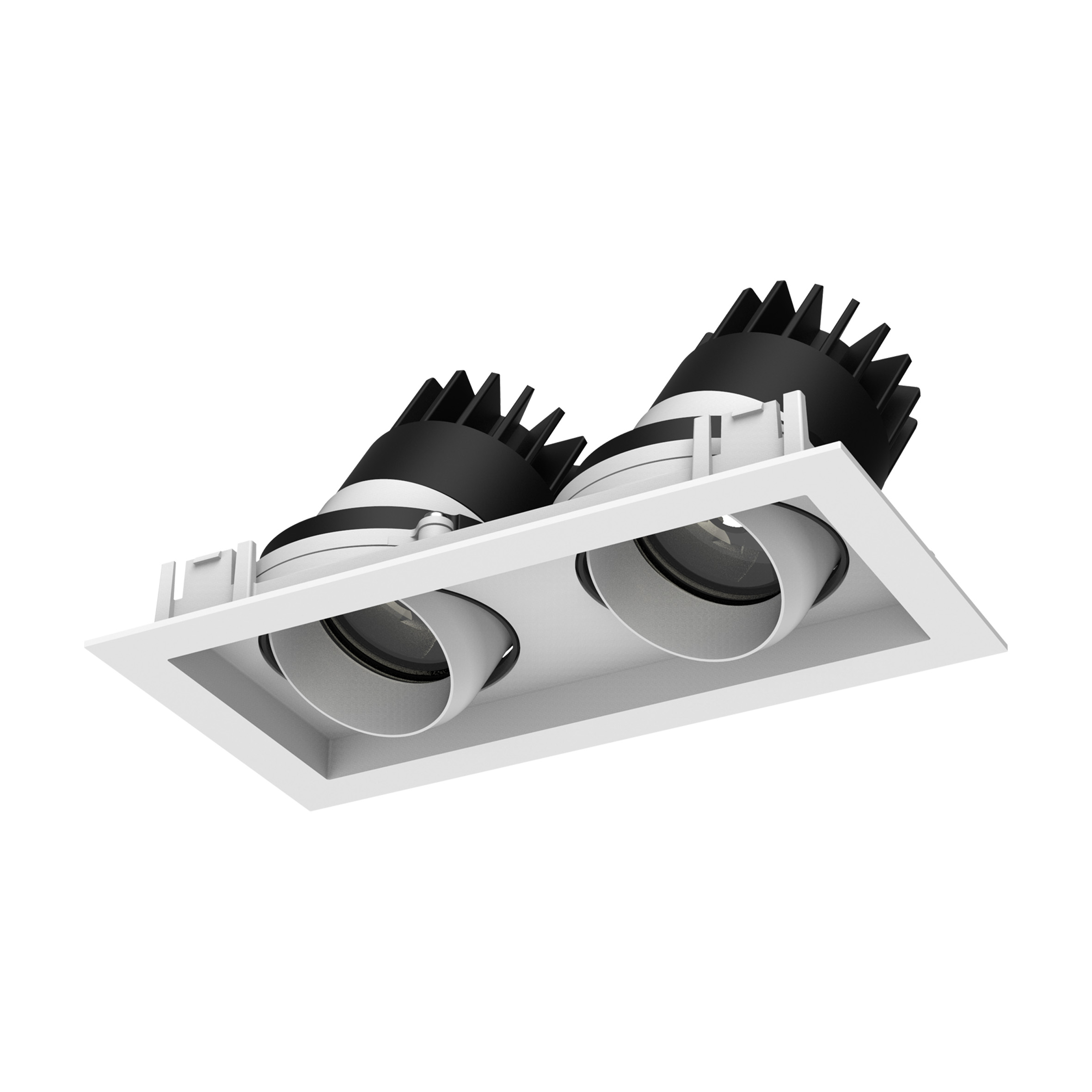

- 2214.412-2-ACOT-96
- 7W x2
- 656lm x2
-
-
STARLUX-50

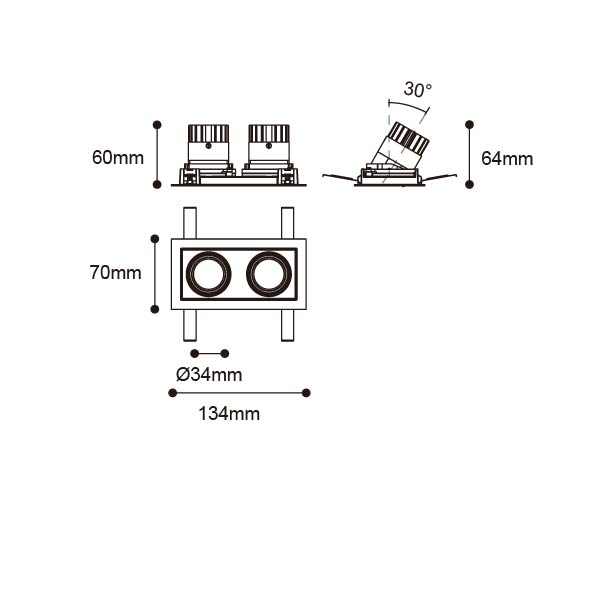

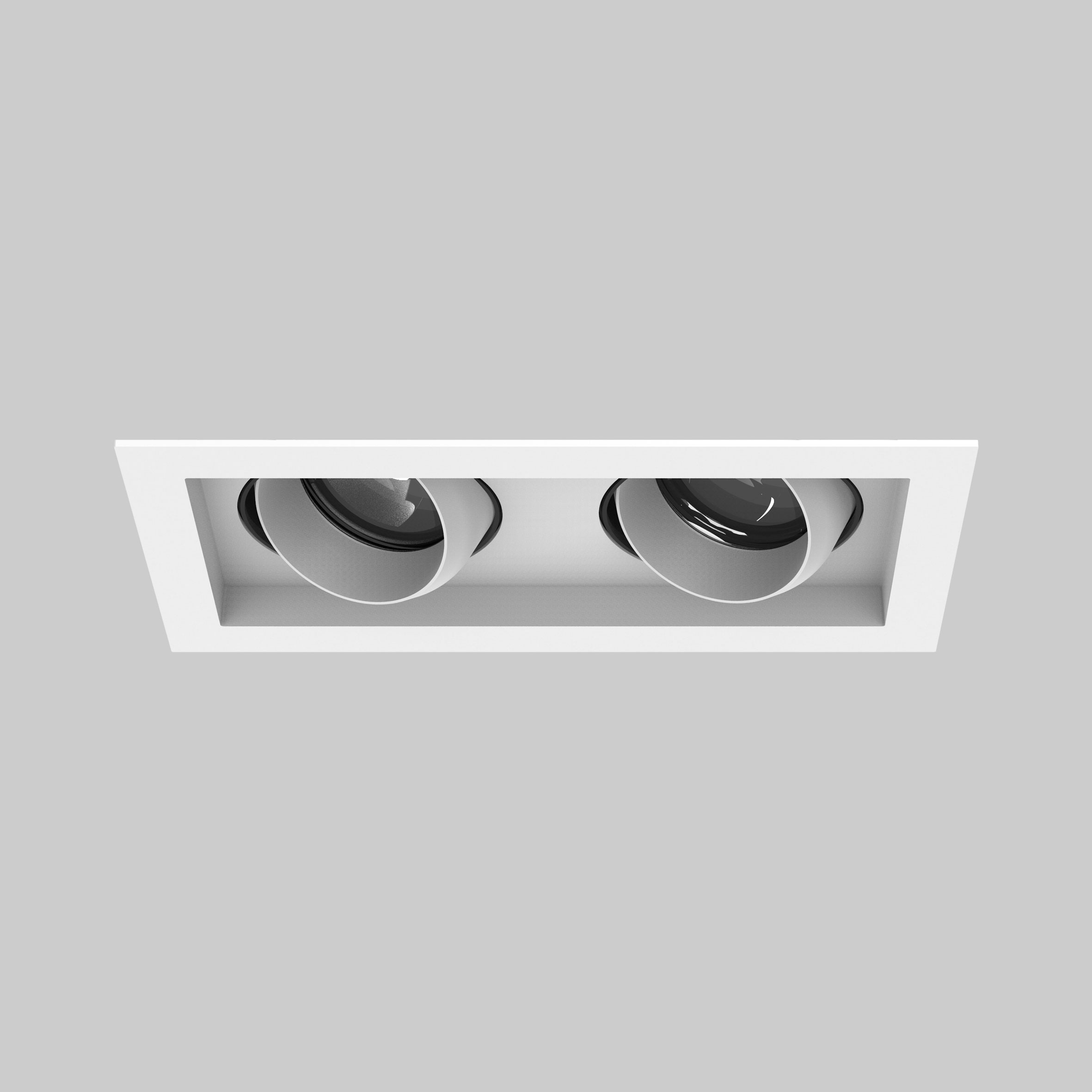

ITEM NO. 2214.412-2-ACOT-96
Consumption7W x2
Current / Voltage350mA
LED Lumen656lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

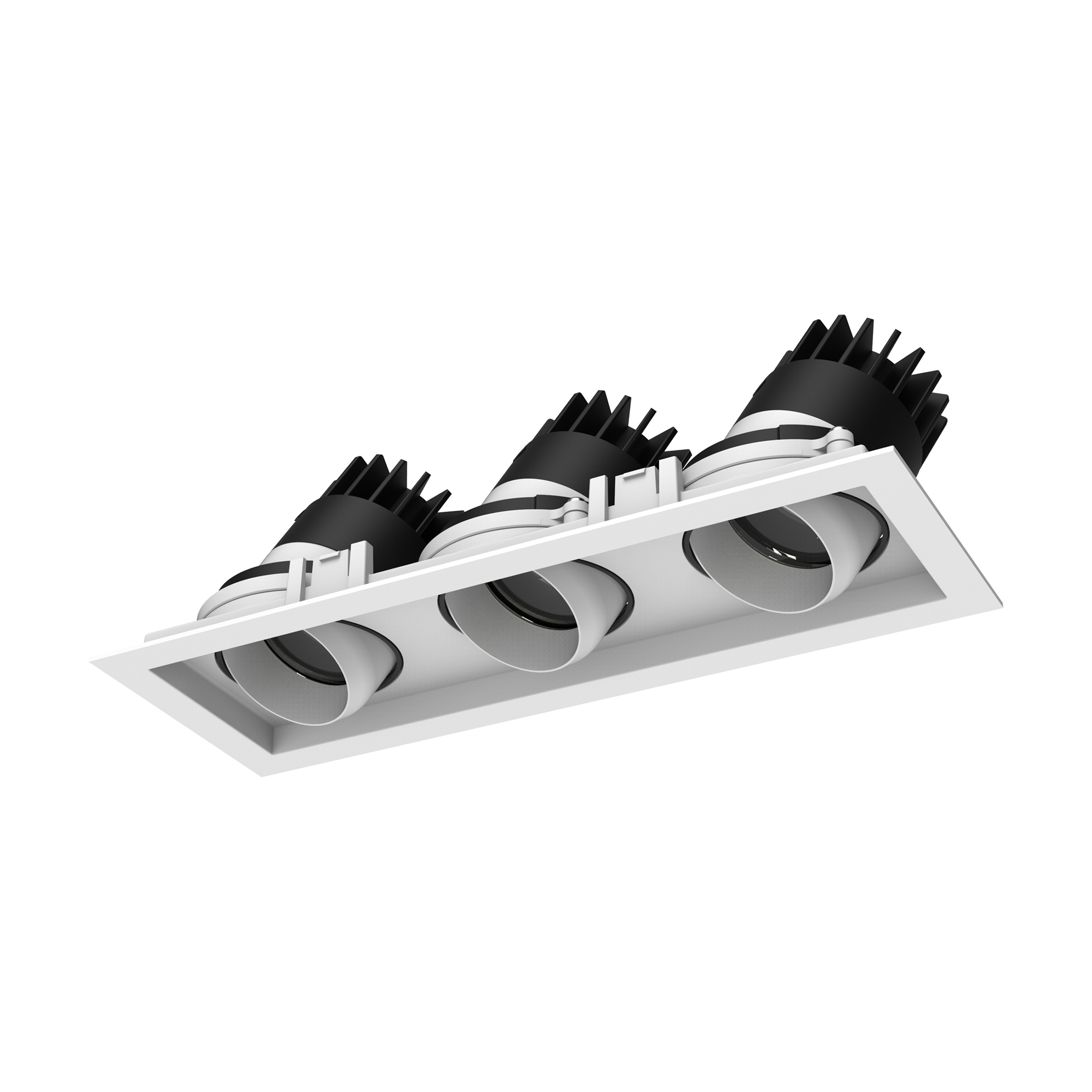

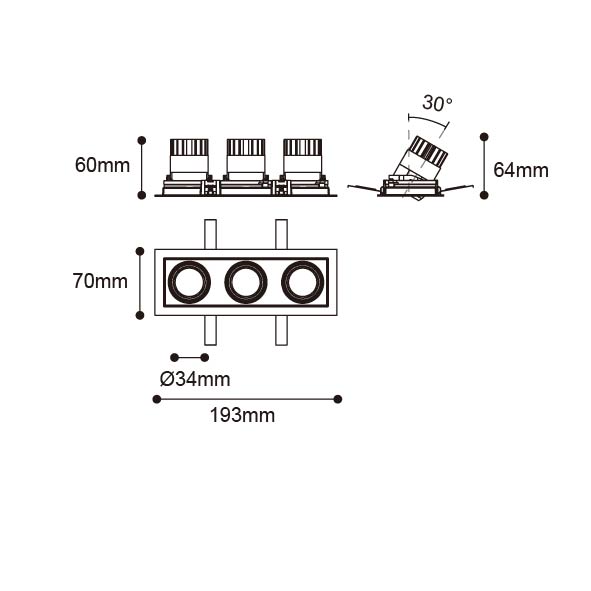

- 2214.412-3-ACOT-96
- 7W x3
- 656lm x3
-
-
STARLUX-50

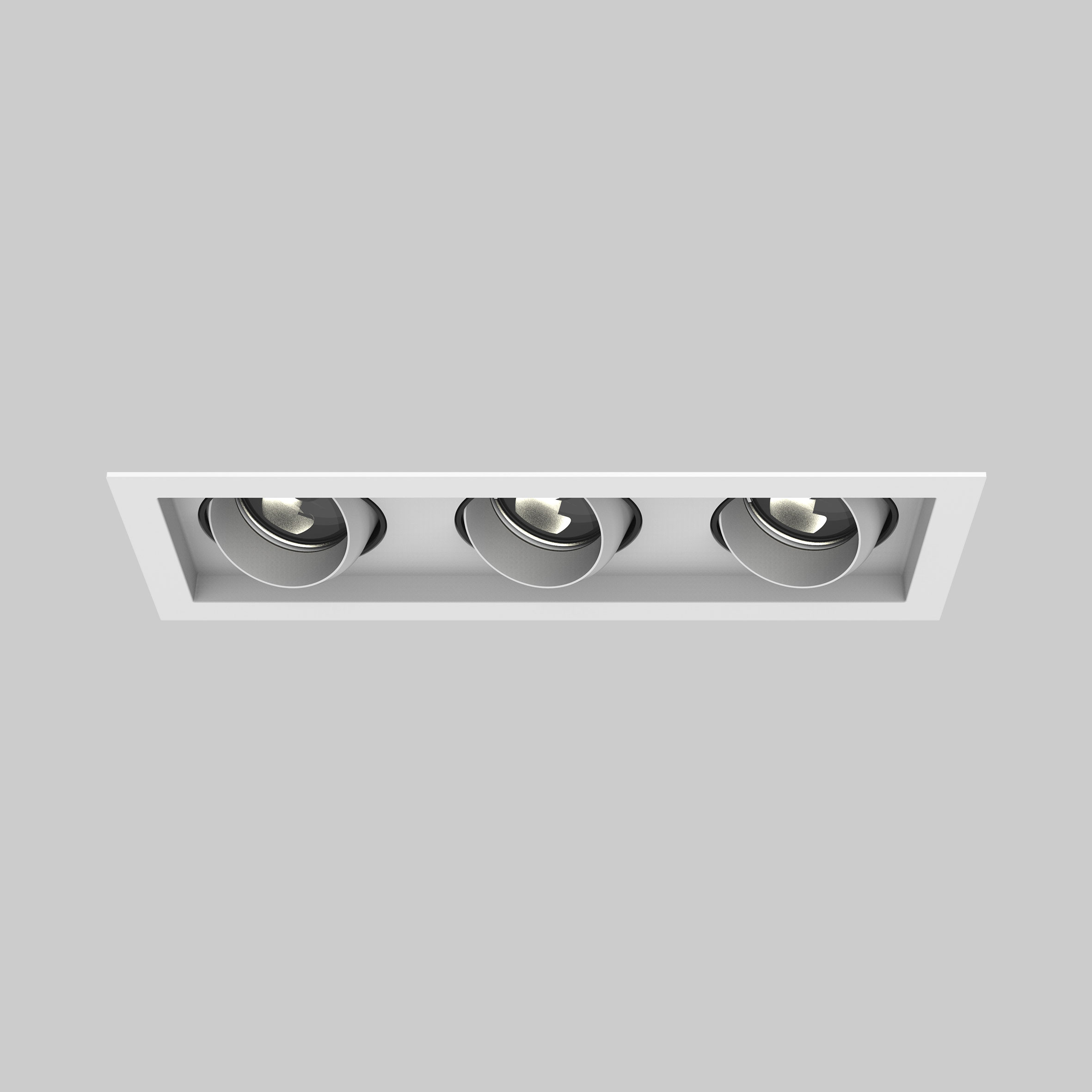

ITEM NO. 2214.412-3-ACOT-96
Consumption7W x3
Current / Voltage350mA
LED Lumen656lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

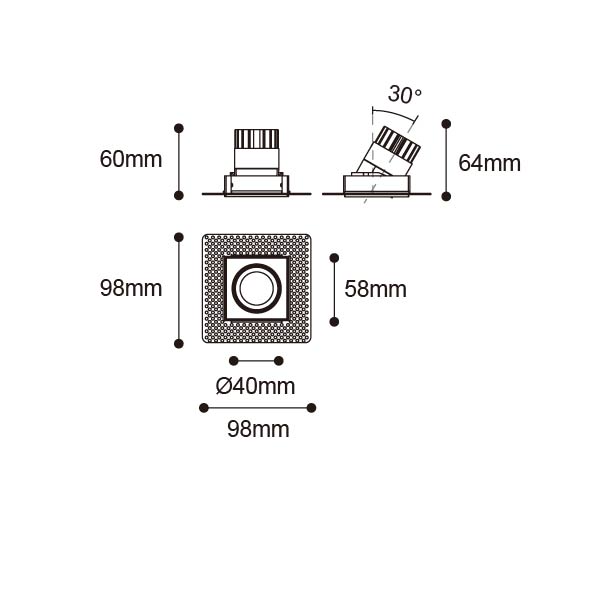

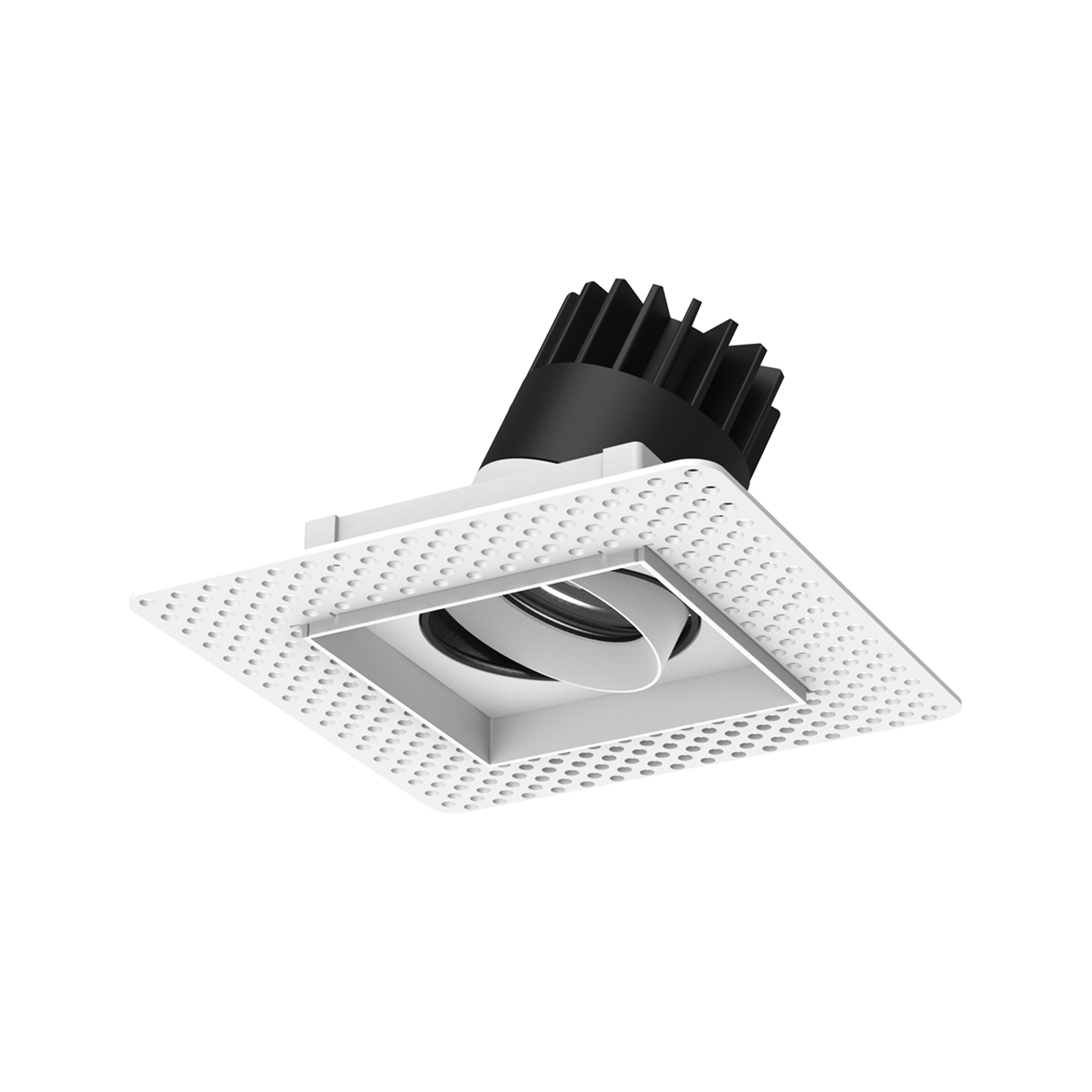

- 2314.400-1-ACOT-96
- 7W x1
- 656lm x1
-
-
STARLUX-50
ITEM NO. 2314.400-1-ACOT-96
Consumption7W x1
Current / Voltage350mA
LED Lumen656lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

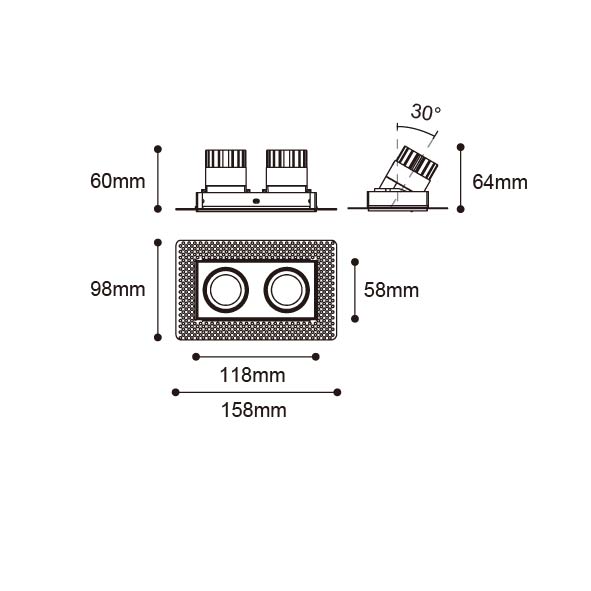

- 2314.400-2-ACOT-96
- 7W x2
- 656lm x2
-
-
STARLUX-50

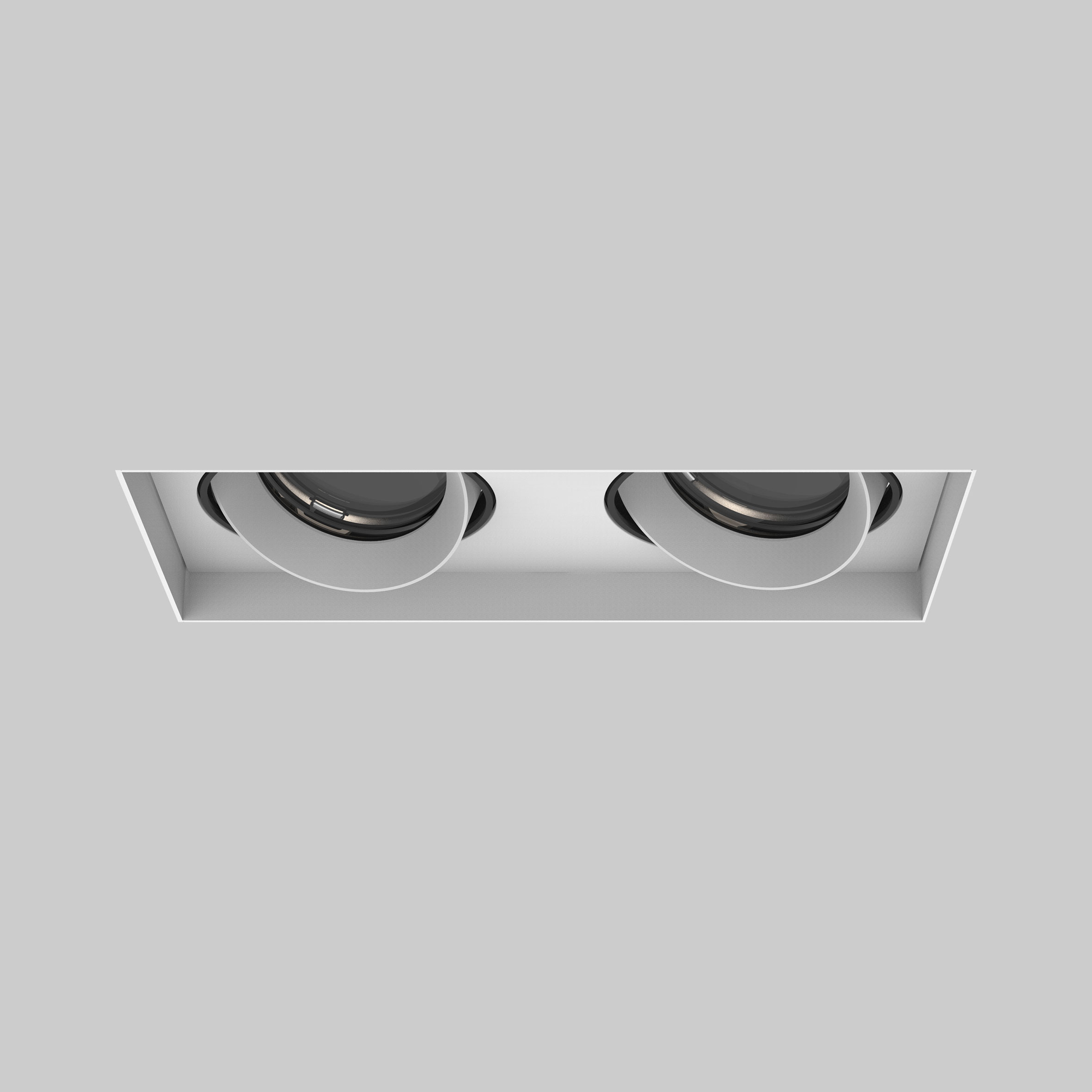

ITEM NO. 2314.400-2-ACOT-96
Consumption7W x2
Current / Voltage350mA
LED Lumen656lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

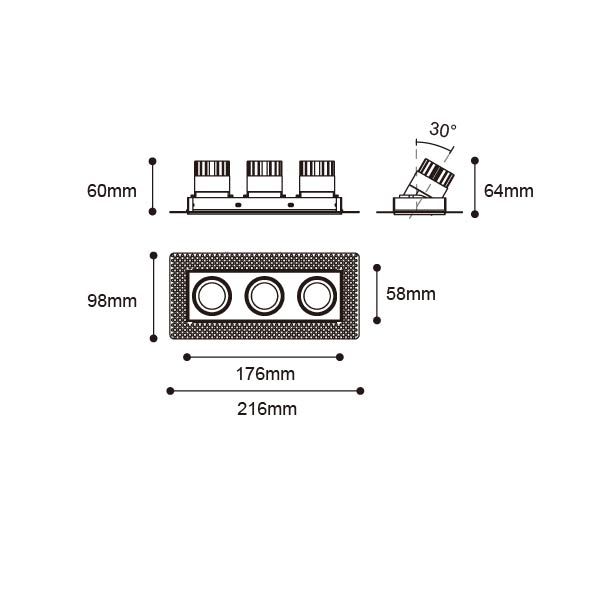

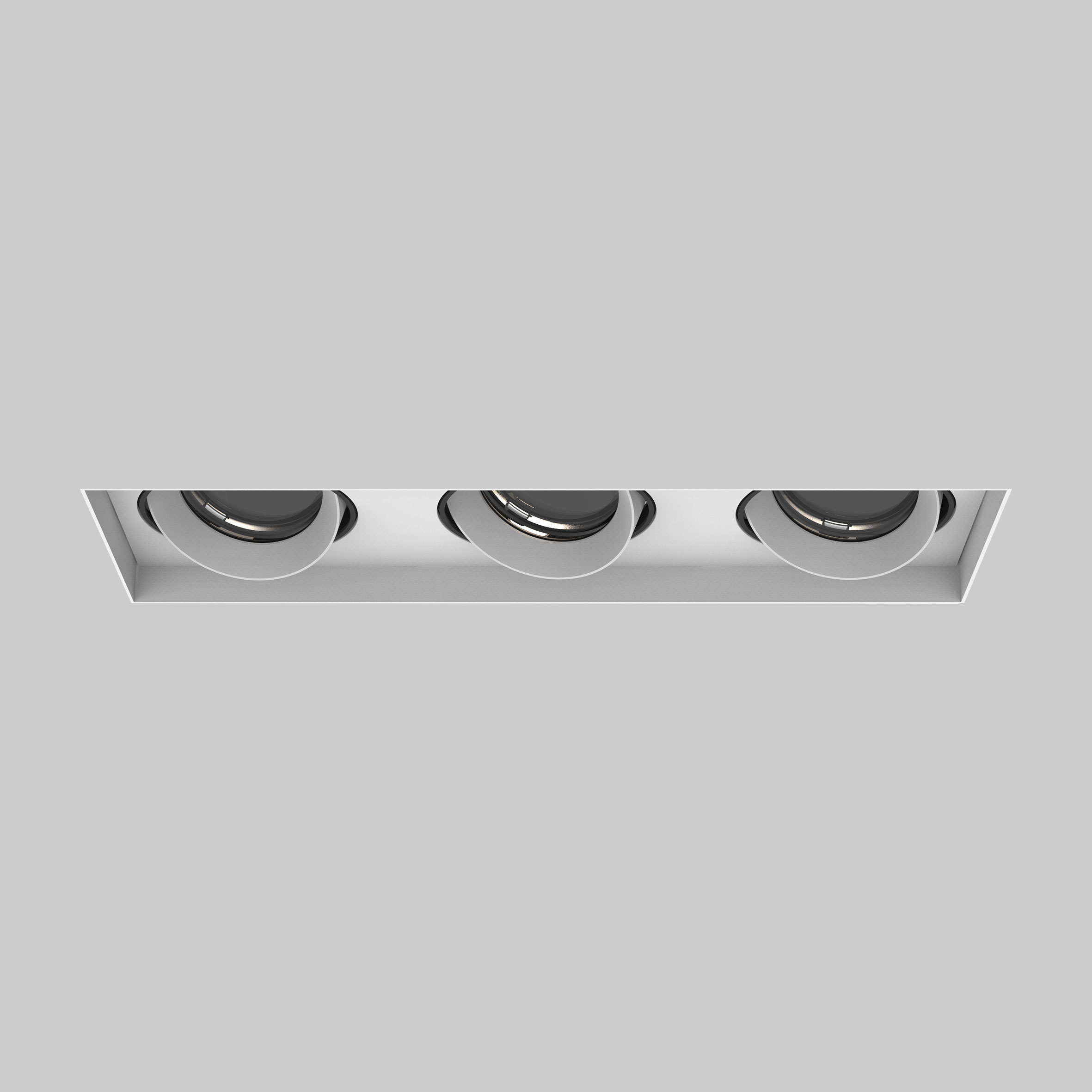

- 2314.400-3-ACOT-96
- 7W x3
- 656lm x3
-
-
STARLUX-50
ITEM NO. 2314.400-3-ACOT-96
Consumption7W x3
Current / Voltage350mA
LED Lumen656lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

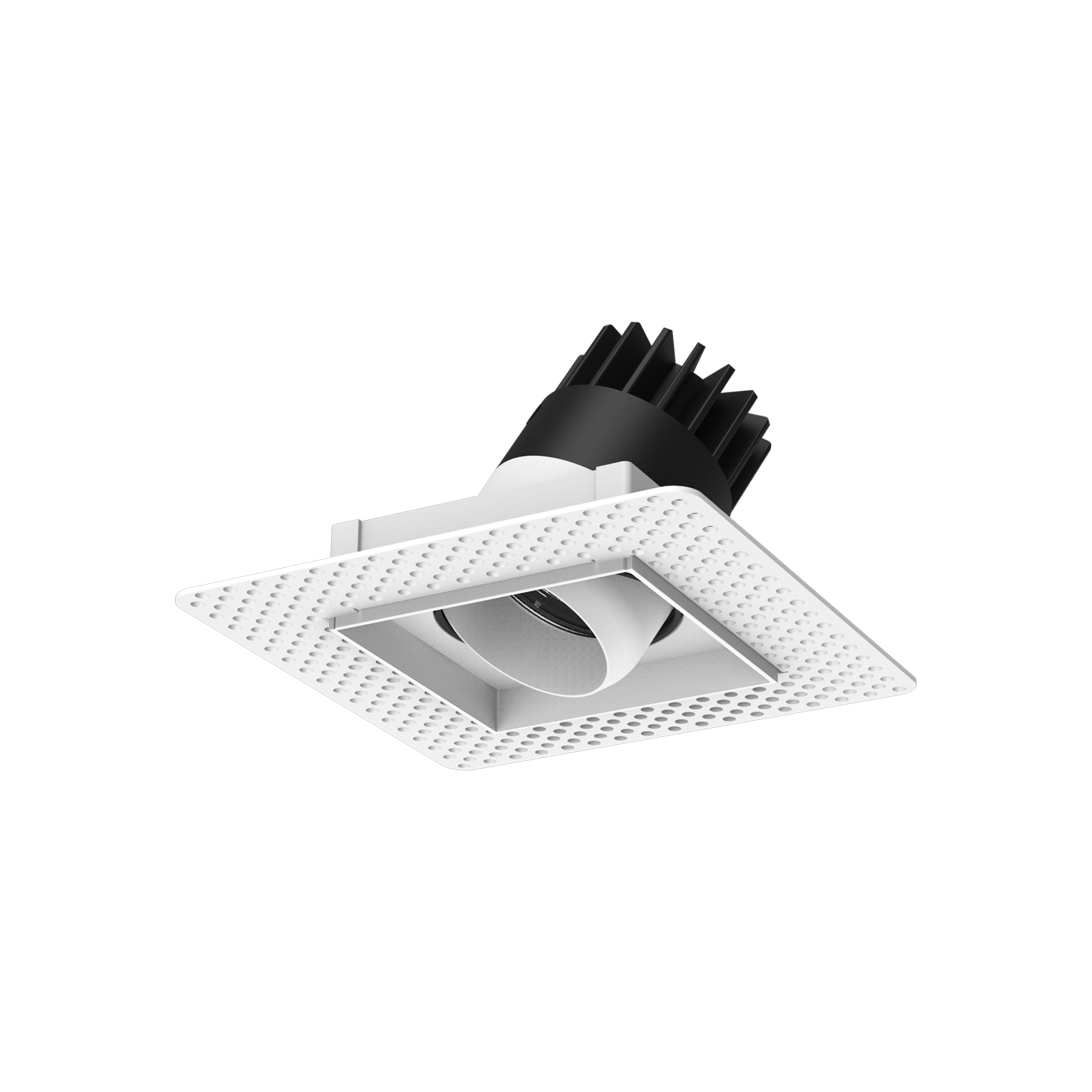

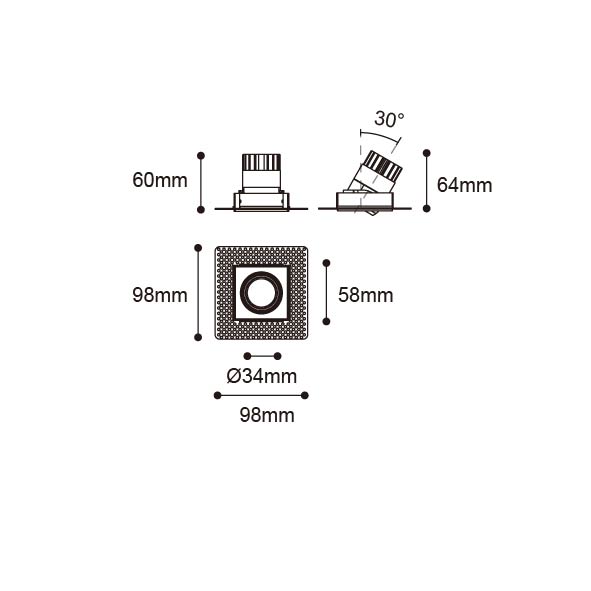

- 2314.401-1-ACOT-96
- 7W x1
- 656lm x1
-
-
STARLUX-50
ITEM NO. 2314.401-1-ACOT-96
Consumption7W x1
Current / Voltage350mA
LED Lumen656lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

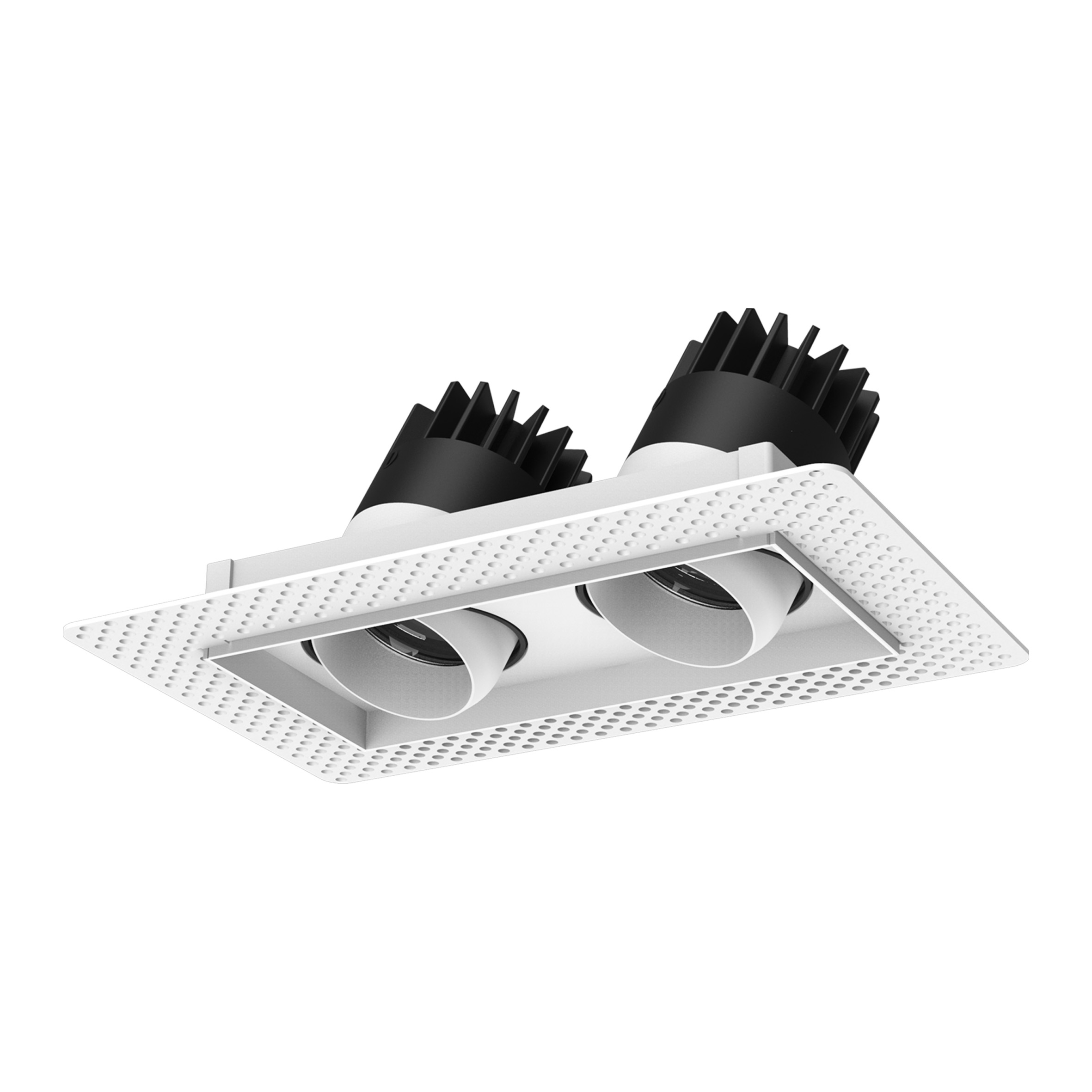

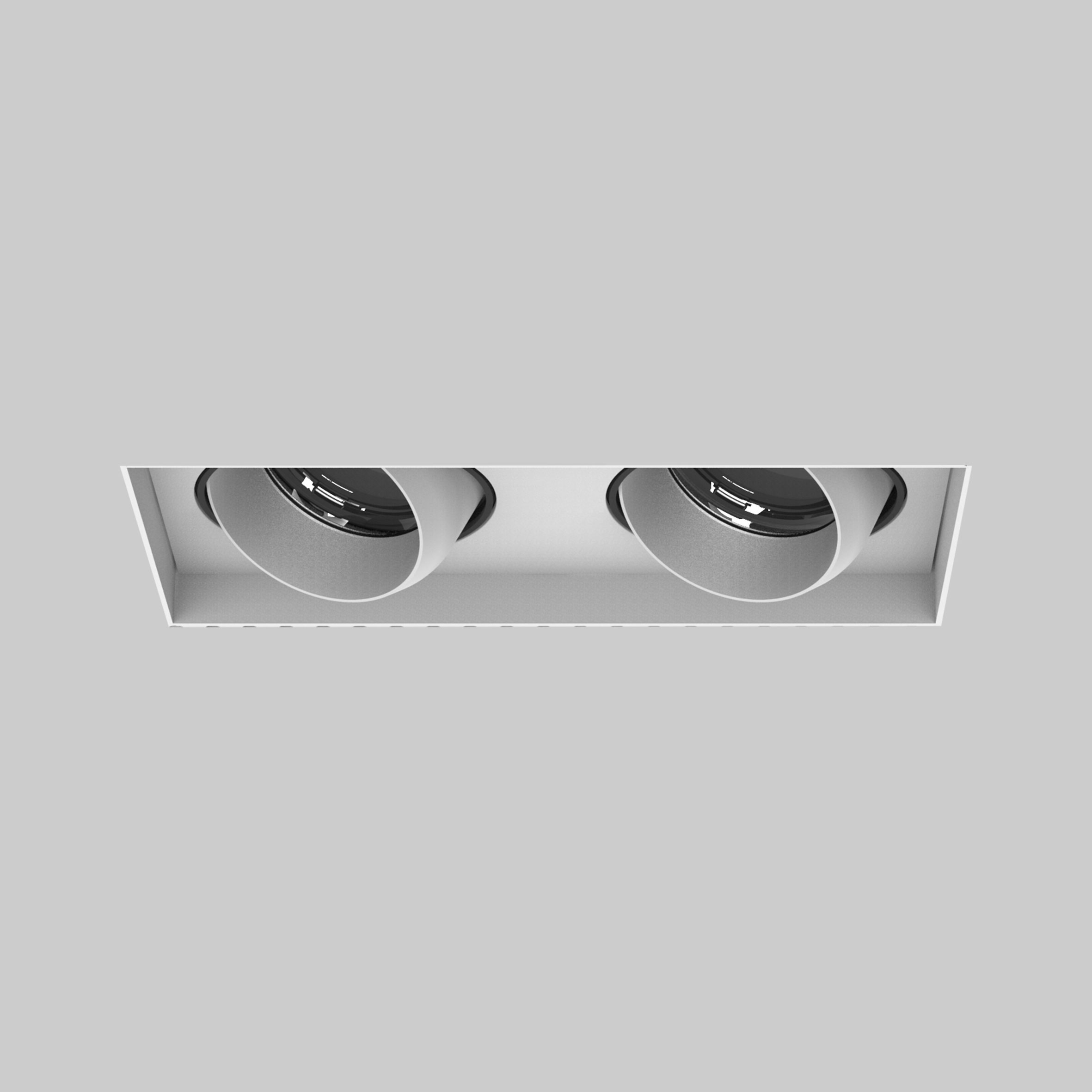

- 2314.401-2-ACOT-96
- 7W x2
- 656lm x2
-
-
STARLUX-50

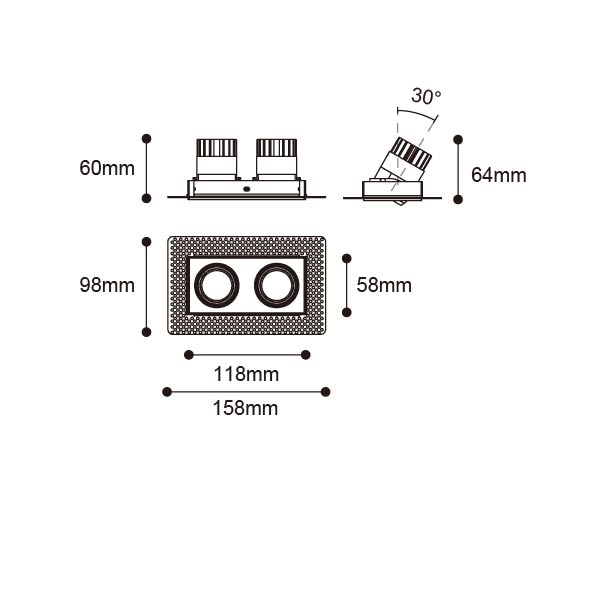

ITEM NO. 2314.401-2-ACOT-96
Consumption7W x2
Current / Voltage350mA
LED Lumen656lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

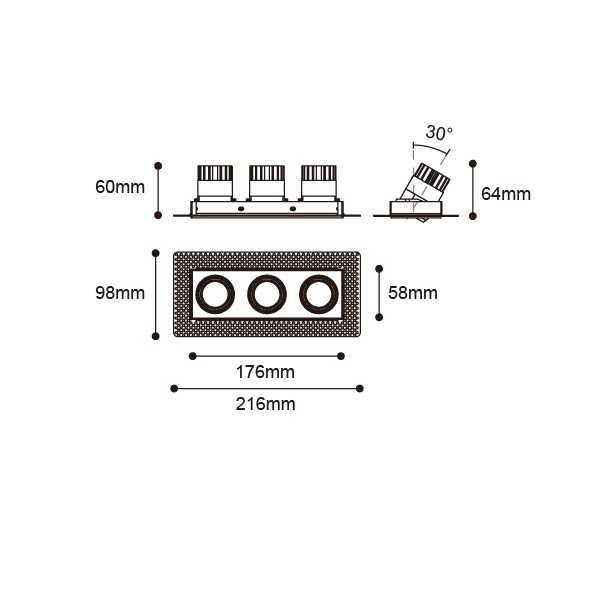

- 2314.401-3-ACOT-96
- 7W x3
- 656lm x3
-
-
STARLUX-50

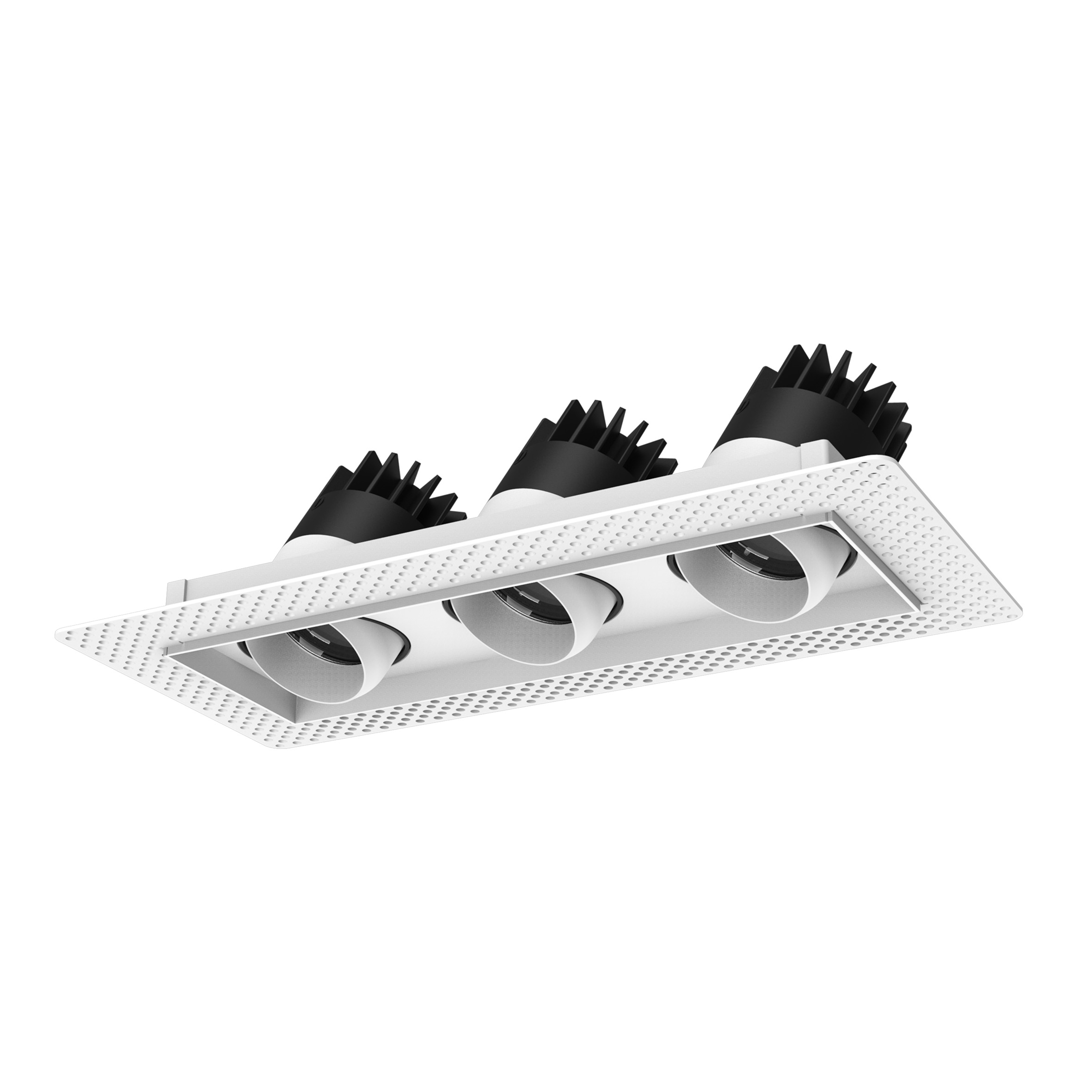

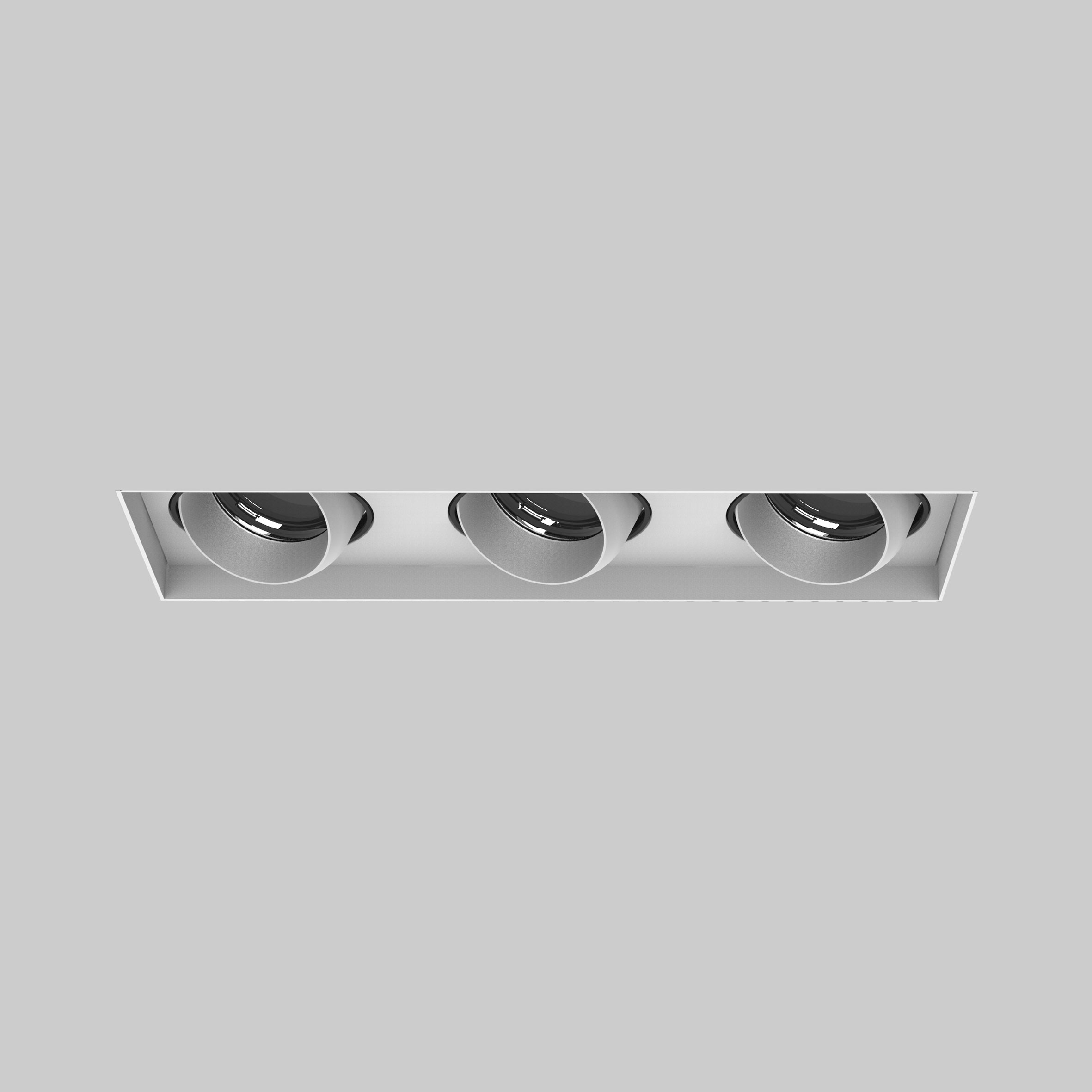

ITEM NO. 2314.401-3-ACOT-96
Consumption7W x3
Current / Voltage350mA
LED Lumen656lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

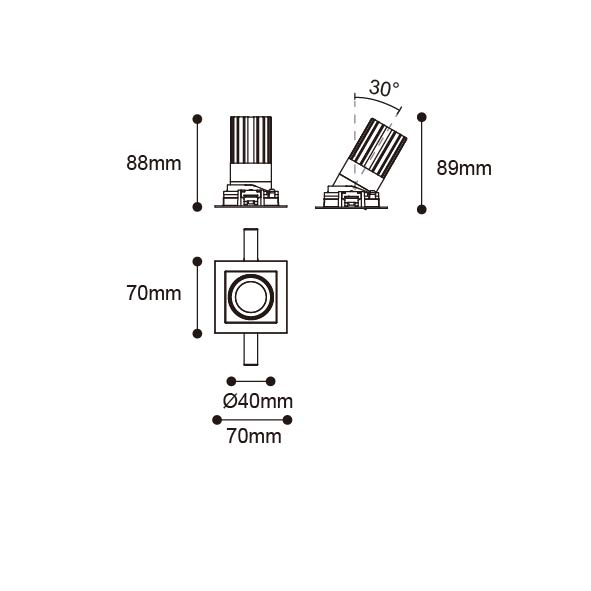

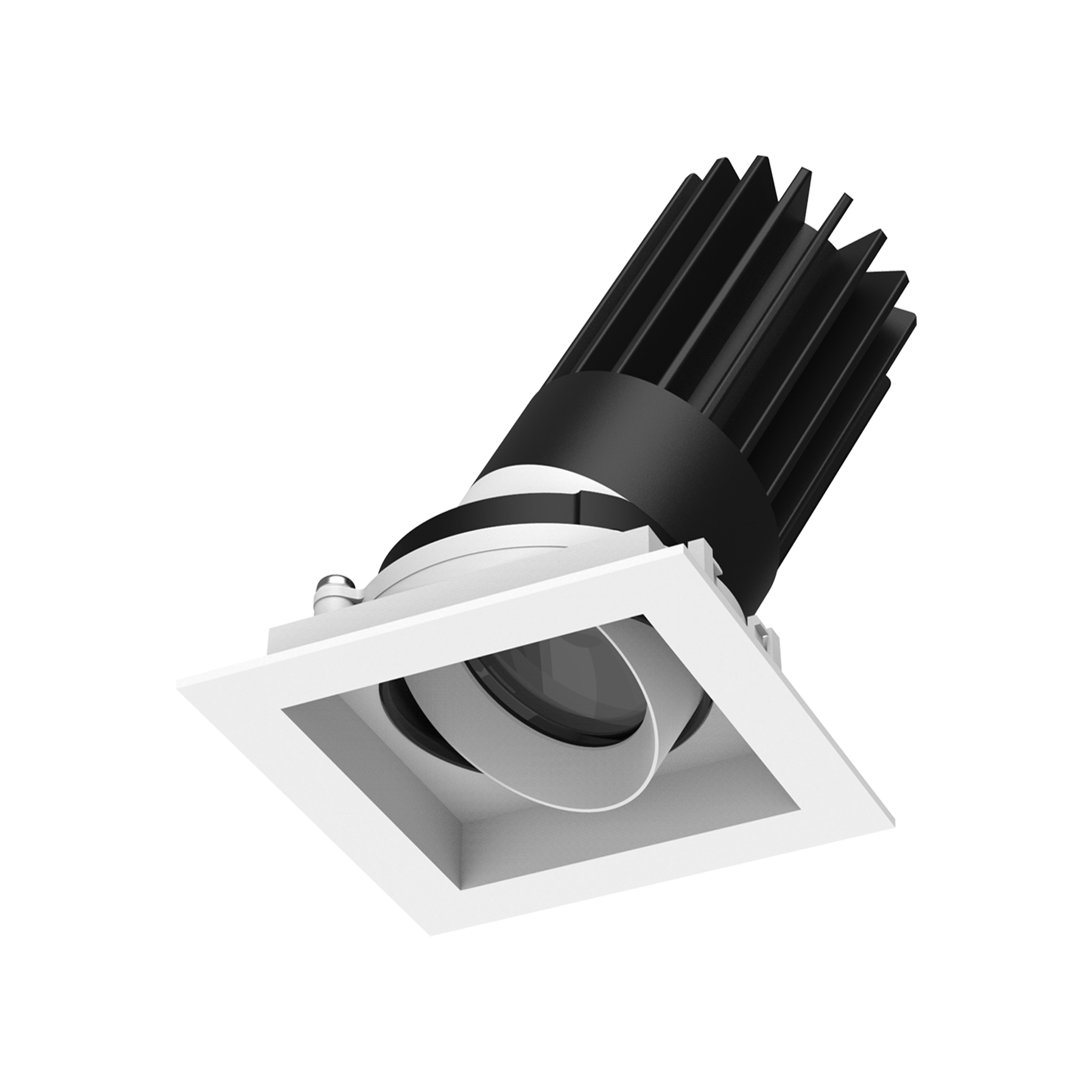

- 2214.411-1-ACOT-97
- 10W x1
- 913lm x1
-
-
STARLUX-50
ITEM NO. 2214.411-1-ACOT-97
Consumption10W x1
Current / Voltage250mA
LED Lumen913lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

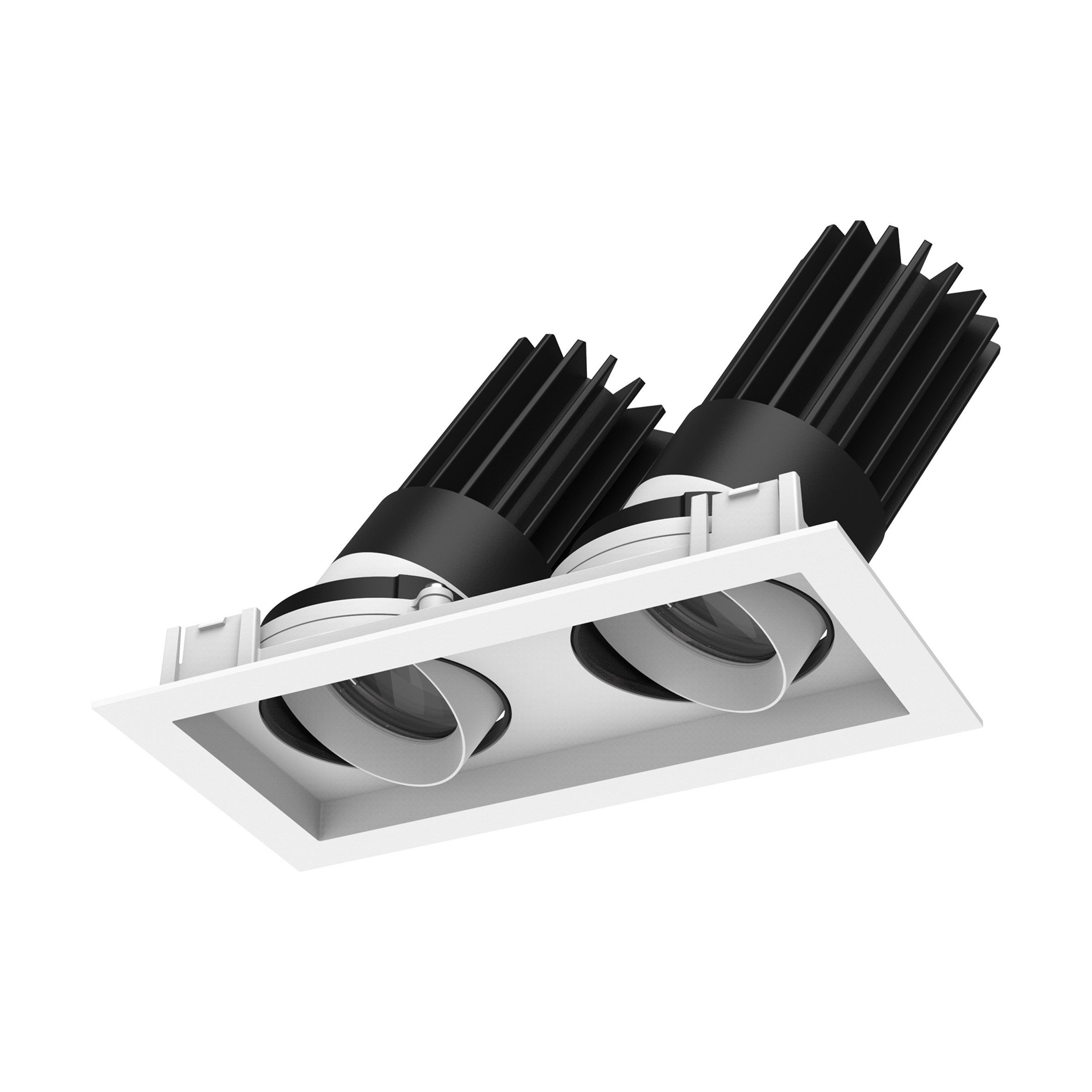

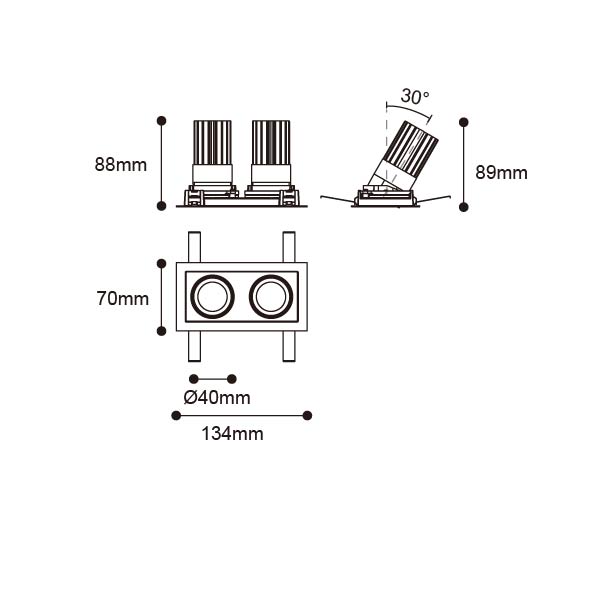

- 2214.411-2-ACOT-97
- 10W x2
- 913lm x2
-
-
STARLUX-50
ITEM NO. 2214.411-2-ACOT-97
Consumption10W x2
Current / Voltage250mA
LED Lumen913lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

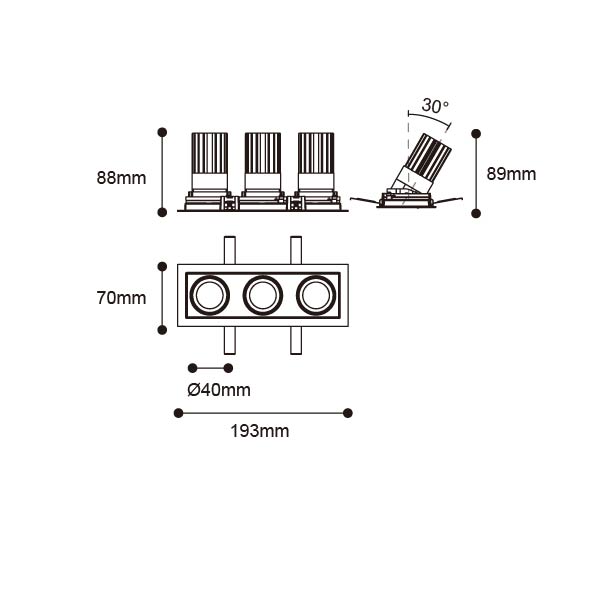

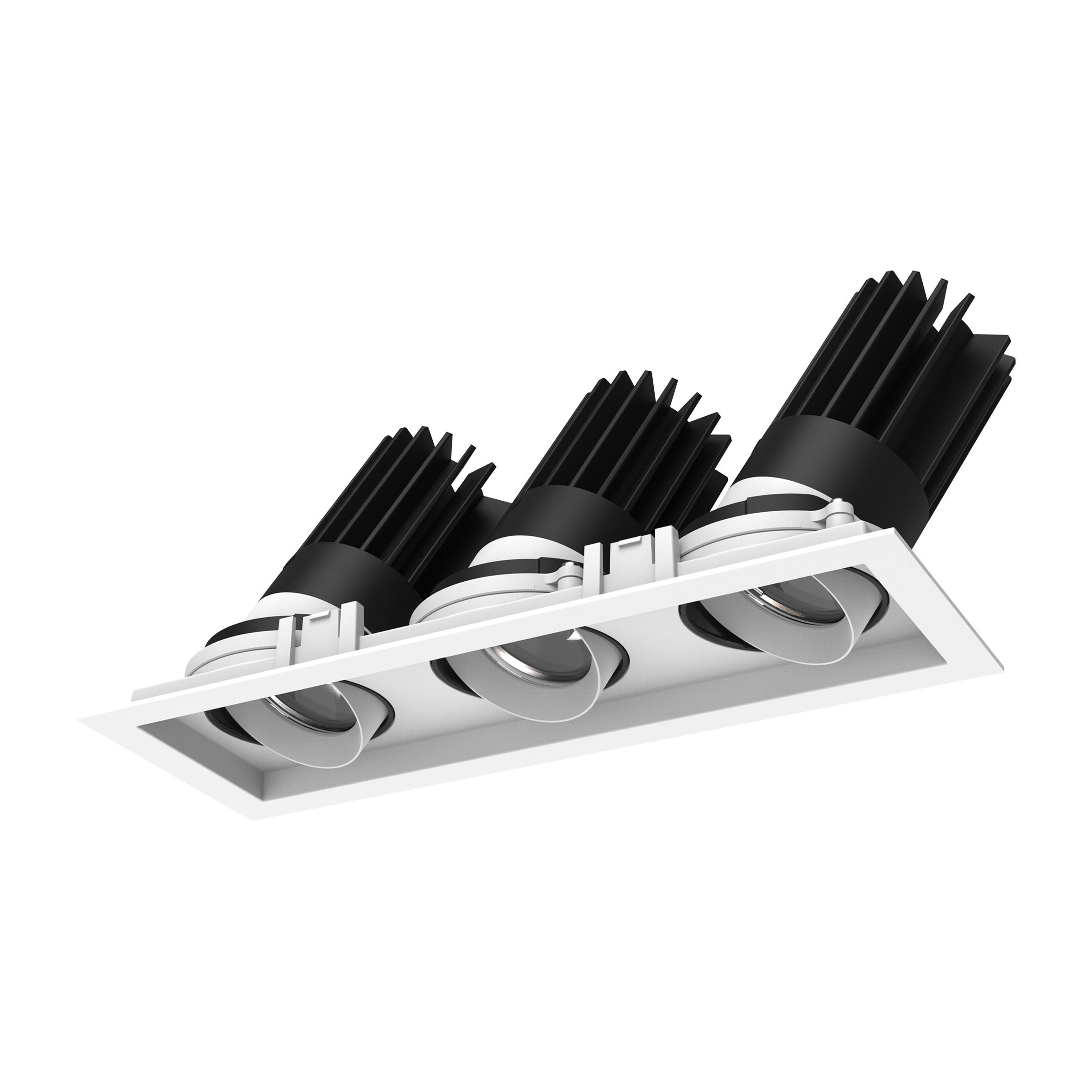

- 2214.411-3-ACOT-97
- 10W x3
- 913lm x3
-
-
STARLUX-50

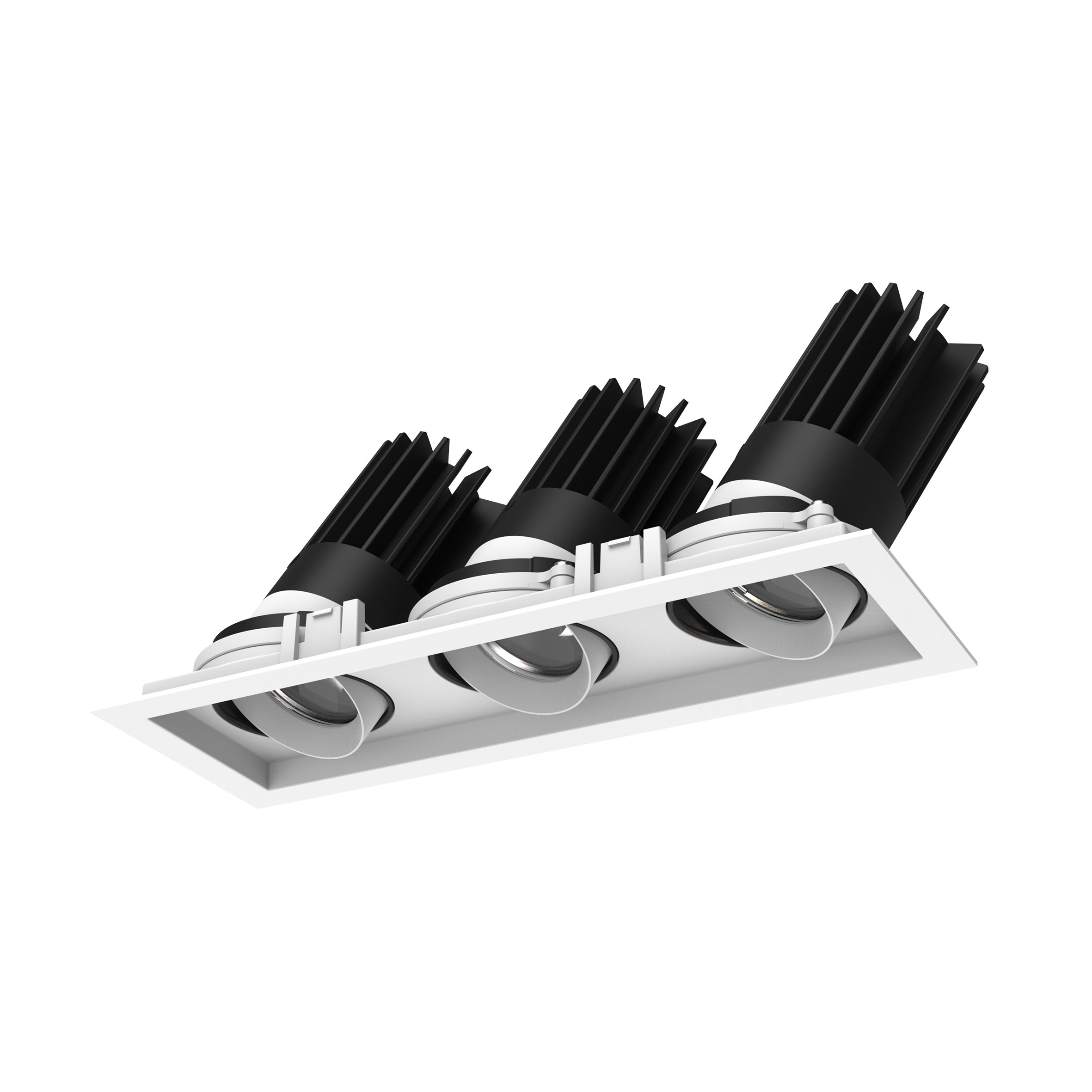

ITEM NO. 2214.411-3-ACOT-97
Consumption10W x3
Current / Voltage250mA
LED Lumen913lm x3
Beam Angle 15/24/36/50
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

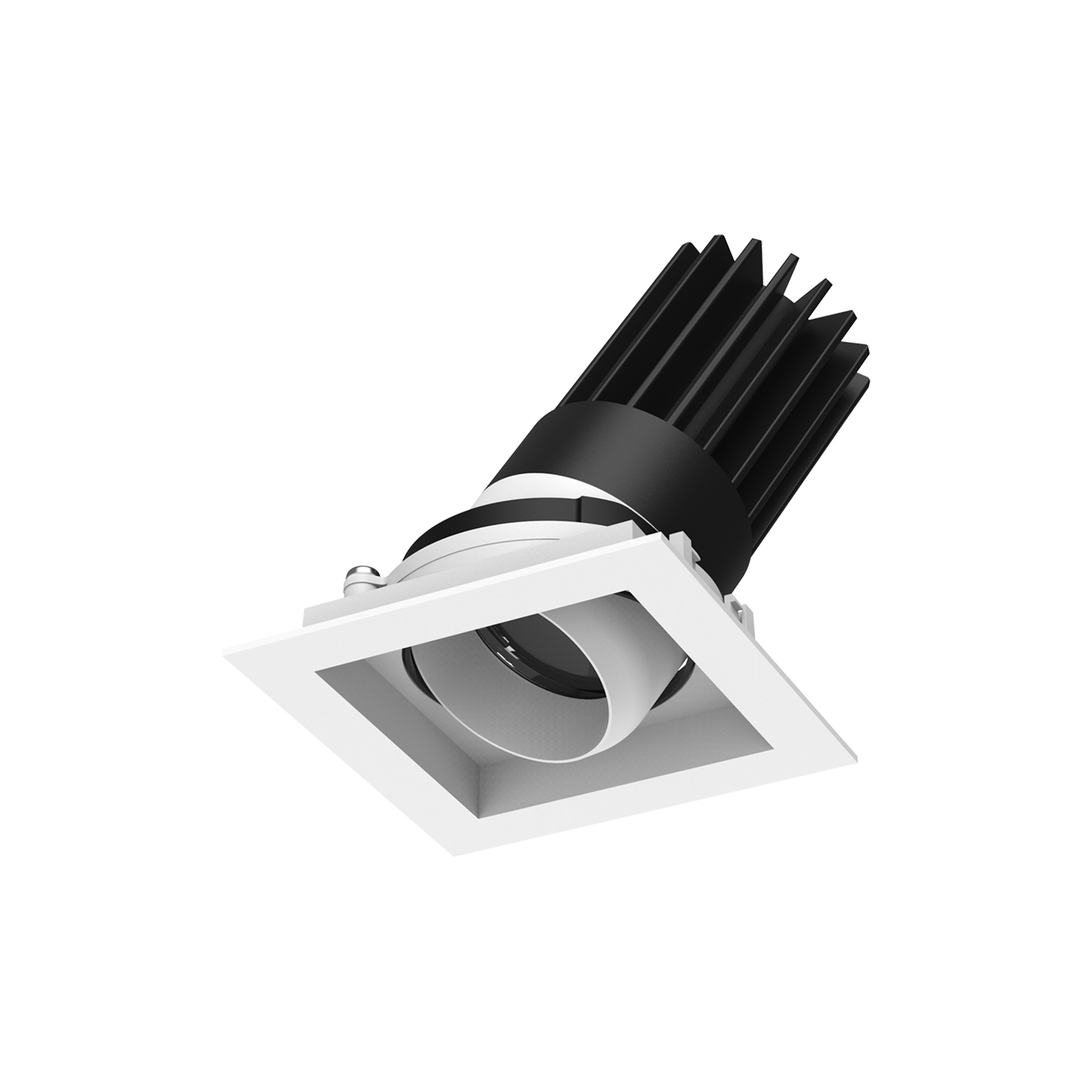

- 2214.412-1-ACOT-97
- 10W x1
- 913lm x1
-
-

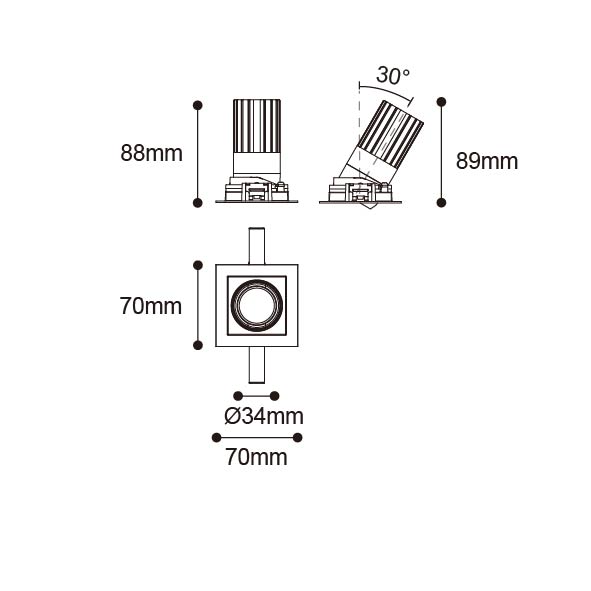

STARLUX-50
ITEM NO. 2214.412-1-ACOT-97
Consumption10W x1
Current / Voltage250mA
LED Lumen913lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

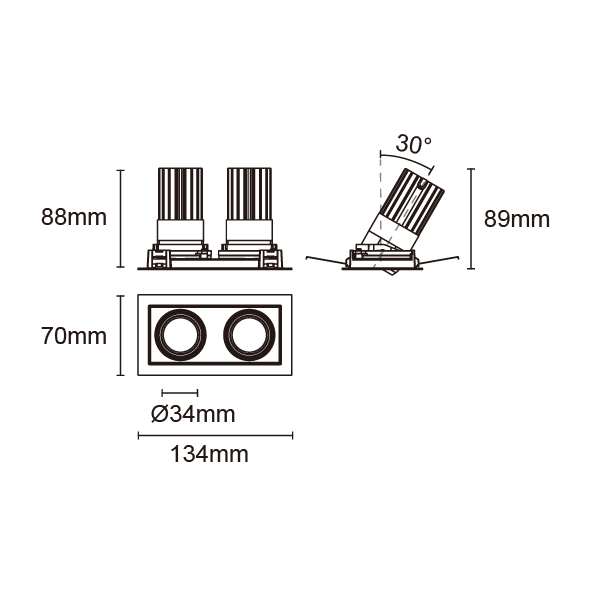

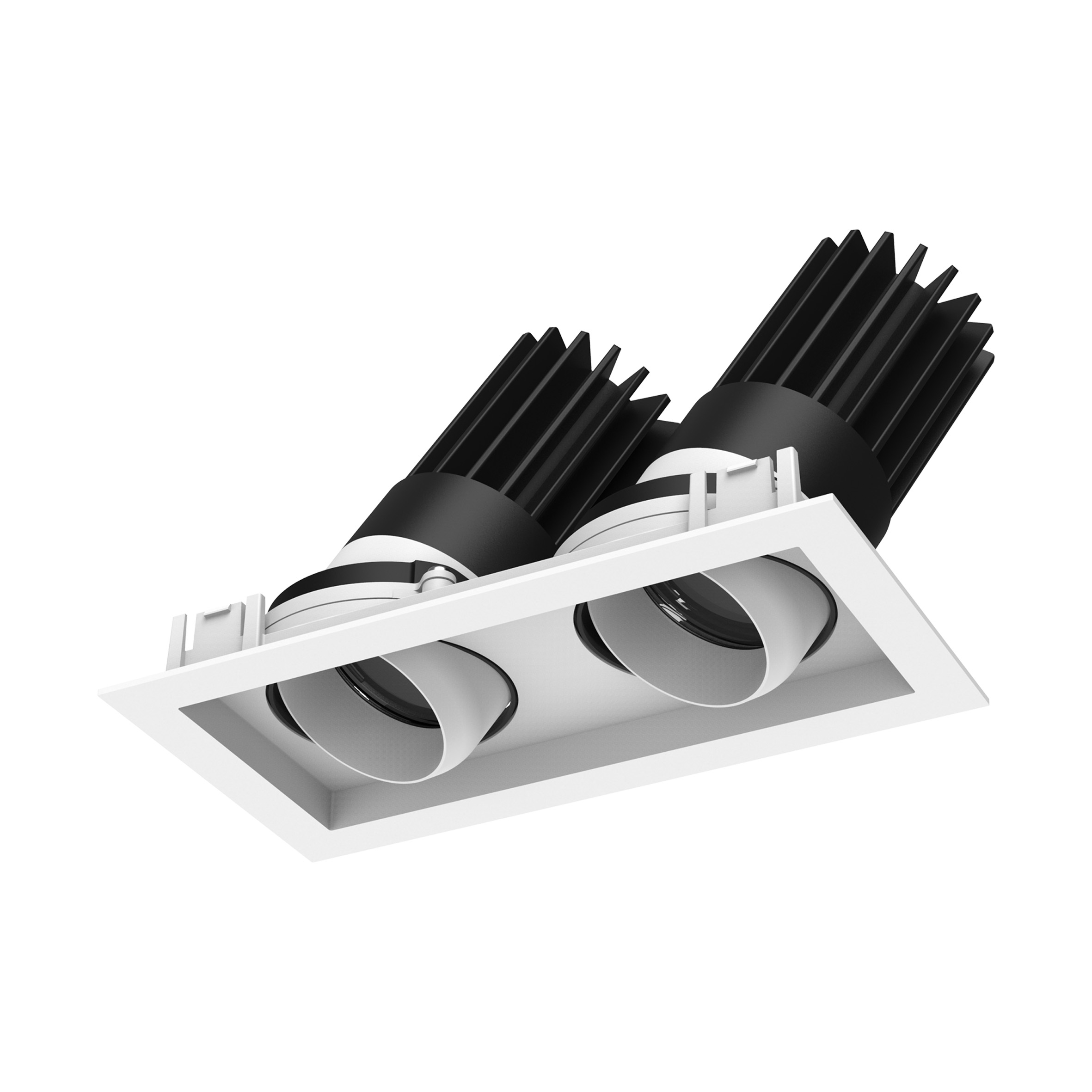

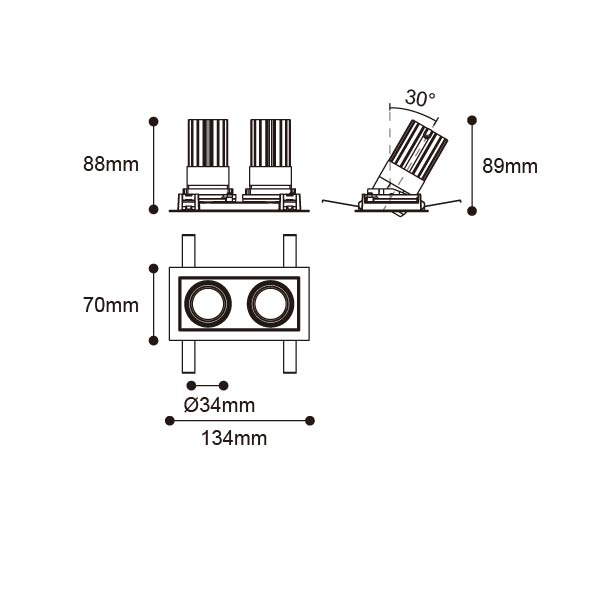

- 2214.412-2-ACOT-97
- 10W x2
- 913lm x2
-
-
STARLUX-50

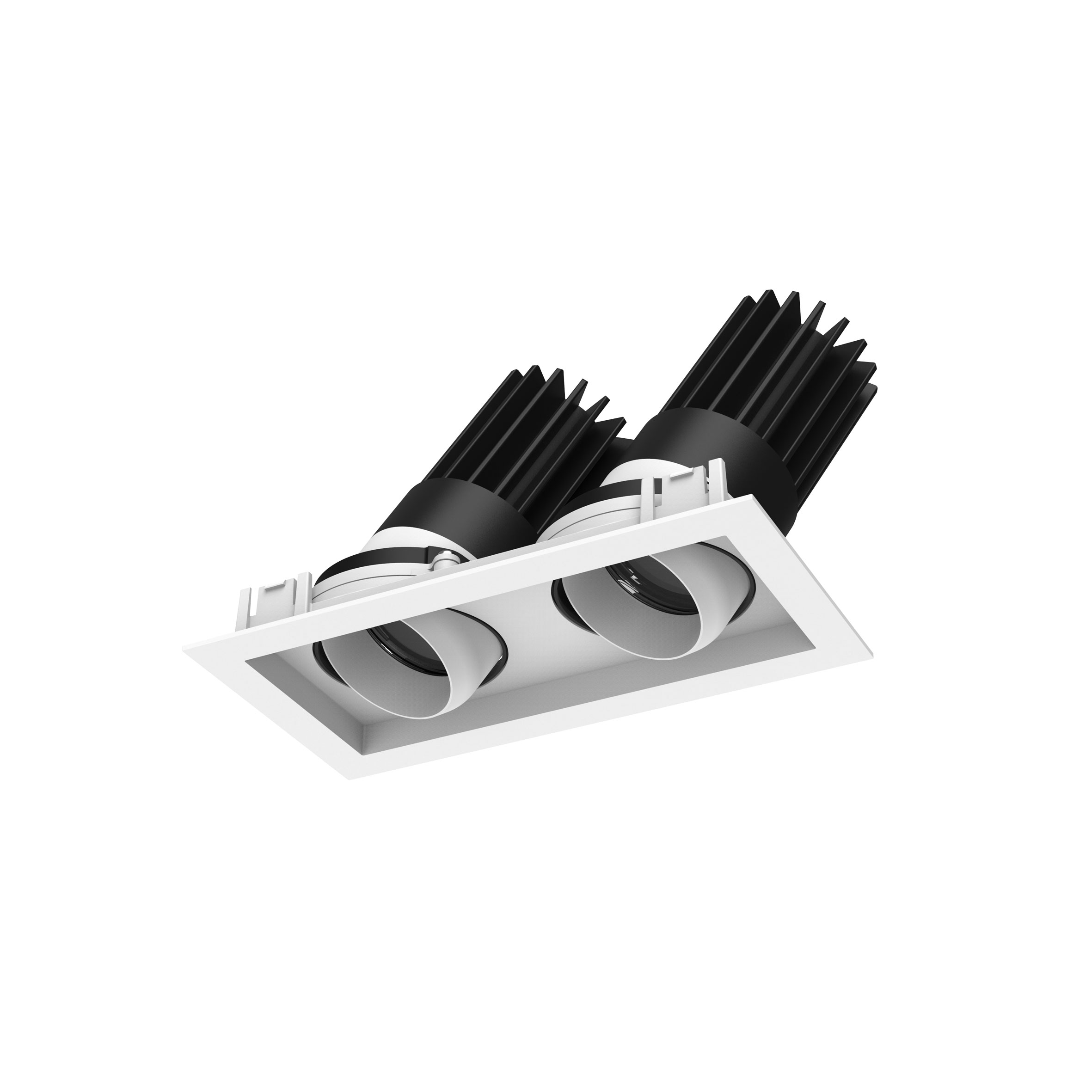

ITEM NO. 2214.412-2-ACOT-97
Consumption10W x2
Current / Voltage250mA
LED Lumen913lm x2
Beam Angle 15/24/36/50
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

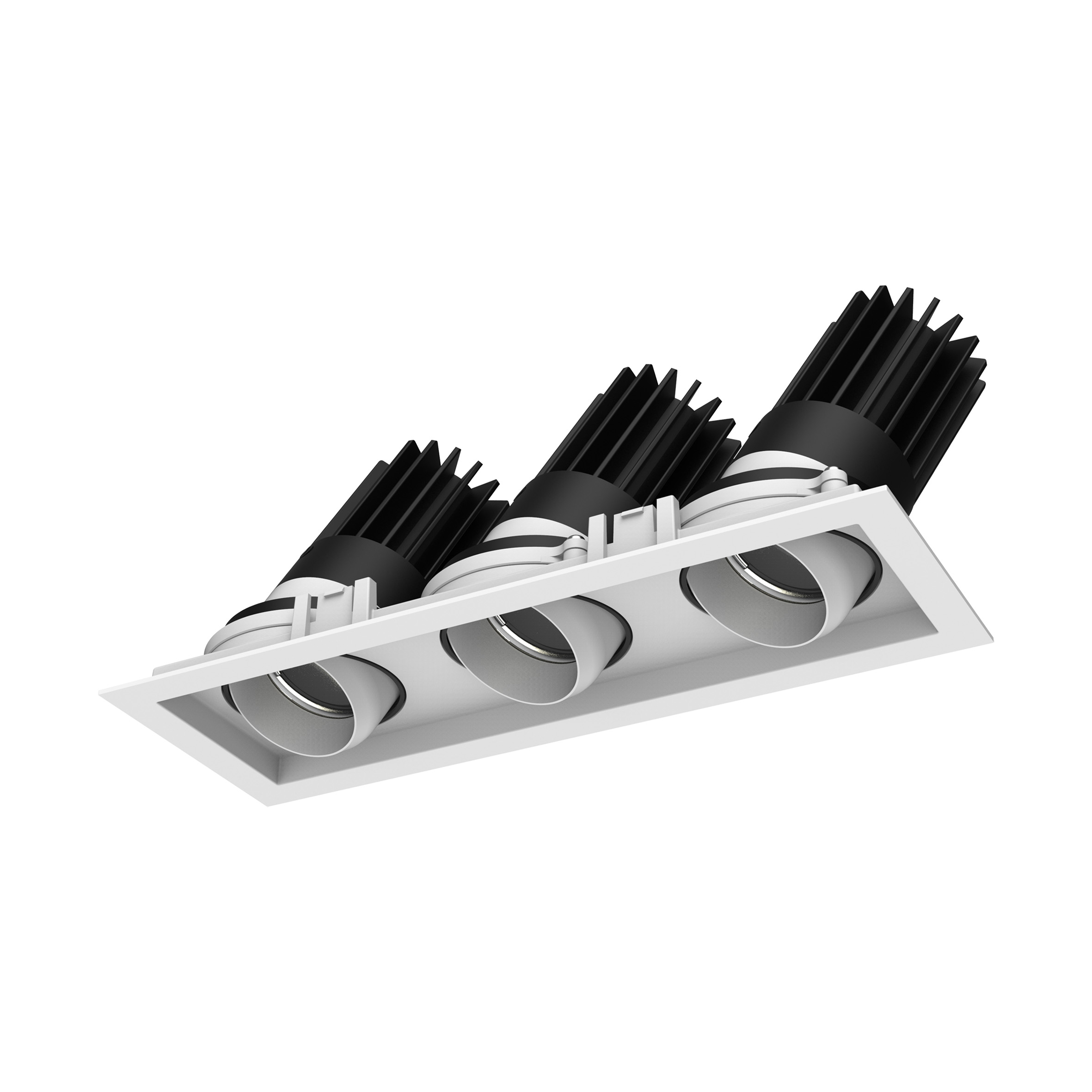

- 2214.412-3-ACOT-97
- 10W x3
- 913lm x3
-
-
STARLUX-50

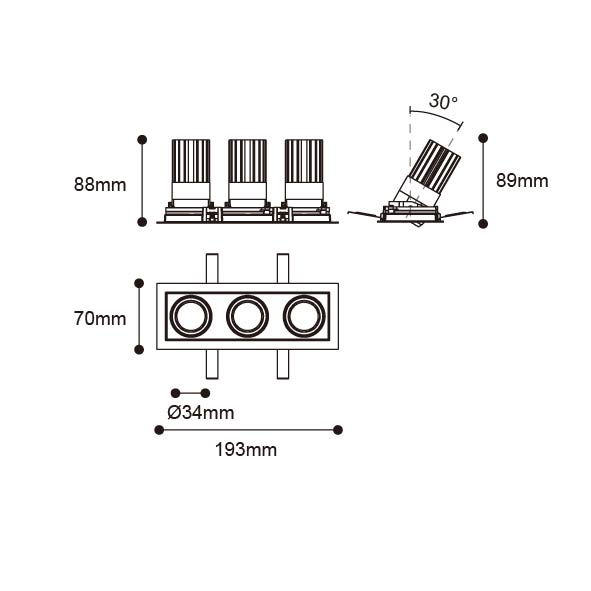

ITEM NO. 2214.412-3-ACOT-97
Consumption10W x3
Current / Voltage250mA x3
LED Lumen913lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

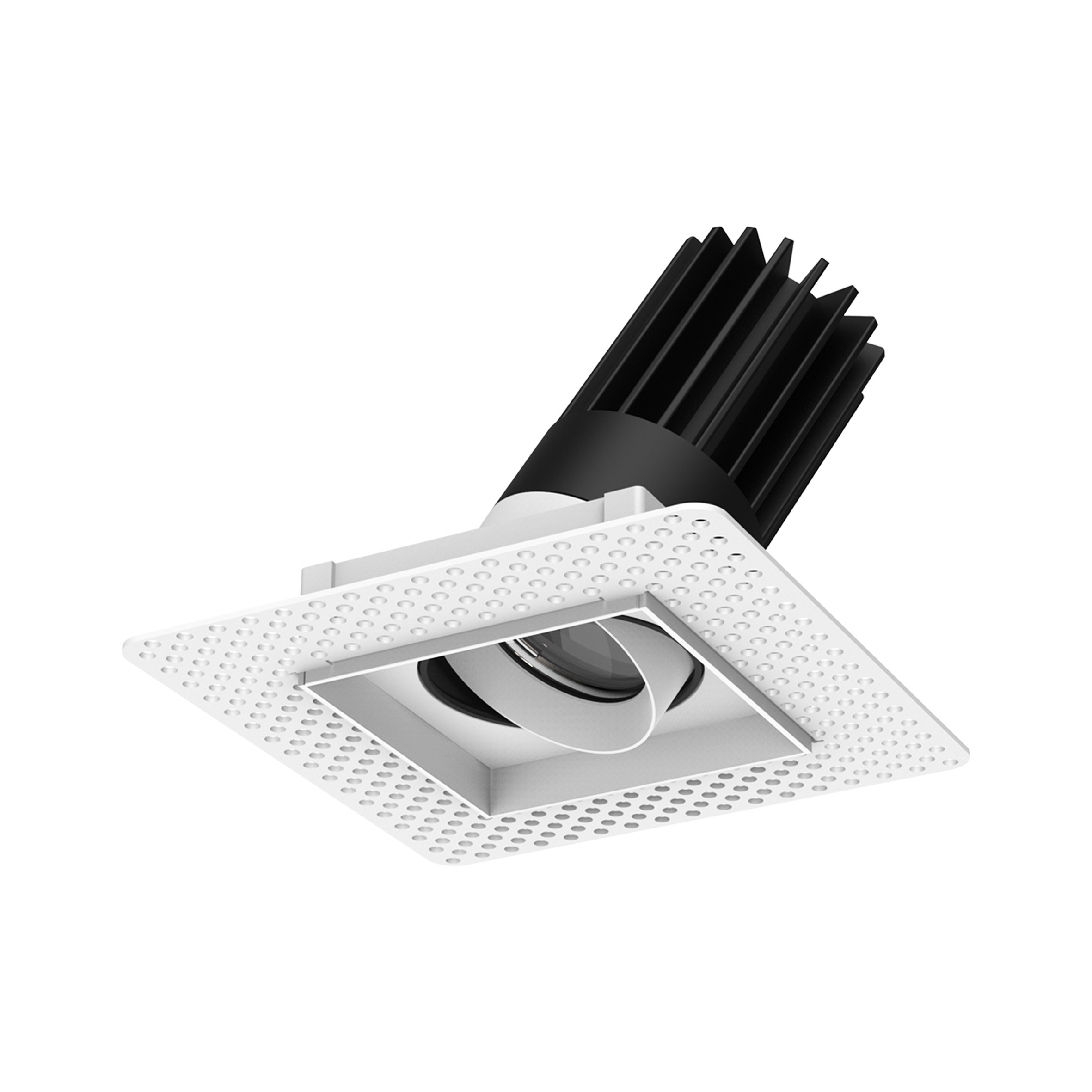

- 2314.400-1-ACOT-97
- 10W x1
- 913lm x1
-
-
STARLUX
ITEM NO. 2314.400-1-ACOT-97
Consumption10W x1
Current / Voltage250mA
LED Lumen913lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

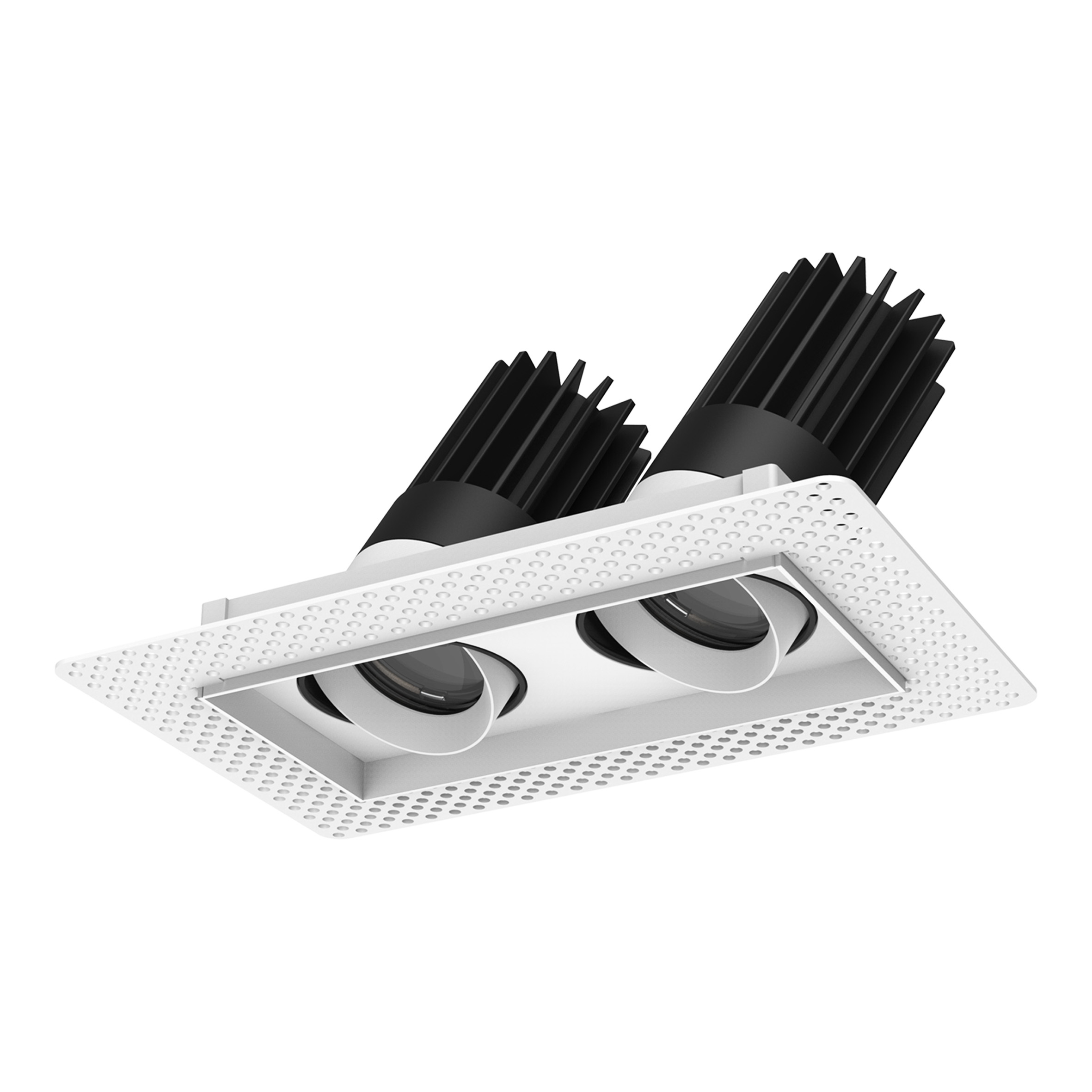

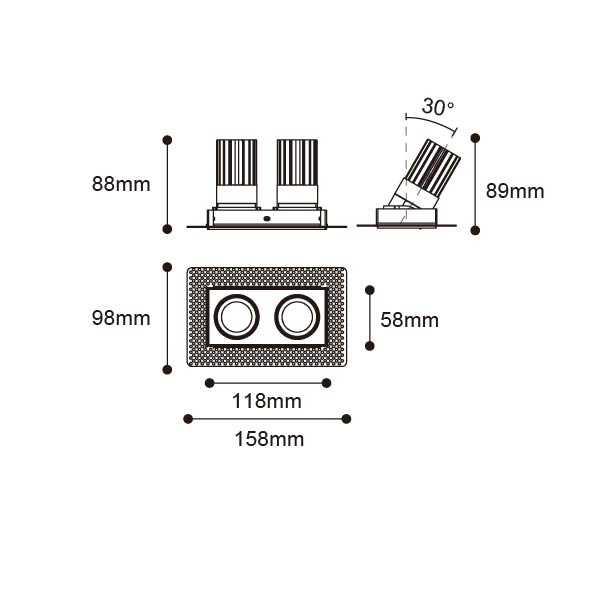

- 2314.400-2-ACOT-97
- 10W x2
- 913lm x2
-
-
STARLUX
ITEM NO. 2314.400-2-ACOT-97
Consumption10W x2
Current / Voltage250mA
LED Lumen913lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

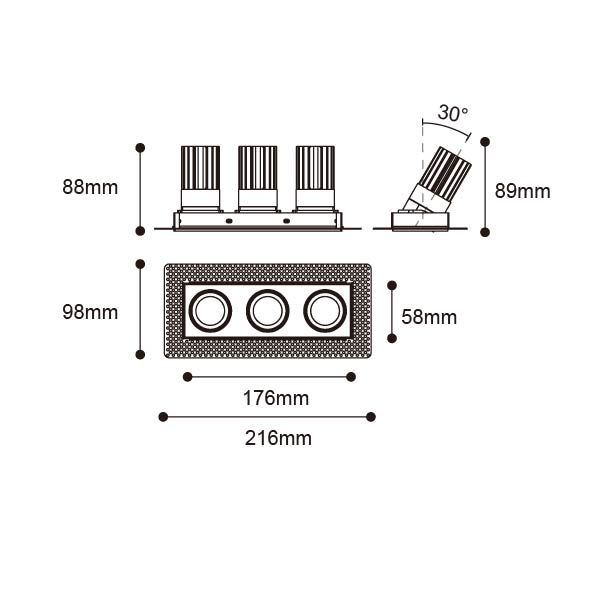

- 2314.400-3-ACOT-97
- 10W x3
- 913lm x3
-
-
STARLUX

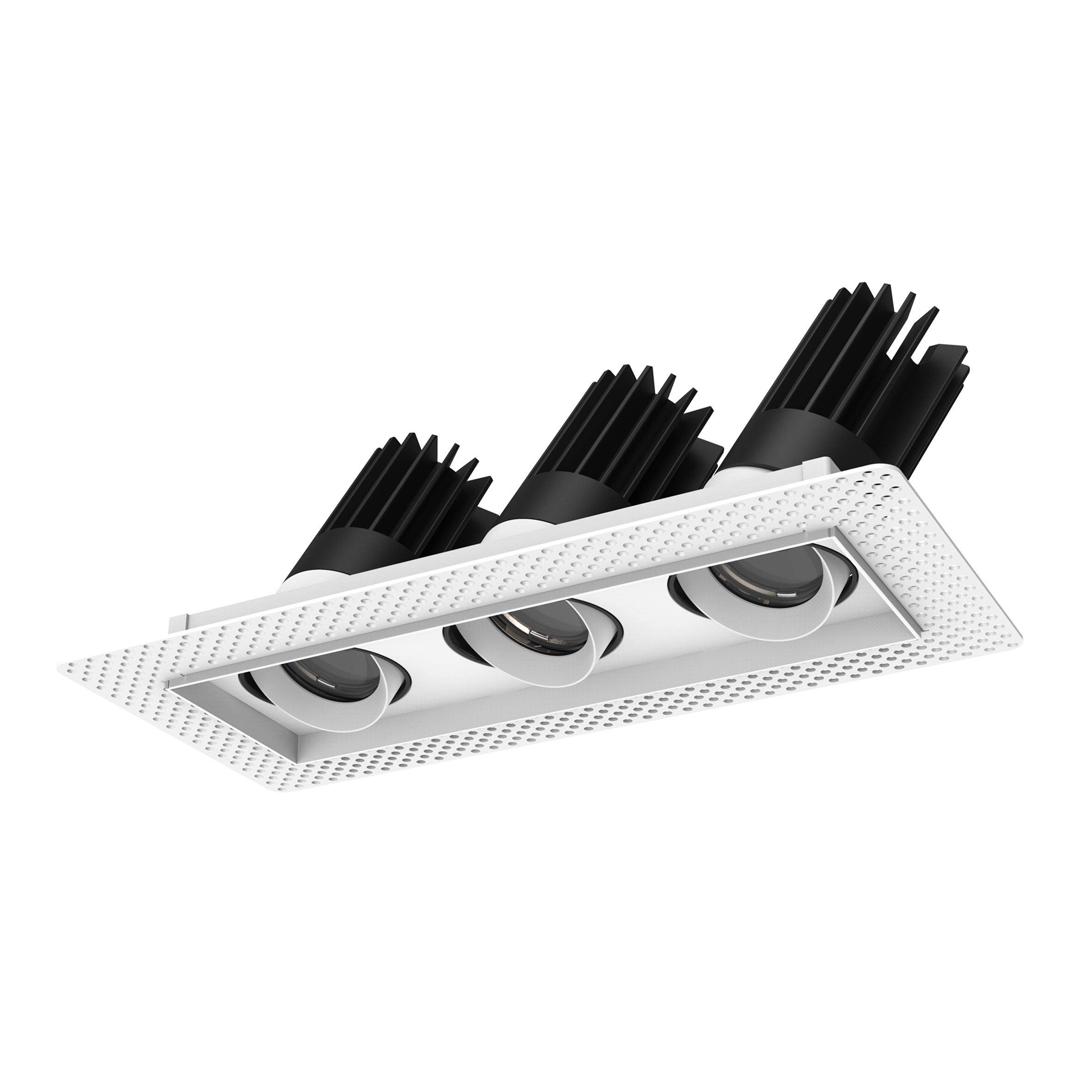

ITEM NO. 2314.400-3-ACOT-97
Consumption10W x3
Current / Voltage250mA
LED Lumen913lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

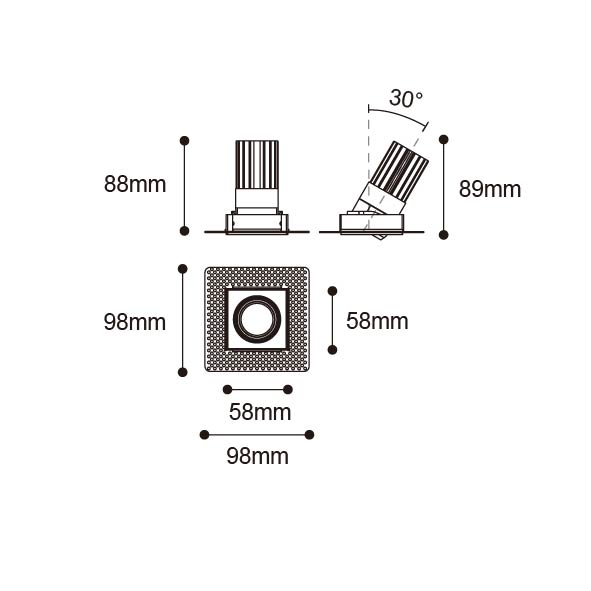

- 2314.401-1-ACOT-97
- 10W x1
- 913lm x1
-
-
STARLUX

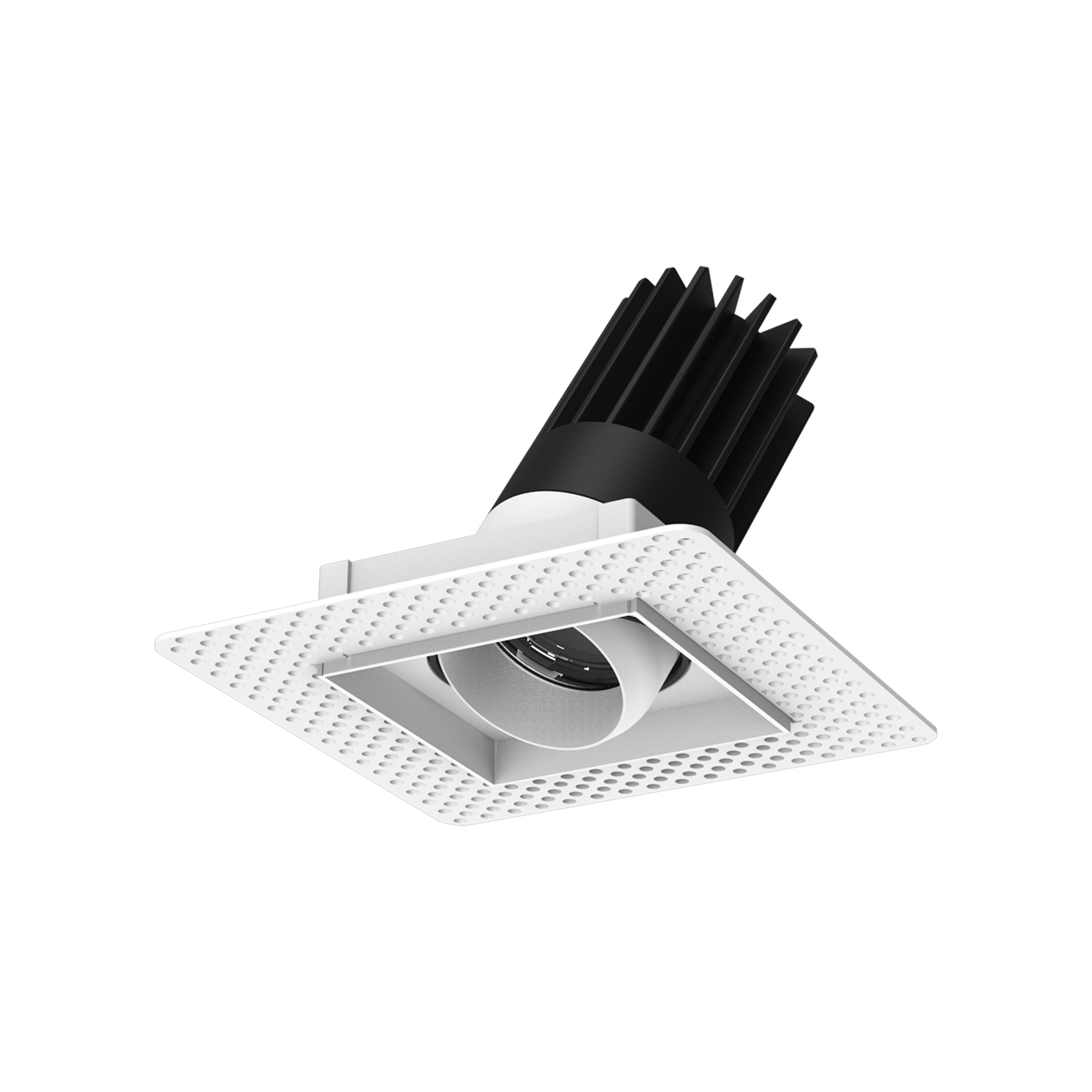

ITEM NO. 2314.401-1-ACOT-97
Consumption10W x1
Current / Voltage250mA
LED Lumen913lm x1
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

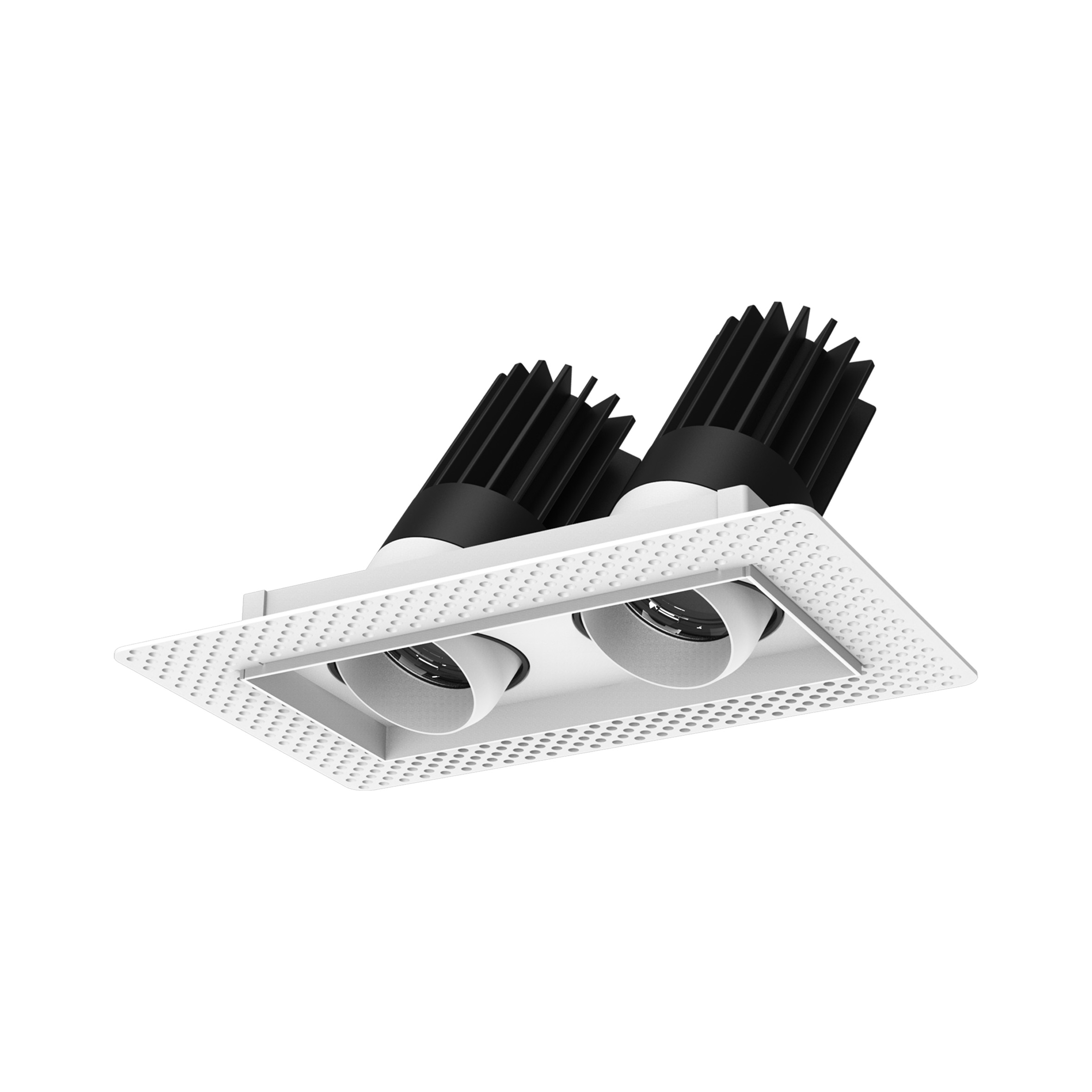

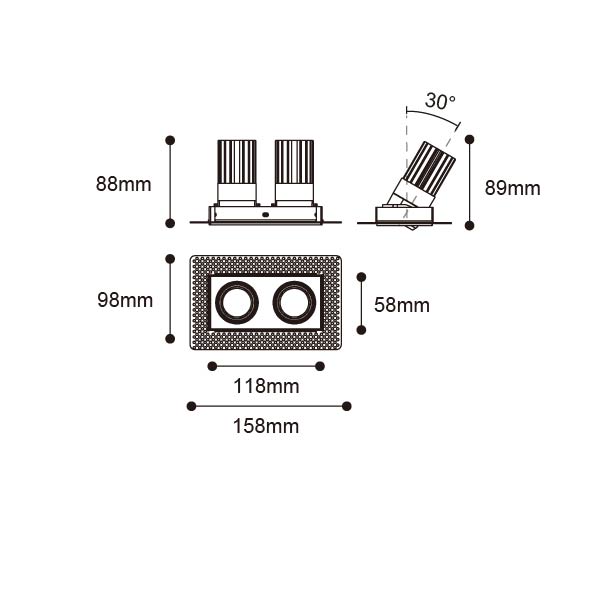

- 2314.401-2-ACOT-97
- 10W x2
- 913lm x2
-
-
STARLUX
ITEM NO. 2314.401-2-ACOT-97
Consumption10W x2
Current / Voltage250mA
LED Lumen913lm x2
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

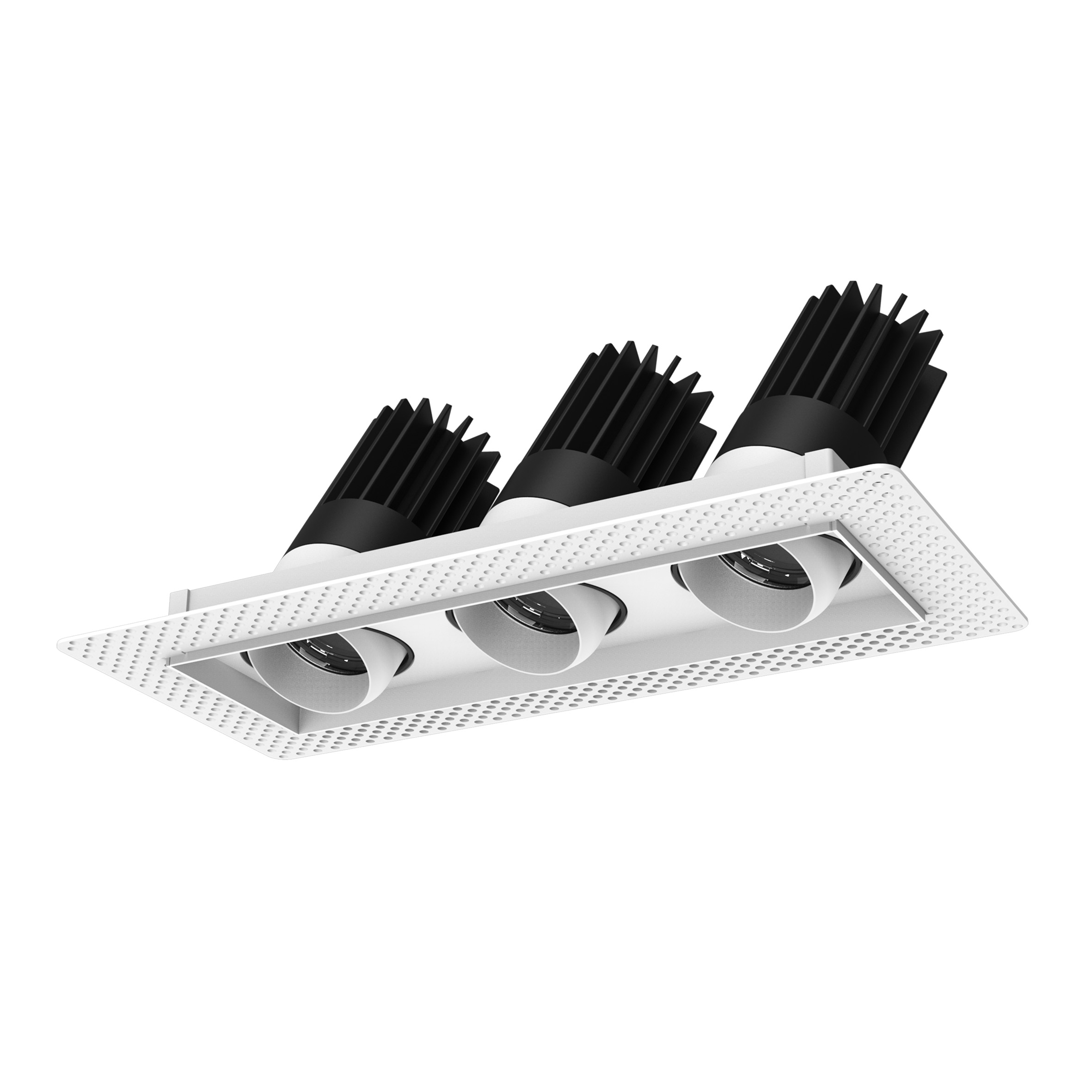

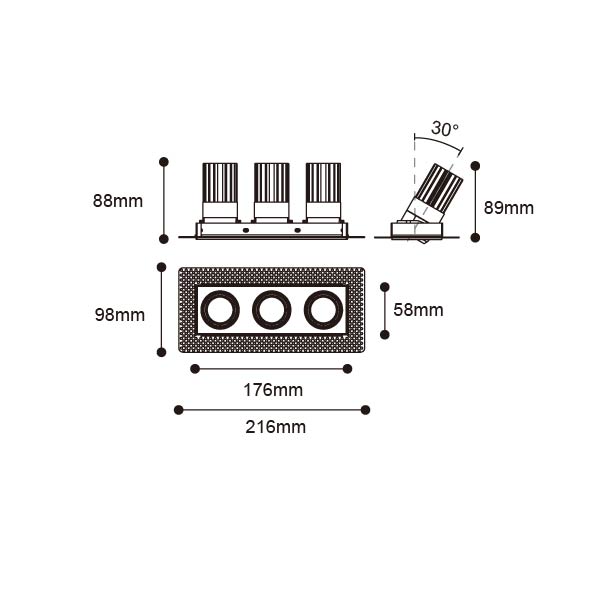

- 2314.401-3-ACOT-97
- 10W x3
- 913lm x3
-
-
STARLUX
ITEM NO. 2314.401-3-ACOT-97
Consumption10W x3
Current / Voltage250mA
LED Lumen913lm x3
Beam Angle 15°/24°/36°/50°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
E-catalogue

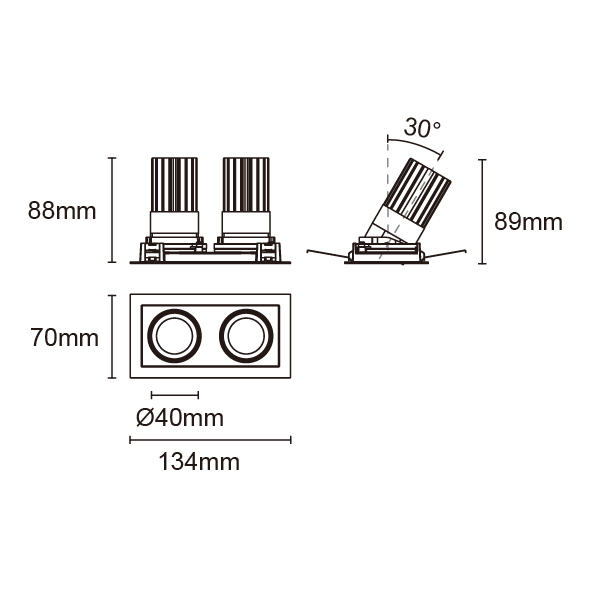

- 2214.411-2-LEE-18
- 10Wx2
- 800mA
-
-
STARLUX-50
ITEM NO. 2214.411-2-LEE-18
Consumption10Wx2
Current / Voltage800mA
LED Lumen800mA
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.411-2-ACOT-97-DW
- 10Wx2
- 14-611lmx2
-
-
STARLUX-50
ITEM NO. 2214.411-2-ACOT-97-DW
Consumption10Wx2
Current / Voltage250mA
LED Lumen14-611lmx2
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.411-2-ACOT-97-WCW
- 10Wx2
- 740-951lm
-
-
STARLUX-50
ITEM NO. 2214.411-2-ACOT-97-WCW
Consumption10Wx2
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

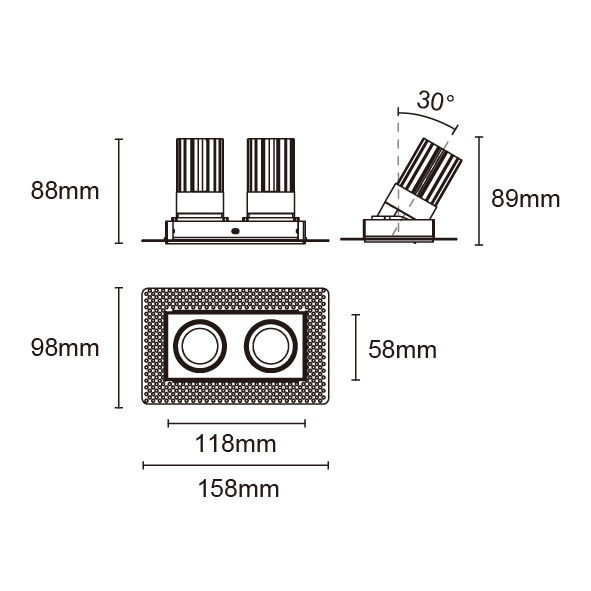

- 2314.400-2-LEE-18
- 10Wx2
- 774lm
-
-
STARLUX-50
ITEM NO. 2314.400-2-LEE-18
Consumption10Wx2
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.400-2-ACOT-97-DW
- 10Wx2
- 14-611lmx2
-
-
STARLUX-50
ITEM NO. 2314.400-2-ACOT-97-DW
Consumption10Wx2
Current / Voltage250mA
LED Lumen14-611lmx2
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.400-2-ACOT-97-WCW
- 10Wx2
- 740-951lmx2
-
-
STARLUX-50
ITEM NO. 2314.400-2-ACOT-97-WCW
Consumption10Wx2
Current / Voltage250mA
LED Lumen740-951lmx2
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.411-3-LEE-18
- 10Wx3
- 774lmx3
-
-
STARLUX-50
ITEM NO. 2214.411-3-LEE-18
Consumption10Wx3
Current / Voltage800mA
LED Lumen774lmx3
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.411-3-ACOT-97-DW
- 10Wx3
- 14-611lmx3
-
-
STARLUX-50
ITEM NO. 2214.411-3-ACOT-97-DW
Consumption10Wx3
Current / Voltage250mA
LED Lumen14-611lmx3
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.411-3-ACOT-97-WCW
- 10Wx3
- 740-951lm
-
-
STARLUX-50
ITEM NO. 2214.411-3-ACOT-97-WCW
Consumption10Wx3
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

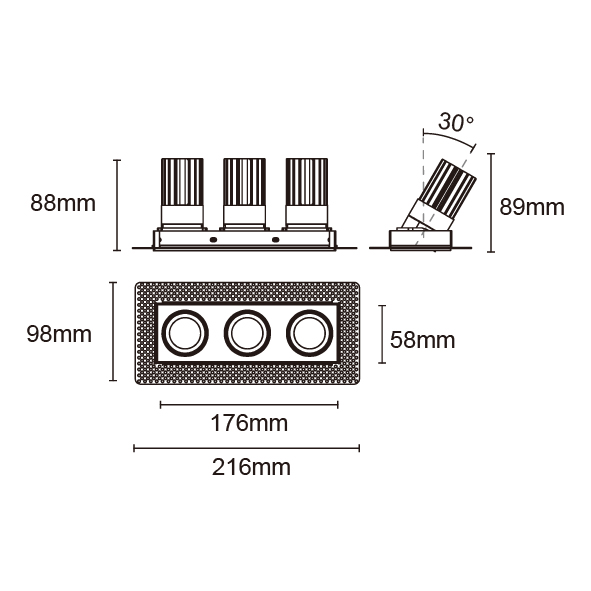

- 2314.400-3-LEE-18
- 10Wx3
- 774lm
-
-
STARLUX-50
ITEM NO. 2314.400-3-LEE-18
Consumption10Wx3
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.400-3-ACOT-97-DW
- 10Wx3
- 14-611lmx3
-
-
STARLUX-50
ITEM NO. 2314.400-3-ACOT-97-DW
Consumption10Wx3
Current / Voltage250mA
LED Lumen14-611lmx3
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.400-3-ACOT-97-WCW
- 10Wx3
- 740-951lm
-
-
STARLUX-50
ITEM NO. 2314.400-3-ACOT-97-WCW
Consumption10Wx3
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.412-2-LEE-18
- 10Wx2
- 774lm
-
-
STARLUX-50
ITEM NO. 2214.412-2-LEE-18
Consumption10Wx2
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.412-2-ACOT-97-DW
- 10Wx2
- 14-611lmx2
-
-
STARLUX-50
ITEM NO. 2214.412-2-ACOT-97-DW
Consumption10Wx2
Current / Voltage250mA
LED Lumen14-611lmx2
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.412-2-ACOT-97-WCW
- 10Wx2
- 740-951lmx2
-
-
STARLUX-50
ITEM NO. 2214.412-2-ACOT-97-WCW
Consumption10Wx2
Current / Voltage250mA
LED Lumen740-951lmx2
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

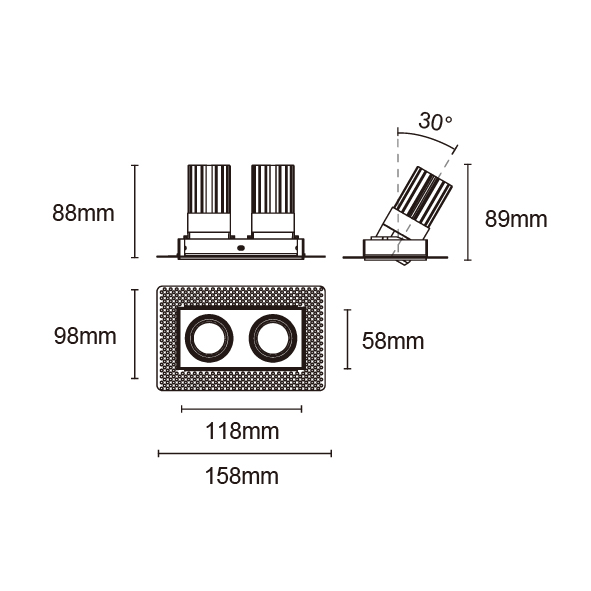

- 2314.401-2-LEE-18
- 10Wx2
- 774lmx2
-
-
STARLUX-50
ITEM NO. 2314.401-2-LEE-18
Consumption10Wx2
Current / Voltage800mA
LED Lumen774lmx2
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.401-2-ACOT-97-DW
- 10Wx2
- 14-611lm
-
-
STARLUX-50
ITEM NO. 2314.401-2-ACOT-97-DW
Consumption10Wx2
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.401-2-ACOT-97-WCW
- 10Wx2
- 740-951lm
-
-
STARLUX-50
ITEM NO. 2314.401-2-ACOT-97-WCW
Consumption10Wx2
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

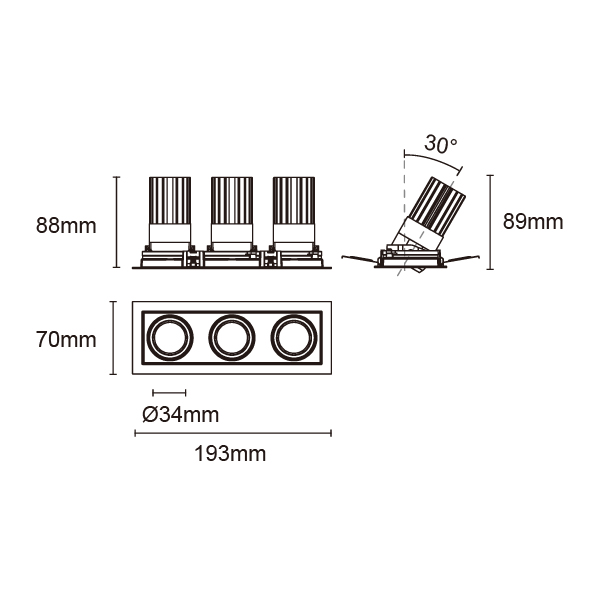

- 2214.412-3-LEE-18
- 10Wx3
- 774lmx3
-
-
STARLUX-50
ITEM NO. 2214.412-3-LEE-18
Consumption10Wx3
Current / Voltage800mA
LED Lumen774lmx3
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.412-3-ACOT-97-DW
- 10Wx3
- 14-611lmx3
-
-
STARLUX-50
ITEM NO. 2214.412-3-ACOT-97-DW
Consumption10Wx3
Current / Voltage250mA
LED Lumen14-611lmx3
Beam Angle 15°
CCT1800-3000K
*Other CCT Also Available
CRI1800-3000K
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2214.412-3-ACOT-97-WCW
- 10Wx3
- 740-951lmx3
-
-
STARLUX-50
ITEM NO. 2214.412-3-ACOT-97-WCW
Consumption10Wx3
Current / Voltage250mA
LED Lumen740-951lmx3
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue

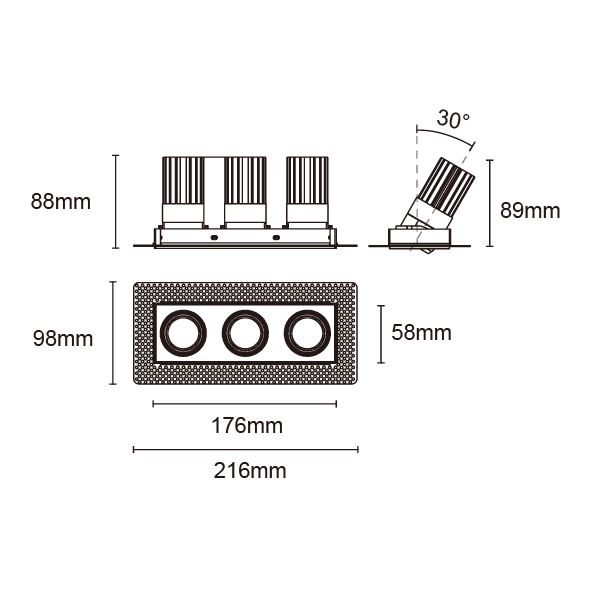

- 2314.401-3-LEE-18
- 10Wx3
- 774lm
-
-
STARLUX-50
ITEM NO. 2314.401-3-LEE-18
Consumption10Wx3
Current / Voltage800mA
LED Lumen774lm
Beam Angle 15°
CCT3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.401-3-ACOT-97-DW
- 10Wx3
- 14-611lm
-
-
STARLUX-50
ITEM NO. 2314.401-3-ACOT-97-DW
Consumption10Wx3
Current / Voltage250mA
LED Lumen14-611lm
Beam Angle 18°/28°/40°/55°
CCT1800-3000K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
- 2314.401-3-ACOT-97-WCW
- 10Wx3
- 740-951lm
-
-
STARLUX-50
ITEM NO. 2314.401-3-ACOT-97-WCW
Consumption10Wx3
Current / Voltage250mA
LED Lumen740-951lm
Beam Angle 18°/28°/40°/55°
CCT2700-6500K
*Other CCT Also Available
CRI90+
UGR
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
E-catalogue
