- Article number
- Led Consumption
- Lumen
- Cut Out
- Light Distribution
- 1510.023A
- 1.1W
- 110 (lm)
-

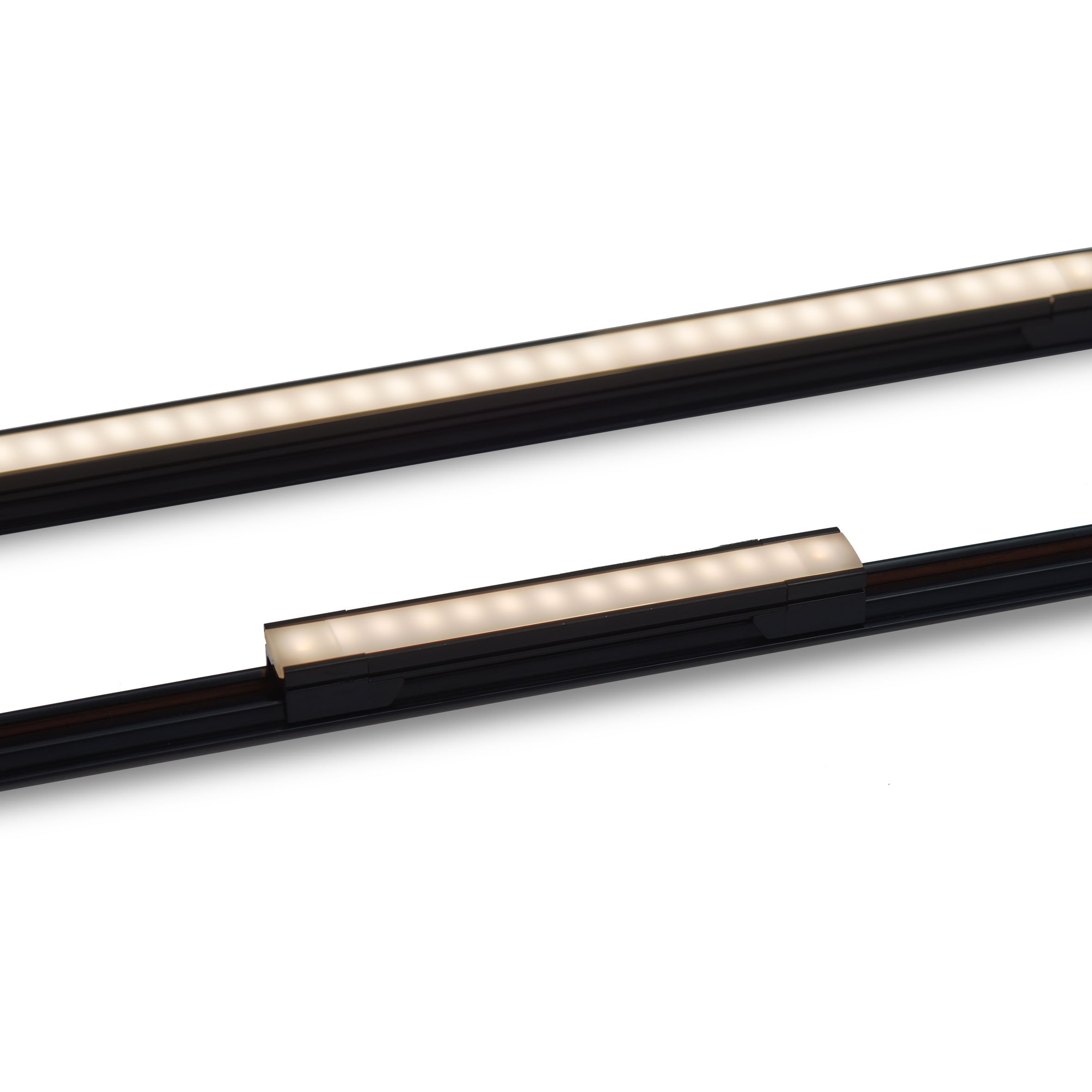

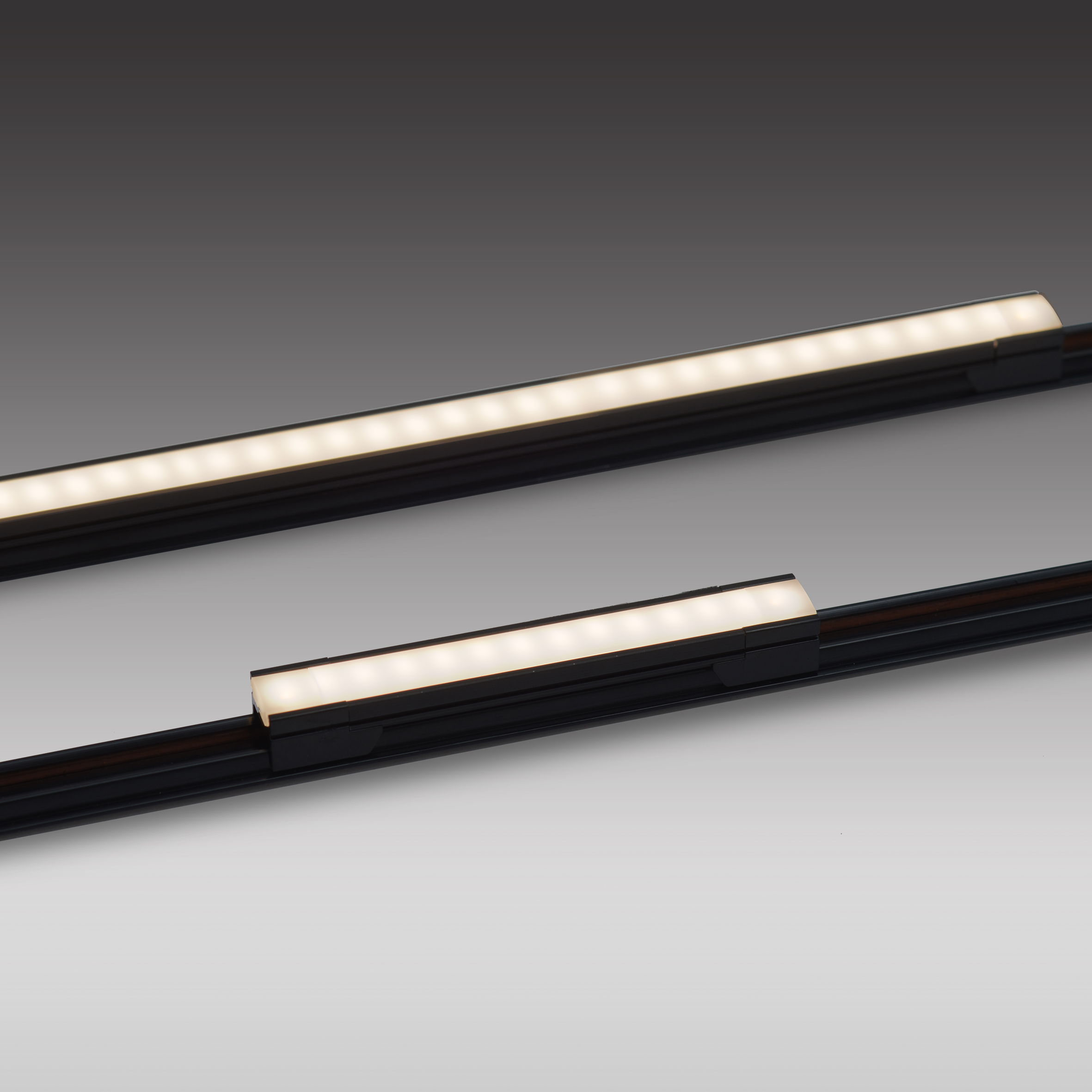

SHUTTLE–L
ITEM NO. 1510.023A
Consumption1.1W
Current / Voltage24VVdc
LED Lumen110 (lm)
Beam Angle 115°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1510.023B
- 4.2W
- 330 (lm)
-

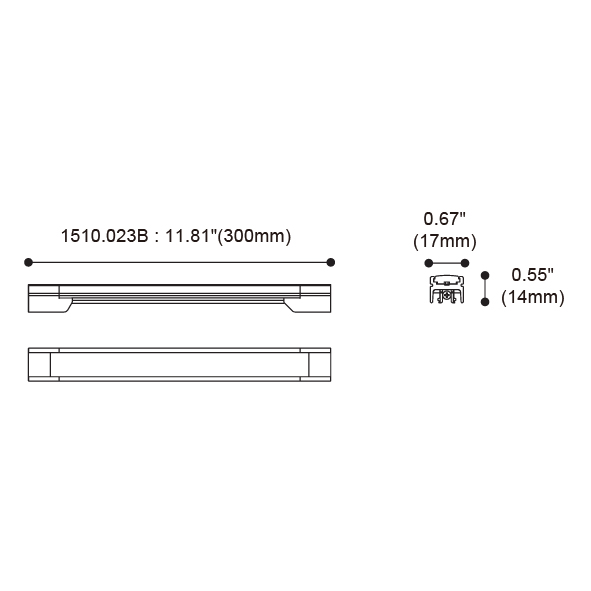

SHUTTLE–L
ITEM NO. 1510.023B
Consumption4.2W
Current / Voltage24V DC
LED Lumen330 (lm)
Beam Angle 115°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1510.023C
- 8W
- 660 (lm)
-
SHUTTLE–L

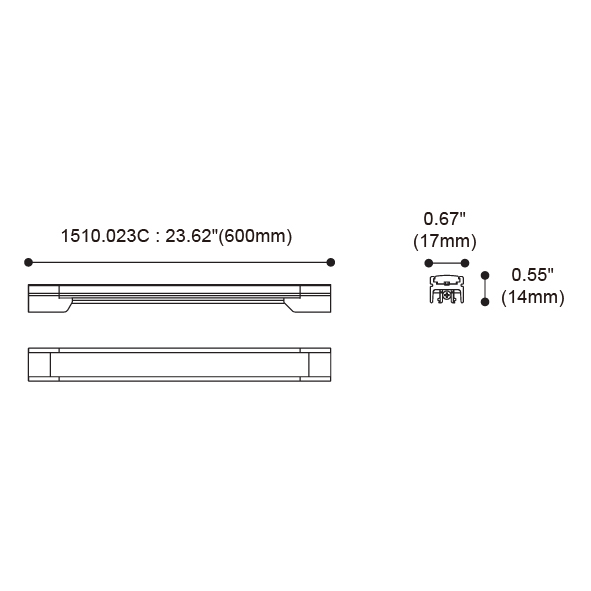

ITEM NO. 1510.023C
Consumption8W
Current / Voltage24V DC
LED Lumen660 (lm)
Beam Angle 115°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1510.023D
- 1.1W
- 110 (lm)
-
SHUTTLE–L

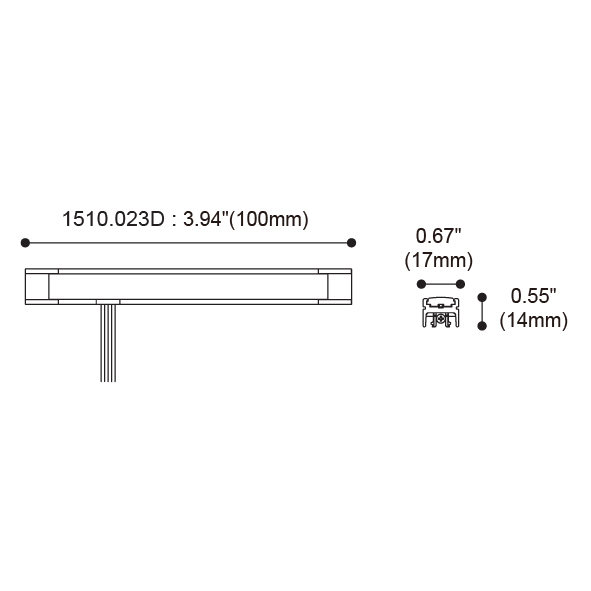

ITEM NO. 1510.023D
Consumption1.1W
Current / Voltage24V DC
LED Lumen110 (lm)
Beam Angle 115°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 1619.200
- 1.2W
- 50~70 (lm)
-

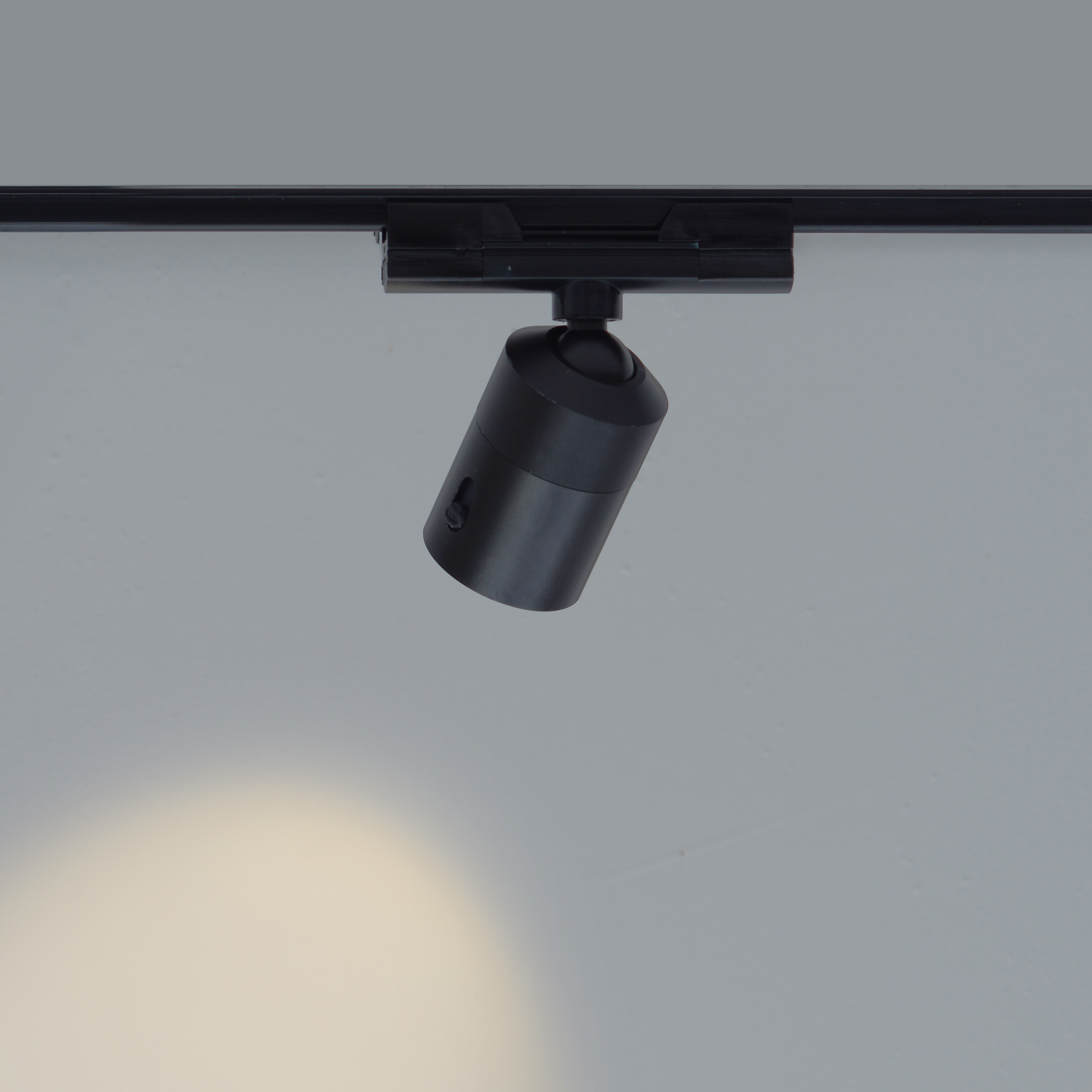

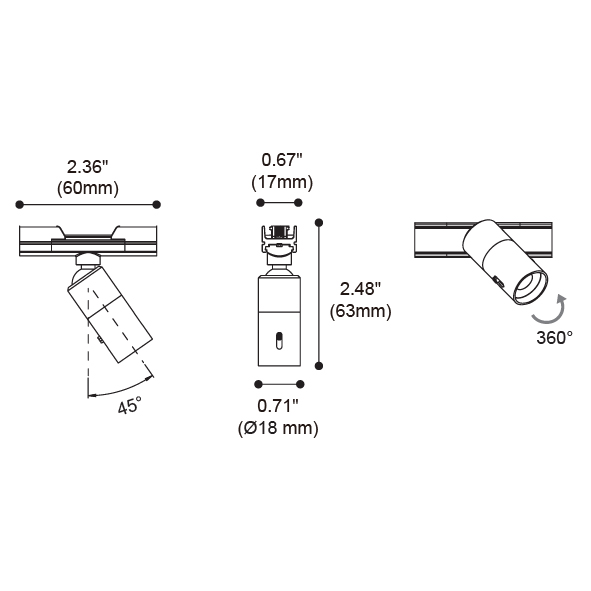

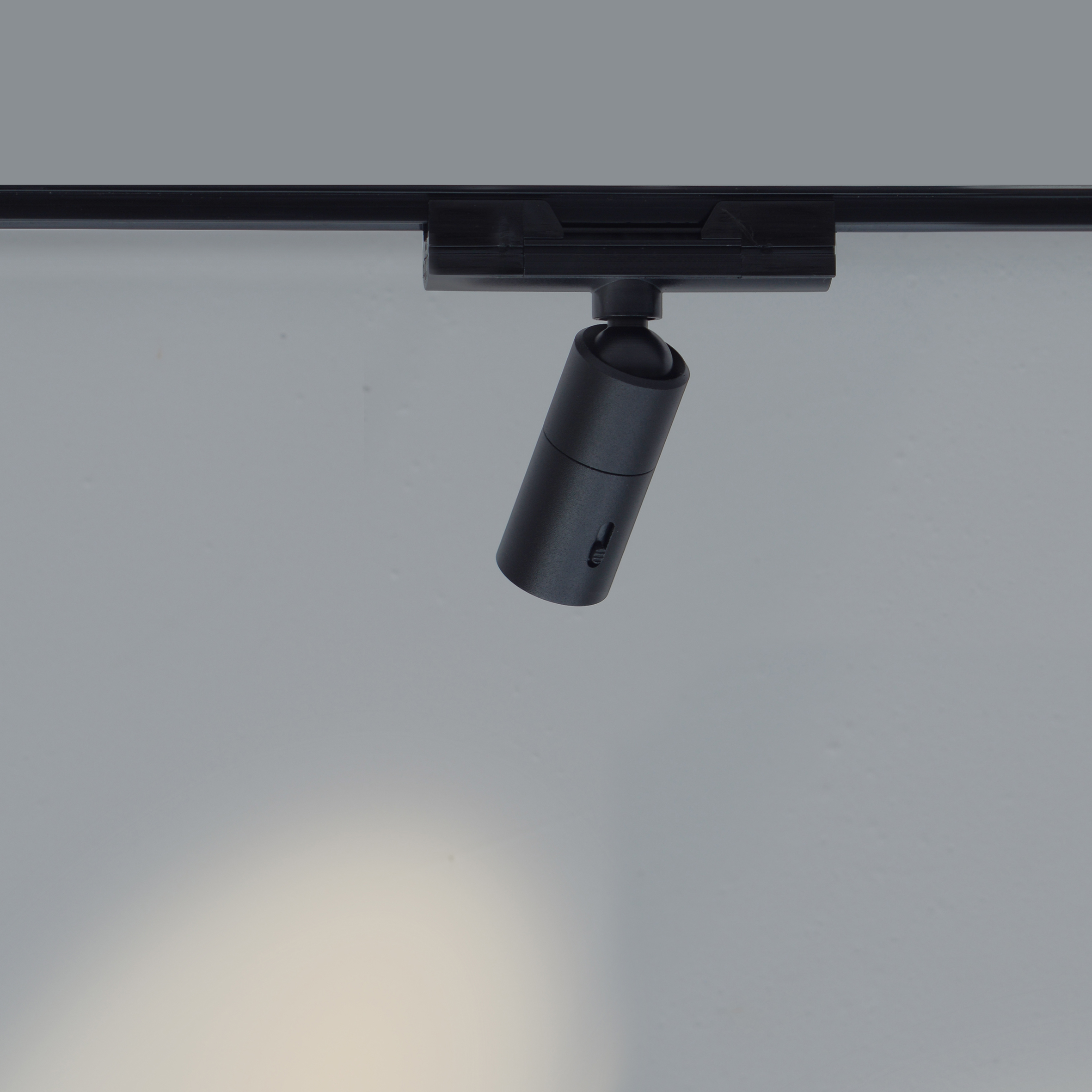

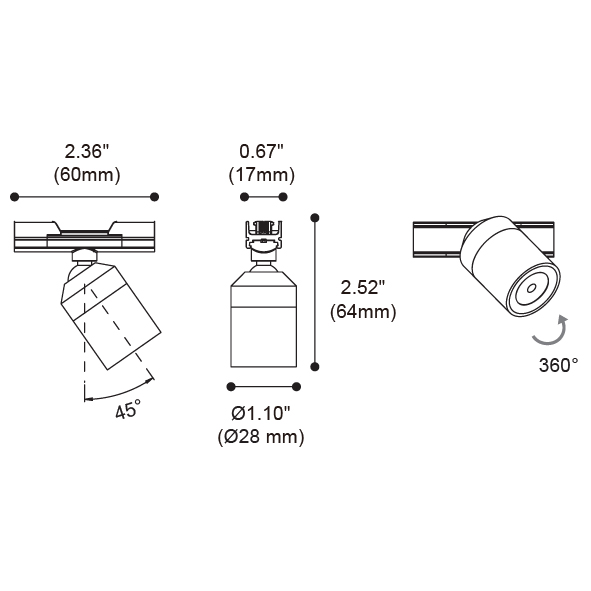

SHUTTLE–S
ITEM NO. 1619.200
Consumption1.2W
Current / Voltage24V DC
LED Lumen50~70 (lm)
Beam Angle 30°-55°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1619.205
- 2.7 W
- 50~70 (lm)
-

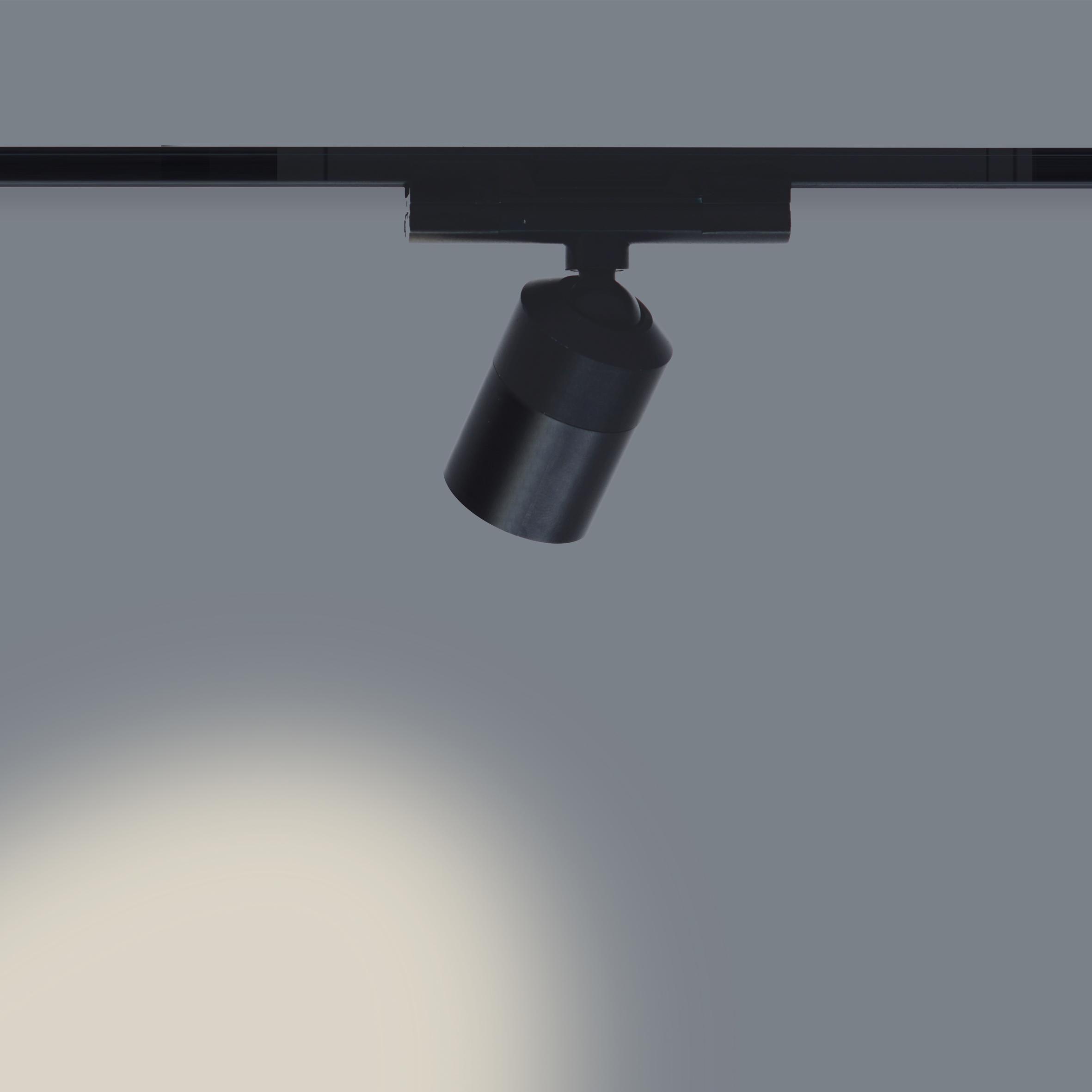

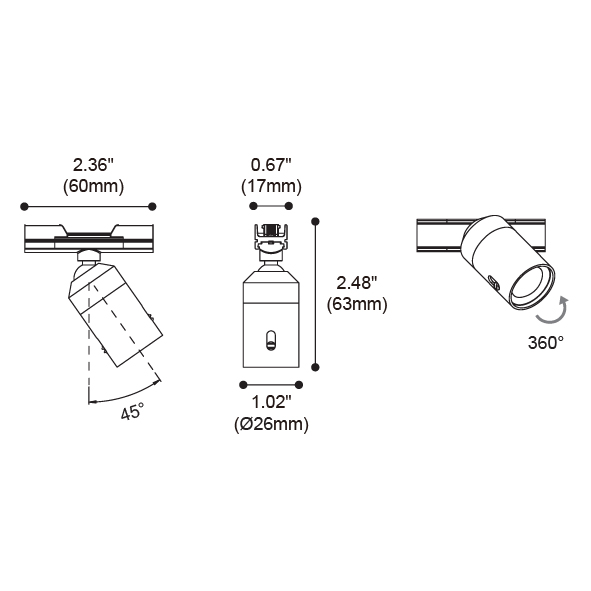

SHUTTLE–S
ITEM NO. 1619.205
Consumption2.7 W
Current / Voltage24V DC
LED Lumen50~70 (lm)
Beam Angle 8°-20°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1719.209
- 2.7W
- 210 (lm)
-

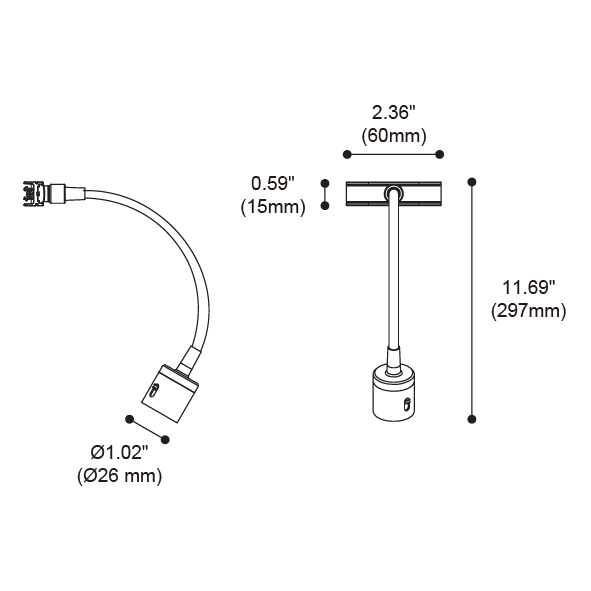

SHUTTLE–S–F
ITEM NO. 1719.209
Consumption2.7W
Current / Voltage24V DC
LED Lumen210 (lm)
Beam Angle 16°/22°/36°/29°x57°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1617.502
- 2.7W
- 50~70 (lm)
-
SHUTTLE–N
ITEM NO. 1617.502
Consumption2.7W
Current / Voltage24V DC
LED Lumen50~70 (lm)
Beam Angle 8°-20°
CCT3000k
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1768.100
- 4W
- 200 (lm)
-

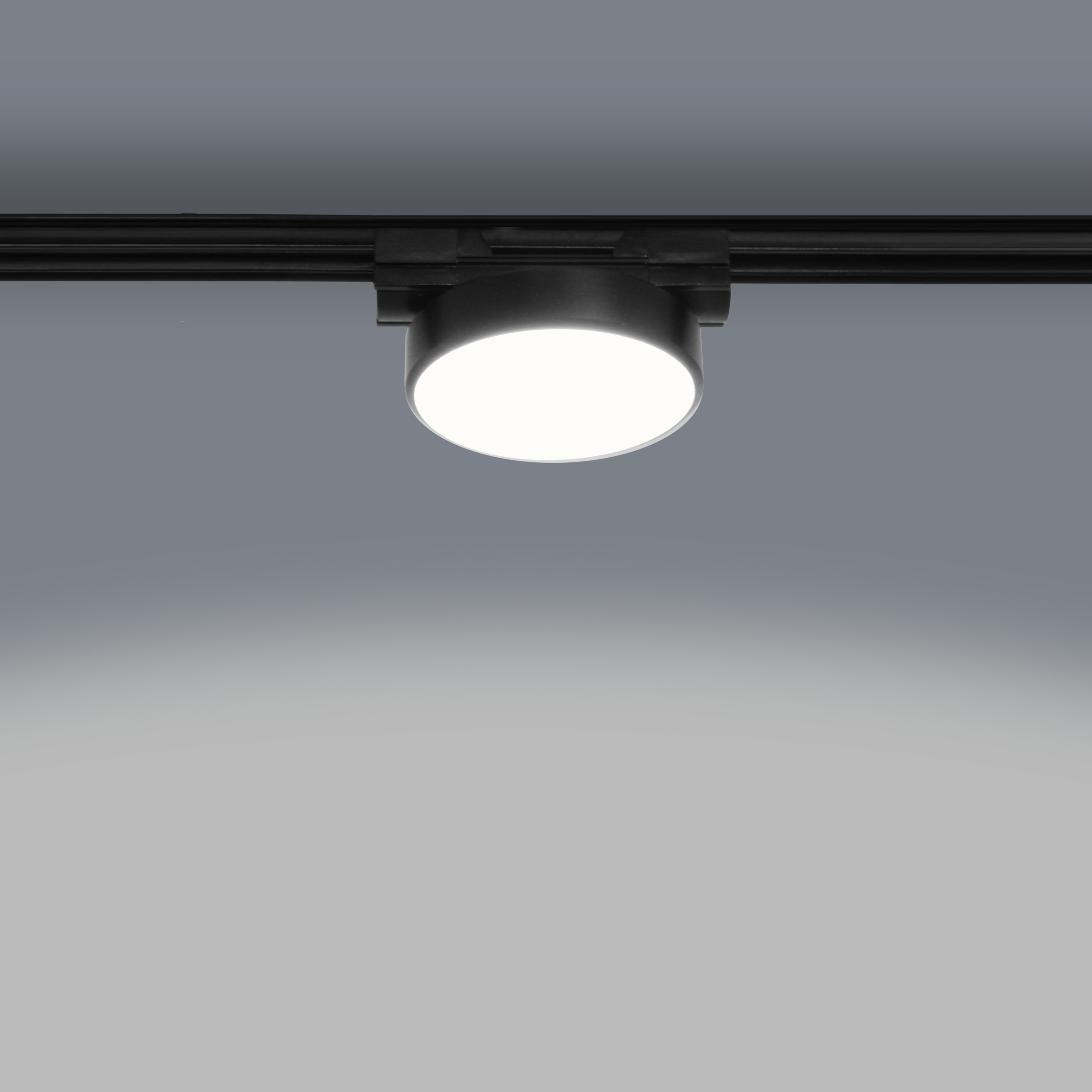

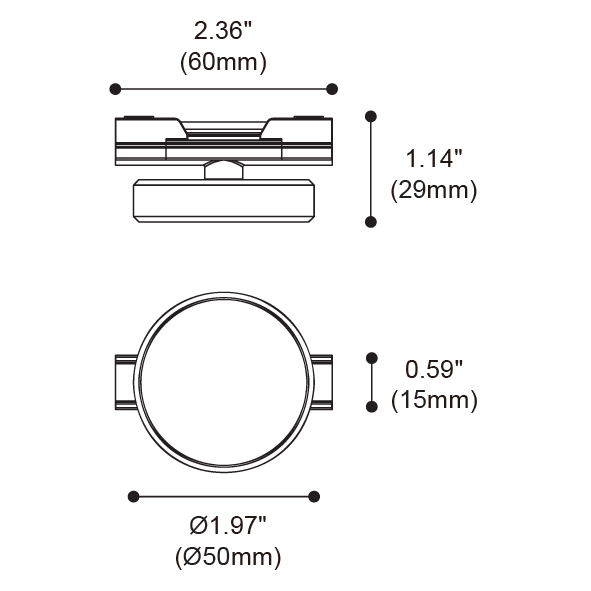

SHUTTLE–B
ITEM NO. 1768.100
Consumption4W
Current / Voltage24V DC
LED Lumen200 (lm)
Beam Angle 113°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
- Specification
- E-catalogue
- 1810.001A
- 1.1W
- 110 (lm)
-

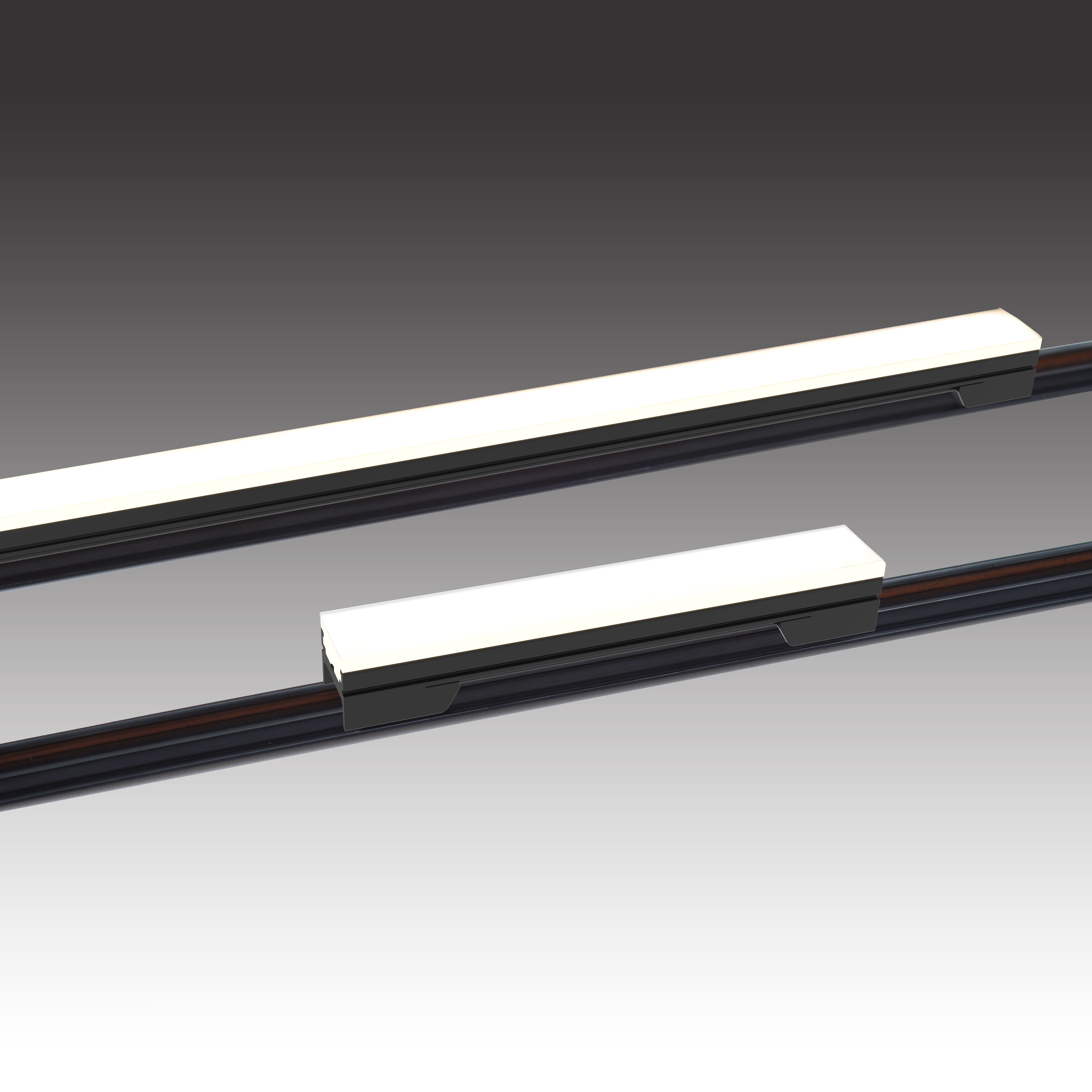

SHUTTLE–L-D
ITEM NO. 1810.001A
Consumption1.1W
Current / Voltage24V DC
LED Lumen110 (lm)
Beam Angle 130°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
- Specification
- E-catalogue
- 1810.001B
- 4.2W
- 330 (lm)
-
SHUTTLE–L-D

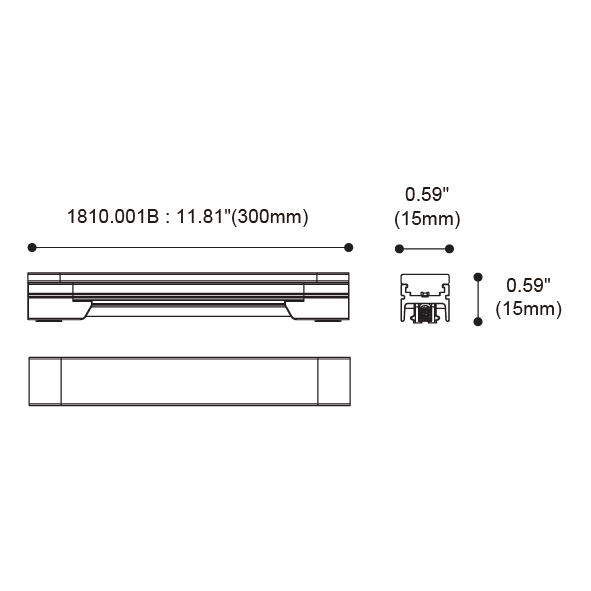

ITEM NO. 1810.001B
Consumption4.2W
Current / Voltage24V DC
LED Lumen330 (lm)
Beam Angle 130°
CCT3000K
*Other CCT Also Available
CRI90+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 1810.001C
- 8W
- 660lm
-

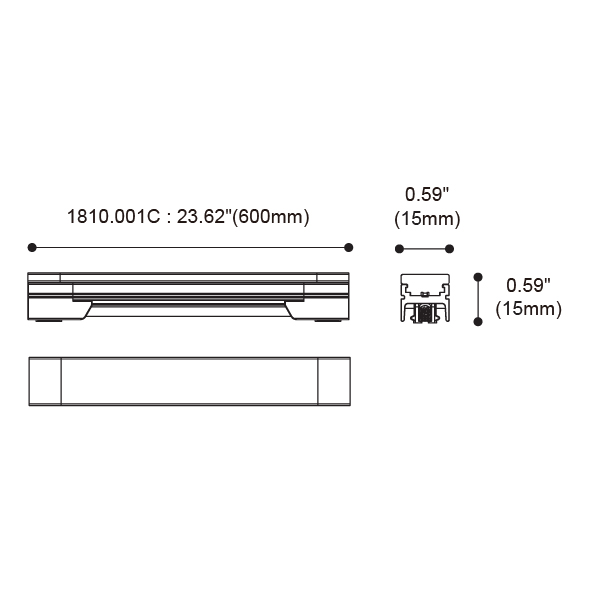

SHUTTLE–L-D
ITEM NO. 1810.001C
Consumption8W
Current / Voltage24V DC
LED Lumen660lm
Beam Angle 130°
CCT3000K
*Other CCT Also Available
CRI90+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
Photometric Data
Specification
- E-catalogue
- 1810.001D
- 1.1W
- 110 (lm)
-

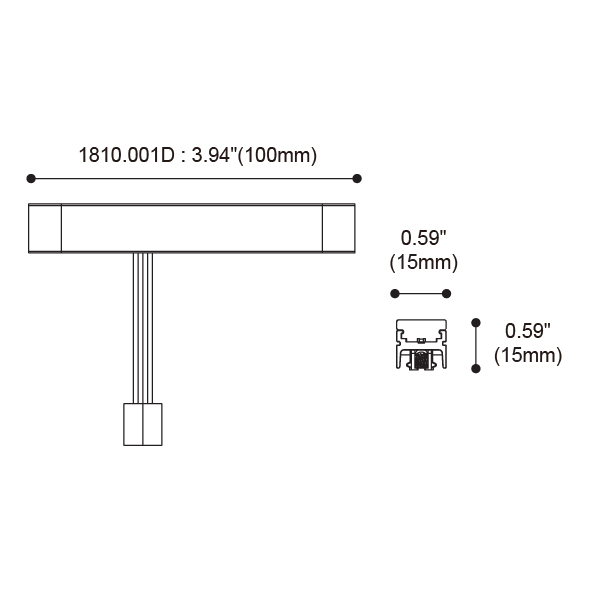

SHUTTLE–L-D
ITEM NO. 1810.001D
Consumption1.1W
Current / Voltage24V DC
LED Lumen110 (lm)
Beam Angle 130°
CCT3000K
*Other CCT Also Available
CRI80+
UGR-
Finishes
-
Download
- Product Picture
- Dimension
Instruction Manual
- Photometric Data
Specification
- E-catalogue
